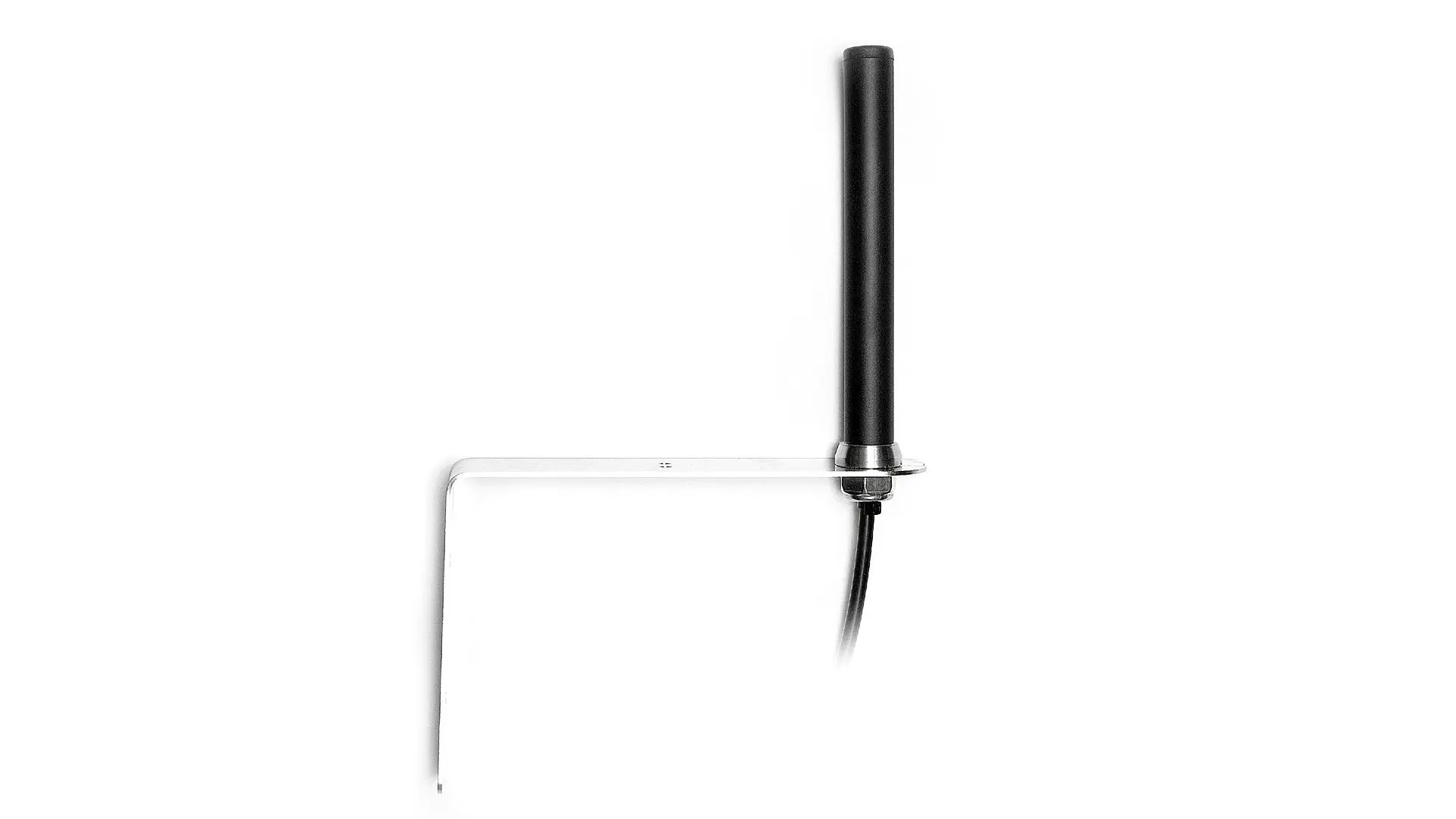

2J2202B-B05H
Dual Band WiFi Ground Plane Independent Wall Mount Antenna
Connections (1)
1×
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Mounting | Wall Mount |
|---|---|
| Dimensions (mm) | 240 × 36 × 155 (135 × Ø 16) |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM |
|---|---|
| Frequency | 2410-2490, 4920-5925 |
| VSWR | ~1.3:1, ~1.4:1 |
| Efficiency (%) | ~62.6, ~47.0 |
| Peak Gain (dBi) | ~2.5, ~1.5 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Ground Plane Independent
Customizable Cable and Connector
Antenna Bracket included
Waterproof Antenna
2.5 dBi WIFI Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
