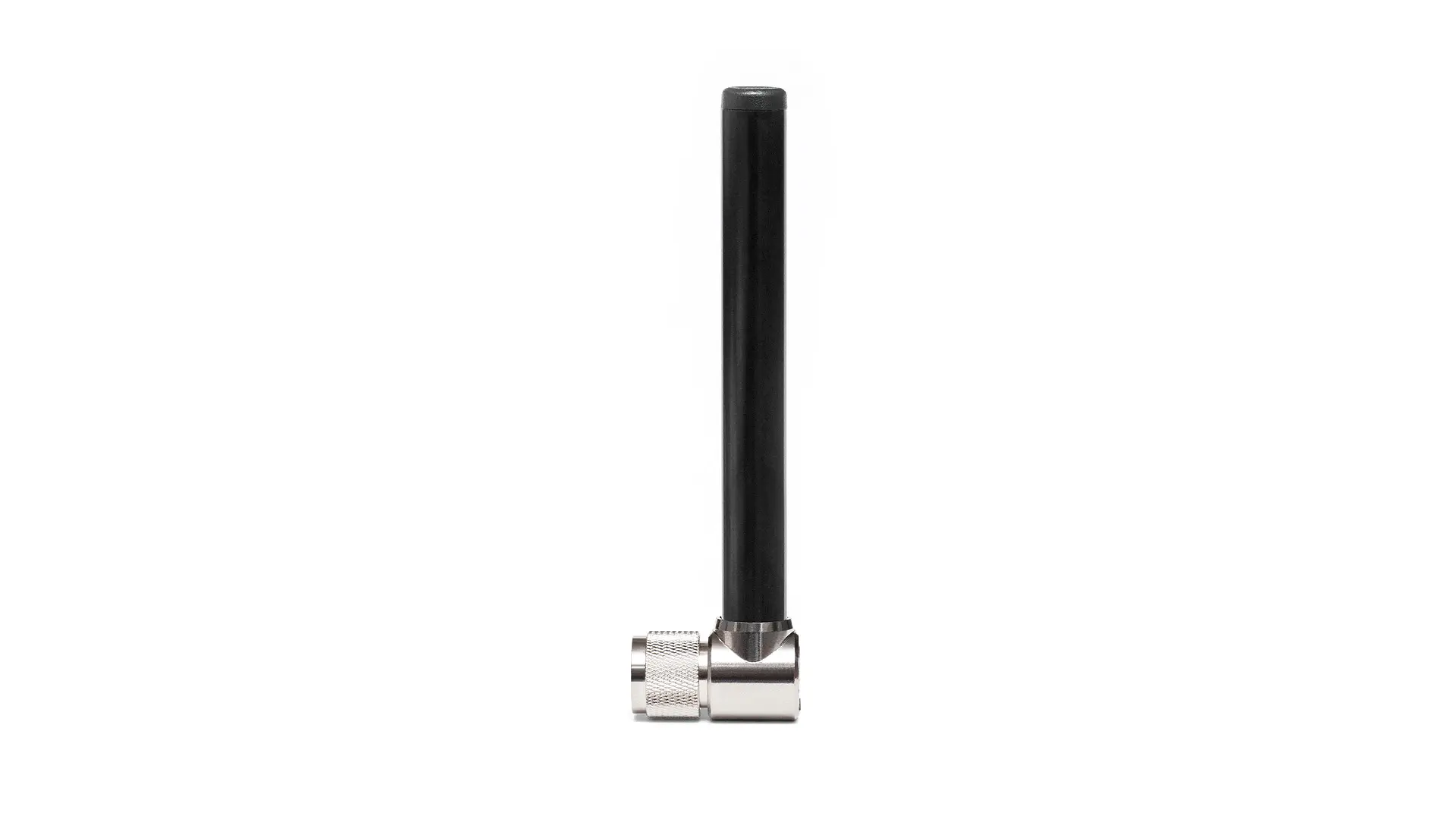

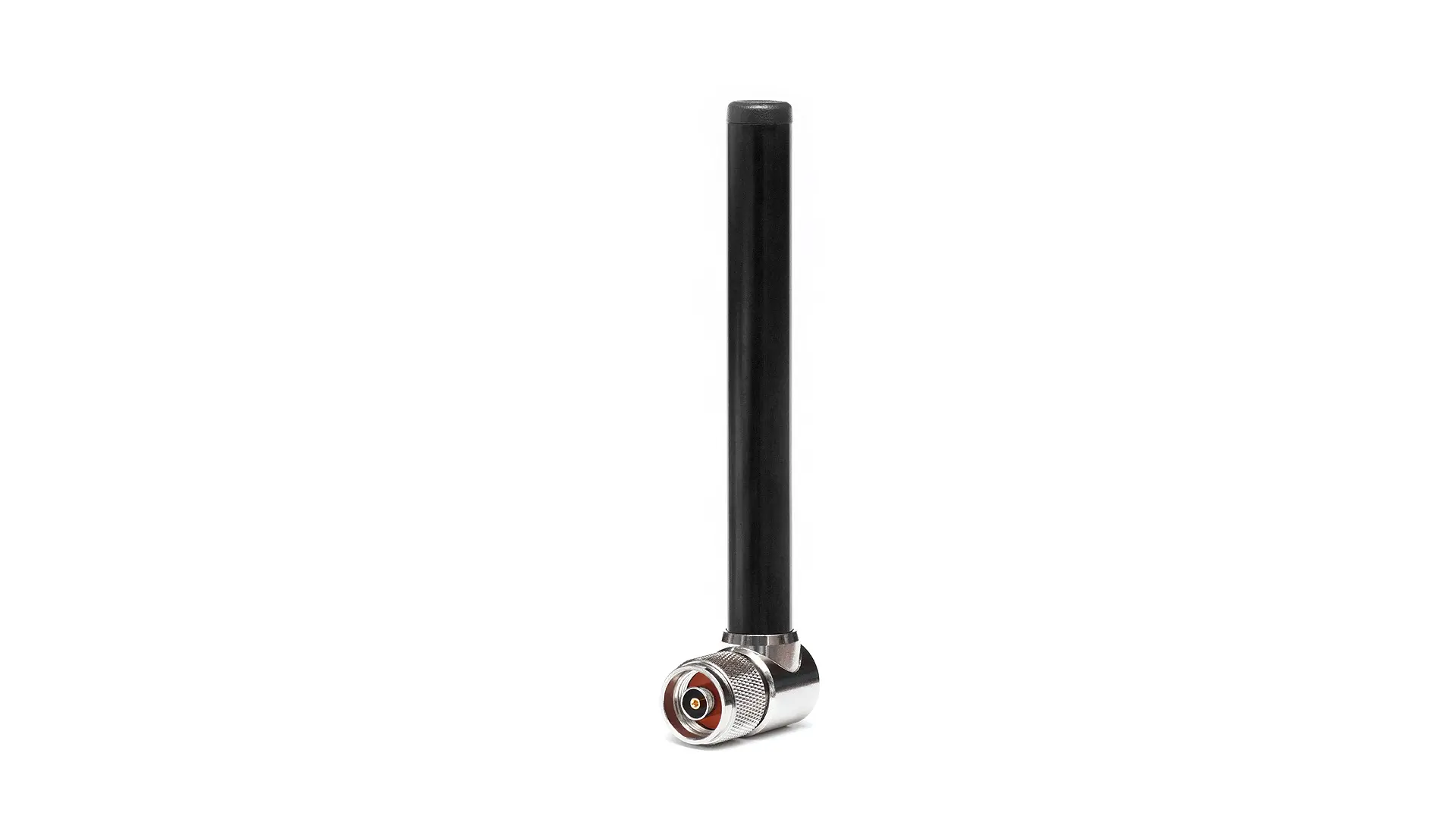

2J2202-C230N
Tri Band WIFI 6E / WIFI 7 ISM High Gain Ground Plane Independent Antenna
Connections (1)
1×
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Mounting | Connector Mount |
|---|---|
| Dimensions (mm) | 153 × 40.5 × 22 |
| Operating temperature | -40 °C to +85 °C |
| Connector type | N-Male-RP Right Angle connector |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.4:1, ~1.9:1, ~4.0:1 |
| Efficiency (%) | ~70.7, ~66.8, ~40.5 |
| Peak Gain (dBi) | ~3.8, ~2.1, ~1.8 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Omni-Directional |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Dipole Antenna
Ground Plane Independent
High Efficiency
WIFI 6E / WIFI 7 Antenna
3.8 dBi WIFI Peak Gain
High Gain
Reverse Polarity connector
N-Male-RP Right Angle connector
Applications
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
