2JDK0201Ga-C104N DevKit - GPS/GLO/QZSS/Galileo/L1

2JDK0201Ga-C104N DevKit

Connections (1)

GPS/GLO/QZSS/Galileo/L1

Mounting	Thru-Hole Mount Ceramic

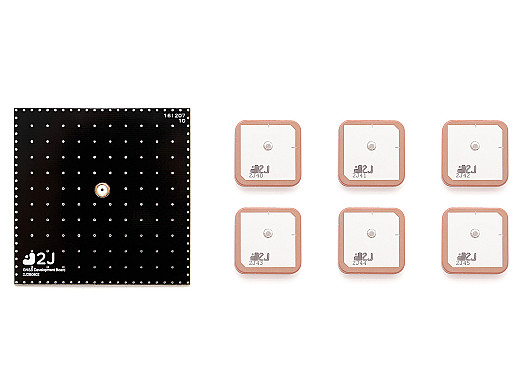

Included in Kit	1×2JDB0802-C104N Development Board 6×2JCP2540101Ga Ceramic Antennas
Dimensions (mm)	25 x 25 x 4 (Patches) 70.4 × 70.4 × 13.5 (Board)
Operating temperature	-40 °C to +85 °C

Product added to cart

Products documents

Datasheet
3D model

Antenna and electrical specifications

Scroll down

connection 1

GPS/GLONASS - Ceramic Passive Antenna

Standards	GPS/GLONASS/QZSS/Galileo
Frequency (MHz)	1575.42, 1598-1606 - Ceramic patch 2JCP2540101Ga (2J 40) 1580.42, 1603-1611 - Ceramic patch 2JCP2540102Ga (2J 41) 1585.42, 1608-1616 - Ceramic patch 2JCP2540103Ga (2J 42) 1590.42, 1613-1621 - Ceramic patch 2JCP2540104Ga (2J 43) 1595.42, 1618-1626 - Ceramic patch 2JCP2540105Ga (2J 44) 1600.42, 1623-1631 - Ceramic patch 2JCP2540106Ga (2J 45)
Passive Gain (dBi)	~3.6, ~3.9
Impedance (Ohm)	50
Radiation Pattern	Hemispherical

Key Features

GPS/GLONASS/QZSS/Galileo

High Gain

Thru-Hole Mount

Development Kit for GNSS

Set of 6 patches to try on devices

Patches 25 x 25 x 4 mm

Applications

Logistics and Shipping Smart Cities Smart Farming Fleet Management Autonomous Driving Drone Operation Security and Surveillance Transportation GIS - Geographic Information System Hazard Mitigation Automation Construction Marine Mining Industry Unmanned Vehicles Surveying Defense Aerial Photogrammetry Logistics Wearables Asset Tracking and Security Location Based Services Civil Applications Road Applications Aviation Applications Rail Applications Maritime Applications Satellite Realtime Navigation Autonomous Applications Mobile Applications Automotive Remote Monitoring and Control Air Quality and Pollution Monitoring Smart Parking and Vehicle Control Infrastructure Management Fire Detection & Management Waste Management Water Metering & Management Government & Public Safety Telemetry / Telematics Routers, Gateways & Data Terminals Utilities
