| Mounting | Adhesive Mount Rigid |
|---|---|
| Dimensions (mm) | 95.5 × 14 × 0.8 |
| Operating temperature | -40 °C to +85 °C |
| Standards | ZigBee, ISM, SIGFOX, LoRa |
|---|---|
| Frequency | 863-870, 902-928 |
| VSWR | ~1.9:1, ~2.4:1 |
| Efficiency (%) | ~90.3, ~84.4 |
| Peak Gain (dBi) | ~4.0, ~3.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
A very compact high-efficiency rigid Dual Band ISM PCB antenna

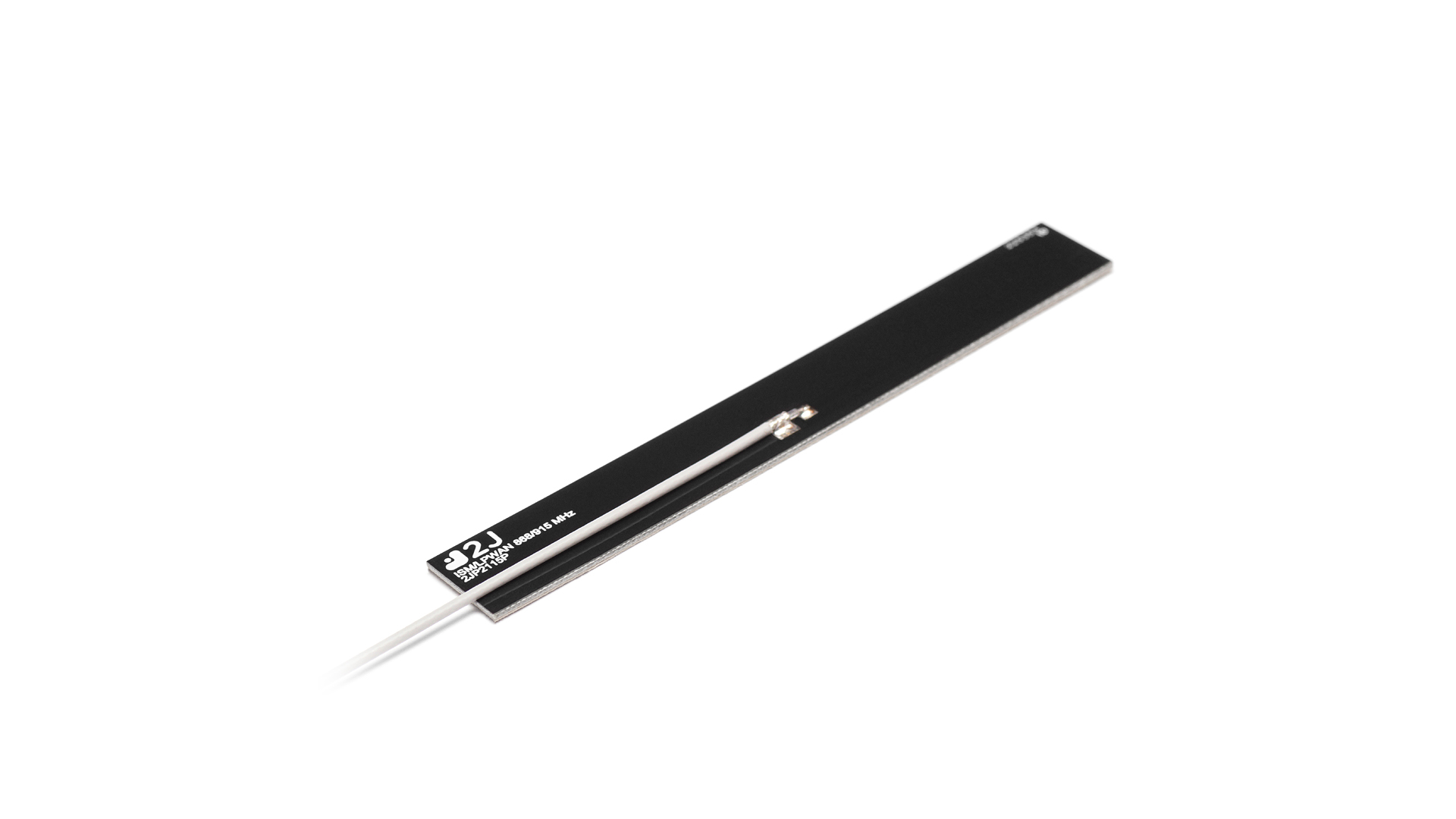

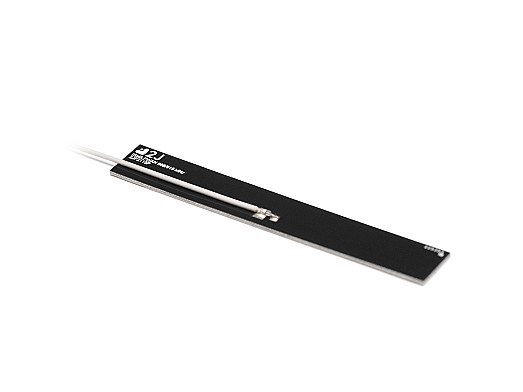

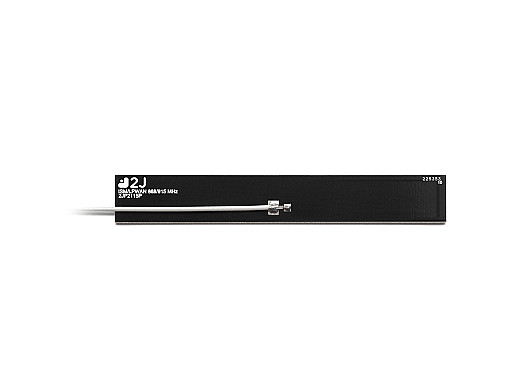

At only 0.8mm thick, the 2JP2115P is an ultra-thin, high efficiency, rigid fiberglass antenna that has been designed for NB-IoT applications where device available space is at a premium. Integrating an omnidirectional design, this antenna provides a 360° coverage for all implementations where a dedicated frequency is needed.
Utilizing 868MHz ISM for European standards and 915MHz ISM frequencies for the US market, this rigid internal antenna is ideal for applications such as M2M, smart metering devices, precision agriculture management, remote keyless systems, optical connectivity solutions, underwater sensors, smart healthcare, and fitness monitoring devices, etc.
Application Parameters
The 868MHz and 915MHZ ISM bands (industrial, scientific, and medical) are bands that can be used freely (free of charge and without authorization) for industrial, scientific and medical applications. The unlicensed ISM bands below 1GHz are widely used for various consumer and industrial applications where long range, system cost, and long battery life concerns are critical.
|
Typical applications - IoT applications |
Compatibility Standards 868 MHz / 915 MHz ISM Cables
|
Key Features
- Worldwide ISM coverage - 868 + 915 MHz
- Rigid Fiberglass PCB for convenient integration
- Self-Adhesive back side aiding Easy Installation
- Eco-friendly in Size
- High Efficiency
- Ground Plane Independent
- Customizable Cable and Connector
Installation
The 2JP2115P compact design antenna comes with a self-adhesive peel-and-stick backside, making installations simplistic in even very space-challenged designs.
