Antenna and electrical specifications
connection 1

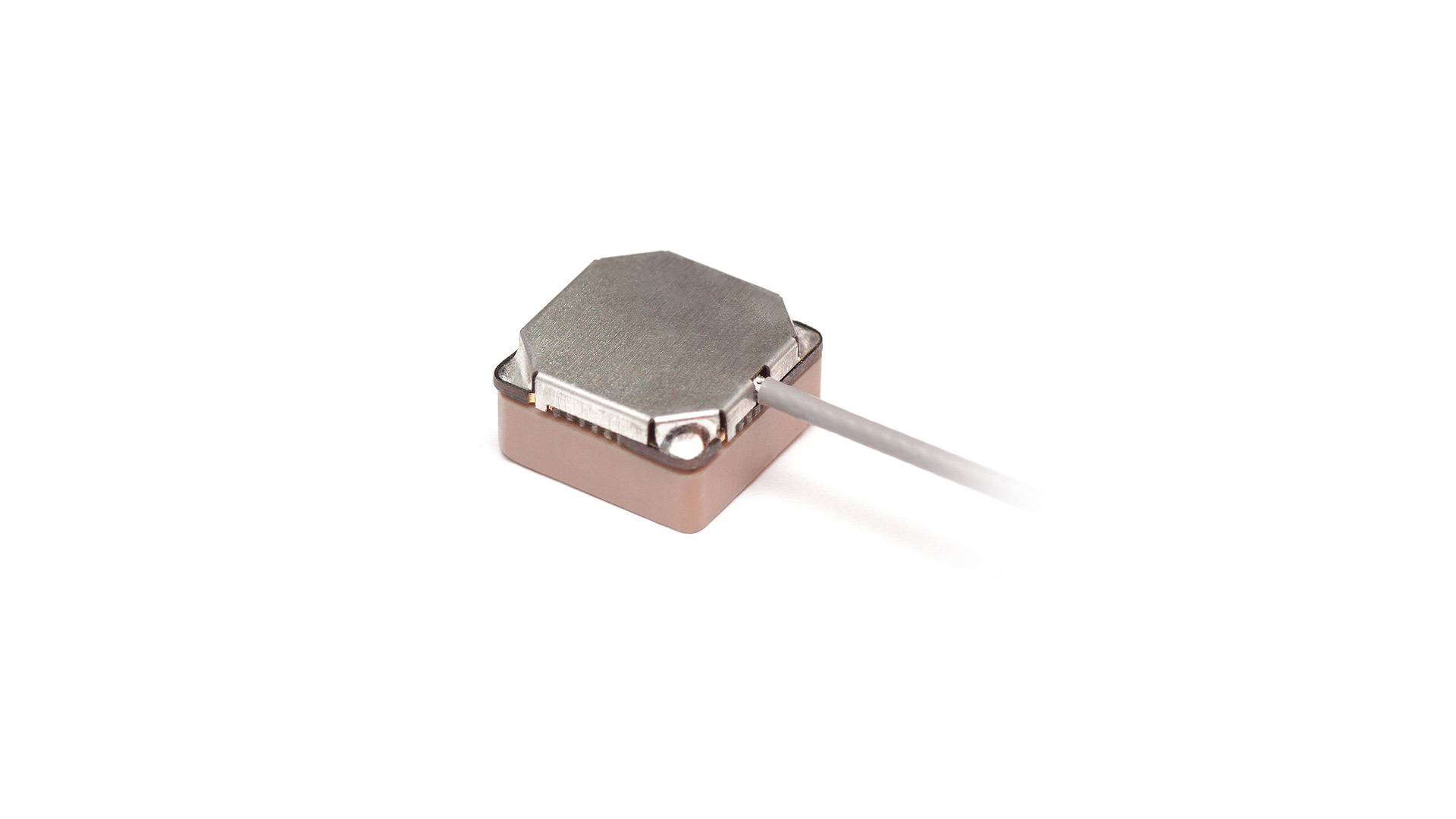

GPS/GLONASS - Ceramic Active Antenna
| Standards | GPS/GLONASS/QZSS/Galileo |
|---|---|
| Frequency | 1575.42, 1598-1606 |
| Impedance (Ohm) | 50 |
| Noise Figure (dB) | 1.5 @ 2.7 V |
| Current Consumption (mA) | 4 @ 2.7 V |
| ESD Protection (kV) | 6 |
| Passive Gain (dBi) | ~2.0 |
| Voltage Range (V) | 1.5 - 3.6 |
| Active Gain (dB) | 14 @ 2.7 V |
| Saw Filter Type | Pre-Filter |
| Out of Band Rejection (dB) | 43 |
