2JF0102P Antenna - 2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

2JF0102P Antenna - 2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

2JF0102P Antenna - 2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

2JF0102P Antenna - 2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

2JF0102P Antenna

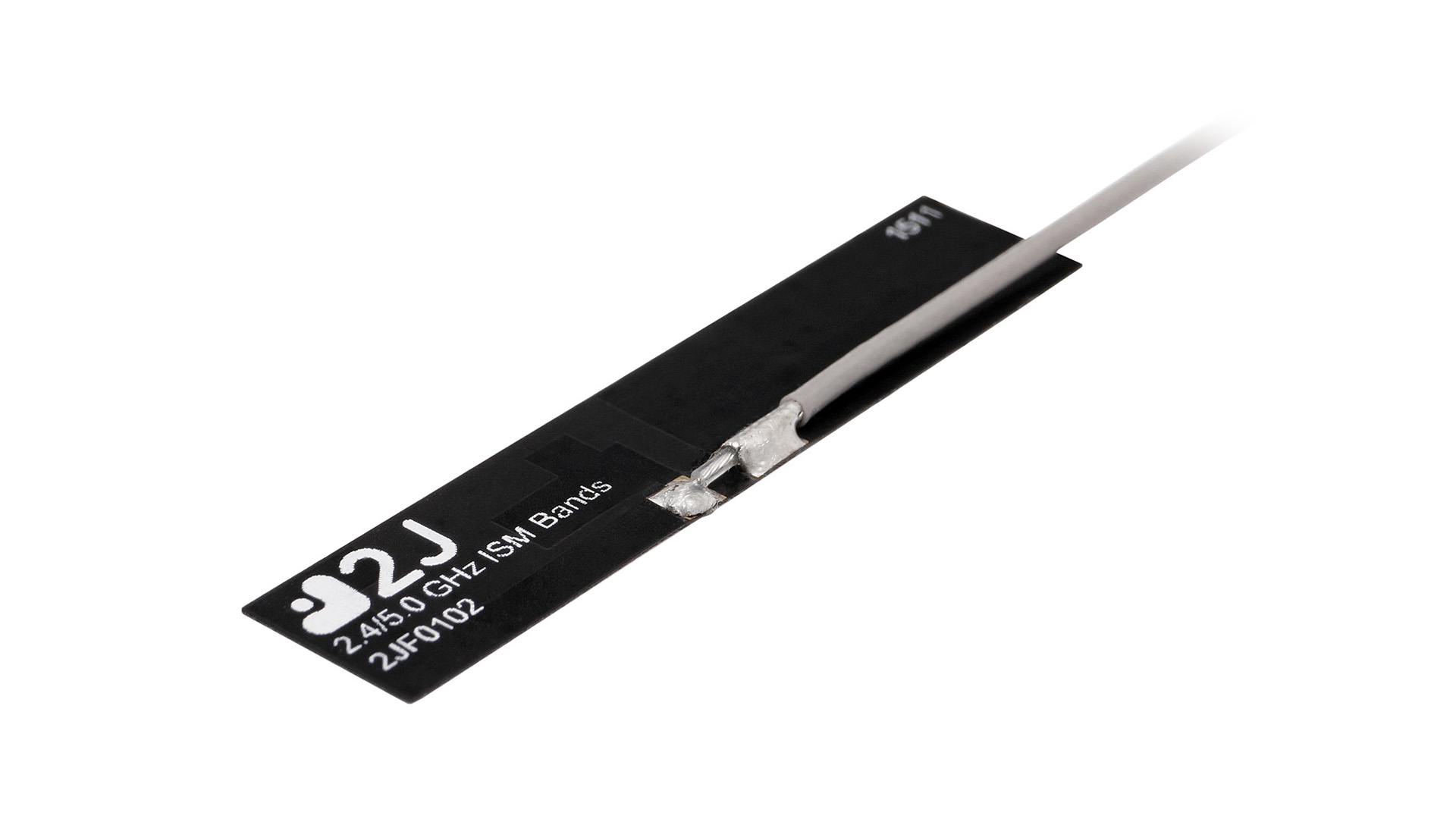

2.4/5.0/6.0 GHz WIFI 6E / WIFI 7 ISM Flexible ultra-thin PCB Adhesive Antenna

Connections (1)

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Mounting	Adhesive Mount Flexible
Dimensions (mm)	39.6x 8.4 x 0.1
Operating temperature	-40 °C to +85 °C
Note	Flexi Embedded Antenna
Standard colors

Product added to cart

Products documents

Datasheet
3D model

Antenna and electrical specifications

connection 1

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Frequency	2410-2490, 4920-5925, 5925-7125
VSWR	~1.2:1, ~1.4:1, ~2.1:1
Standards	WiFi, BT, ZigBee, ISM, SigFox, LoRa
Efficiency (%)	~76, ~82, ~60.4
Peak Gain (dBi)	~2.2, ~3.8, ~3.2
Impedance (Ohm)	50
Polarisation	Linear
Max. Input Power (W)	25

Key Features

Flexi Internal Antenna

WIFI 6E / WIFI 7 Antenna

Ground Plane Independent

3.8 dBi WIFI Peak Gain

High Performance

High Efficiency

Self-Adhesive

Small Form Factor

Customizable Cable and Connector

Applications

Consumer Electronics Robotics Drones and UAV´s Internal Antenna Solution Entertainment and Multimedia Smart Home Smart Cities Medical and Healthcare Drone Operation Gaming and Virtual Reality Retail Services Transportation GIS - Geographic Information System Hazard Mitigation Machine Control Automation Marine Defense Logistics Wearables Asset Tracking and Security Location Based Services Civil Applications Rail Applications Maritime Applications Autonomous Applications Mobile Applications Home Applications Public Wi-Fi Automotive Data Processing Remote Monitoring and Control Wireless Security System Smart Parking and Vehicle Control Infrastructure Management Fire Detection & Management Manufacturing Video Streaming Short-Range Personal Area Networks Digital Signage Routers, Gateways & Data Terminals RFID devices V2X - Vehicle to Everything IoT - Internet of Things Telemetry / Telematics High-Density Environments MU-MIMO Connectivity
