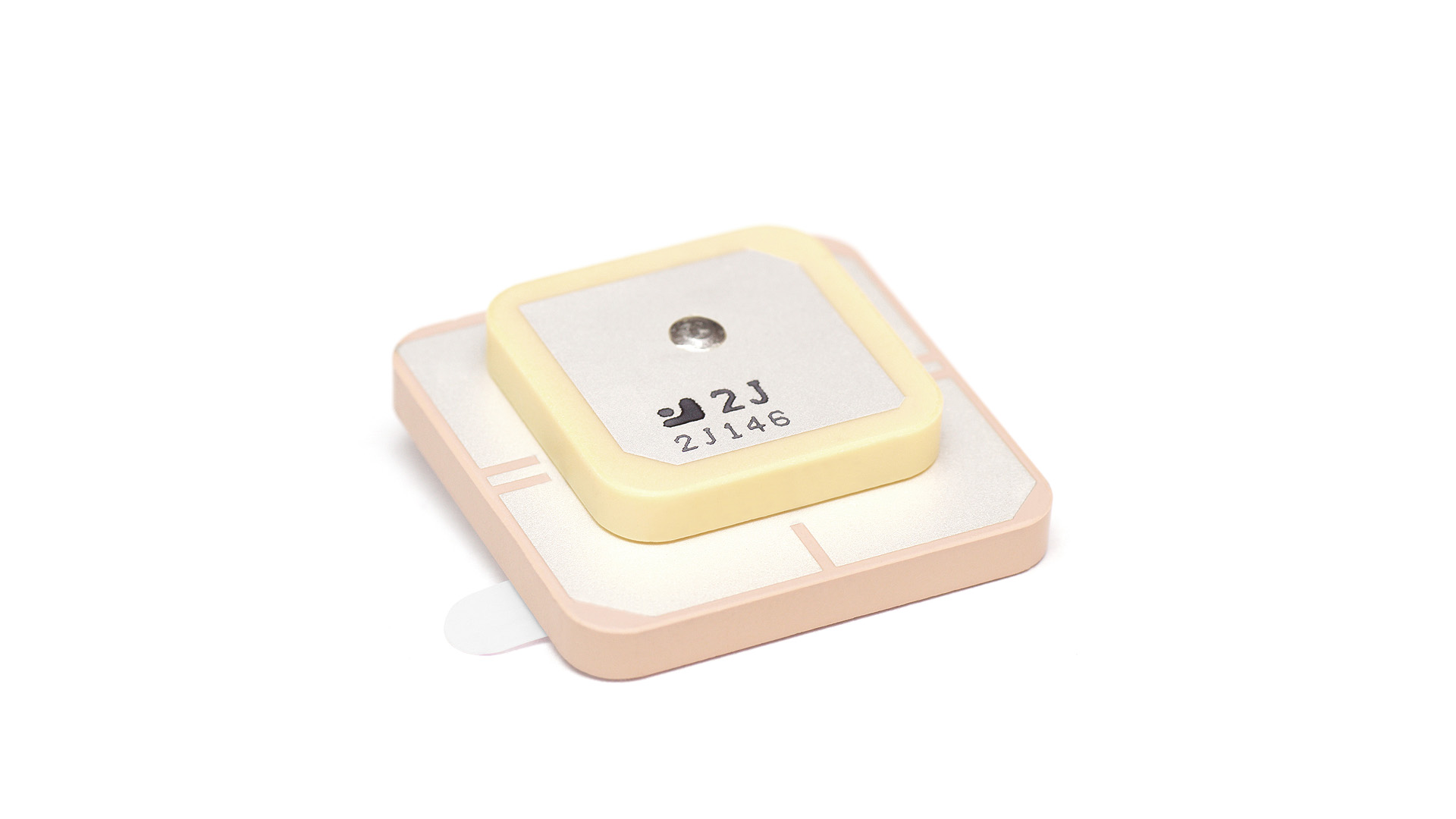

2JCP3683101Cc - L1L5 Antenna

High Precision GPS/GLONASS/BeiDou/Galileo/L1/L5 Passive Ceramic Antenna

Connections (1)
GPS/GLO/BEI/QZSS/Galileo/IRNSS/L1L5
Mounting Thru-Hole Mount Ceramic
Dimensions (mm) 36 × 36 × 8
Operating temperature -40 °C to +85 °C
Product added to cart
Products documents
Datasheet
3D model

Antenna and electrical specifications

Scroll down
connection 1

GPS/GLONASS/BeiDou/IRNSS/L1L5 - Ceramic Passive Antenna

Technologies GPS/Glonass/Beidou/QZSS/Galileo/IRNSS/SBAS/L1L5
Bandwidth (MHz) 1176, 1561-1606
Bands L5, L1
Frequency 1176.45, 1561.098, 1575.42, 1602.00
Standards GPS(L5), BeiDou(B2a , QZSS(L5), Galileo(E5a), IRNSS(L5), GPS(L1C), GLONASS(L1OF), BeiDou(B1), QZSS(L1C), Galileo(E1), SBAS (L1)
Return Loss (dB) ~-26.2, ~-12.6
VSWR ~1.1:1, ~1.6:1
Efficiency (%) ~63.6, ~77.6
Passive Peak Gain (dBi) ~3.1, ~4.6
Average Gain (dB) ~-2.0, ~-1.2
Impedance (Ohm) 50
Radiation Pattern Hemispherical
Polarization RHCP

Key Features

Passive GNSS Ceramic Antenna
L1/L5 Multi-Band-Constellation
Embedded Antenna
Ground Plane Dependent
4.6 dBi GNSS Peak Gain
Single Feed Technology
Stacked Patch

Antenna Description

2JCP3683101Cc

Bringing the most advanced GPS precision technology to the global navigational platform

The 2JCP3683101Cc features superior precision, greater bandwidth, and an advanced signal design by combining L1 and L5 bands catering to GPS, GLONASS, BeiDou, Galileo, IRNSS and SBAS navigational technologies. The L5 band is the most advanced GNSS signal on the market and brings military-grade GPS accuracy to users worldwide. The Satellite-based Augmentation System (SBAS) delivers correction data such as satellite position errors, clock/timing errors, and estimations of degradation parameters making it ideal for civil aviation safety-critical applications. The single feed 2JCP3683101Cc is designed with RHCP and a hemispherical radiation pattern offering passive peak gains of ~3.1/~4.6 dBi while operating high efficiency.

Suggested applications include:

- Aviation Safety
- Safety-Critical Systems & Transportation
- Autonomous Vehicles
- Agriculture
- Navigation

Compatibility Standards

L5
-GPS(L5), BeiDou(B2a), QZSS(L5), Galileo(E5a), IRNSS(L5)

L1
-GPS(L1C), GLONAS(L1OF), BeiDou(B1), QZSS(L1C), Galileo(E1), SBAS (L1)

Installation and Durability

The stacked patch design and small form factor allow for easy off-the-shelf internal integration via thru-hole mount and additional high-quality 5000NS double-sided adhesive. Both patches are constructed with high quality ceramic material offering durability in temperatures ranging between -40C to +85C. This is a passive antenna and for cable runs of more than 100 feet, we recommend adding in-inline amplifiers to account for transmission line loss. Our highly trained experts are available to assist our customers with tuning and integration support for optimal antenna performance.  2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.
