2JCP1820101Da Antenna - GPS/BEI/QZSS/Galileo/L1

2JCP1820101Da Antenna - GPS/BEI/QZSS/Galileo/L1

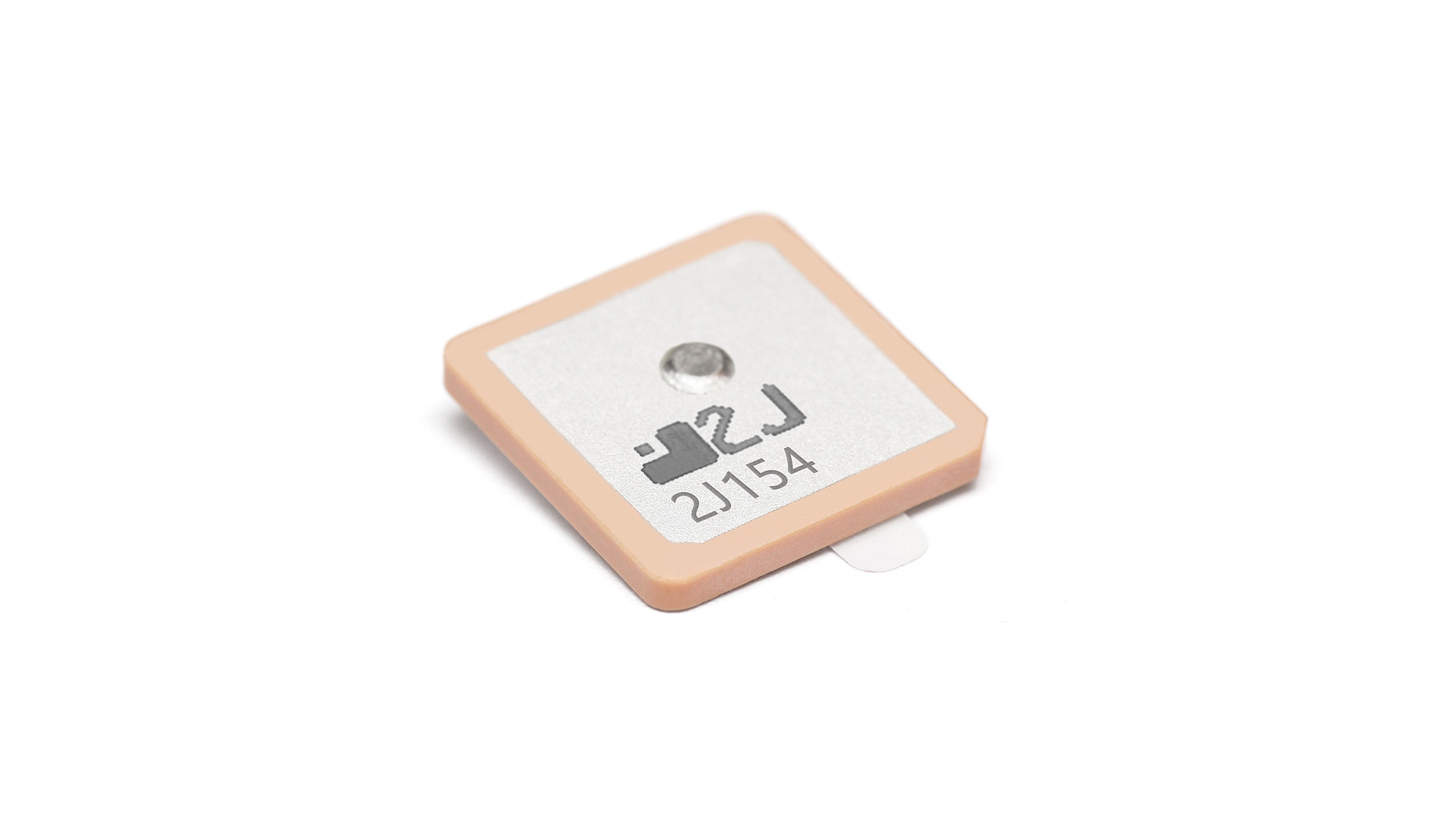

2JCP1820101Da Antenna

GPS/BeiDou 1561-1575 MHz High Efficiency Ground Plane Dependent Ceramic Passive Antenna

Connections (1)

GPS/BEI/QZSS/Galileo/L1

Mounting	Thru-Hole Mount Ceramic
Dimensions (mm)	18.5 x 18.5 x 2
Operating temperature	-40 °C to +85 °C

Product added to cart

Products documents

Datasheet

Antenna and electrical specifications

connection 1

GPS/BeiDou - Ceramic Passive Antenna

Standards	GPS/BeiDou/QZSS/Galileo
Frequency	1561.098, 1575.42
Passive Gain (dBi)	~3.6, ~4.0
Efficiency (%)	~63.1, ~64.0
Impedance (Ohm)	50
Radiation Pattern	Hemispherical
Polarization	RHCP

Key Features

Passive GNSS Ceramic Antenna

Embedded Antenna

Ground Plane Dependent

4.0 dBi GNSS Peak Gain

High Efficiency

Right Hand Circular Polarisation (RHCP)

Applications

Consumer Electronics Robotics Drones and UAV´s Embedded Antenna Solution Logistics and Shipping Smart Cities Smart Farming Fleet Management Autonomous Driving Drone Operation Security and Surveillance Transportation GIS - Geographic Information System Hazard Mitigation Automation Construction Marine Mining Industry Unmanned Vehicles Surveying Defense Aerial Photogrammetry Logistics Wearables Asset Tracking and Security Location Based Services Civil Applications Road Applications Aviation Applications Rail Applications Maritime Applications Satellite Realtime Navigation Autonomous Applications Mobile Applications Automotive Remote Monitoring and Control Air Quality and Pollution Monitoring Smart Parking and Vehicle Control Infrastructure Management Fire Detection & Management Waste Management Water Metering & Management Government & Public Safety Telemetry / Telematics Routers, Gateways & Data Terminals Utilities
