5GNR Waterproof IP67 and IP69 connector mount external antenna by 2J Antennas 5GNR Waterproof IP67 and IP69 connector mount external antenna by 2J Antennas 5GNR Waterproof IP67 and IP69 connector mount external antenna by 2J Antennas
5GNR Waterproof IP67 and IP69 connector mount external antenna by 2J Antennas
5GNR Waterproof IP67 and IP69 connector mount external antenna by 2J Antennas
5GNR Waterproof IP67 and IP69 connector mount external antenna by 2J Antennas
2JW1483 5G NR Antenna

Dagger 5GNR/4G/3G/2G Waterproof IP67 IP69 Connector Mount Antenna

Connections (1)
5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Mounting Connector Mount
Dimensions (mm) 192 × 20 × 18
Operating temperature -40 °C to +85 °C
Certificates IP67, IP69
Standard colors
Product added to cart
Products documents
Datasheet
3D model

Antenna and electrical specifications

Scroll down
connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-3800
Return Loss (dB) ~-13.7, ~-14.3, ~-4.4
VSWR ~1.6:1, ~1.7:1, ~6.3:1
Efficiency (%) ~50.0, ~55.2, ~28.1
Peak Gain (dBi) ~-0.4, ~0.6, ~-1.6
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25

Key Features

Dipole Antenna
Ground Plane Independent
Ultra Wide band Antenna
617-3800 MHz Sub 6GHz Bands
Full 4GLTE backward compatibility
0.6 dBi 5G NR Peak Gain
High Performance
Waterproof Antenna

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 617-960 1427-2690 3300-3800
Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600		 3300, 3500, 3600, 3700
5GNR Bands n5, n8 ,12, n20, n28, n71,
n81, n82, n83,		 n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86		 n78
4GLTE Bands B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85		 B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70		 B22, B42, B43, B48,
B49, B52
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26		 B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40		 B22
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R		 1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19		 BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21



Antenna Description

2JW1483

The Unmatched Leader on the Market for Outdoor Applications

2J Antennas is excited to offer the only fully waterproof, IP67 and IP69 certified 5GNR Connector Mount Antenna (2JW1483) on the market catering to 5G, 4G, 3G, 2G and CDMA  technologies making it the number one choice for outdoor applications. This antenna is ideal for devices that service the 5GNR, LTE, FirstNet, CBRS, LPWA, CAT-x, CAT-Mx, CAT-NBx, and NB-IoT standards. The 2JW1483 operates with up to ~55.2% efficiency while maintaining a stable 360-degree omni-directional radiation pattern making it ideal for Low-Power Wide-Area found in commercial, industrial, residential and emergency service industries.

Suggested Applications:

- Outdoor Telemetry
- Utility Meters Concentrators
- NEMA Housing Solutions
- Gas / Electric Smart Metering
- Smart Home
- Survey Devices
- First Responders / Emergency Support
- Industrial IoT

All our products have been tested by our expert engineers and measured in our certified CTIA 3D Anechoic Chamber. Please contact our experienced team for assistance with antenna selection and recommendations.

Installation / Environmental

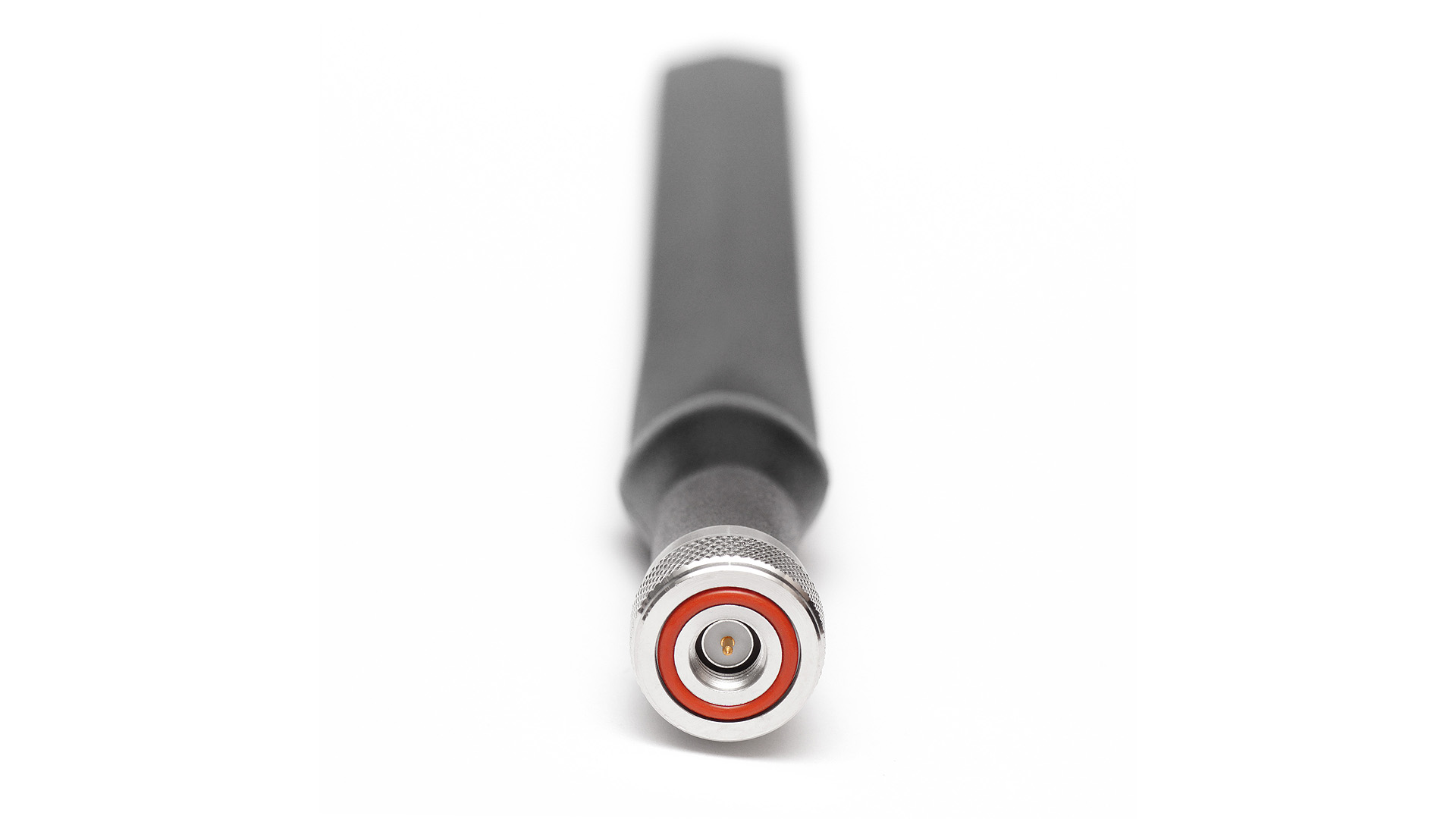

The slim design (192 x 20 x 18 mm), SMA-Male connector and dipole topology allow for easy direct installation to any NEMA rated, plastic or metal enclosures. Manufactured with PC/ ABS UV stable materials, this antenna is the most durable on the market with full IP67 and IP69 certification. The 2JW1483 is ground plane independent eliminating any grounding restrictions during the installation process. The health of the environment is important to 2J Antennas; therefore, all our products are manufactured without hazardous materials making us fully REACH and RoHS compliant.

Applications

Mobile Networks Cellular Networks Machine Control Wearables Asset Tracking and Security Civil Applications Automotive Telecommunication Broadband Communications Wireless Security System Energy Monitoring Air Quality and Pollution Monitoring Telemetry / Telematics Entertainment and Multimedia IoT - Internet of Things Smart Home Logistics and Shipping Smart Cities Industrial IoT & Monitoring Smart Farming Fleet Management Medical and Healthcare Autonomous Driving Drone Operation Security and Surveillance Gaming and Virtual Reality Mission Critical Communications Transportation GIS - Geographic Information System Cartographic Hazard Mitigation Automation Agriculture Construction Mining Industry Unmanned Vehicles Surveying Defense Aerial Photogrammetry Logistics Location Based Services Road Applications Rail Applications Maritime Applications Autonomous Applications Mobile Applications Data Processing Remote Monitoring and Control Smart Metering Smart Lighting Smart Parking and Vehicle Control Infrastructure Management Fire Detection & Management Waste Management Water Metering & Management Government & Public Safety Building Control Manufacturing Video Streaming Smart Grid Private Cellular Networks Electricity Metering & Management Resources Management Digital Signage Routers, Gateways & Data Terminals Utilities First Responder Fleets Fire Departments C-V2X - Cellular Vehicle to Everything
