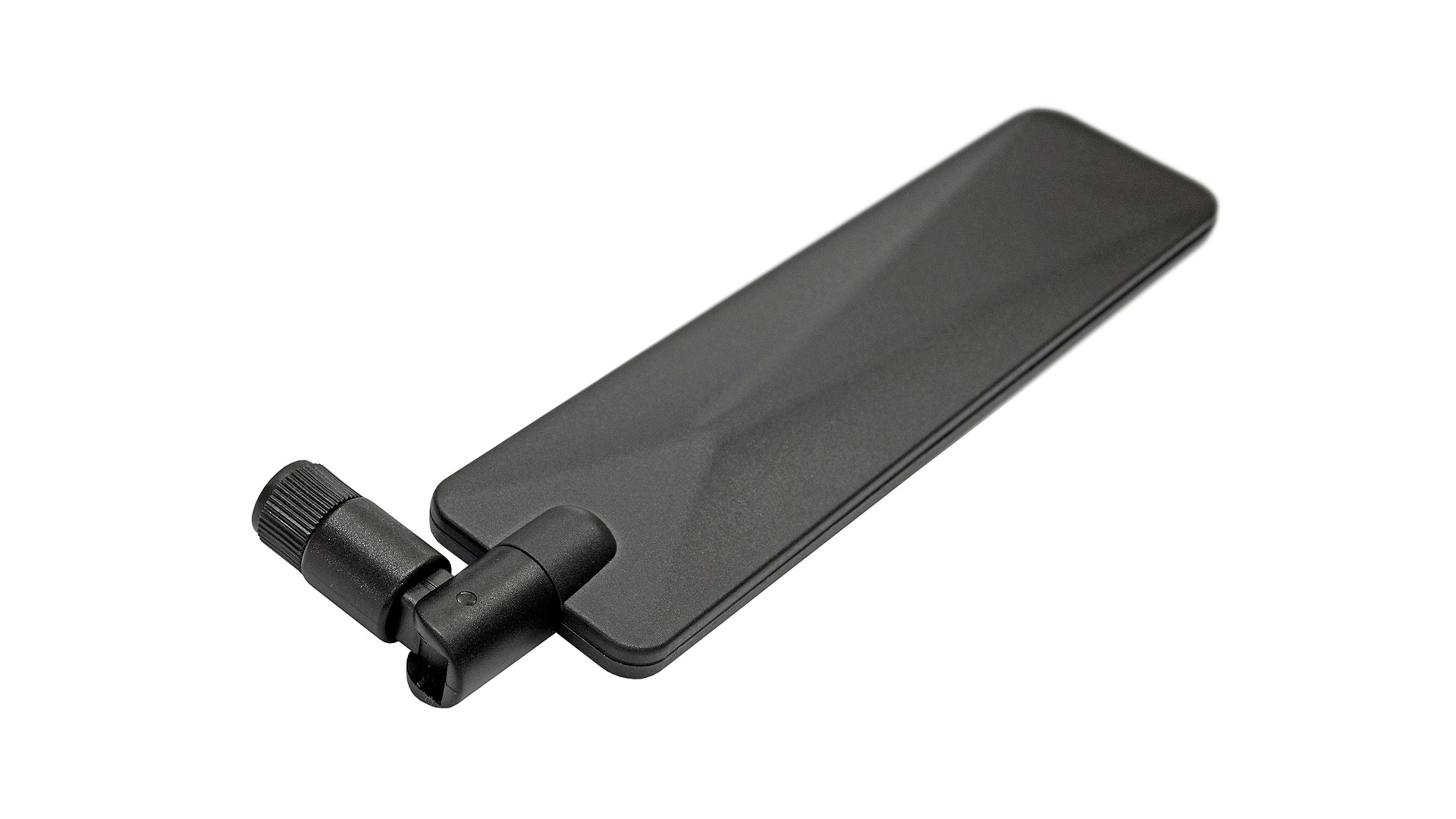

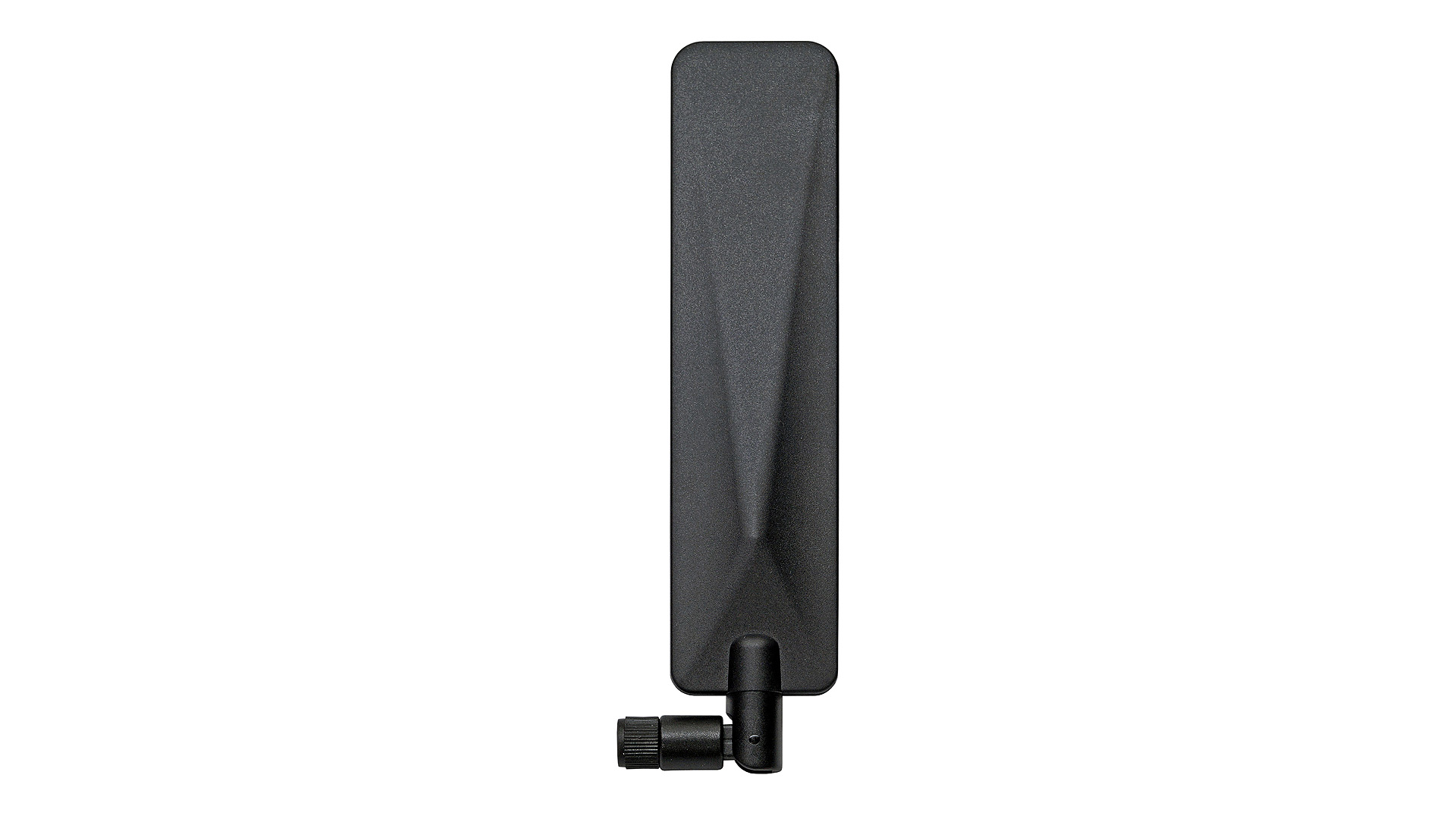

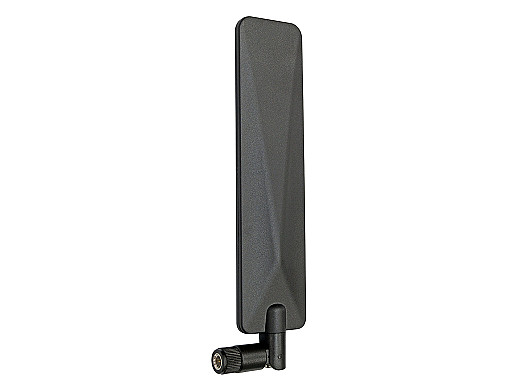

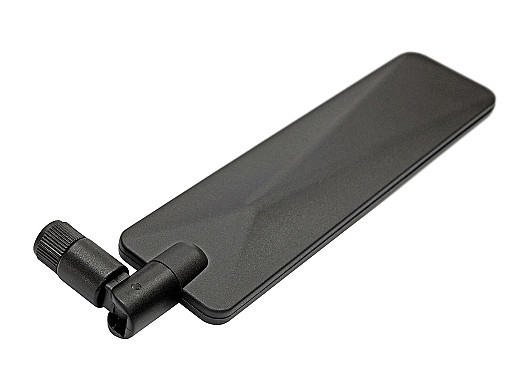

2JW0183z-C276B 5G NR Antenna

Machete 5GNR/4G/3G/2G Ultra Wide Band Hinged Swivel SMA-M Antenna

Connections (1)
5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
Mounting Connector Mount
Dimensions (mm) 171 × 38 × 13.8
Operating temperature -40 °C to +85 °C
Standard colors
Product added to cart
Products documents
Datasheet
3D model

Antenna and electrical specifications

Scroll down
connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz) 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-12.4, ~-11.4, ~-12.6, ~-10.6
VSWR ~1.8:1, ~1.9:1, ~1.9:1, ~2.1:1
Efficiency (%) ~80.1, ~75.0, ~70.2, ~68.5
Peak Gain (dBi) ~3.6, ~3.2, ~3.5, ~3.5
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25

Key Features

Dipole Antenna
Ground Plane Independent
Ultra Wide band Antenna
617-5925 MHz Sub 6GHz Bands
Full 4GLTE backward compatibility
3.6 dBi 5G NR Peak Gain
High Performance
Hinged Connector

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600		 3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
5GNR Bands n5, n8 ,12, n20, n28, n71,
n81, n82, n83,		 n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86		 n77, n78, n79
4GLTE Bands B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85		 B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
B75, B76		 B22, B42, B43, B48,
B49, B52		 B46, B47, B252, B255
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26		 B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40		 B22
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R		 1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19		 BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21



Antenna Description

2JW0183z-C276B

Global Coverage Combined With High Performance in an Innovative Design

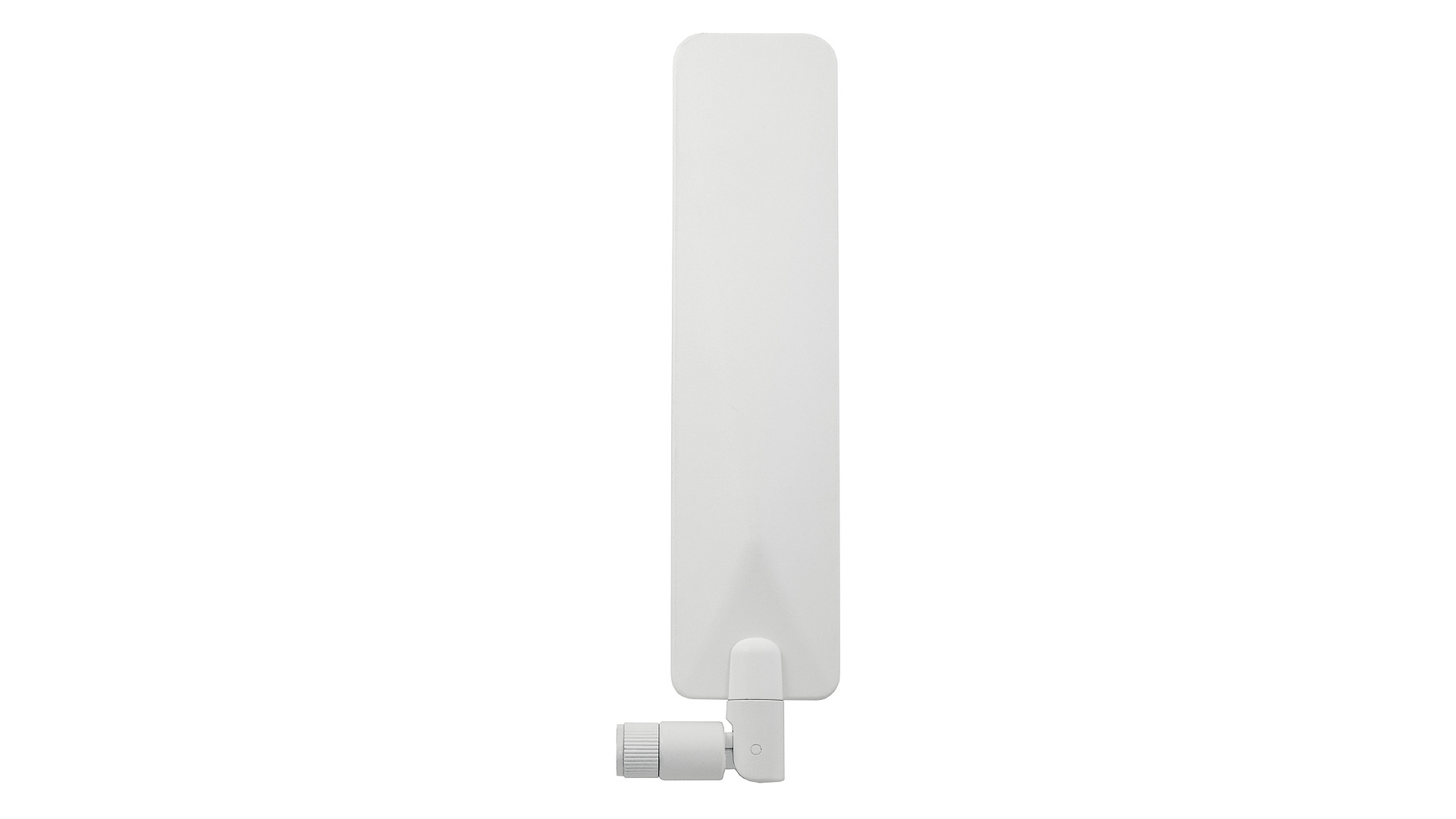

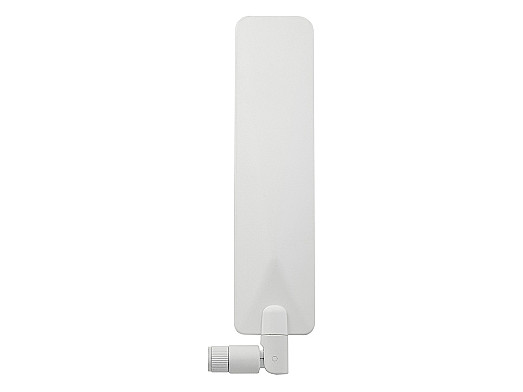

The 5GNR High-Performance SMA-Male Connector Mount Antenna (2JW0183z-C276B) is the newest addition to our “Machete Series” product line. This versatile antenna combines high performance with full bandwidth coverage for 5G New Radio, 4G LTE and 3G/2G/CDMA cellular spectrums (617-5925 MHz). Available in black or white, the innovative hinged swivel design allows the antenna to be positioned in a straight, right or 45-degree angle so it can be rotated into the direction with the most signal strength and reduce interference with other antennas nearby.

Suggested Applications:

- Terminals, Base Stations and Routers
- High Traffic MIMO Device Connectivity
- Industrial, Commercial and Residential IoT
- Industrial, Commercial and Residential Smart Home / Office
- ATM Machines
- IoT Dispensers
- Vending Machines
- Electrical Metering

The 2JW0183z-C276B has an omni-directional radiation pattern giving it a 360-degree uninterrupted signal quality with a maximum efficiency over 80% and peak gain of ~3.2 to 3.6 dBi across all frequencies. All our products are tested by our expert engineers and measured in our certified CTIA 3D Anechoic Chamber. Please contact our experienced team for assistance with antenna selection and recommendations.

Installation / Environmental

The antenna housing is manufactured from a ASA UV Stable material, allowing it to withstand extreme temperatures ranging between -40C to +85C and making it ideal for outdoor applications. The design dimensions are 171 × 38 × 13.8 mm. This antenna is ground plane independent allowing for a wide range of installation options with minimal restrictions. 2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.

Applications

Mobile Networks Cellular Networks Machine Control Wearables Asset Tracking and Security Civil Applications Automotive Telecommunication Broadband Communications Wireless Security System Energy Monitoring Air Quality and Pollution Monitoring Telemetry / Telematics Entertainment and Multimedia IoT - Internet of Things Smart Home Logistics and Shipping Smart Cities Industrial IoT & Monitoring Smart Farming Fleet Management Medical and Healthcare Autonomous Driving Drone Operation Security and Surveillance Gaming and Virtual Reality Mission Critical Communications Transportation GIS - Geographic Information System Cartographic Hazard Mitigation Automation Agriculture Construction Mining Industry Unmanned Vehicles Surveying Defense Aerial Photogrammetry Logistics Location Based Services Road Applications Rail Applications Maritime Applications Autonomous Applications Mobile Applications Data Processing Remote Monitoring and Control Smart Metering Smart Lighting Smart Parking and Vehicle Control Infrastructure Management Fire Detection & Management Waste Management Water Metering & Management Government & Public Safety Building Control Manufacturing Video Streaming Smart Grid Private Cellular Networks Electricity Metering & Management Resources Management Digital Signage Routers, Gateways & Data Terminals Utilities First Responder Fleets Fire Departments C-V2X - Cellular Vehicle to Everything
