| Mounting | Magnetic Mount |
|---|---|
| Dimensions (mm) | Ø 54 × 219 |
| Operating temperature | -40 °C to +85 °C |
| Standard colors |
| Standards | GSM, CDMA, DCS, PCS, GPRS, WCDMA, UMTS, HSPA, EVDO and LTE |
|---|---|
| Frequency | 698-960, 1710-2170, 2500-2700 |
| VSWR | ~1.6:1, ~1.4:1, ~2.0:1 |
| Efficiency (%) | ~69.6, ~61.4, ~37.0 |
| Peak Gain (dBi) | ~1.6, ~2.6, ~1.1 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 35 |
| Parameters | 4G LTE Antenna | ||
| Frequency (MHz) | 698-960 | 1710-2170 | 2500-2700 |
| Band (MHz) | 700, 850, 900 | 1700, 1800, 1900, 2000, 2100 | 2500, 2600 |
| 4GLTE Bands | B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B85 |
B1, B2, B3, B4, B9, B10, B25, B33, B34, B35, B36, B37, B39, B65, B66, B70 |
B7, B38, B41, B69 |
| 3GCELL Bands | B5, B6, B8, B12, B13, B14, B19, B20, B26 |
B1, B2, B3, B4, B9, B10, B25, B33, B34, B35, B36, B37, B39 |
B7, B38 |
| 2GCELL Bands | 710, 750, 810T, 850, 900P, 900E, 900R |
1800DCS, 1900PCS | |
| CDMACELL Bands | BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19 |
BC1, BC4, BC6, BC8, BC14, BC15 |
BC13, BC16 |
Made for worldwide cellular applications
The 2JW0124 series is an ultra wideband performance connector mount antenna solution for worldwide cellular applications operating within the 4G, 3G and 2G standards. This series is compatible with GSM, CDMA, DCS, PCS, GPRS, WCDMA, UMTS, HSPA, EVDO and LTE technologies, covering all cellular bands ranging from 698-960, 1710-2170 and 2500-2700 MHz. With a 75% high efficiency, 3.0dB average gain and omnidirectional properties, this antenna provides consistent and stable connectivity with high throughput data to access points, routers, small base stations, repeaters, boosters, fleet management devices and other telematics devices with cellular needs.
This antenna is ideal for major carrier approvals and certification process around the globe. The antenna can freely swivel up to 90 degrees, having flexibility in orientation with respect to the device for easier installation or multiple antenna mounting options.
Installation

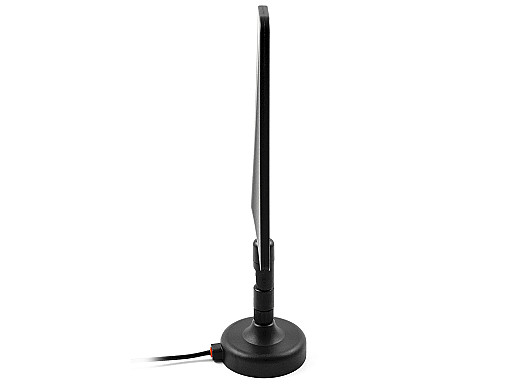

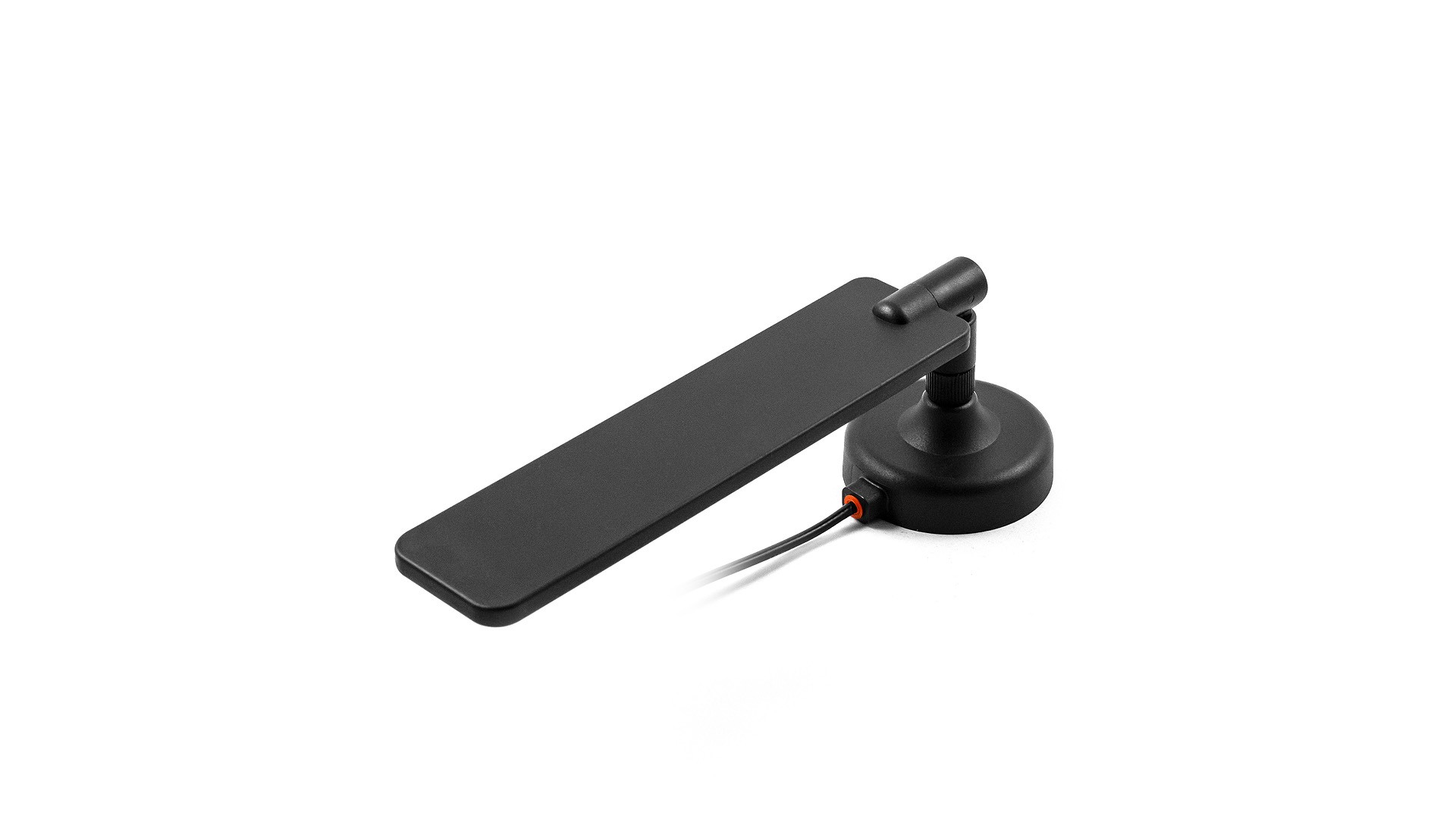

This antenna comes with strong magnetic mount bracket using strongest magnets in the world - Neodymium magnet. There are also two variations of mounting swivels allowing for multiple antennas on devices with MIMO systems. Connector types can be selected between SMA-Male, RP SMA-Male or N-Male. See the different swivel orientation on 2JW0124a antenna.
Durability
The 2JW0124 series is intended for indoor and internal use only. As a protective measure, the housing is built out of UV Stable PC/ABS with a range for an operating temperature of -40C to +85C. All antennas are manufactured using RoHS, REACH compliance.
|
Typical applications - Infotainment systems |
Compatibility Standards LTE Connection
|
Key Features
- Magnetic Mounting bracket included
- Variations with different swivel orientation, SMA-Male, RP SMA-Male or N-Male connectors
- Sustained High Efficiency and Performance
- NB-IoT and Portable Devices friendly
- Ground Plane Independent
- Ultra Wide band Antenna
- Easy Integration
- Hinged Connector
- Size smart and elegant
- Different colors available upon request
