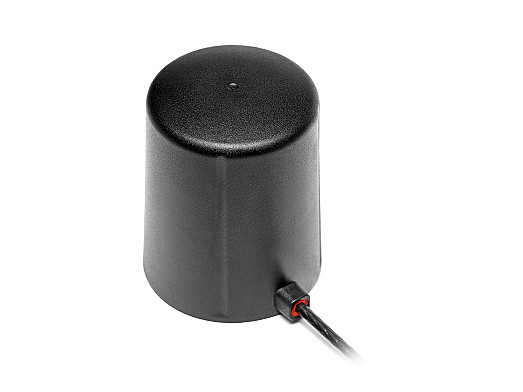

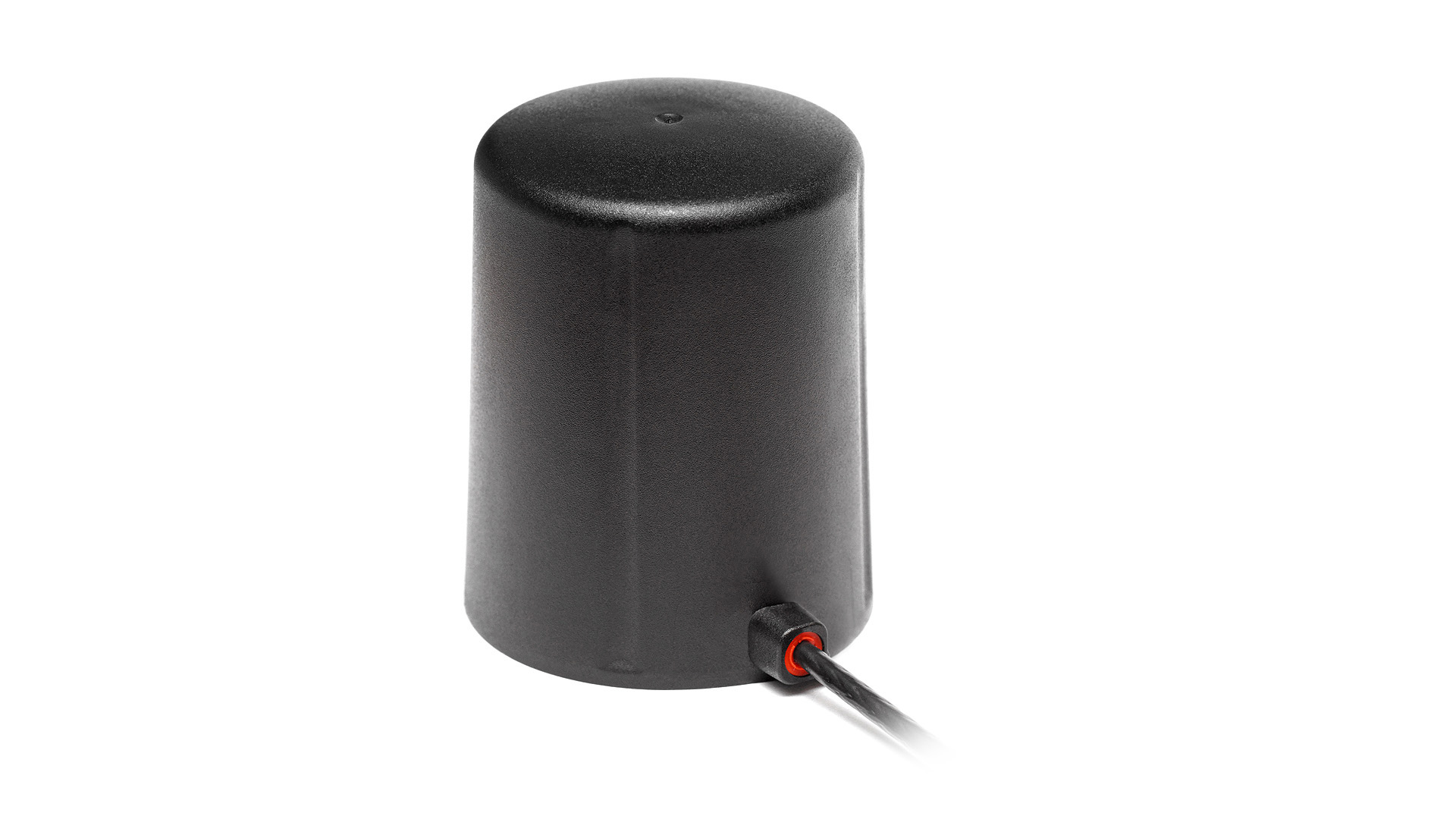

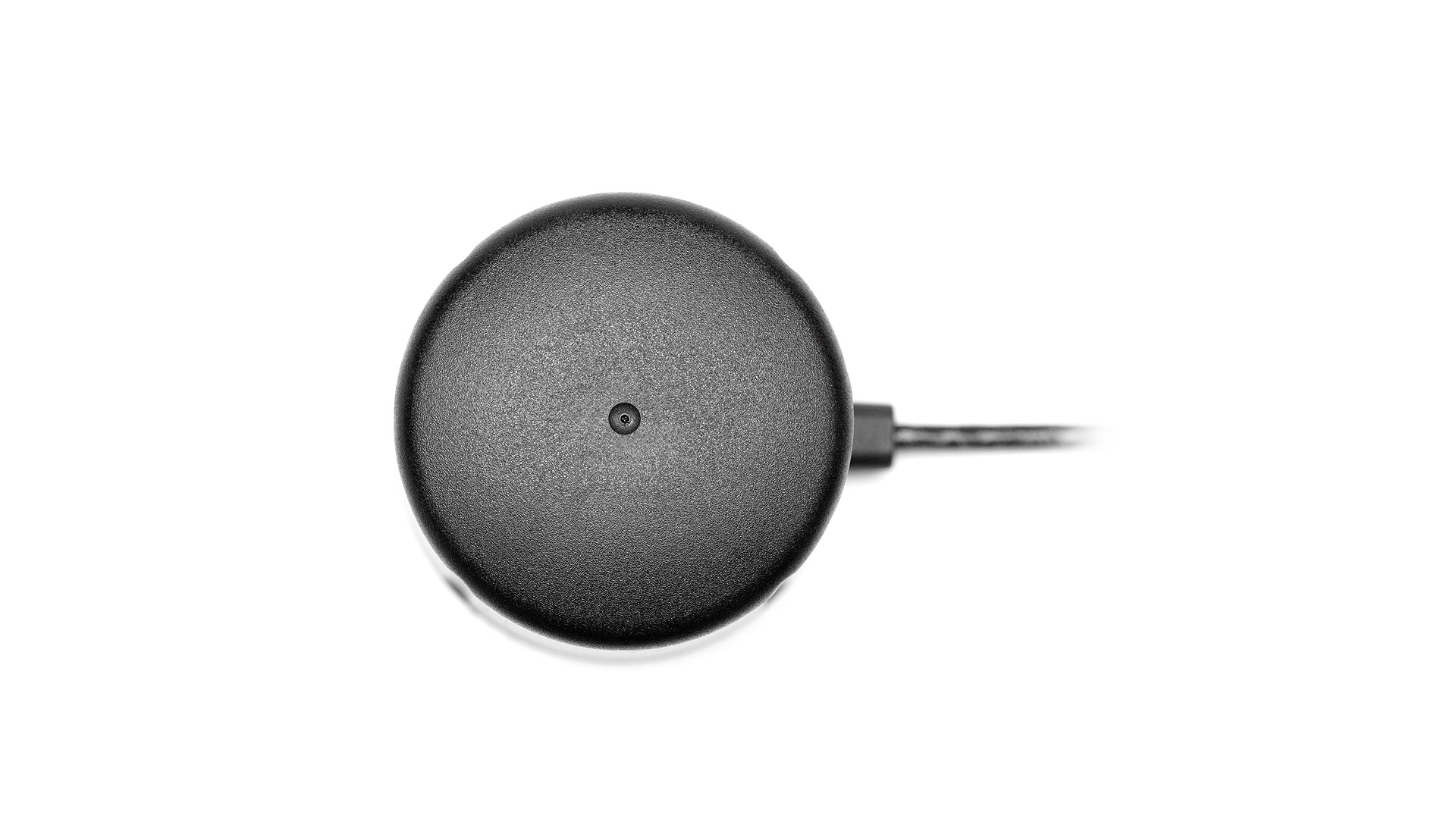

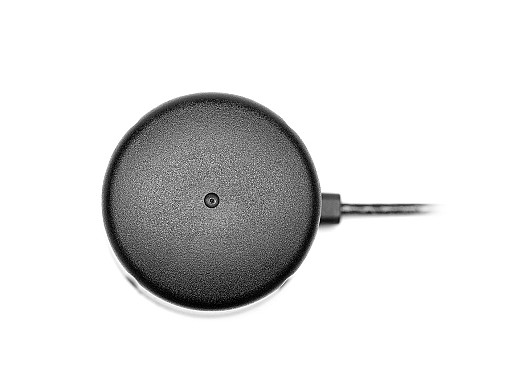

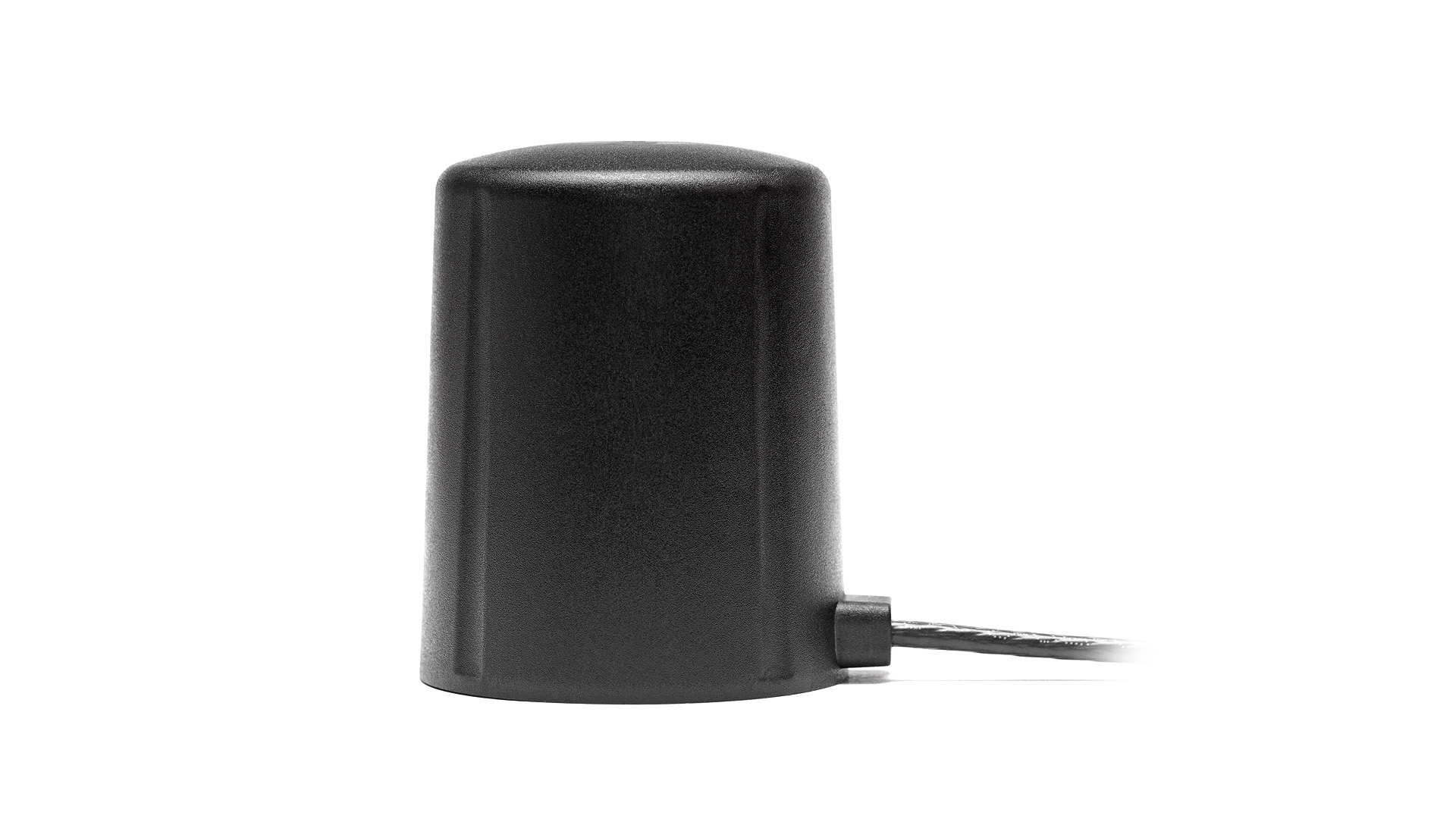

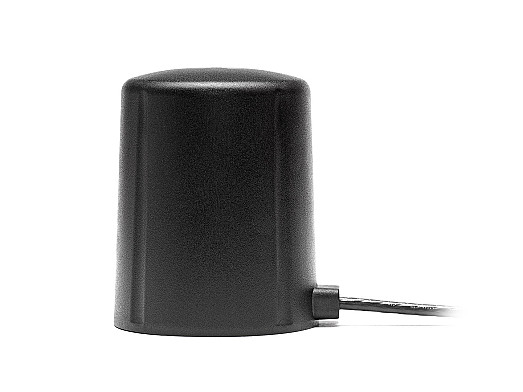

2J7702M Antenna

2.4/5.0/6.0 GHZ WIFI 6E / WIFI 7 ISM Customizable Ground Plane Dependent Magnetic Antenna

Connections (1)
2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM
Mounting Magnetic Mount
Dimensions (mm) Ø 54 x 68.2
Operating temperature -40 °C to +85 °C
Certificates IP67, IP69, IK09
Standard colors
Product added to cart
Products documents
Datasheet
3D model

Antenna and electrical specifications

Scroll down
connection 1

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards WiFi, BT, ZigBee, ISM
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~1.6:1, ~2.1:1, ~2.1:1
Efficiency (%) ~61.3, ~31.3, ~30.1
Peak Gain (dBi) ~3.8, ~3.0, ~2.9
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25

Key Features

WIFI 6E / WIFI 7 Antenna
Ground Plane Dependent
3.8 dBi WIFI Peak Gain
High Performance
Heavy Duty antenna
Customizable Cable and Connector

Applications

Entertainment and Multimedia Smart Home Smart Cities Medical and Healthcare Drone Operation Gaming and Virtual Reality Retail Services Transportation GIS - Geographic Information System Hazard Mitigation Machine Control Automation Marine Defense Logistics Wearables Asset Tracking and Security Location Based Services Civil Applications Rail Applications Maritime Applications Autonomous Applications Mobile Applications Home Applications Public Wi-Fi Automotive Data Processing Remote Monitoring and Control Wireless Security System Smart Parking and Vehicle Control Infrastructure Management Fire Detection & Management Manufacturing Video Streaming Short-Range Personal Area Networks Digital Signage Routers, Gateways & Data Terminals RFID devices V2X - Vehicle to Everything IoT - Internet of Things Telemetry / Telematics High-Density Environments MU-MIMO Connectivity
