2J7583B 5GNR/4GLTE/3G/2G IP67 IP69 Screw Mount Antenna

Joystick 5GNR/4G LTE/3G/2G High-Performance IP67 IP69 Screw Mount Antenna

Connections (1)

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Mounting	Screw Mount
Dimensions (mm)	Ø 64 × 81.4
Operating temperature	-40 °C to +85 °C
Certificates	IP67, IP69
Standard colors

Mounting

Screw Mount

Dimensions (mm)

Ø 64 × 81.4

Operating temperature

-40 °C to +85 °C

Certificates

IP67, IP69

Standard colors

Product added to cart

Products documents

Antenna and electrical specifications

Scroll down

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies	5G, 4G, 3G and 2G
Standards	5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency	617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB)	~-8.4, ~-13.6, ~-11.7, ~-8.1
VSWR	~3.1:1, ~1.7:1, ~1.8:1, ~2.5:1
Efficiency (%)	~48.8, ~59.8, ~33.3, ~23.7
Peak Gain (dBi)	~1.1, ~3.6, ~1.9, ~1.2
Impedance (Ohm)	50
Polarisation	Linear
Radiation Pattern	Omni-Directional
Max. Input Power (W)	35

Key Features

Ultra Wide band Antenna

617-5925 MHz Sub 6GHz Bands

Full 4GLTE backward compatibility

Ground Plane Dependent

3.6 dBi 5G NR Peak Gain

High Performance

Anti-Rotation Mounting

Customizable Cable and Connector

5GNR Antenna Bands list

Parameters	5GNR Antenna
Frequency (MHz)	617-960	1427-2690	3300-5000	5150-5925
Band (MHz)	600, 700, 850, 900	1500, 1600, 1700, 1800, 1900, 2000, 2100, 2300, 2500, 2600	3300, 3500, 3600, 3700, 4500	5200, 5500, 5800
5GNR Bands	n5, n8 ,12, n20, n28, n71, n81, n82, n83,	n1, n2, n3, n7, n25, n34, n38, n39, n40, n41, n50, n51, n66, n70, n74, n75, n76, n80, n84, n86	n77, n78, n79
4GLTE Bands	B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B71, B85	B1, B2, B3, B4, B7, B9, B10, B11, B21, B23, B24, B25, B30, B32, B33, B34, B35, B36, B37, B38, B39, B40, B41, B45, B50, B51, B65, B66, B69, B70, B74, B75, B76	B22, B42, B43, B48, B49, B52	B46, B47, B252, B255
3GCELL Bands	B5, B6, B8, B12, B13, B14, B19, B20, B26	B1, B2, B3, B4, B7, B9, B10, B11, B21, B25, B32, B33, B34, B35, B36, B37, B38, B39, B40	B22
2GCELL Bands	710, 750, 810T, 850, 900P, 900E, 900R	1800DCS, 1900PCS
CDMACELL Bands	BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19	BC1, BC4, BC6, BC8, BC13, BC14, BC15, BC16, BC20, BC21

Antenna Description

All-In-One, Next-Generation of Ultra wideBand Sub-6 GHz Waterproof Antenna

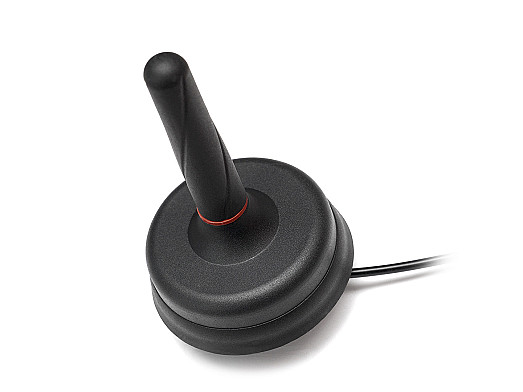

The 2J7583B high-performance screw mount ultra wideband antenna is designed for 5GNR applications with significant benefits of extreme mobile broadband (eMBB), massive capacity, and ultra-low latency communication (URLLC). This antenna caters to sub-6 GHz bands in the range of 617-5925 MHz. With this sub-6 GHz technology transmission, the signals can penetrate into solid obstacles and deliver best-in-class throughput on all major cellular bands worldwide. This antenna is ideal for outdoor use due to its IP67 and IP69 rated housing. Designed for full 4G LTE backward compatibility with existing networks and tuned for devices that operate on 5G NR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X -Mx, CAT-NBx, NB-IoT, 3G, including 2G standards, the 2J7583B antenna is a fully omnidirectional antenna that exhibits a uniform radiation pattern on all bands giving it a 360-degree uninterrupted signal quality with a maximum efficiency of ~59.8% and 5G NR peak gains of ~3.6 dBi.

Suggested applications include:

Transportation and telematics
Augmented reality wireless devices
Gateways, routers and wireless access points
Smart metering
Smart home/smart cities mobile platforms
Remote monitoring
Virtual reality devices

Installation / Environmental

The 2J7583B 5GNR antenna measures Ø 60 × 81 mm in size, comes with a screw mount option and is ground plane dependent. The housing is manufactured from durable ASA material (available in black) and can withstand temperatures ranging from -40C to +85C. Installation is made simple using the SMA-Male-connector. 2J7583B is manufactured without any hazardous materials and is both REACH and RoHS compliant. The antenna is waterproof with an IP67 rating and an additional IP69 rating for waterproof resistance against high-pressure water jets. Fully customizable options with a large selection of connector types, cable lengths, and cable types.
