2J6A83B-RB-SP 5GNR/4G LTE/3G/2G Screw Mount Antenna

Helm 5GNR/4G LTE/3G/2G IP67, IK09 IP69K Screw Mount Antenna

Connections (1)

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Mounting	Screw Mount
Dimensions (mm)	Ø 69 × 65.5
Operating temperature	-40 °C to +85 °C
Certificates	IP67, IP69, IK09
Standard colors

Mounting

Screw Mount

Dimensions (mm)

Ø 69 × 65.5

Operating temperature

-40 °C to +85 °C

Certificates

IP67, IP69, IK09

Standard colors

Product added to cart

Products documents

Antenna and electrical specifications

Scroll down

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies	5G, 4G, 3G and 2G
Standards	5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency	617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB)	~-5.3, ~-15.0, ~-12.3, ~-5.8
VSWR	~4.0:1, ~1.7:1, ~1.8:1, ~3.1:1
Efficiency (%)	~41.0, ~55.7, ~43.5, ~25.4
Peak Gain (dBi)	~-0.9, ~3.0, ~3.7, ~-0.2
Impedance (Ohm)	50
Polarisation	Linear
Radiation Pattern	Omni-Directional
Max. Input Power (W)	35

Key Features

Ultra Wide band Antenna

617-5925 MHz Sub 6GHz Bands

Full 4GLTE backward compatibility

Ground Plane Dependent

3.7 dBi 5G NR Peak Gain

Heavy Duty antenna

Anti-Rotation Mounting

Customizable Cable and Connector

5GNR Antenna Bands list

Parameters	5GNR Antenna
Frequency (MHz)	617-960	1427-2690	3300-5000	5150-5925
Band (MHz)	600, 700, 850, 900	1500, 1600, 1700, 1800, 1900, 2000, 2100, 2300, 2500, 2600	3300, 3500, 3600, 3700, 4500	5200, 5500, 5800
5GNR Bands	n5, n8 ,12, n20, n28, n71, n81, n82, n83,	n1, n2, n3, n7, n25, n34, n38, n39, n40, n41, n50, n51, n66, n70, n74, n75, n76, n80, n84, n86	n77, n78, n79
4GLTE Bands	B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B71, B85	B1, B2, B3, B4, B7, B9, B10, B11, B21, B23, B24, B25, B30, B32, B33, B34, B35, B36, B37, B38, B39, B40, B41, B45, B50, B51, B65, B66, B69, B70, B74, B75, B76	B22, B42, B43, B48, B49, B52	B46, B47, B252, B255
3GCELL Bands	B5, B6, B8, B12, B13, B14, B19, B20, B26	B1, B2, B3, B4, B7, B9, B10, B11, B21, B25, B32, B33, B34, B35, B36, B37, B38, B39, B40	B22
2GCELL Bands	710, 750, 810T, 850, 900P, 900E, 900R	1800DCS, 1900PCS
CDMACELL Bands	BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19	BC1, BC4, BC6, BC8, BC13, BC14, BC15, BC16, BC20, BC21

Antenna Description

The Ultra Wideband, Heavy Duty Sub 6GHz Antenna For All Communications Needs

The 2J6A83B-RB-SP is an ultra wideband antenna designed for a wide range of applications, including 5G, 4G, 3G, and 2G networks. This high speed, high-performance antenna is perfect for users who demand high-quality reception and signal transmission in the modern wireless world. This ultra-wideband antenna caters to a sub-6 GHz such as 5GNR / 4G LTE / FirstNet / CBRS / LPWA / CAT-X / CAT-Mx / CAT-NBx / NB-IoT / 3G / 2G standards and band in the range of 617-5925 MHz, and is fully 4G LTE backward compatible.

Suggested applications include:

Mobile Broadband applications : High-speed data transfer, video streaming, and virtual reality applications.
Automotive and Transportation: in-vehicle communication systems
Smart Cities: Enhanced communication infrastructure for public safety, traffic management, waste management, and other urban applications.
Agriculture: Precision farming, livestock tracking, and remote monitoring of agricultural equipment.
Emergency Services: Improved communication for police, fire, and ambulance services.

The 2J6A83B-RB-SP is a ground plane dependent antenna with a pre-filtered GNSS design for improved signal reception. With a high peak gain of up to 3.7dBi, it delivers the best-in-class throughput in the 5GNR band. The antenna operates with a linear polarization and an omni-directional radiation pattern, ensuring excellent signal reception and transmission in all directions.

Installation / Environmental

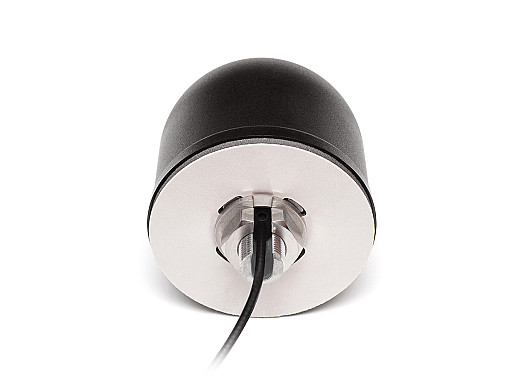

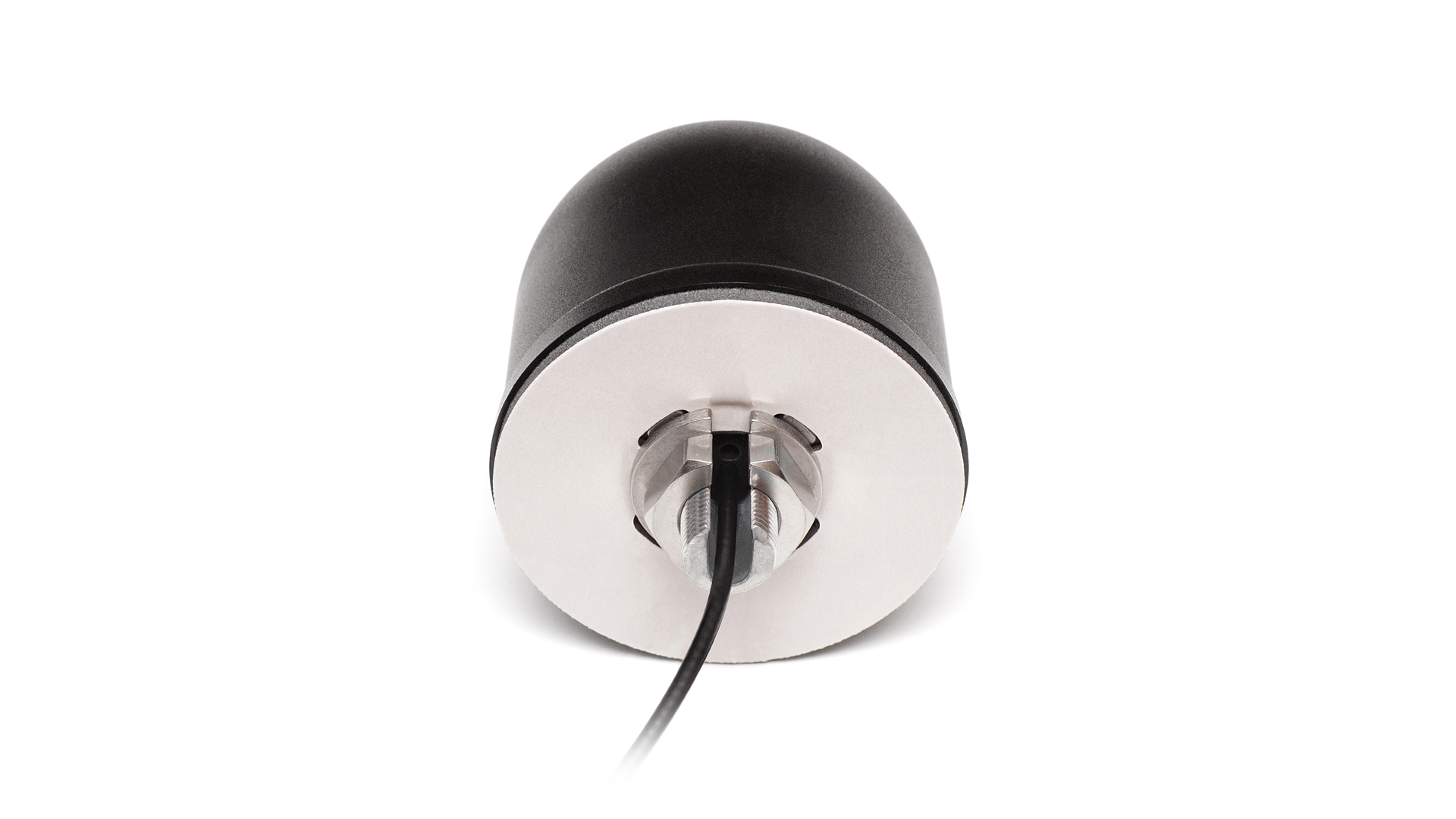

This antenna features a durable screw mount and a 3mm foam sticker on its underside, which prevents rotation and ensures a stable installation. With customizable cable and connector options and compact size, it's easy to integrate into any environment.

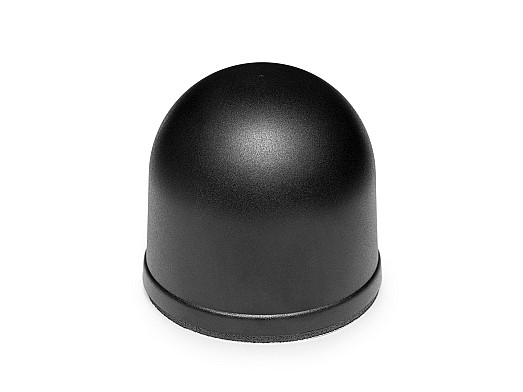

Built to withstand harsh environmental conditions, the 2J6A83B-RB-SP antenna holds IP67, IK09, and IP69K certifications. Its radome is made of ASA material and features a black color, while the antenna base is constructed from Zamak, ensuring durability and resilience. All connectors and cables are fully customizable. This antenna is designed without any hazardous materials making it fully REACH and RoHS compliant.
