Helm WiFi ISM Surge Protection Up To 6kV Customizable Screw Mount Antenna

Heavy-Duty, Compact  IP67, IK09, and IP69K Antenna with Surge Protection of Up To 6kV

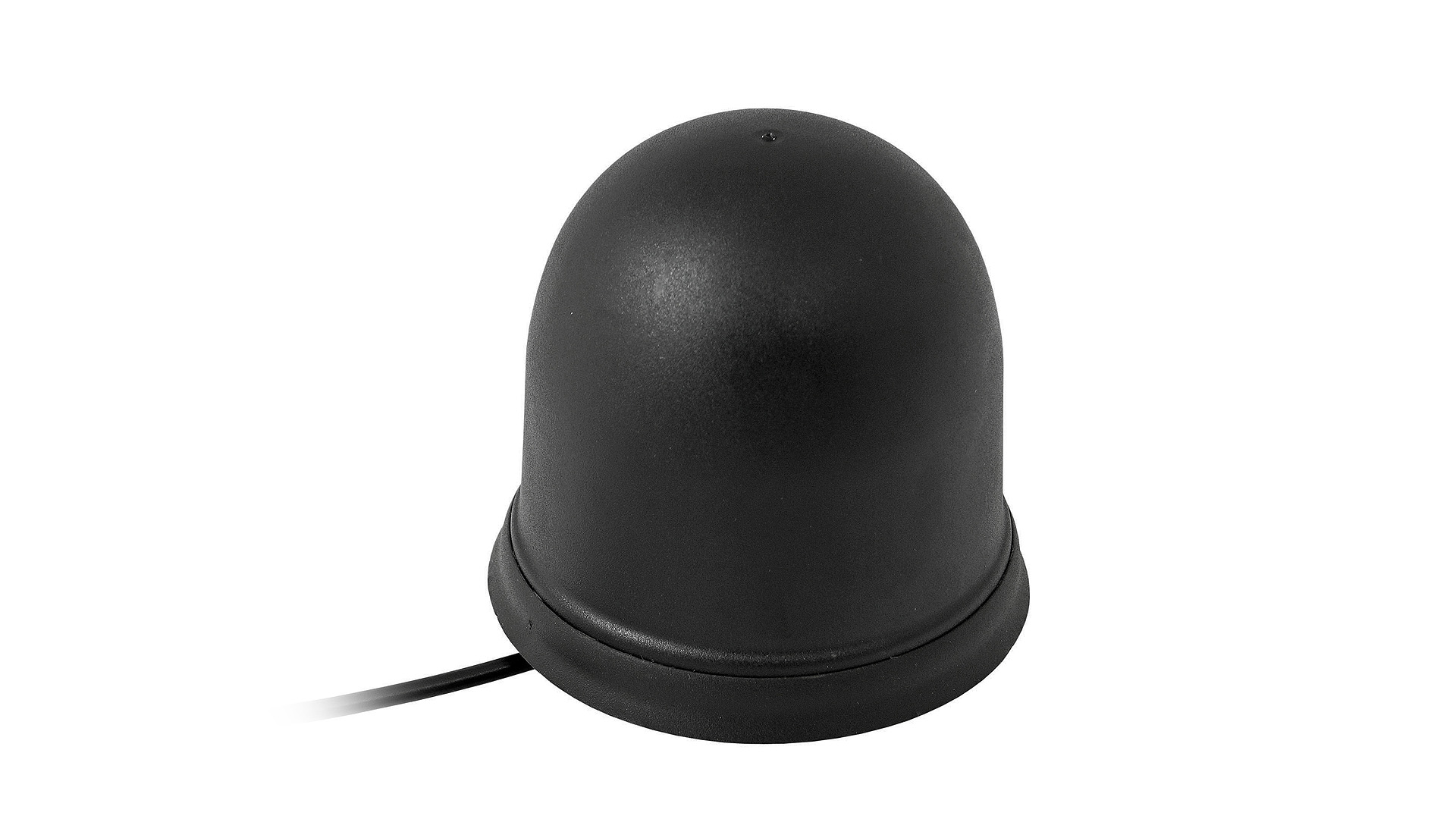

The 2J6A02B antenna is built to perform in the harshest environmental conditions. This WiFi antenna features a robust, durable enclosure with surge protection to safeguard against electrical surges and lightning strikes.

Cable 1 covers the 2.4/5.0 GHz WiFi ISM band, with frequencies between 2410-2490 MHz and 4920-5925 MHz. It offers a 4.4 dBi WIFI Peak Gain and efficiency of up to 50.5%.

The antenna is isolated from the ground plane to provide common mode surge protection of up to 6kV. This isolation enhances durability and reliability, ensuring optimal performance even in environments prone to electrical surges and interference.

Suggested applications include:

An antenna with WiFi ISM surge protection up to 6kV is particularly beneficial in several applications where high reliability and protection from electrical surges are critical. Here are some specific applications that would benefit from such an antenna:

Industrial Automation and Control Systems

• Factories and Plants: Environments with heavy machinery can generate significant electrical noise and surges. A surge-protected antenna ensures uninterrupted wireless communication for monitoring and controlling automated processes.

Smart Grid and Utility Monitoring

• Energy Distribution Networks: Protects communication equipment from surges caused by lightning strikes or switching operations in power grids.

Telecommunications and Wireless Infrastructure

• Cell Towers and WiFi Hotspots: Ensures stable connectivity and protection for wireless infrastructure deployed in areas prone to electrical surges.
• Outdoor Wireless Networks: Protects against environmental surges and provides consistent performance for outdoor WiFi networks.

Public Safety and Emergency Services

• Communication Networks: Ensures robust and reliable communication for emergency responders, critical in scenarios where power surges are common.
• Surveillance Systems: Protects wireless surveillance cameras and communication equipment from electrical surges, ensuring continuous monitoring.

Transportation and Smart Cities

• Traffic Management Systems: Ensures reliable data communication for traffic lights, sensors, and other smart city infrastructure.

Healthcare Facilities

• Medical Device Communication: Ensures uninterrupted communication between wireless medical devices and hospital networks, protecting sensitive equipment from electrical surges.
• Patient Monitoring Systems: Reliable data transmission from patient monitoring systems, crucial in maintaining continuous healthcare services.

Commercial and Residential Buildings

• Building Automation Systems: Protects WiFi-based building automation and control systems from electrical surges, ensuring smooth operation of smart home and office technologies.
• WiFi Networks: Provides surge protection for WiFi networks in areas with frequent electrical disturbances, ensuring stable connectivity for users.

These are just a few examples of the wide range of applications suitable for the 2J6A02B antenna. Its versatility, high performance, and customizable options make it a valuable asset for many industries and use cases requiring reliable wireless communication.

Installation / Environmental

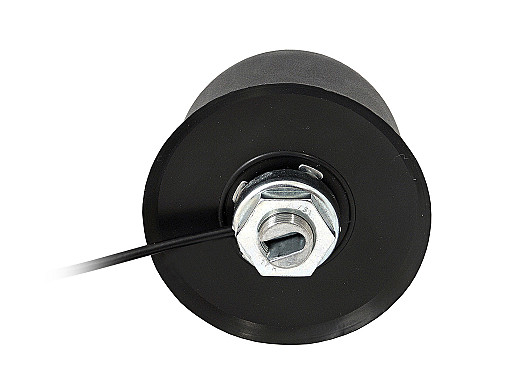

Compact in size, with dimensions of Ø 77.3 × 65.5, this heavy duty antenna is designed to fit seamlessly into various installations. It has been certified to IP67, IK09, and IP69K standards, which ensures its durability and protection against ingress from dust, water, and external impacts. The anti-rotation screw mount ensures easy and secure installation.
