2J6983MP Ultra WideBand 5GNR/4G LTE/3G/2G High Gain Antenna

Phoenix 5GNR/4G LTE/3G/2G High Gain Magnetic/Adhesive Mount Antenna

Connections (1)

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Mounting	Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Dimensions (mm)	89 × 76 × 27/30
Operating temperature	-40 °C to +85 °C
Certificates	IP67, IP69
Standard colors

Mounting

Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount

Dimensions (mm)

89 × 76 × 27/30

Operating temperature

-40 °C to +85 °C

Certificates

IP67, IP69

Standard colors

Product added to cart

Products documents

Antenna and electrical specifications

Scroll down

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies	5G, 4G, 3G and 2G
Standards	5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency	617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB)	~-7.0, ~-11.2, ~-7.1, ~-6.4
VSWR	~3.1:1, ~2.1:1, ~3.1:1, ~3.0:1
Efficiency (%)	~50.2, ~56.3, ~30.4, ~25.1
Peak Gain (dBi)	~2.1, ~6.3, ~3.7, ~2.8
Impedance (Ohm)	50
Polarisation	Linear
Radiation Pattern	Omni-Directional
Max. Input Power (W)	35

Key Features

Ultra Wide band Antenna

617-5925 MHz Sub 6GHz Bands

Full 4GLTE backward compatibility

Ground Plane Independent

6.3 dBi 5G NR Peak Gain

High Performance

Low Profile

Adhesive Mounting sticker included

Customizable Cable and Connector

5GNR Antenna Bands list

Parameters	5GNR Antenna
Frequency (MHz)	617-960	1427-2690	3300-5000	5150-5925
Band (MHz)	600, 700, 850, 900	1500, 1600, 1700, 1800, 1900, 2000, 2100, 2300, 2500, 2600	3300, 3500, 3600, 3700, 4500	5200, 5500, 5800
5GNR Bands	n5, n8 ,12, n20, n28, n71, n81, n82, n83,	n1, n2, n3, n7, n25, n34, n38, n39, n40, n41, n50, n51, n66, n70, n74, n75, n76, n80, n84, n86	n77, n78, n79
4GLTE Bands	B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B71, B85	B1, B2, B3, B4, B7, B9, B10, B11, B21, B23, B24, B25, B30, B32, B33, B34, B35, B36, B37, B38, B39, B40, B41, B45, B50, B51, B65, B66, B69, B70, B74, B75, B76	B22, B42, B43, B48, B49, B52	B46, B47, B252, B255
3GCELL Bands	B5, B6, B8, B12, B13, B14, B19, B20, B26	B1, B2, B3, B4, B7, B9, B10, B11, B21, B25, B32, B33, B34, B35, B36, B37, B38, B39, B40	B22
2GCELL Bands	710, 750, 810T, 850, 900P, 900E, 900R	1800DCS, 1900PCS
CDMACELL Bands	BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19	BC1, BC4, BC6, BC8, BC13, BC14, BC15, BC16, BC20, BC21

Antenna Description

Low Profile, Ultra-Wideband Future Proof Solution For 5GNR and Cellular Applications

The Phoenix 2J6983MP is designed for 5GNR parameters and caters to applications that operate within 5G NR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-Mx, CAT-NBx, NB-IoT, 3G and 2G standards (617-5925 MHz Sub 6GHz Bands). It offers an impressive 6.3 dBi 5GNR Peak Gain, with an average of up to 6.1 dB, making it ultra-reliable. The 4G LTE is fully backward compatible with existing 3G and 2G CDMA technologies for a seamless and continuous signal even in low-serviced areas. With a 360-degree omni-directional radiation pattern, this antenna is an ideal solution for industrial, commercial, and residential applications that rely on high performance, reliability, high data throughput, and precision.

Suggested Applications:

Mobile Networks
Telecommunication
Entertainment and Multimedia
Security and Surveillance
Smart Farming
Smart Cities
Automation
Broadband Communications
Routers, Gateways & Data Terminals
Utilities

Installation and Durability

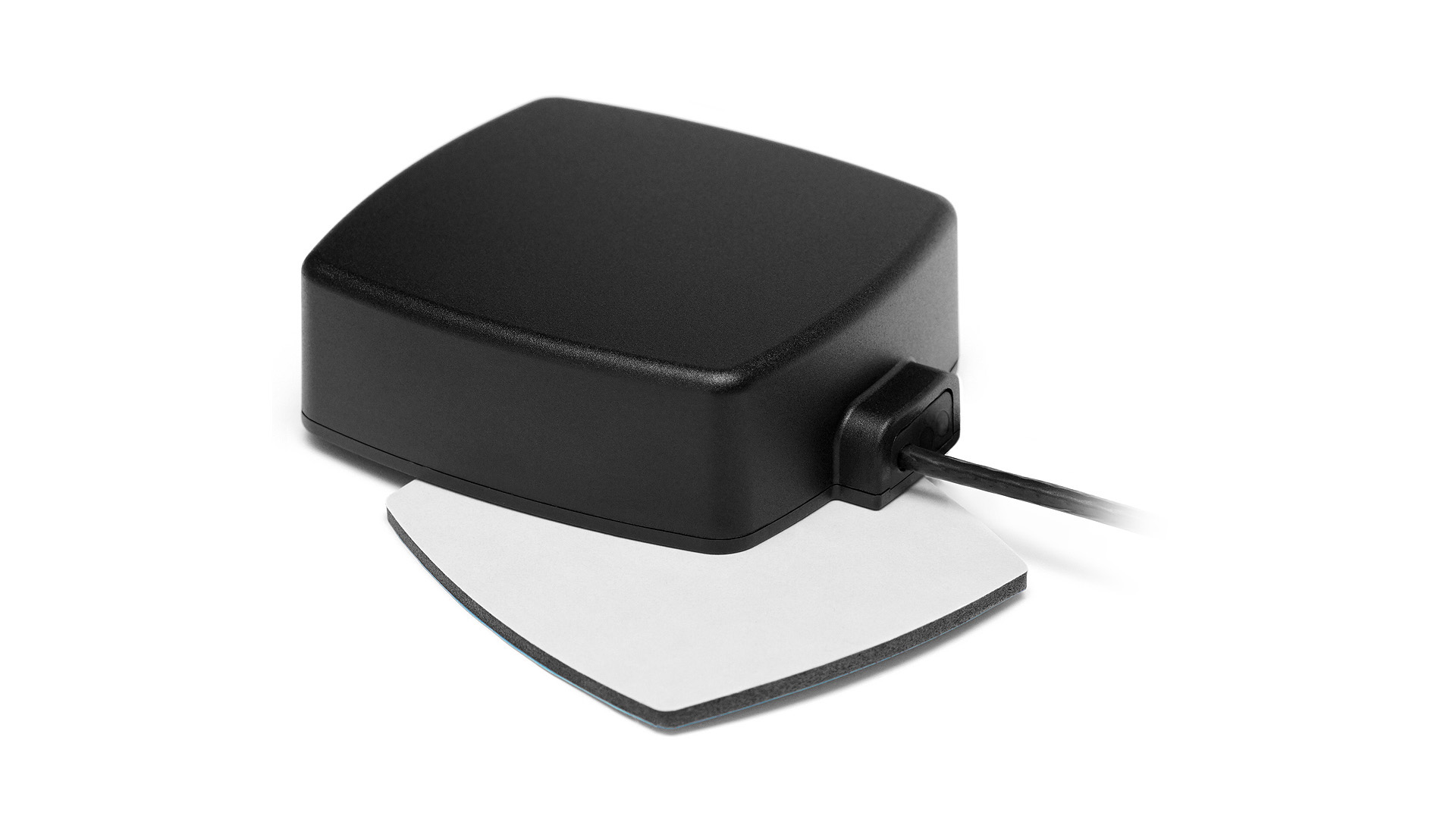

The 2J6983MP is enclosed in a waterproof and dust-resistant ASA UV-stable housing that measures 89 × 76 × 27/30 mm, protecting the antenna in extreme environmental conditions.

With a user-friendly peel-n-stick adhesive magnetic mount, the Phoenix 2J6983MP can be effortlessly installed on any metal surface, be it a vehicle or a metal building. No additional grounding is required, making the installation process a breeze. The adhesive and magnetic mount is robust enough for long-term installations, yet it also provides an easy option for temporary applications and relocation, ensuring your convenience at all times.

The 2J6983MP is delivered with a standard SMA-Male connector and a 300 cm long D302 cable (custom options available). This antenna is IP67 and IP69 certified. Don't hesitate to contact our highly skilled team members to assist with customization and integration needs.

2J Antennas recognizes the importance of the environment and has implemented steps to further sustainability, making us fully RoHS and Reach compliant.
