Antenna and electrical specifications

connection 1

LTE 450 Antenna

Standards LTE Band 450
Frequency 410-496
VSWR ~3.3:1
Efficiency (%) ~37.3
Peak Gain (dBi) ~-1.3
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25

Key Features

Ground Plane Independent
LTE 450 Antenna
-1.3 dBi 4G LTE Peak Gain
High Performance
Low Profile
Flexible Housing
Customizable Cable and Connector

Antenna Description

The Low Frequency LTE 450 Power In An Easy Peel-and-Stick Solution

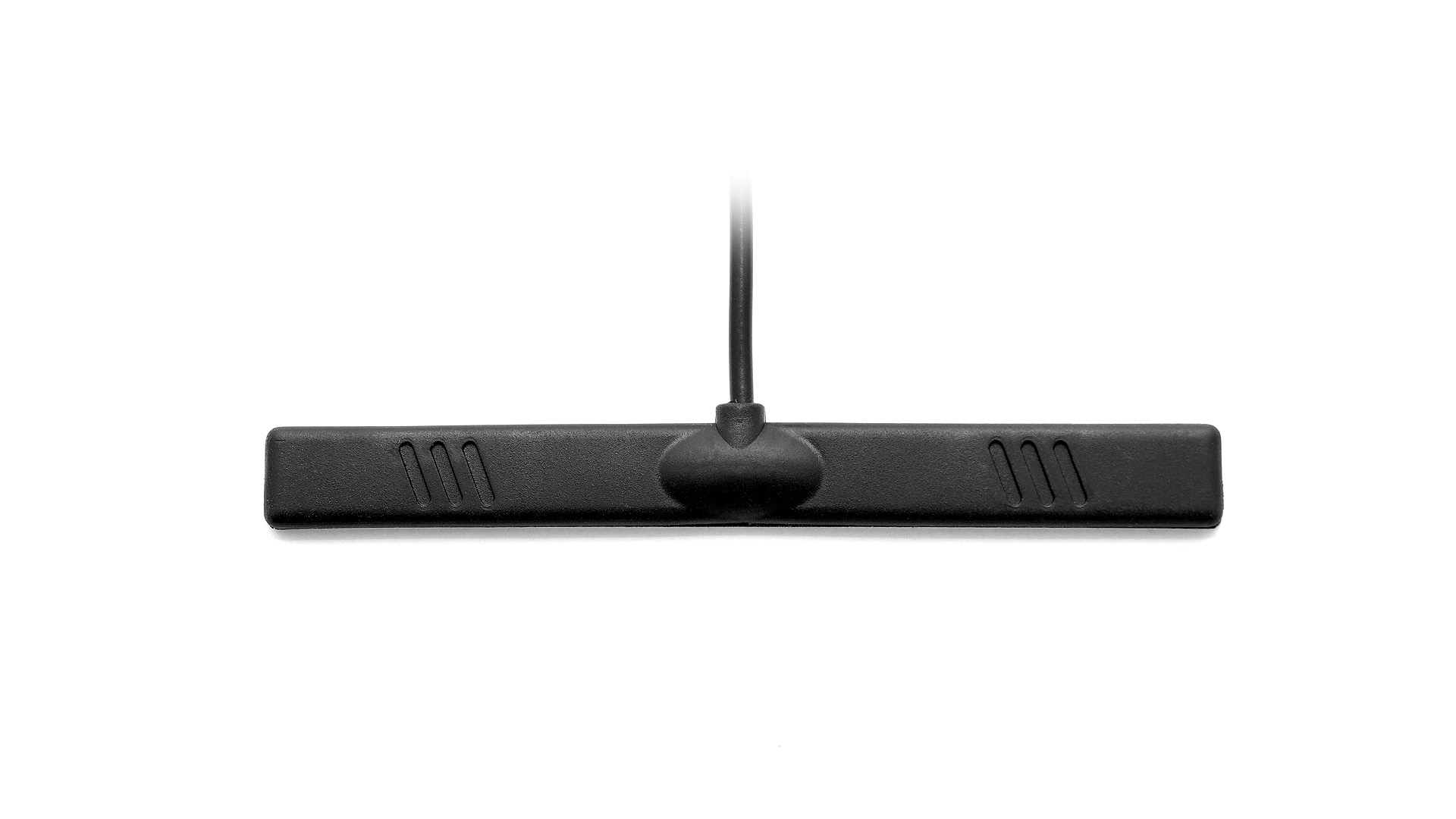

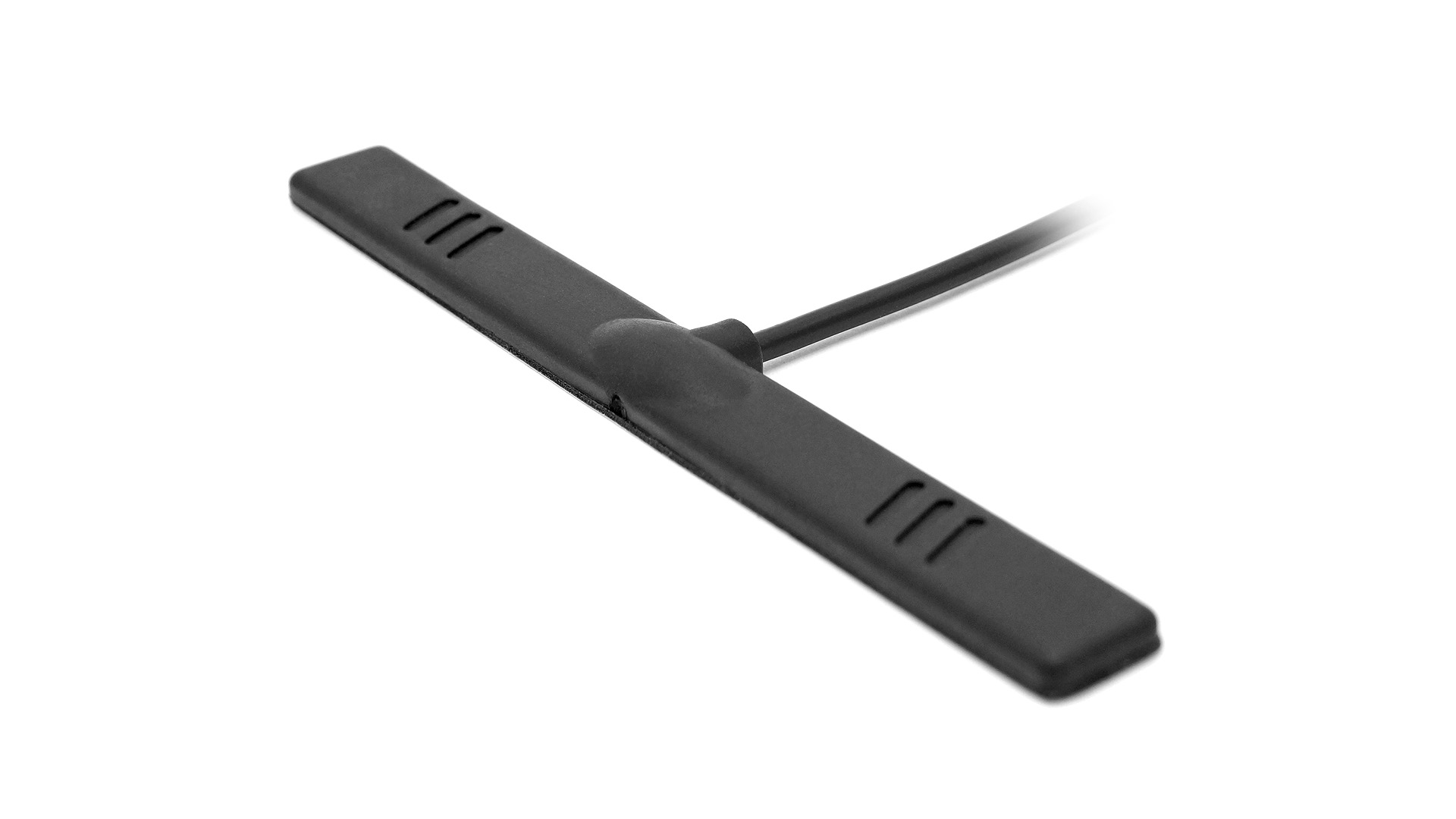

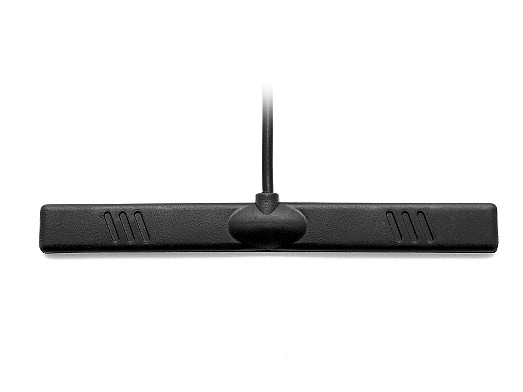

2J Antennas brings LTE 450 technology to our T-Bar product series by offering our new ground plane independent peel-and-stick Antenna (2J5290P). This high-performance antenna is designed specifically to operate within the 410-496 MHz band making it ideal for devices requiring absolute reliability. By utilizing LTE 450, it effectively redirects data traffic away from public networks, reducing congestion and ensuring consistent performance. This communication network offers extensive coverage, strong signal penetration capabilities, high-speed connectivity, and reliable security.

Its flexible, low-profile design allows for seamless integration into various scenarios, making it an ideal choice for applications across industries such as IoT, M2M, and remote monitoring. The 2J5290P is a low-cost solution with easy installation through the simple peel-and-stick application making this antenna ideal for commercial, industrial and consumer industries.

Suggested applications include:

  • Internet of Things (IoT) In particular, LTE 450 supports CAT-M and narrowband IoT (NB-IoT) technologies, which are dedicated to IoT connectivity.
  • Machine to machine (M2M) applications
  • Logistics and Shipping
  • Industrial IoT & Monitoring
  • Smart Farming
  • Security and Surveillance
  • Mission Critical Communications
  • Transportation

The 2J5290P brings exceptional signal strength and quality in a 360-degree radiation pattern due to its omni-directional design while maintaining a maximum peak gain of ~-1.3 and a maximum efficiency of ~37.3%.

Installation / Environmental

Measuring only 117.4 x 12.5 x 6.5 mm, the low-profile 2J5290P features a high-quality adhesive tape and PC/ABS UV stable material, and can be installed on any glass or ABS surfaces found in the most extreme outdoor environments without any risk of failure. The flexible housing simplifies both installation and adjustment.

As an added measure, this antenna was designed with ground plane independence in order to eliminate any grounding restrictions during the installation process. Given the LTE 450 spectrum's recognized efficiency in remote areas and its ability to maintain strong signals even through walls and underground, it becomes the top choice for devices typically installed in basement locations below ground level. The 2J5290P features a standard SMA-Male connector and a 300 cm long LL100 cable. 2J Antennas also offers a wide range of alternative connectors and cables to meet our customers’ most unique design requirements.

The health of the environment is important to 2J Antennas; therefore, all our products are manufactured without hazardous materials making us fully REACH and RoHS compliant.
