Antenna and electrical specifications

connection 1

LTE 450 Antenna

Standards LTE Band 450
Frequency 410-496
VSWR ~5.0:1
Efficiency (%) ~40.6
Peak Gain (dBi) ~-1.5
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 50

Key Features

Monopole Antenna
Ground Plane Dependent
LTE 450 Antenna
-1.5 dBi 4G LTE Peak Gain
Small Form Factor

Antenna Description

Unlocking Possibilities: The LTE 450 Low-Frequency Band Antenna Advantage

The 2J0B90-C884G LTE 450 Connector Mount antenna is a versatile, high-performance solution for wireless communication needs within the 410-496 MHz frequency band. Its low-profile design can be easily integrated into various devices and systems, making it an excellent choice for applications in industries such as IoT, M2M, and remote monitoring.

LTE 450 operates on the low 410-496 MHz frequency band. This communication network offers wider area coverage, robust signal penetration, high-speed connectivity, and dependable security. Unlike typical public networks operating at higher frequencies like 900, 1800, 2100, or 2600 MHz, LTE 450, often referred to as band 31, necessitates a dedicated module. This immediately gives LTE 450 an advantage in terms of less signal congestion, leading to exceptional network performance.

The 2J0B90-C884G antenna delivers exceptional performance with its monopole design, ground plane dependence, and connector-mount versatility.

Suggested applications include:

  • Internet of Things (IoT) In particular, LTE 450 supports CAT-M and narrowband-IoT (NB-IoT) technologies, which are dedicated to IoT connectivity.
  • Machine to machine (M2M) applications
  • Logistics and Shipping
  • Industrial IoT & Monitoring
  • Smart Farming
  • Security and Surveillance
  • Mission Critical Communications
  • Transportation

2J0B90-C884G maintains a maximum peak gain of ~-1.5 dBi and a maximum efficiency of ~40.6%.

Installation / Environmental

Measuring only 44 × 19.1 × 9 mm, the low-profile 2J0B90-C884G features a secure connector mount. This solution is engineered to operate within temperatures ranging from -40°C to +85°C and is suitable for indoor or outdoor use. The antenna's robust construction, including its black TPC-ET radome, ensures durability and resilience in challenging environmental conditions. Additionally, its compliance with RoHS standards reflects its commitment to environmental sustainability.

Because the LTE 450 spectrum is well known to be efficient in remote areas with strong signals through walls and underground, this system is the #1 choice for devices that are typically installed in basements below ground.

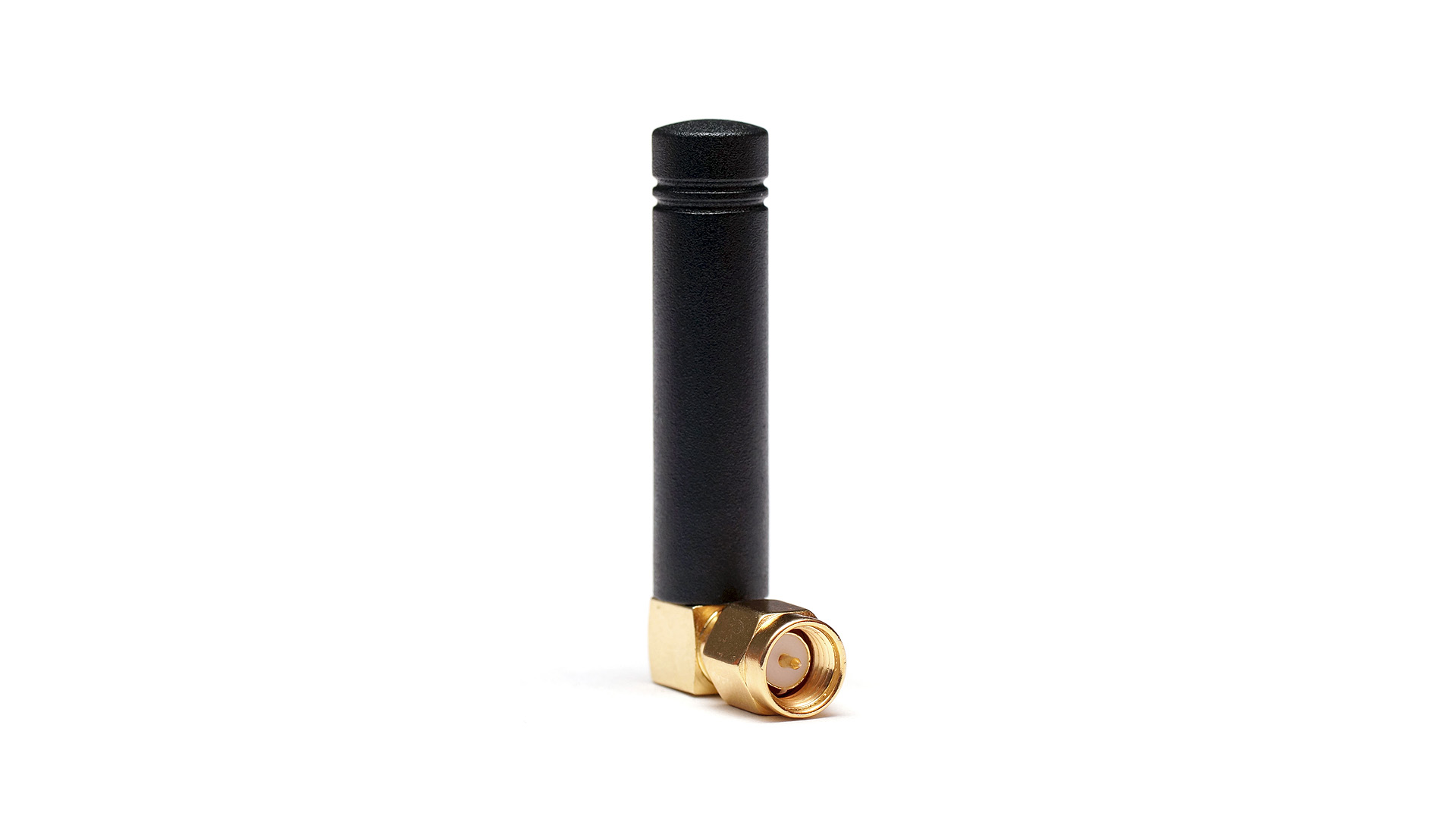

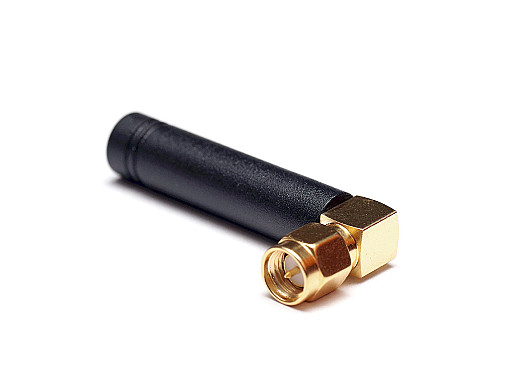

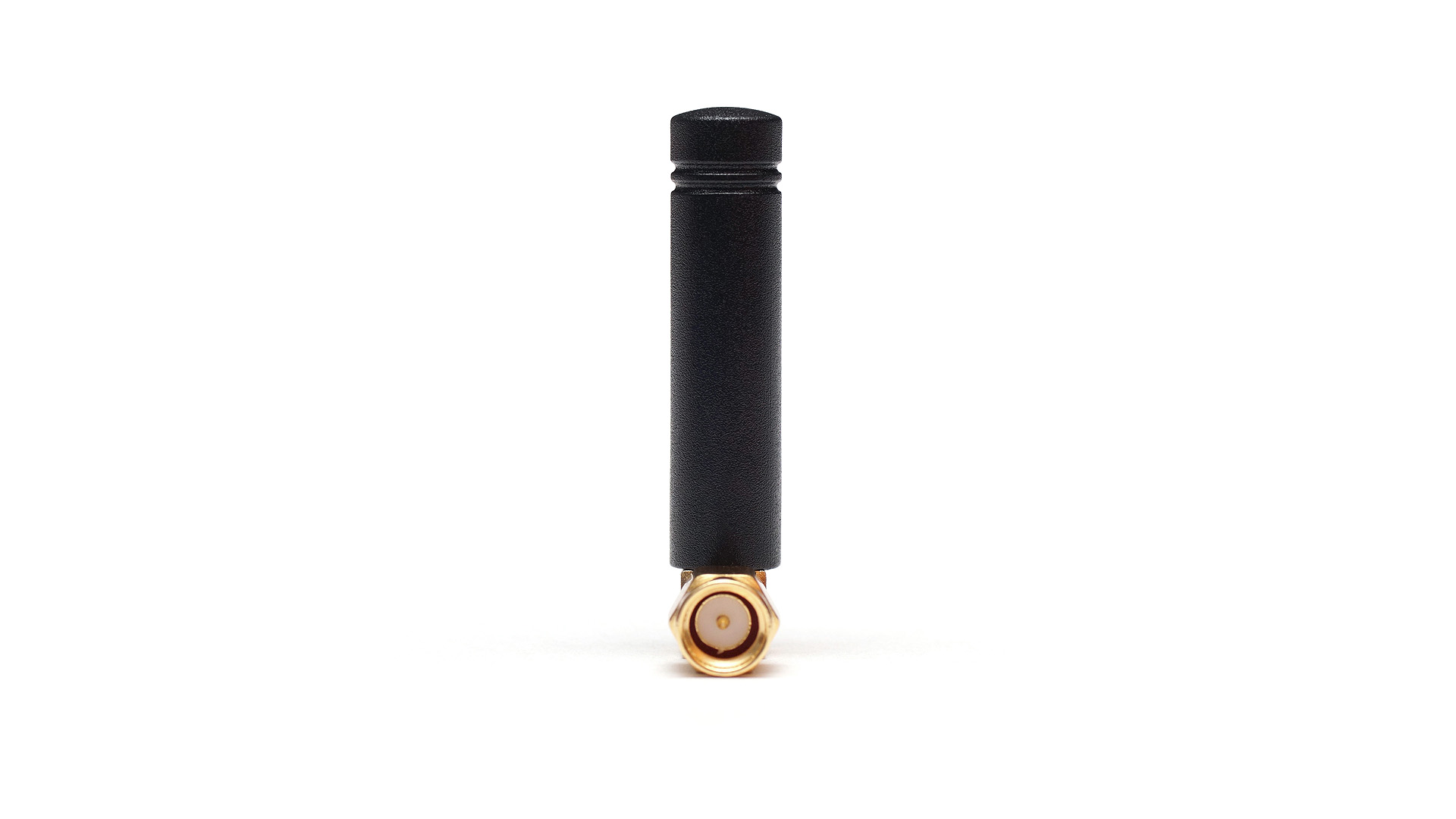

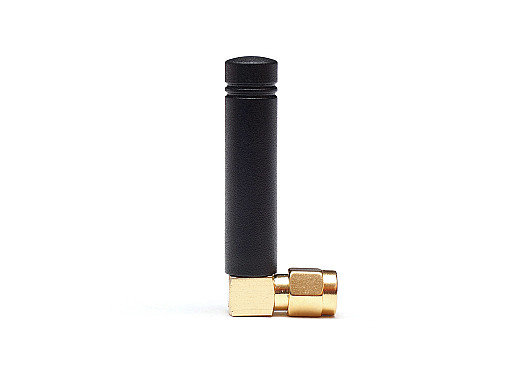

This antenna comes with a SMA-Male (right angle) connector. Our connectors and cables are fully customizable to meet your specific requirements, and our team of highly experienced engineers is readily available to assist in selecting antennas that perfectly align with your unique usage needs.

For more information, please don't hesitate to reach out to us.

This antenna is also available with a regular connector mount (no angle). Explore the 2J0B90-C885G for more information.
