Satellite Internet Antennas Manufacturer (43)

2J Antennas offer a range of Satellite Internet antennas. High performance, high efficiency, suitable for wide range of frequencies, our outdoor antennas comply with ingress protection ratings such as IP67, IP69K and more. The cables and connectors can be customized.

Sort by
Products per page

2JW1126-C952B

Connections (1)
IRIDIUM
Dimensions
135 × 19 × 10
Mounting
Connector Mount
Certificates
Iridium Certified
Key features
  • Iridium Certified Antenna
  • Dipole Antenna
  • Ground Plane Independent
  • 2.5 dBic IRIDIUM Peak Gain
  • High Performance
  • Hinged Connector

2J6934B

Connections (1)
GPS/QZSS/Galileo/L1-IRIDIUM
Dimensions
80 × 74 × 25.6
Mounting
Screw Mount
Certificates
Iridium Certified, IP67, IP69
Key features
  • Passive GNSS-IRIDIUM Antenna
  • Iridium Certified Antenna
  • Ground Plane Independent
  • 5.7 dBi GNSS Peak Gain
  • High Performance
  • High Efficiency
  • Single Feed Technology
  • Low Profile
  • Anti-Rotation Mounting
  • Customizable Cable and Connector

2J9134BW

Connections (1)
GPS/QZSS/Galileo/L1-IRIDIUM
Dimensions
Ø 74 × 34.7
Mounting
Screw Mount
Certificates
Iridium Certified, IP67
Key features
  • Passive GNSS-IRIDIUM Antenna
  • Iridium Certified Antenna
  • Ground Plane Independent
  • 5.7 dBi GNSS Peak Gain
  • High Performance
  • High Efficiency
  • Single Feed Technology
  • Compact Marine antenna
  • Customizable Cable and Connector

2J9134JBW-B12JW-B10BW

Connections (1)
GPS/QZSS/Galileo/L1-IRIDIUM
Dimensions
130 × 110 × 74
Mounting
Screw Mount, Adhesive Mount, Pole Mount
Certificates
Iridium Certified, IP67
Key features
  • Passive GNSS-IRIDIUM Antenna
  • Iridium Certified Antenna
  • Compact Marine antenna
  • Ground Plane Independent
  • 5.7 dBi GNSS Peak Gain
  • High Performance
  • High Efficiency
  • Single Feed Technology
  • Configurable Mount options
  • Adhesive Mounting sticker included
  • Customizable Cable and Connector

2J6026B

Connections (1)
IRIDIUM
Dimensions
80 × 74 × 14.7
Mounting
Screw Mount
Certificates
Iridium Certified
Key features
  • Iridium Certified Antenna
  • Ground Plane Independent
  • 3.5 dBic IRIDIUM Peak Gain
  • High Performance
  • Low Profile
  • Customizable Cable and Connector

2J6726B

Connections (1)
IRIDIUM
Dimensions
Ø 77.3 × 36.5
Mounting
Screw Mount
Certificates
IP67, IP69K, IK10, Iridium Certified
Key features
  • Iridium Certified Antenna
  • 4.5 dBic IRIDIUM Peak Gain
  • Ground Plane Independent
  • High Efficiency
  • Heavy Duty antenna
  • Anti-Rotation Mounting
  • Customizable Cable and Connector

2J6926B

Connections (1)
IRIDIUM
Dimensions
80 × 74 × 25.6
Mounting
Screw Mount
Certificates
Iridium Certified, IP67, IP69
Key features
  • Iridium Certified Antenna
  • Ground Plane Independent
  • 4.5 dBic IRIDIUM Peak Gain
  • High Gain
  • Low Profile
  • Anti-Rotation Mounting
  • Customizable Cable and Connector

2J9126BW

Connections (1)
IRIDIUM
Dimensions
Ø 74 × 34.7
Mounting
Screw Mount
Certificates
Iridium Certified, IP67
Key features
  • Iridium Certified Antenna
  • Compact Marine antenna
  • Ground Plane Independent
  • 4.5 dBic IRIDIUM Peak Gain
  • High Gain
  • High Efficiency
  • Customizable Cable and Connector

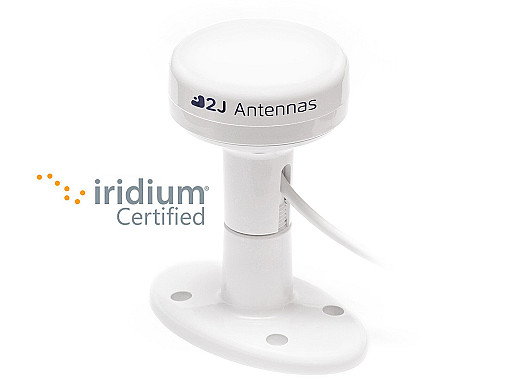

2J9126JBW-B12JW-B10BW

Connections (1)
IRIDIUM
Dimensions
130 × 110 × 74
Mounting
Screw Mount, Adhesive Mount, Pole Mount
Certificates
Iridium Certified, IP67
Key features
  • Iridium Certified Antenna
  • Compact Marine antenna
  • Ground Plane Independent
  • 4.5 dBic IRIDIUM Peak Gain
  • High Performance
  • High Efficiency
  • Configurable Mount options
  • Adhesive Mounting sticker included
  • Customizable Cable and Connector

2J7B26JB-C177N-B16J

Connections (1)
IRIDIUM
Dimensions
Ø 96 x H 200 (Pole) <br> Ø 96 x H 131 (Screw)
Mounting
Screw Mount, Pole Mount
Certificates
IP67, IP69
Key features
  • IRIDIUM Quadrifilar Helix Antenna
  • Compact Marine antenna
  • Ground Plane Independent
  • 2.7 dBi IRIDIUM Peak Gain
  • Axial Ratio below 3 dB
  • Superb RHCP polarization
  • High Performance
  • High Efficiency
  • Heavy Duty antenna
  • Lightweight Plastic Base
  • Configurable Mount options
  • Pole Mount plastic bracket included
  • Suitable for pole with max Ø43 mm
  • Adhesive Mounting sticker included
  • Anti-Rotation Mounting

2J6934MP

Connections (1)
GPS/QZSS/Galileo/L1-IRIDIUM
Dimensions
89 × 76 × 27/30
Mounting
Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Certificates
IP67, IP69, Iridium Certified
Key features
  • Passive GNSS-IRIDIUM Antenna
  • Iridium Certified Antenna
  • Ground Plane Independent
  • 5.7 dBi GNSS Peak Gain
  • High Performance
  • High Efficiency
  • Single Feed Technology
  • Adhesive Mounting sticker included
  • Customizable Cable and Connector

2J7434MPz

Connections (1)
GPS/QZSS/Galileo/L1-IRIDIUM
Dimensions
Ø 54 x 14.7
Mounting
Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Certificates
Iridium Certified, IP67, IP69
Key features
  • Passive GNSS-IRIDIUM Antenna
  • Iridium Certified Antenna
  • Ground Plane Dependent
  • 2.6 dBi GNSS Peak Gain
  • Single Feed Technology
  • Low Profile
  • Adhesive Mounting sticker included
  • Customizable Cable and Connector

2J6026P

Connections (1)
IRIDIUM
Dimensions
80 x 76 x 16
Mounting
Adhesive Mount
Certificates
Iridium Certified
Key features
  • Iridium Certified Antenna
  • Ground Plane Independent
  • 4.5 dBic IRIDIUM Peak Gain
  • High Performance
  • High Efficiency
  • Low Profile
  • Customizable Cable and Connector

2J6926MP

Connections (1)
IRIDIUM
Dimensions
89 × 76 × 27/30
Mounting
Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Certificates
IP67, IP69, Iridium Certified
Key features
  • Iridium Certified Antenna
  • Ground Plane Independent
  • 4.5 dBic IRIDIUM Peak Gain
  • High Gain
  • High Efficiency
  • Low Profile
  • Adhesive Mounting sticker included
  • Customizable Cable and Connector

2J7426MPz

Connections (1)
IRIDIUM
Dimensions
Ø 54 x 14.7
Mounting
Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Certificates
IP67, IP69, Iridium Certified
Key features
  • Iridium Certified Antenna
  • Ground Plane Dependent
  • 5.1 dBic IRIDIUM Peak Gain
  • High Performance
  • High Efficiency
  • Low Profile
  • Adhesive Mounting sticker included
  • Customizable Cable and Connector

2J9C34JW-C392N

Connections (1)
GPS/QZSS/Galileo/L1-IRIDIUM
Dimensions
Ø 74 × 116
Mounting
Pole Mount
Certificates
Iridium Certified, IP67
Key features
  • Passive GNSS-IRIDIUM Antenna
  • Iridium Certified Antenna
  • Ground Plane Independent
  • 5.7 dBi GNSS Peak Gain
  • High Performance
  • High Efficiency
  • Single Feed Technology
  • Integrated TNC Female Connector

2J9C26JW-C392N

Connections (1)
IRIDIUM
Dimensions
Ø 74 × 116
Mounting
Pole Mount
Certificates
Iridium Certified, IP67
Key features
  • Iridium Certified Antenna
  • Ground Plane Independent
  • 4.5 dBic IRIDIUM Peak Gain
  • High Performance
  • High Efficiency
  • Integrated TNC Female Connector

2J6033BGF

Connections (2)
GPS/GLO/QZSS/Galileo/L1
IRIDIUM
Dimensions
80 × 74 × 14.7
Mounting
Screw Mount
Certificates
Iridium Certified
Key features
  • Ground Plane Independent
  • 4.5 dBic IRIDIUM Peak Gain
  • 28 dB GNSS Active Gain
  • GNSS Voltage Range 1.5 - 3.6 V
  • Customizable Cable and Connector
  • 2-in-1 Combination Antenna
  • Iridium Certified Antenna
  • Active GNSS Antenna
  • Pre-Filter GNSS
  • Low Profile

2J6933BGFz

Connections (2)
GPS/GLO/QZSS/Galileo/L1
IRIDIUM
Dimensions
80 × 74 × 25.6
Mounting
Screw Mount
Certificates
IP67, IP69, Iridium Certified
Key features
  • 2-in-1 Combination Antenna
  • Ground Plane Independent
  • Iridium Certified Antenna
  • 5.2 dBic IRIDIUM Peak Gain
  • High Performance
  • Active GNSS Antenna
  • 28 dB GNSS Active Gain
  • Pre-Filter GNSS
  • GNSS Voltage Range 1.5 - 3.6 V
  • Low Profile
  • Anti-Rotation Mounting
  • Customizable Cable and Connector

2J6552BGF

Connections (3)
5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
IRIDIUM
Dimensions
Ø 146 x 31.5
Mounting
Screw Mount
Certificates
IP67, IP69K, IK09, Iridium Certified
Key features
  • 3-in-1 Combination Antenna
  • Ultra Wide band Antenna
  • 617-5925 MHz Sub 6GHz Bands
  • Full 4GLTE backward compatibility
  • Ground Plane Dependent
  • 0.6 dBi 5G NR Peak Gain
  • Iridium Certified Antenna
  • 4.5 dBic IRIDIUM Peak Gain
  • Active GNSS Antenna
  • 28 dB GNSS Active Gain
  • Pre-Filter GNSS
  • GNSS Voltage Range 1.5 - 3.6 V
  • Heavy Duty antenna
  • Anti-Rotation Mounting
  • Customizable Cable and Connector

2J6552BGF-M18-SP

Connections (3)
5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
IRIDIUM
Dimensions
Ø 136 x 31.5
Mounting
Screw Mount
Certificates
IP67, IP69K, IK09, Iridium Certified
Key features
  • 3-in-1 Combination Antenna
  • Ultra Wide band Antenna
  • 617-5925 MHz Sub 6GHz Bands
  • Full 4GLTE backward compatibility
  • Ground Plane Independent
  • 0.6 dBi 5G NR Peak Gain
  • Iridium Certified Antenna
  • 4.5 dBic IRIDIUM Peak Gain
  • Active GNSS Antenna
  • 28 dB GNSS Active Gain
  • Pre-Filter GNSS
  • GNSS Voltage Range 1.5 - 3.6 V
  • Heavy Duty antenna
  • Anti-Rotation Mounting
  • Customizable Cable and Connector

2J6975BGF

Connections (3)
5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
IRIDIUM
Dimensions
80 × 74 × 25.6
Mounting
Screw Mount
Certificates
IP67, IP69, Iridium Certified
Key features
  • 3-in-1 Combination Antenna
  • Ultra Wide band Antenna
  • 617-5925 MHz Sub 6GHz Bands
  • Full 4GLTE backward compatibility
  • Ground Plane Independent
  • 5.1 dBi 5G NR Peak Gain
  • High Performance
  • High Efficiency
  • Iridium Certified Antenna
  • 5.2 dBic IRIDIUM Peak Gain
  • Active GNSS Antenna
  • 28 dB GNSS Active Gain
  • Pre-Filter GNSS
  • GNSS Voltage Range 1.5 - 3.6 V
  • Low Profile
  • Anti-Rotation Mounting
  • Customizable Cable and Connector

2J6551BGF

Connections (4)
5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM
IRIDIUM
Dimensions
Ø 146 x 31.5
Mounting
Screw Mount
Certificates
IP67, IP69K, IK09, Iridium Certified
Key features
  • 4-in-1 Combination Antenna
  • Ultra Wide band Antenna
  • 617-5925 MHz Sub 6GHz Bands
  • WIFI 6E / WIFI 7 Antenna
  • Ground Plane Dependent
  • Full 4GLTE backward compatibility
  • 0.6 dBi 5G NR Peak Gain
  • 5.2 dBi WIFI Peak Gain
  • Iridium Certified Antenna
  • 4.5 dBic IRIDIUM Peak Gain
  • Active GNSS Antenna
  • 28 dB GNSS Active Gain
  • Pre-Filter GNSS
  • GNSS Voltage Range 1.5 - 3.6 V
  • Heavy Duty antenna
  • Anti-Rotation Mounting
  • Customizable Cable and Connector

2J6551BGF-M18-SP

Connections (4)
5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM
IRIDIUM
Dimensions
Ø 136 × 31.5
Mounting
Screw Mount
Certificates
IP67, IP69K, IK09, Iridium Certified
Key features
  • 4-in-1 Combination Antenna
  • Ultra Wide band Antenna
  • 617-5925 MHz Sub 6GHz Bands
  • WIFI 6E / WIFI 7 Antenna
  • Ground Plane Independent
  • Full 4GLTE backward compatibility
  • 0.6 dBi 5G NR Peak Gain
  • 5.2 dBi WIFI Peak Gain
  • Iridium Certified Antenna
  • 4.5 dBic IRIDIUM Peak Gain
  • Active GNSS Antenna
  • 28 dB GNSS Active Gain
  • Pre-Filter GNSS
  • GNSS Voltage Range 1.5 - 3.6 V
  • Heavy Duty antenna
  • Anti-Rotation Mounting
  • Customizable Cable and Connector

2J6C75BGFa

Connections (4)
2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
IRIDIUM
Dimensions
193 × 76.3 × 52.4
Mounting
Screw Mount
Certificates
IP67, IP69
Key features
  • 4-in-1 Combination Antenna
  • Ultra Wide band Antenna
  • 617-7125 MHz Bands
  • Ground Plane Independent
  • Full 4GLTE backward compatibility
  • 6.1 dBi 5G NR Peak Gain
  • 4.7 dBic IRIDIUM Peak Gain
  • High Performance
  • Active GNSS Antenna
  • 28 dB GNSS Active Gain
  • Pre-Filter GNSS
  • GNSS Voltage Range 1.5 - 3.6 V
  • Anti-Rotation Mounting
  • Customizable Cable and Connector

2J6C64Ba

Connections (5)
2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
2× 2.4-5.0-6.0GHz MIMO/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM
IRIDIUM
Dimensions
193 × 76.3 × 52.4
Mounting
Screw Mount
Certificates
IP67, IP69
Key features
  • 5-in-1 Combination Antenna
  • Ultra Wide band Antenna
  • 617-7125 MHz Bands
  • WIFI 6E / WIFI 7 Antenna
  • Ground Plane Independent
  • Full 4GLTE backward compatibility
  • 6.2 dBi 5G NR Peak Gain
  • 6.4 dBi WIFI Peak Gain
  • 3.2 dBic IRIDIUM Peak Gain
  • High Performance
  • Anti-Rotation Mounting
  • Customizable Cable and Connector

2J6033PGF

Connections (2)
GPS/GLO/QZSS/Galileo/L1
IRIDIUM
Dimensions
80 x 76 x 13/16
Mounting
Adhesive Mount
Certificates
Iridium Certified
Key features
  • 2-in-1 Combination Antenna
  • Ground Plane Independent
  • Iridium Certified Antenna
  • 4.5 dBic IRIDIUM Peak Gain
  • Active GNSS Antenna
  • 28 dB GNSS Active Gain
  • Pre-Filter GNSS
  • GNSS Voltage Range 1.5 - 3.6 V
  • Low Profile
  • Customizable Cable and Connector

2J6933MPGFz

Connections (2)
GPS/GLO/QZSS/Galileo/L1
IRIDIUM
Dimensions
89 × 76 × 27/30
Mounting
Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Certificates
IP67, IP69, Iridium Certified
Key features
  • 2-in-1 Combination Antenna
  • Ground Plane Independent
  • Iridium Certified Antenna
  • 5.2 dBic IRIDIUM Peak Gain
  • High Performance
  • Active GNSS Antenna
  • 28 dB GNSS Active Gain
  • Pre-Filter GNSS
  • GNSS Voltage Range 1.5 - 3.6 V
  • Low Profile
  • Adhesive Mounting sticker included
  • Customizable Cable and Connector

2J6975MPGF

Connections (3)
5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
IRIDIUM
Dimensions
89 × 76 × 27/30
Mounting
Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Certificates
IP67, IP69, Iridium Certified
Key features
  • 3-in-1 Combination Antenna
  • Ultra Wide band Antenna
  • 617-5925 MHz Sub 6GHz Bands
  • Ground Plane Independent
  • Full 4GLTE backward compatibility
  • 5.1 dBi 5G NR Peak Gain
  • High Performance
  • High Efficiency
  • Iridium Certified Antenna
  • 5.2 dBic IRIDIUM Peak Gain
  • Active GNSS Antenna
  • 28 dB GNSS Active Gain
  • Pre-Filter GNSS
  • GNSS Voltage Range 1.5 - 3.6 V
  • Low Profile
  • Adhesive Mounting sticker included
  • Customizable Cable and Connector

2J4A56PGFa

Connections (4)
2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1
IRIDIUM
Dimensions
61.8 x 155.6 x 17.0
Mounting
Adhesive Mount
Certificates
IP67, IP69, Vibration
Key features
  • 4-in-1 Combination Antenna
  • Ground Plane Independent
  • Wide band Antenna
  • 698-2700 MHz 4GLTE Bands
  • 2.0 dBi 4G LTE Peak Gain
  • Iridium Certified Antenna
  • 4.5 dBi IRIDIUM Peak Gain
  • High Performance
  • Active GNSS Antenna
  • 28 dB GNSS Active Gain
  • Pre-Filter GNSS
  • GNSS Voltage Range 1.5 - 3.6 V
  • Low Profile
  • Customizable Cable and Connector

Catalogues

Explore and download all our current catalogues.

Show Catalogues

Become Supplier

Offering some reliable components? Contact our purchase team.

Contact us

Get Quotation

Interested in our quality products? Contact our sales team.

Request Quotation

Stay Informed

Never miss anything important with our newsletter.
