Land Survey Antennas Manufacturer (15)

2J Antennas offer a range of Land Survey antennas. High performance, high efficiency, suitable for wide range of frequencies, our outdoor antennas comply with ingress protection ratings such as IP67, IP69K and more. The cables and connectors can be customized.

Sort by
Products per page
Superior precision GPS/GLONASS/BeiDou/Galileo/L1/L2 Active External Antenna by 2J Antennas

2J6901BC2F - L1L2

Connections (1)
GPS/GLO/BEI/QZSS/Galileo/RTK/L1L2
Dimensions
80 × 74 × 25.6
Mounting
Screw Mount
Certificates
IP67, IP69
Key features
  • Active GNSS Antenna
  • L1/L2 Multi-Band-Constellation
  • High Precision Navigation
  • Ground Plane Independent
  • 28 dB GNSS Active Gain
  • Pre-Filter GNSS
  • Voltage Range 1.5 - 6.0 V
  • Low Power Consumption
  • Low Profile
  • Anti-Rotation Mounting
  • Customizable Cable and Connector
Details
Datasheet 3D model
Superior precision GPS/GLONASS/BeiDou/Galileo/L1/L5 Active External Antenna by 2J Antennas

2J6901BC3F - L1L5

Connections (1)
GPS/GLO/BEI/QZSS/Galileo/IRNSS/L1L5
Dimensions
80 × 74 × 25.6
Mounting
Screw Mount
Certificates
IP67, IP69
Key features
  • Active GNSS Antenna
  • L1/L5 Multi-Band-Constellation
  • High Precision Navigation
  • Ground Plane Independent
  • 28 dB GNSS Active Gain
  • Pre-Filter GNSS
  • Voltage Range 1.5 - 6.0 V
  • Low Power Consumption
  • Low Profile
  • Anti-Rotation Mounting
  • Customizable Cable and Connector
Details
Datasheet 3D model
Superior precision GPS/GLONASS/BeiDou/Galileo/L1/L2 Active External Antenna by 2J Antennas

2J6901PC2F - L1L2

Connections (1)
GPS/GLO/BEI/QZSS/Galileo/RTK/L1L2
Dimensions
89 × 76 × 30
Mounting
Adhesive Mount
Certificates
IP67, IP69
Key features
  • Active GNSS Antenna
  • L1/L2 Multi-Band-Constellation
  • High Precision Navigation
  • Ground Plane Independent
  • 28 dB GNSS Active Gain
  • Pre-Filter GNSS
  • Voltage Range 1.5 - 6.0 V
  • Low Power Consumption
  • Low Profile
  • Customizable Cable and Connector
Details
Datasheet 3D model
Superior precision GPS/GLONASS/BeiDou/Galileo/L1/L5 Active External Antenna by 2J Antennas

2J6901PC3F - L1L5

Connections (1)
GPS/GLO/BEI/QZSS/Galileo/IRNSS/L1L5
Dimensions
89 × 76 × 30
Mounting
Adhesive Mount
Certificates
IP67, IP69
Key features
  • Active GNSS Antenna
  • L1/L5 Multi-Band-Constellation
  • High Precision Navigation
  • Ground Plane Independent
  • 28 dB GNSS Active Gain
  • Pre-Filter GNSS
  • Voltage Range 1.5 - 6.0 V
  • Low Power Consumption
  • Low Profile
  • Customizable Cable and Connector
Details
Datasheet 3D model
Superior precision GPS/GNSS/BeiDou/Galileo/L1/L2 Active External Antenna by 2J Antennas

2J7C01MC2F - L1L2

Connections (1)
GPS/GLO/BEI/QZSS/Galileo/RTK/L1L2
Dimensions
Ø 54 × 21.5
Mounting
Magnetic Mount
Certificates
IP67, IP69
Key features
  • Active GNSS Antenna
  • L1/L2 Multi-Band-Constellation
  • High Precision Navigation
  • Ground Plane Independent
  • 28 dB GNSS Active Gain
  • Pre-Filter GNSS
  • Voltage Range 1.5 - 6.0 V
  • Low Power Consumption
  • Low Profile
  • Customizable Cable and Connector
Details
Datasheet 3D model
Superior precision GPS/GNSS/BeiDou/Galileo/L1/L2/RTK Passive Ceramic Antenna by 2J Antennas

2J7C01MC3F - L1L5

Connections (1)
GPS/GLO/BEI/QZSS/Galileo/IRNSS/L1L5
Dimensions
Ø 54 × 21.5
Mounting
Magnetic Mount
Certificates
IP67, IP69
Key features
  • Active GNSS Antenna
  • L1/L5 Multi-Band-Constellation
  • High Precision Navigation
  • Ground Plane Independent
  • 28 dB GNSS Active Gain
  • Pre-Filter GNSS
  • Voltage Range 1.5 - 6.0 V
  • Low Power Consumption
  • Low Profile
  • Customizable Cable and Connector
Details
Datasheet 3D model
2Jjf0201p High Precision GPS/GNSS/L1/L2/L5/L6 Flexible Polymer Adhesive Antenna designed and manufactured by 2J Antennas

2JF0201P

Connections (1)
GPS/GLO/BEI/QZSS/Galileo/IRNSS/L1L2L5L6
Dimensions
45.4 × 45.4 × 0.2
Mounting
Adhesive Mount Flexible
Key features
  • Passive GNSS Antenna
  • L1/L2/L5/L6 Multi-Band-Constellation
  • Flexi Internal Antenna
  • Ground Plane Independent
  • 4.9 dBi GNSS Peak Gain
  • High Efficiency
  • Self-Adhesive
  • Customizable Cable and Connector
Details
Datasheet 3D model
2JL67 Passive GNSS/GPS/L1/L2/L5/L6 Surface Mount Compact Ceramic Loop Antenna designed and manufactured by 2J Antennas

2JL67

Connections (1)
GPS/GLO/BEI/QZSS/Galileo/IRNSS/L1L2L5L6
Dimensions
5.2 x 3.7 x 0.7
Mounting
Surface Mount Ceramic
Key features
  • Passive GNSS Ceramic Antenna
  • L1/L2/L5/L6 Multi-Band-Constellation
  • SMT Loop Embedded Antenna
  • Ground Plane Dependent
  • 3.7 dBi GNSS Peak Gain
  • High Efficiency
  • Compact Size
  • Easy to Integrate
Details
Datasheet 3D model
Superior precision GPS/GNSS/BeiDou/Galileo/L1/L2/RTK Passive Ceramic Antenna by 2J Antennas

2JCP2582101Gc - L1L2

Connections (1)
GPS/GLO/QZSS/Galileo/RTK/L1L2
Dimensions
25 × 25 × 8
Mounting
Thru-Hole Mount Ceramic
Key features
  • Passive GNSS Ceramic Antenna
  • L1/L2 Multi-Band-Constellation
  • Embedded Antenna
  • Ground Plane Dependent
  • 4.3 dBi GNSS Peak Gain
  • Single Feed Technology
  • Stacked Patch
Details
Datasheet 3D model
Superior accuracy GPS/GLONASS/BeiDou/Galileo/L1/L2/RTK/SBAS Passive Ceramic Antenna by 2J Antennas

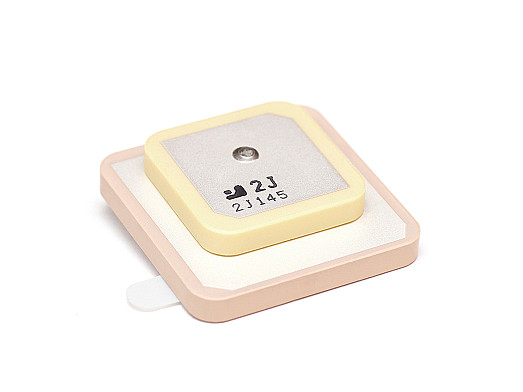

2JCP3682101Cc - L1L2

Connections (1)
GPS/GLO/BEI/QZSS/Galileo/RTK/L1L2
Dimensions
36 × 36 × 8
Mounting
Thru-Hole Mount Ceramic
Key features
  • Passive GNSS Ceramic Antenna
  • L1/L2 Multi-Band-Constellation
  • Embedded Antenna
  • Ground Plane Dependent
  • 4.3 dBi GNSS Peak Gain
  • Single Feed Technology
  • Stacked Patch
Details
Datasheet 3D model
Superior precision GPS/GLONASS/Galileo/L1/L5 Passive Ceramic Antenna by 2J Antennas

2JCP2583101Gc - L1L5

Connections (1)
GPS/GLO/QZSS/Galileo/IRNSS/L1L5
Dimensions
25 × 25 × 8
Mounting
Thru-Hole Mount Ceramic
Key features
  • Passive GNSS Ceramic Antenna
  • L1/L5 Multi-Band-Constellation
  • Embedded Antenna
  • Ground Plane Dependent
  • 4.6 dBi GNSS Peak Gain
  • Single Feed Technology
  • Stacked Patch
Details
Datasheet 3D model
Superior precision GPS/GNSS/BeiDou/Galileo/L1/L5 Passive Ceramic Antenna by 2J Antennas

2JCP3683101Cc - L1L5

Connections (1)
GPS/GLO/BEI/QZSS/Galileo/IRNSS/L1L5
Dimensions
36 × 36 × 8
Mounting
Thru-Hole Mount Ceramic
Key features
  • Passive GNSS Ceramic Antenna
  • L1/L5 Multi-Band-Constellation
  • Embedded Antenna
  • Ground Plane Dependent
  • 4.6 dBi GNSS Peak Gain
  • Single Feed Technology
  • Stacked Patch
Details
Datasheet 3D model
High Precision GNSS/GPS/SBAS/RTK/L1/L2 active stacked patch antenna by 2J Antennas

2JM3201C2F

Connections (1)
GPS/GLO/BEI/QZSS/Galileo/RTK/L1L2
Dimensions
25 × 25 × 12
Mounting
Snap-in Mount Module
Key features
  • Active GNSS Antenna
  • Internal Antenna
  • L1/L2 Multi-Band-Constellation
  • High Precision Navigation
  • Ground Plane Independent
  • 28 dB GNSS Active Gain
  • Pre-Filter GNSS
  • Voltage Range 1.5 - 6.0 V
  • Low Noise Figure
  • Low Power Consumption
  • Customizable Cable and Connector
Details
Datasheet 3D model
High Precision GNSS/GPS/SBAS/IRNSS/L1/L5 active stacked patch antenna designed and manufactured by 2J Antennas

2JM3201C3F

Connections (1)
GPS/GLO/BEI/QZSS/Galileo/IRNSS/L1L5
Dimensions
25 × 25 × 12
Mounting
Snap-in Mount Module
Key features
  • L1/L5 Multi-Band-Constellation
  • Ground Plane Independent
  • Pre-Filter GNSS
  • Low Noise Figure
  • Customizable Cable and Connector
  • Active GNSS Antenna
  • Internal Antenna
  • High Precision Navigation
  • 28 dB GNSS Active Gain
  • Voltage Range 1.5 - 6.0 V
  • Low Power Consumption
Details
Datasheet 3D model
High Precision GNSS/GPS/SBAS/IRNSS/L1/L2/L5 active stacked patch antenna designed and manufactured by 2J Antennas

2JM3201C5F

Connections (1)
GPS/GLO/BEI/QZSS/Galileo/IRNSS/L1L2L5
Dimensions
25 × 25 × 12
Mounting
Snap-in Mount Module
Key features
  • Active GNSS Antenna
  • Internal Antenna
  • L1/L2/L5 Multi-Band-Constellation
  • High Precision Navigation
  • Ground Plane Independent
  • 28 dB GNSS Active Gain
  • Pre-Filter GNSS
  • Voltage Range 1.5 - 6.0 V
  • Low Noise Figure
  • Low Power Consumption
  • Customizable Cable and Connector
Details
Datasheet 3D model
