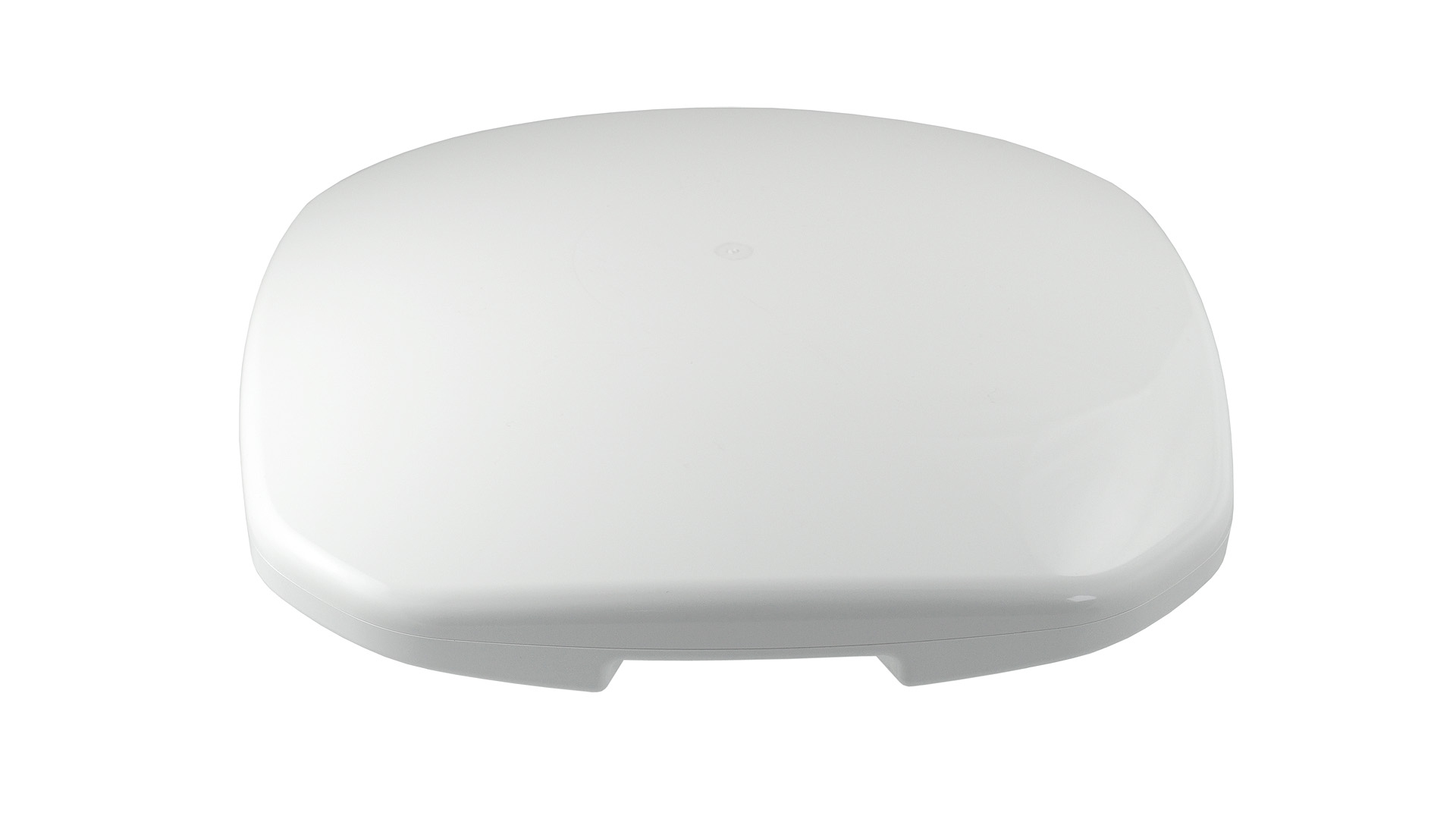

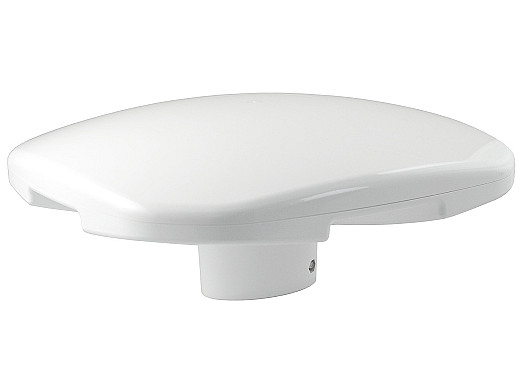

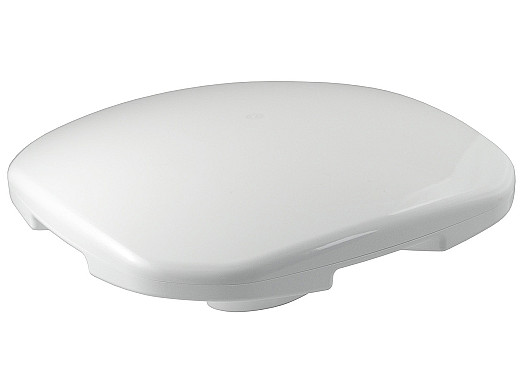

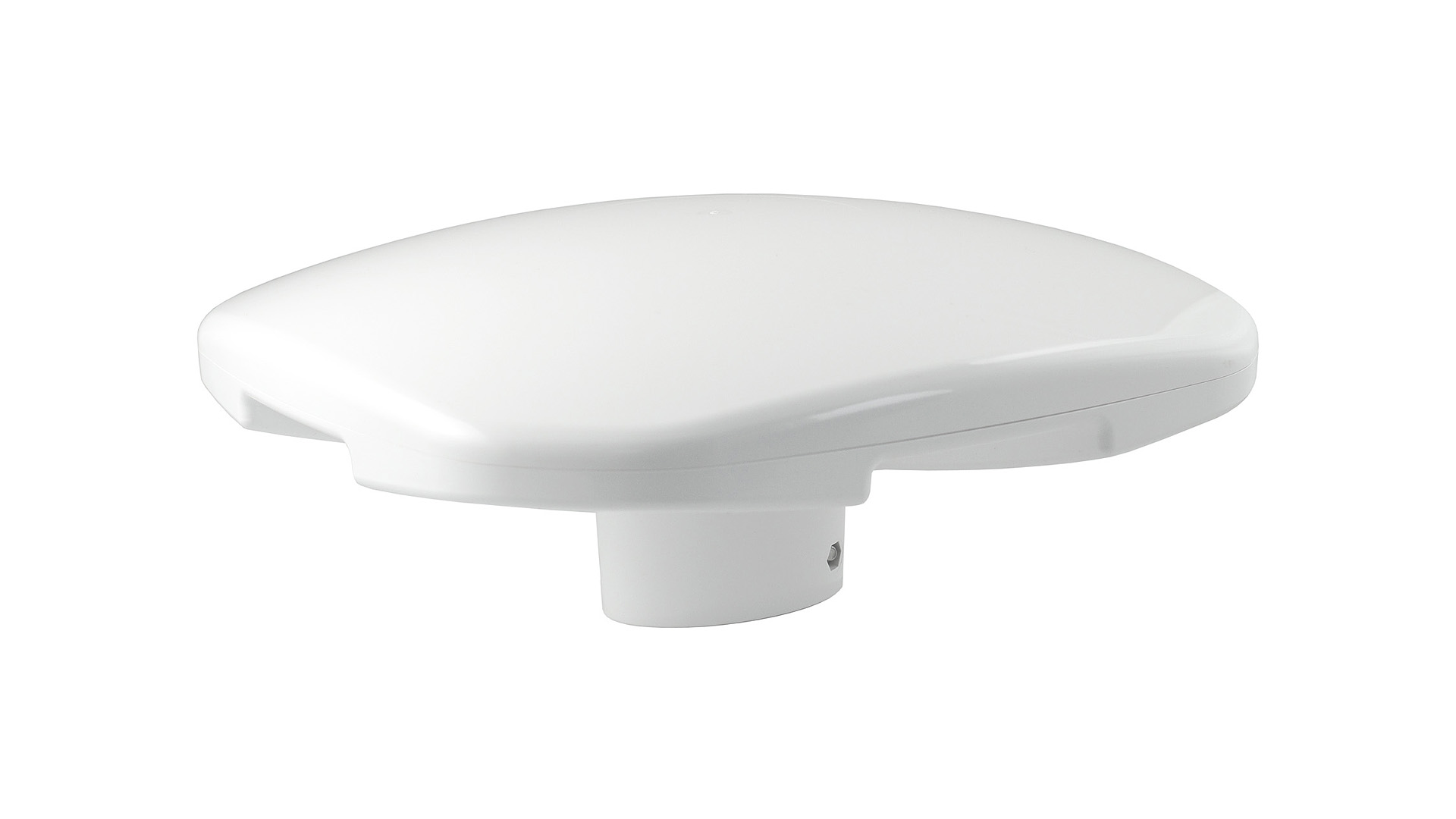

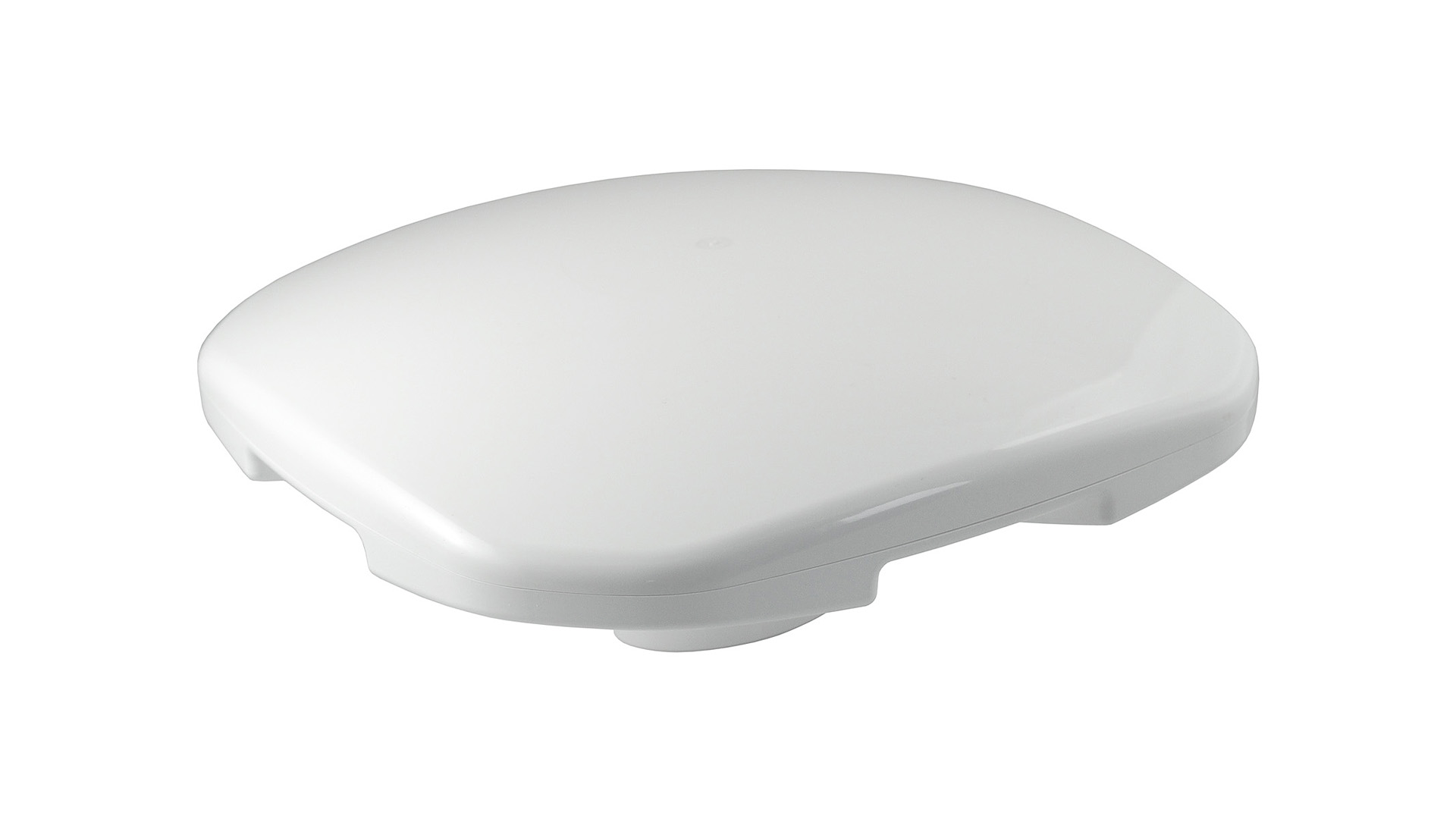

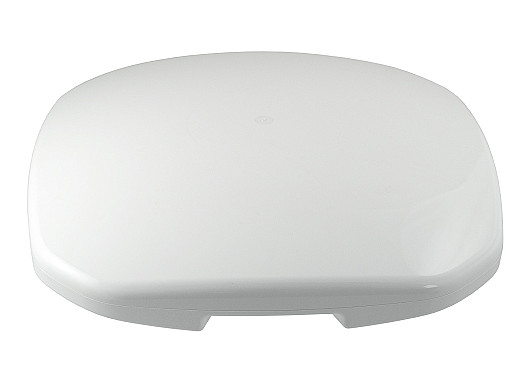

2J9524JWa 4G LTE/3G/2G MIMO Pole Mount Antenna

UFO 2 x 4G LTE/3G/2G MIMO High-Performance Pole Mount Antenna

Connections (2)

2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Mounting	Pole Mount
Dimensions (mm)	280 x 280 × 118
Operating temperature	-40 °C to +85 °C
Certificates	IP69K for antenna
Standard colors

Mounting

Pole Mount

Dimensions (mm)

280 x 280 × 118

Operating temperature

-40 °C to +85 °C

Certificates

IP69K for antenna

Standard colors

Product added to cart

Products documents

Antenna and electrical specifications

Scroll down

connection 1

CELLULAR/4G LTE

Standards	2G,3G and 4G
Frequency	698-960, 1710-2170, 2500-2700
VSWR	~1.7:1, ~1.3:1, ~1.3:1
Efficiency (%)	~72, ~71, ~72
Peak Gain (dBi)	~3.5, ~4.6, ~3.9
Impedance (Ohm)	50
Polarisation	Linear
Max. Input Power (W)	25

connection 2

CELLULAR/4G LTE

Standards	2G,3G and 4G
Frequency	698-960, 1710-2170, 2500-2700
VSWR	~1.7:1, ~1.3:1, ~1.2:1
Efficiency (%)	~74, ~72, ~70
Peak Gain (dBi)	~3.8, ~5.8, ~4.0
Impedance (Ohm)	50
Polarisation	Linear
Max. Input Power (W)	25

Key Features

2-in-1 Combination Antenna

For Marine, RV and Outdoor installation

Ground Plane Independent

Wide band Antenna

698-2700 MHz 4GLTE Bands

5.8 dBi 4G LTE Peak Gain

High Performance

High Efficiency

Customizable Cable and Connector

4GLTE Antenna Bands list

Parameters	4G LTE Antenna
Frequency (MHz)	698-960	1710-2170	2500-2700
Band (MHz)	700, 850, 900	1700, 1800, 1900, 2000, 2100	2500, 2600
4GLTE Bands	B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B85	B1, B2, B3, B4, B9, B10, B25, B33, B34, B35, B36, B37, B39, B65, B66, B70	B7, B38, B41, B69
3GCELL Bands	B5, B6, B8, B12, B13, B14, B19, B20, B26	B1, B2, B3, B4, B9, B10, B25, B33, B34, B35, B36, B37, B39	B7, B38
2GCELL Bands	710, 750, 810T, 850, 900P, 900E, 900R	1800DCS, 1900PCS
CDMACELL Bands	BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19	BC1, BC4, BC6, BC8, BC14, BC15	BC13, BC16

Antenna Description

Marine Grade 2-in-1 Combo Cellular/LTE MIMO Antenna Ideal for Boat, RV and Outdoor Applications

This external waterproof cellular/LTE MIMO wideband antenna is ideal for high performance marine and outdoor applications. The 2J9524JWa covers all cellular/LTE frequency bands, making it suitable for a wide range of applications and supporting in-vehicle internet connectivity. The antenna is high-performance and cost-effective, making it ideal for applications that allow large amounts of device traffic.

Cables 1 and 2 are designed to comply with 4G LTE, 3G, 2G, FirstNet, LPWA, NB-Iot and Cat-X-Mx-NBx standards, covering 698-960, 1710-2170 and 2500-2700 MHz frequency bands.

This antenna is designed with linear polarization and an omnidirectional radiation pattern. It is tuned and calibrated to increase signal strength and enable uninterrupted connections, better signal quality and reliability, while delivering higher data and video bandwidth throughput over long and short ranges. With 360° horizontal and vertical signal capability, the antenna provides optimal read range and allows simultaneous device operation while maintaining excellent quality. The 2J9524JWa maintains up to 74% efficiency and up to ~5.8 dBi maximum peak gain.

Suggested applications include:

HD voice and data
Marine
Boat,yachts, ferries, leasure
Marine coastal stations
Recreational vehicles
Land-based applications
Outdoor applications
Cellular communications
Infotainment systems
MIMO applications
Logistics

Installation / Environmental

2J9524JWa is fully protected from any harsh environments with high-quality IP69 rated ASA housing, making it durable enough to handle extreme marine conditions. As with all ground plane independent antennas, this system can be installed on any surface type with minimal restrictions. The pole mount feature makes it easy to adjust and install and offers maximum durability. All cables on the 2J9524JWa antenna have RF connectors (SMA-Male) and the standard cable length is 300 cm. It can also be custom configured with a variety of cables and connectors suitable for any application. All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
