Medusa 2x 5GNR/4G LTE/3G/2G MIMO Heavy-Duty Pole and Screw Mount Antenna

The Next-Gen Robust Solution For 5GNR MIMO Applications

The 2J7A83JBa-B16J, a dual external cellular MIMO 5GNR antenna, enhances mobile broadband performance with increased speed and responsiveness. It offers robust global cellular connectivity, supporting 5GNR/4G LTE, 3G, and 2G bands within a 617-5925 MHz frequency range. This antenna is designed for efficient communication, either in MIMO or separate protocols configuration, ensuring seamless online connectivity across various coverage zones. These features make it a superior candidate for the next generation of terrestrial mobile services including high-end public safety applications such as police, ambulance, fire services, transportation, critical communications, and other industries. The easy-to-install heavy-duty design and SMA-Male High-Performance antenna integrates durability and efficiency into a temporary or permanent solution

2J7A83JBa-B16J provides a peak gain of up to 3.8 Bi and achieves an efficiency of up to 56.3%.

Suggested Applications:

• Terminals, Base Stations and Routers
• Emergency Services
• MIMO Device Connectivity
• Industrial, Commercial and Residential IoT / Smart Home
• Electrical and Environmental Monitoring
• RFID Asset Tracking
• Industrial Automation
• Robotics
• Real-Time Remote Control
• V2V, V2X and Fleet Management
• Rail Vehicles

Cables 1-2: 5GNR

Cables 1 and 2 are designed for 5GNR devices that operate within all 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-Mx, CAT-NBx, NB-IoT, 3G and 2G standards (617 – 5925 MHz). They come with standard 300 cm long LL195 Standard cable, a popular choice for in high-frequency applications up to 6 GHz. All cables are designed with an omni-directional radiation pattern and linear polarization for maximum 360-degree signal strength.

Installation / Environmental

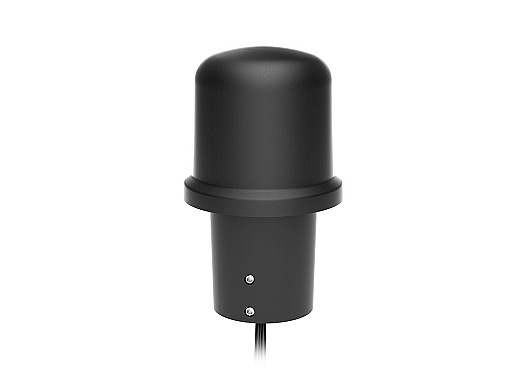

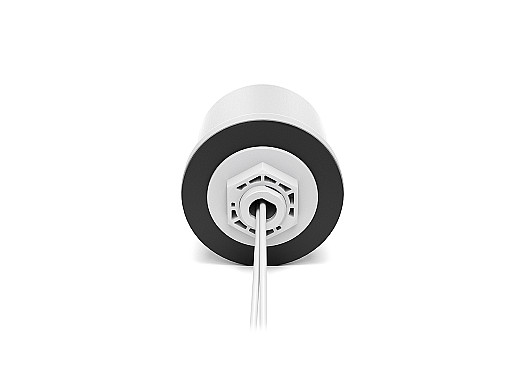

Measuring only Ø 96 x H 91 mm (screw mount) and Ø 96 x H 160 mm (pole mount), the 2J7A83JBa-B16J is encased in a strong and durable housing crafted from high-quality acrylonitrile styrene acrylate (ASA), a material recognized for its UV stability and heat resistance. Additionally, it features a plastic antenna base, offering a cost-effective alternative to the more expensive metal base option. Ground plane independence and pole mount bracket allow for solidly locking the antenna on top of its mounting location making its installation easy and reliable. The screw mount includes an anti-rotation mechanism. All Cables and connectors can be customized to specific requirements. The IP67 and IP69 ingress ratings provide this compact antenna with maximum protection against dust and water penetration, while the IK09 rating adds an extra level of anti-vandal security, with high impact resistance.

2J Antennas is committed to environmental health and manufactures all products without using hazardous materials, ensuring full compliance with REACH and RoHS standards.
