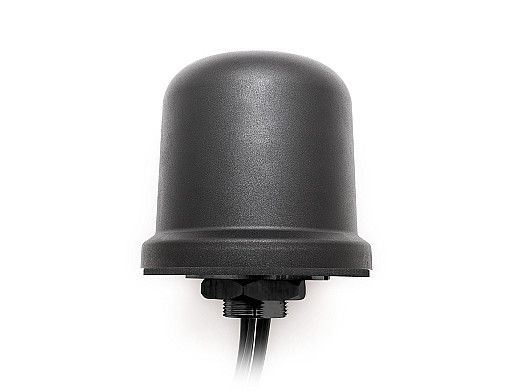

Medusa 2x 5GNR/4G LTE/3G/2G MIMO Heavy-Duty Screw Mount Antenna

The Next-Gen Robust Solution For 5GNR MIMO Applications

This dual 5GNR MIMO antenna delivers fast mobile broadband experiences and robust worldwide connectivity and is compatible with 5GNR/4G LTE, 3G and 2G bands (617-5925 MHz frequency range). This antenna facilitates communications, allowing devices to remain online while moving through different coverage areas. These features make it a superior candidate for the next generation of terrestrial mobile services, including high-end public safety applications for police, ambulance, fire services, rail vehicles, transportation, critical communications, and other industries. The easy-to-install heavy-duty design and SMA-Male High-Performance antenna integrates durability and efficiency into a temporary or permanent solution.

This antenna is designed to operate independently of a ground plane. Its wide range of functionalities allows it to be used in various settings. The antenna provides a peak gain of up to 3.8 dBi and achieves an efficiency of up to 56.3%.

Suggested Applications:

• Terminals, Base Stations and Routers
• Mobile and Cellular Networks
• Broadband Communications
• Emergency Services
• Industrial, Commercial and Residential IoT / Smart Home
• Fleet Management
• Utilities
• Video Streaming
• Industrial Automation
• Automotive
• Real-Time Remote Control
• Rail Vehicles

Cables 1-2: 5GNR Antenna

Cables 1 and 2 are designed for 5GNR devices that operate within all 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-Mx, CAT-NBx, NB-IoT, 3G and 2G standards (617 – 5925 MHz). It comes with a standard 300 cm long LL195 Standard cable, a popular choice for high-frequency applications up to 6 GHz. All cables are designed with an omni-directional radiation pattern and linear polarization for maximum 360-degree signal strength.

Installation / Environmental

Measuring only Ø 96 x H 90 mm, the 2J7A83Ba is protected with a robust and heavy-duty housing made with high-quality acrylonitrile styrene acrylate (ASA) UV stable material, known for its thermal resistant properties and a plastic antenna base. This solution comes with a screw mount antenna that can be installed indoors or outdoors. It comes with an anti-rotation mounting technology.

Cables and connectors can be customized to specific requirements. The IP67 and IP69 ingress ratings provide this compact antenna with maximum protection against dust and water penetration, while the IK09 rating adds an extra level of anti-vandal security with high impact resistance.

2J Antennas supports the health of our environment and manufactures all our products without hazardous materials, making us fully REACH and RoHS compliant.
