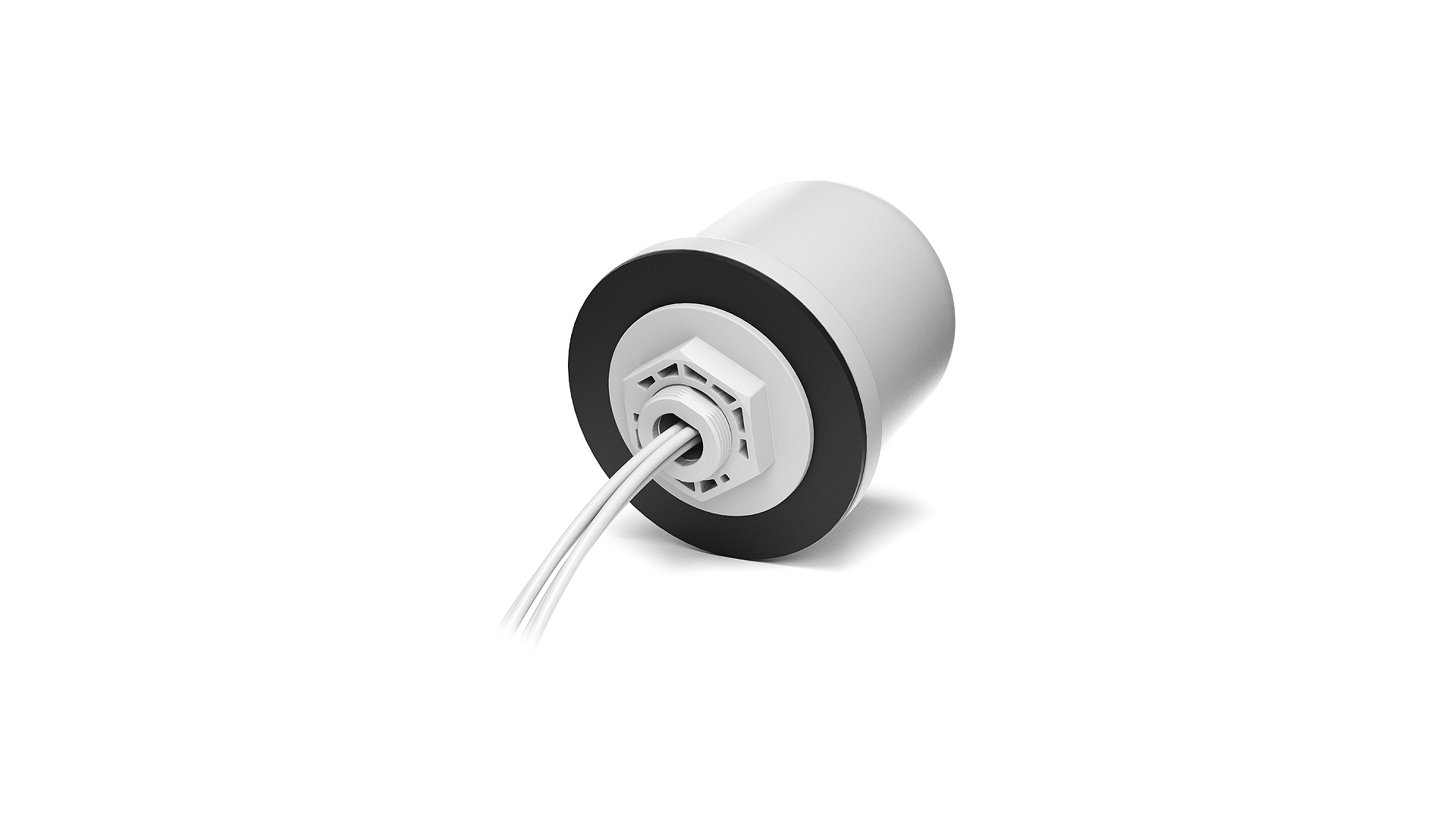

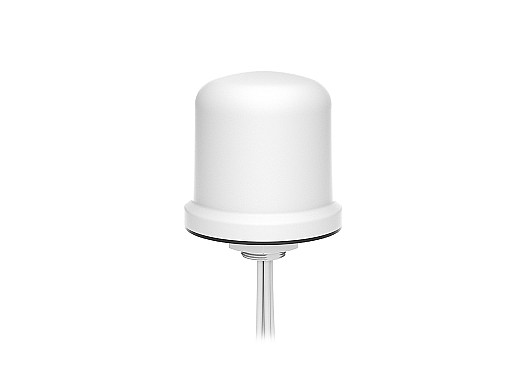

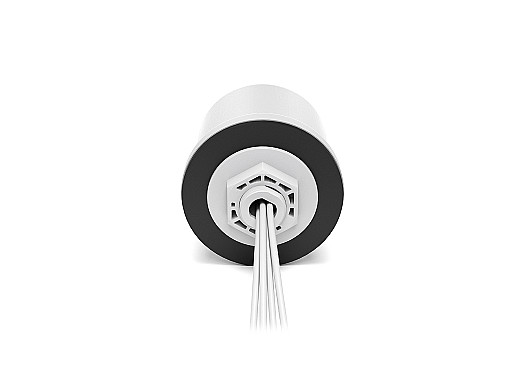

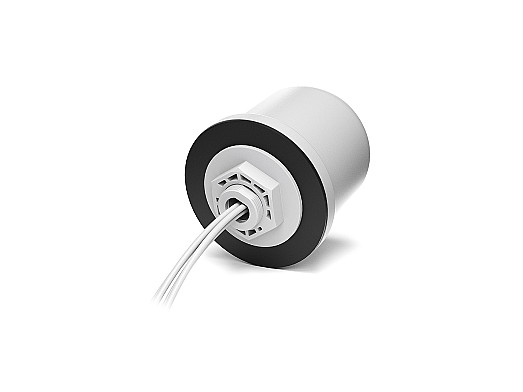

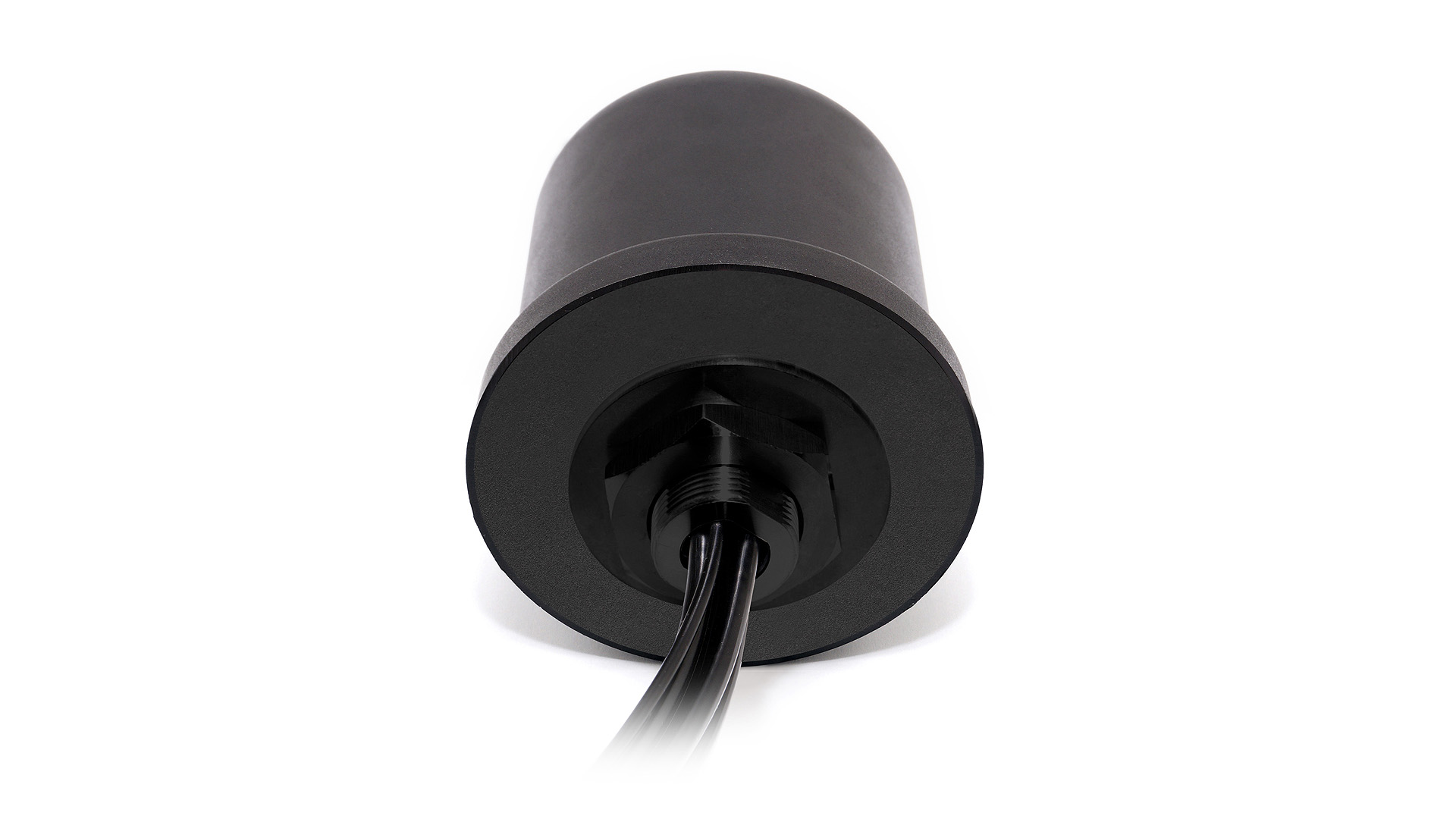

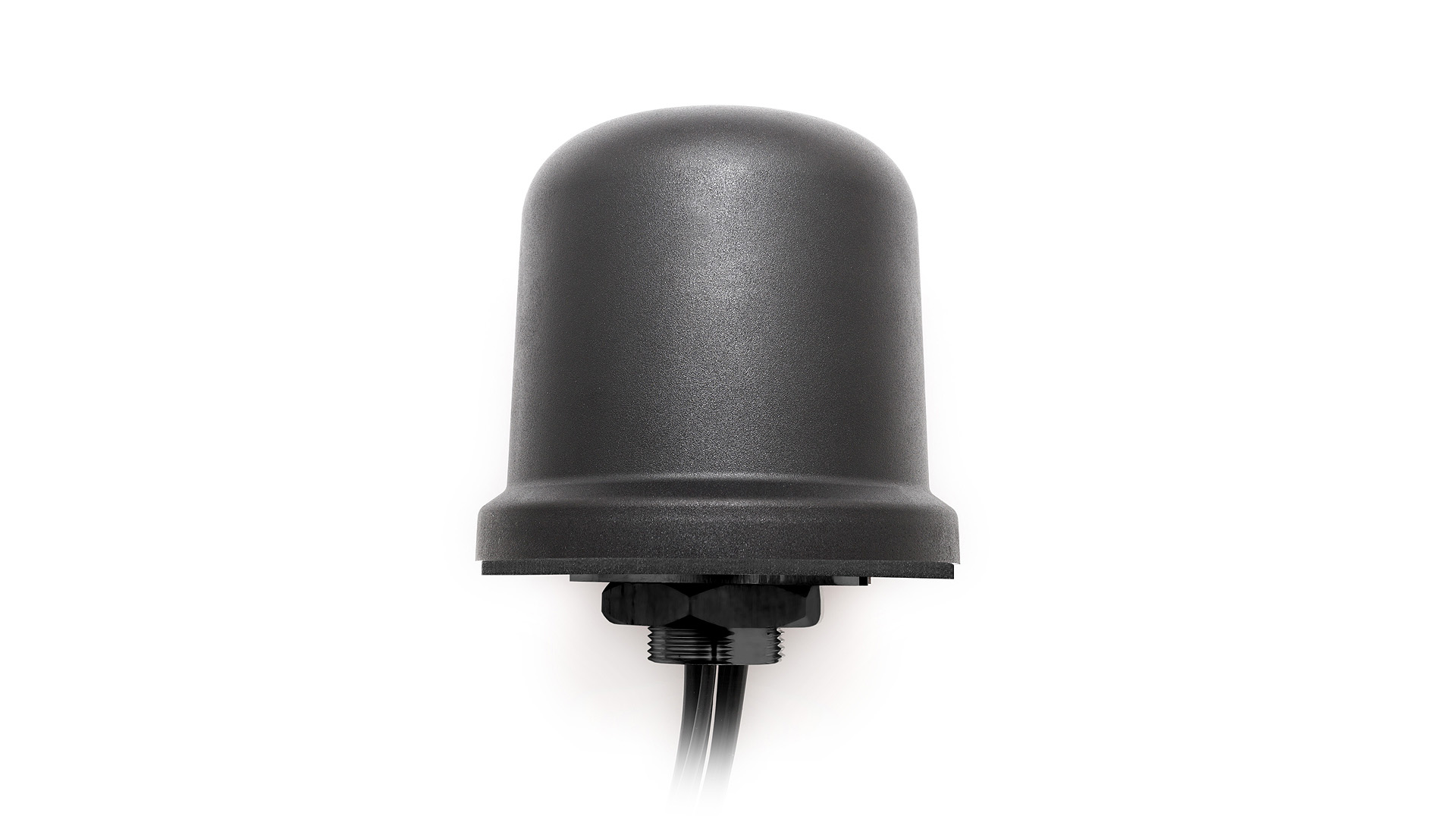

Antenna and electrical specifications
connection 1
CELLULAR/4G LTE
| Standards | 2G,3G and 4G |
|---|---|
| Frequency | 698-960, 1710-2170, 2500-2700 |
| VSWR | ~2.0:1, ~1.4:1, ~1.5:1 |
| Efficiency (%) | ~45.1, ~47.1, ~46.8 |
| Peak Gain (dBi) | ~0.9, ~3.3, ~4.4 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 2
CELLULAR/4G LTE
| Standards | 2G,3G and 4G |
|---|---|
| Frequency | 698-960, 1710-2170, 2500-2700 |
| VSWR | ~1.9:1, ~1.4:1, ~1.5:1 |
| Efficiency (%) | ~45.1, ~46.6, ~48.2 |
| Peak Gain (dBi) | ~1.4, ~3.0, ~4.7 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 3
2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7
| Standards | WiFi, BT, ZigBee, ISM, SigFox, LoRa |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.6:1, ~1.5:1, ~2.6:1 |
| Efficiency (%) | ~44.9, ~35.9, ~20.2 |
| Peak Gain (dBi) | ~4.8, ~3.0, ~1.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 4
2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7
| Standards | WiFi, BT, ZigBee, ISM, SigFox, LoRa |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.7:1, ~1.6:1, ~2.6:1 |
| Efficiency (%) | ~41.7, ~35.7, ~22.3 |
| Peak Gain (dBi) | ~4.6, ~3.1, ~1.7 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 5
GPS/GLONASS
| Standards | GPS/QZSS/Galileo/GLONASS |
|---|---|
| Frequency | 1575.42, 1598-1610 |
| VSWR | <=1.5:1 |
| Impedance (Ohm) | 50 |
| Polarisation | RHCP |
| Active Gain (dB) | 23 @ 3 V, 24 @ 5 V |
| Saw Filter Type | Post-Filter |
| Voltage (V) | 2.7 - 5.5 |
| Noise Figure (dB) | 1.2 |
| Current Consumption (mA) | 15 - 25 |
| Power Consumption (mW) | 40.5 - 137.5 |
| Out of Band Rejection (dB) | 32 |
