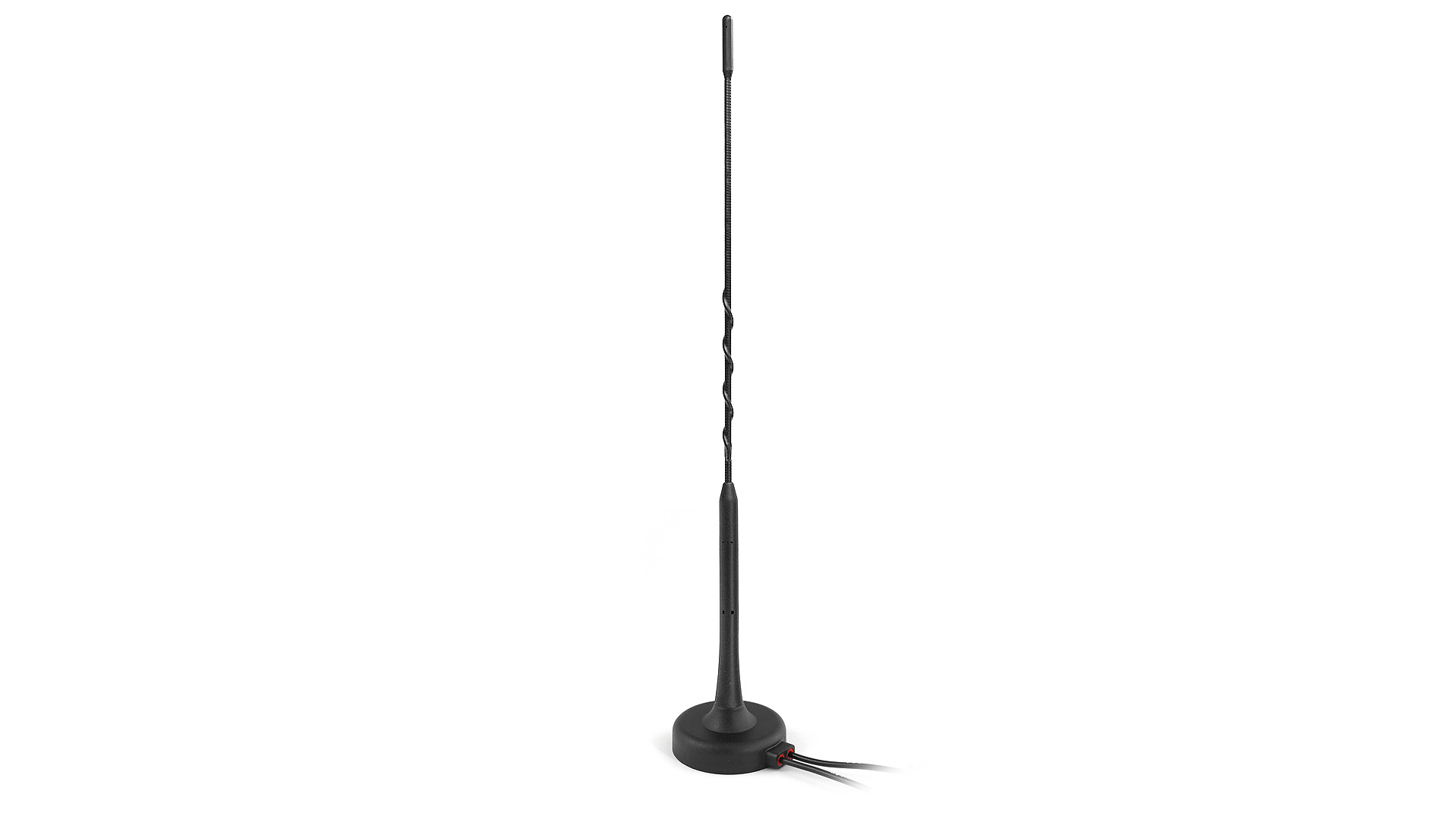

Antenna and electrical specifications
connection 1
ORBCOMM
| Standards | ORBCOMM |
|---|---|
| Bands | 143.5 |
| Frequency | 137-150 |
| VSWR | ~2.1:1 |
| Peak Gain (dBi) | ~2.4 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 2
GPS/GLONASS
| Standards | GPS/QZSS/Galileo/GLONASS |
|---|---|
| Frequency | 1575.42, 1598-1610 |
| VSWR | <=1.4:1 |
| Impedance (Ohm) | 50 |
| Polarisation | RHCP |
| Active Gain (dB) | 26 @ 3V / 27dB @ 5V |
| Saw Filter Type | No-Filter |
| Voltage (V) | 2.7 - 5.5 |
| Current (mA) | 15 - 25 |
| Power Consumption (mW) | 40 - 137 |
