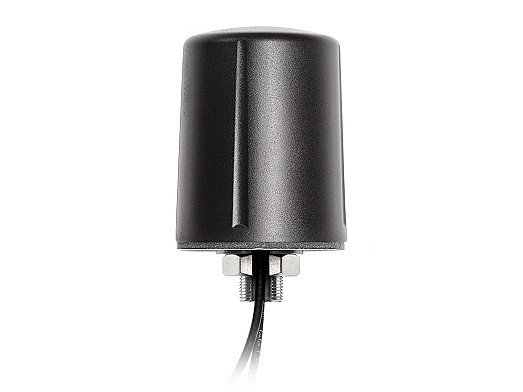

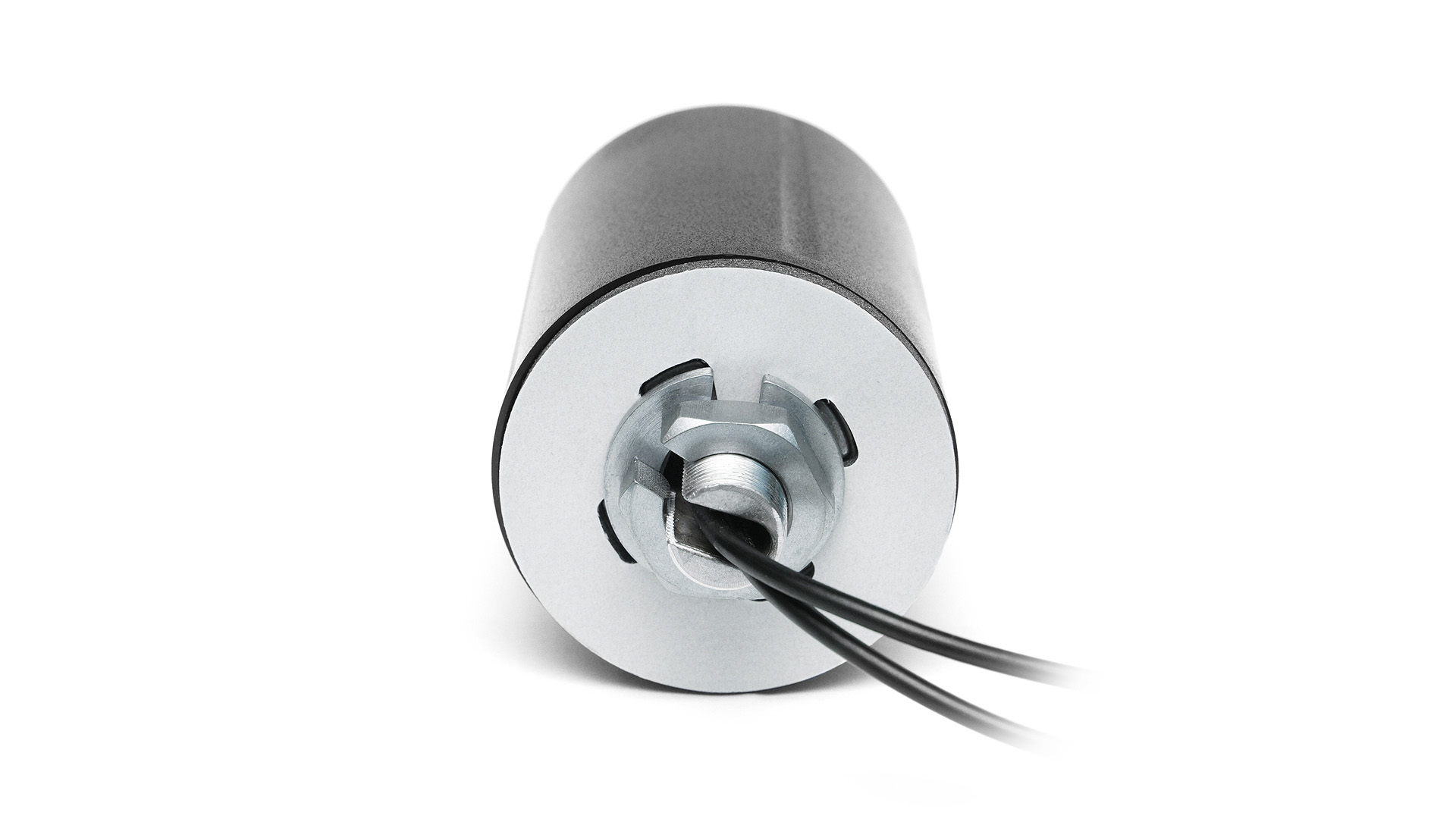

Antenna and electrical specifications
connection 1
2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7
| Standards | WiFi, BT, ZigBee, ISM |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.6:1, ~2.0:1, ~2.1:1 |
| Efficiency (%) | ~55.0, ~40.1, ~30.1 |
| Peak Gain (dBi) | ~3.7, ~2.6, ~1.3 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 2
GPS/GLONASS
| Standards | GPS/QZSS/Galileo/GLONASS |
|---|---|
| Frequency | 1575.42, 1598-1606 |
| VSWR | <=1.4:1 |
| Impedance (Ohm) | 50 |
| Polarisation | RHCP |
| Active Gain (dB) | 28 @ 2.7 V |
| Saw Filter Type | Pre-Filter |
| Voltage (V) | 1.5 - 3.6 |
| Noise Figure (dB) | 1.5 Typ |
| Current Consumption (mA) | 9 Typ |
| Power Consumption (mW) | 24.3 Typ |
| ESD Protection (kV) | 2 |
