2J7183Ba 5GNR/4GLTE/3G/2G MIMO Heavy-Duty Screw Mount Antenna

Mounting	Screw Mount
Dimensions (mm)	Ø 96 x H 130
Operating temperature	-40 °C to +85 °C
Certificates	IP67, IP69, IK09
Standard colors

Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies	5G, 4G, 3G and 2G
Standards	5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency	617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB)	~-6.8, ~-16.5, ~-10.4, ~-14.3
VSWR	~3.1:1, ~1.5:1, ~2.1:1, ~1.5:1
Efficiency (%)	~41.5, ~56.8, ~45.2, ~41.1
Peak Gain (dBi)	~-0.2, ~3.7, ~3.9, ~4.3
Impedance (Ohm)	50
Polarisation	Linear
Radiation Pattern	Omni-Directional
Max. Input Power (W)	35

connection 2

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies	5G, 4G, 3G and 2G
Standards	5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency	617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB)	~-7.0, ~-16.2, ~-11.4, ~-14.8
VSWR	~3.0:1, ~1.5:1, ~2.0:1, ~1.5:1
Efficiency (%)	~42.1, ~59.9, ~44.8, ~44.5
Peak Gain (dBi)	~0.2, ~3.9, ~4.0, ~4.9
Impedance (Ohm)	50
Polarisation	Linear
Radiation Pattern	Omni-Directional
Max. Input Power (W)	35

Key Features

2-in-1 Combination Antenna

Ultra Wide band Antenna

617-5925 MHz Sub 6GHz Bands

Full 4GLTE backward compatibility

Ground Plane Independent

4.9 dBi 5G NR Peak Gain

High Performance

Heavy Duty antenna

Anti-Rotation Mounting

Customizable Cable and Connector

5GNR Antenna Bands list

Parameters	5GNR Antenna
Frequency (MHz)	617-960	1427-2690	3300-5000	5150-5925
Band (MHz)	600, 700, 850, 900	1500, 1600, 1700, 1800, 1900, 2000, 2100, 2300, 2500, 2600	3300, 3500, 3600, 3700, 4500	5200, 5500, 5800
5GNR Bands	n5, n8 ,12, n20, n28, n71, n81, n82, n83,	n1, n2, n3, n7, n25, n34, n38, n39, n40, n41, n50, n51, n66, n70, n74, n75, n76, n80, n84, n86	n77, n78, n79
4GLTE Bands	B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B71, B85	B1, B2, B3, B4, B7, B9, B10, B11, B21, B23, B24, B25, B30, B32, B33, B34, B35, B36, B37, B38, B39, B40, B41, B45, B50, B51, B65, B66, B69, B70, B74, B75, B76	B22, B42, B43, B48, B49, B52	B46, B47, B252, B255
3GCELL Bands	B5, B6, B8, B12, B13, B14, B19, B20, B26	B1, B2, B3, B4, B7, B9, B10, B11, B21, B25, B32, B33, B34, B35, B36, B37, B38, B39, B40	B22
2GCELL Bands	710, 750, 810T, 850, 900P, 900E, 900R	1800DCS, 1900PCS
CDMACELL Bands	BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19	BC1, BC4, BC6, BC8, BC13, BC14, BC15, BC16, BC20, BC21

Antenna Description

2J7183Ba

Ultra-Reliable 5GNR MIMO Coverage in a Heavy-Duty Housing

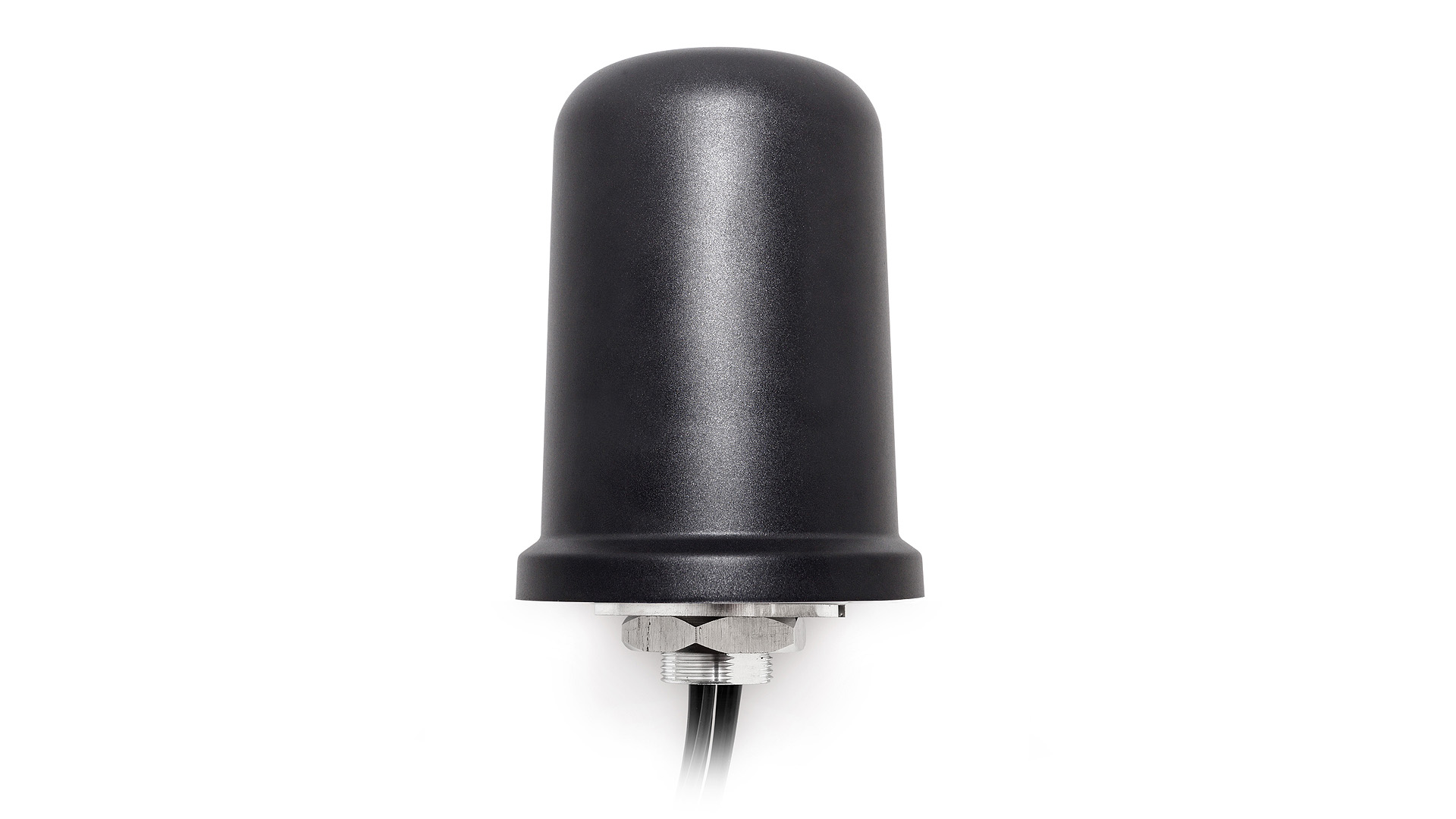

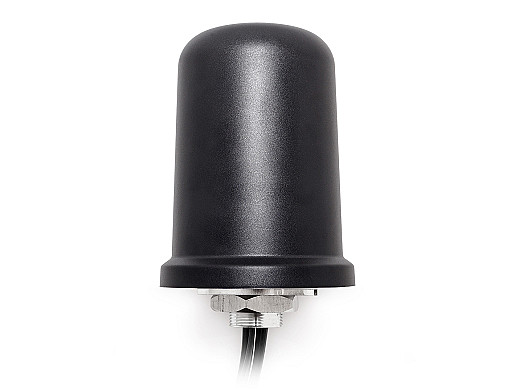

The 5GNR MIMO SMA-Male High-Performance antenna (2J7183Ba) integrates durability and efficiency into a permanent solution. The 2J7183Ba offers 2x 5GNR-MIMO antennas that deliver powerful worldwide 5GNR/4G LTE MIMO coverage while also covering the 4G LTE, 3G and 2G bands. This antenna features an easy to install heavy-duty design, making it the #1 most reliable antenna in its category.

Suggested applications include:

- Terminal, Base Stations and 5G Routers
- MIMO Device Connectivity
- Industrial, Commercial and Residential IoT / Smart Home
- Electrical and Environmental Monitoring
- RFID Asset Tracking
- Industrial Automation
- Robotics
- Real-Time Remote Control

Full 5GNR coverage (617-960, 1427-2690, 3300-5000 and 5150-5925 MHz)

Cables 1-2 are designed for 5GNR devices that operate within all 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-Mx, CAT-NBx, NB-IoT, 3G and 2G standards (617 – 5925 MHz). The 5GNR technology introduces millimeter-wave (mmWave) frequency for new generation LTE bands and is the ideal solution for MIMO technology. Each antenna can be used in any preferred combination or MIMO configuration.

All cables are designed with omni-directional radiation pattern and linear polarization for maximum 360-degree signal strength.

All our products have been tested by our expert engineers and measured in our certified CTIA 3D Anechoic Chamber. Please contact our experienced team for assistance with antenna selection and recommendations.

Installation / Environmental

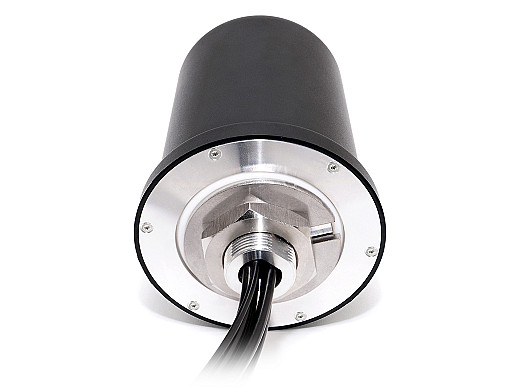

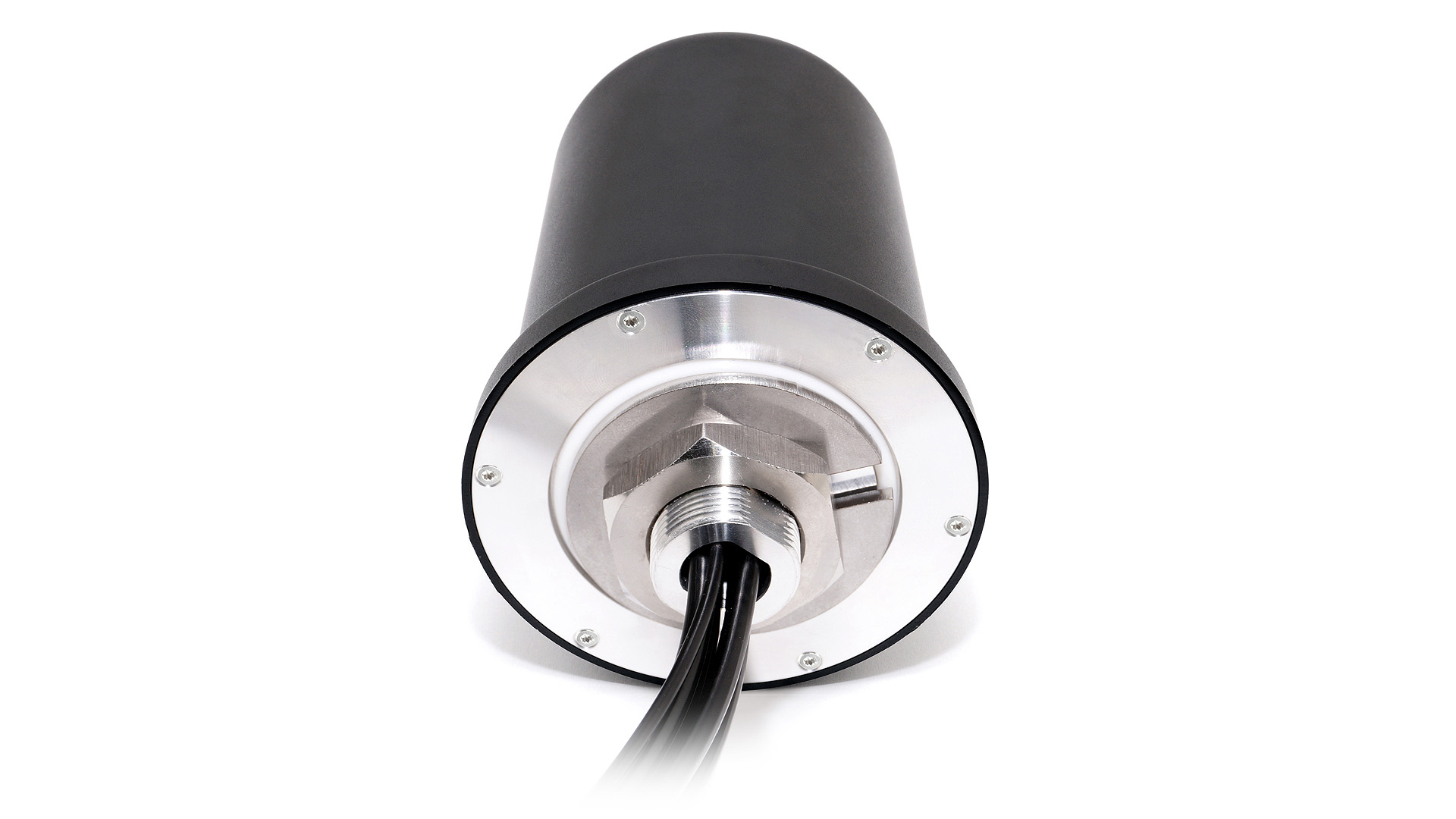

The 2J7183Ba is protected with a robust and heavy-duty housing made with high-quality acrylonitrile styrene acrylate (ASA) UV stable material, known for its thermal resistant properties, and an Aluminum Alloy base for maximum durability. Ground plane independence and screw mount technology allow for solidly locking the antenna on top of its mounting location making its installation easy and reliable. It comes with standard SMA-Male connector and 300 cm long LL195 Standard cable, a popular choice for in high-frequency applications up to 6 GHz. Cables and connectors can be customized to specific requirements. The IP67 and IP69 ingress ratings provide this compact antenna with maximum protection against dust and water penetration, while the IK09 rating adds an extra level of anti-vandal security, with high impact resistance.

2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.
