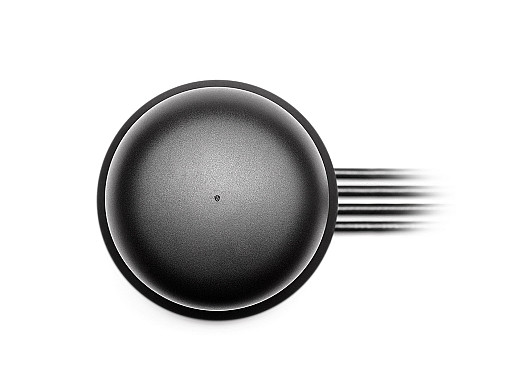

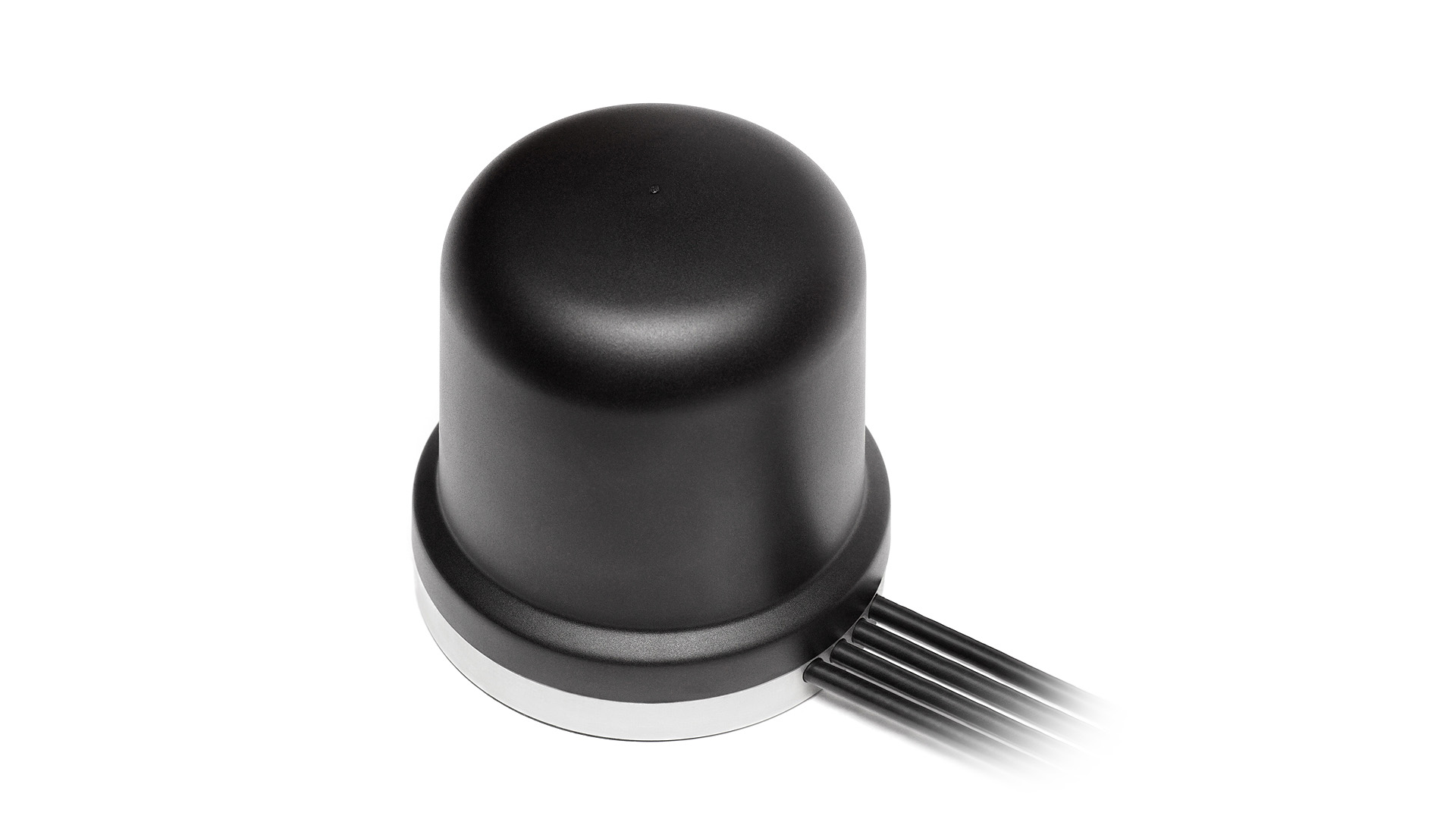

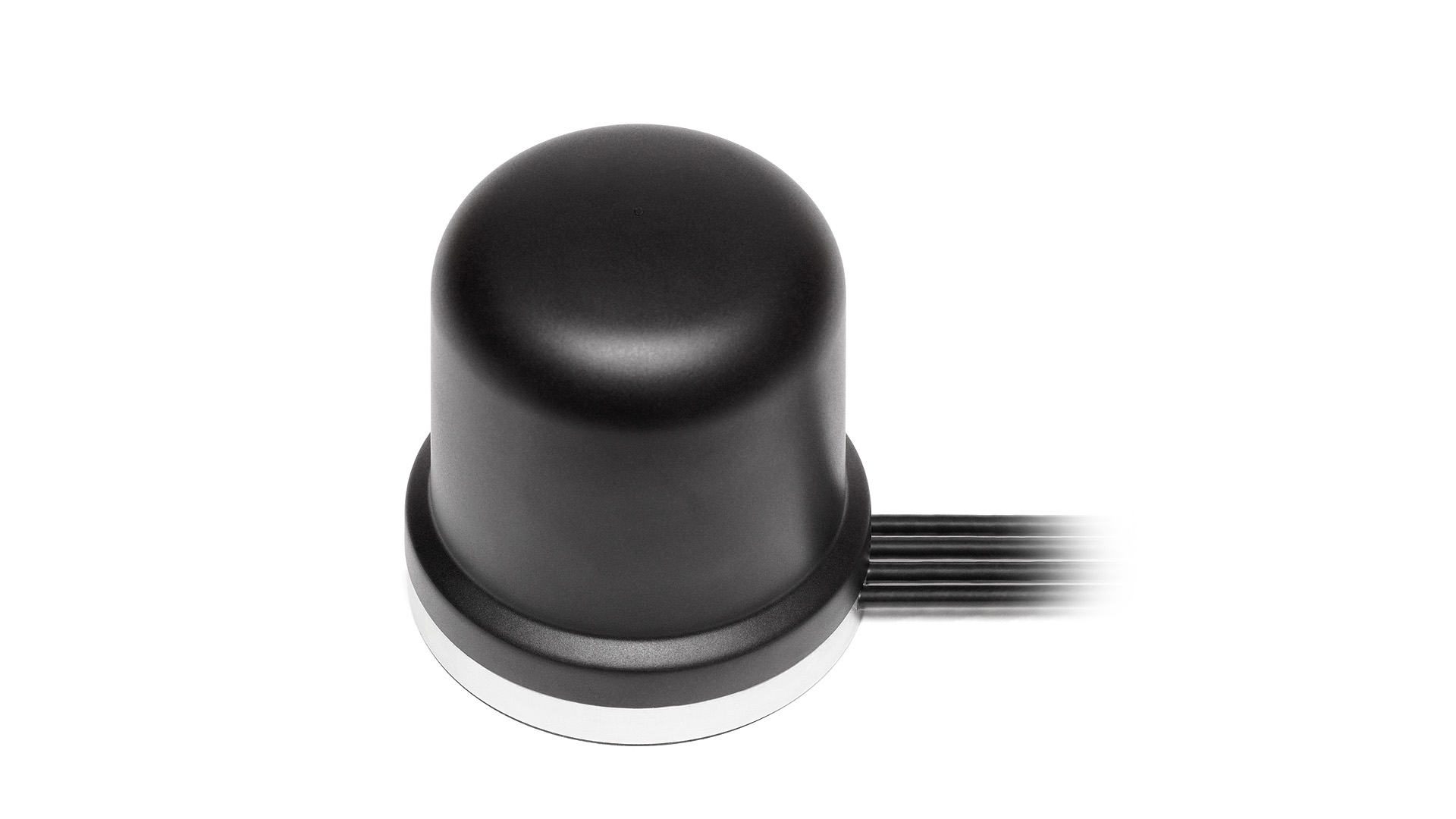

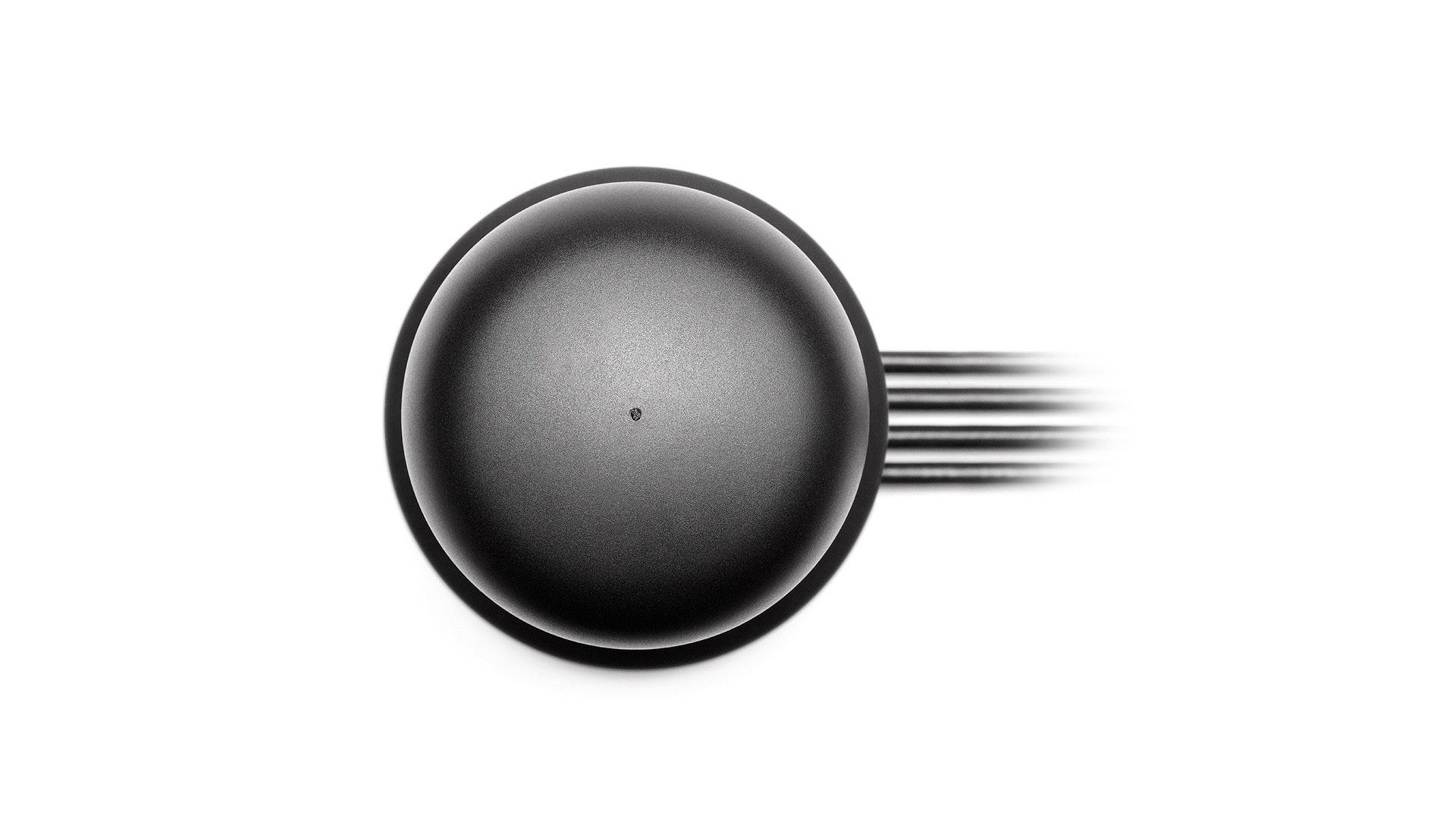

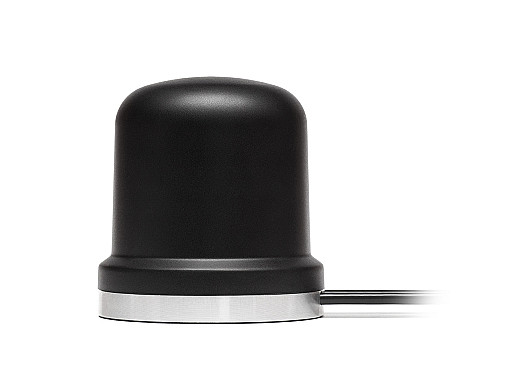

2J7085Md Medusa 5GNR/4G/3G/2G MIMO and WIFI 6E / WIFI 7 Antenna by 2J Antennas

2J7085Md 5G NR Antenna

Medusa 3x 5GNR/4G/3G/2G MIMO and 1x WIFI 6E / WIFI 7 Magnetic Mount Antenna

Connections (4)

3× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Mounting	Magnetic Mount
Dimensions (mm)	Ø 96 × 102
Operating temperature	-40 °C to +85 °C
Certificates	IP67, IP69, IK09
Standard colors

Product added to cart

Products documents

Datasheet
3D model

Antenna and electrical specifications

Scroll down

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies	5G, 4G, 3G and 2G
Standards	5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency	617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB)	~-4.7, ~-9.3, ~-9.8, ~-7.0
VSWR	~4.5:1, ~2.4:1, ~2.2:1, ~2.7:1
Efficiency (%)	~30.0, ~41.2, ~45.9, ~33.2
Peak Gain (dBi)	~-1.2, ~3.6, ~5.0, ~4.0
Impedance (Ohm)	50
Polarisation	Linear
Radiation Pattern	Omni-Directional
Max. Input Power (W)	25

connection 2

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies	5G, 4G, 3G and 2G
Standards	5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency	617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB)	~-4.7, ~-9.3, ~-10.5, ~-7.6
VSWR	~4.4:1, ~2.3:1, ~2.0:1, ~2.6:1
Efficiency (%)	~32.8, ~43.3, ~43.0, ~34.5
Peak Gain (dBi)	~-1.5, ~3.6, ~4.5, ~4.4
Impedance (Ohm)	50
Polarisation	Linear
Radiation Pattern	Omni-Directional
Max. Input Power (W)	25

connection 3

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies	5G, 4G, 3G and 2G
Standards	5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency	617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB)	~-4.5, ~-9.2, ~-10.2, ~-7.4
VSWR	~4.6:1, ~2.4:1, ~2.1:1, ~2.6:1
Efficiency (%)	~32.4, ~41.9, ~44.9, ~33.6
Peak Gain (dBi)	~-1.6, ~3.7, ~5.1, ~4.3
Impedance (Ohm)	50
Polarisation	Linear
Radiation Pattern	Omni-Directional
Max. Input Power (W)	25

connection 4

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards	WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency	2410-2490, 4920-5925, 5925-7125
VSWR	~1.9:1, ~1.7:1, ~2.7:1
Efficiency (%)	~47.3, ~48.4, ~30.2
Peak Gain (dBi)	~4.6, ~5.0, ~2.3
Impedance (Ohm)	50
Polarisation	Linear
Max. Input Power (W)	25

Key Features

4-in-1 Combination Antenna

Ultra Wide band Antenna

617-5925 MHz Sub 6GHz Bands

WIFI 6E / WIFI 7 Antenna

Ground Plane Independent

Full 4GLTE backward compatibility

5.1 dBi 5G NR Peak Gain

5.0 dBi WIFI Peak Gain

High Performance

Heavy Duty antenna

Customizable Cable and Connector

5GNR Antenna Bands list

Parameters	5GNR Antenna
Frequency (MHz)	617-960	1427-2690	3300-5000	5150-5925
Band (MHz)	600, 700, 850, 900	1500, 1600, 1700, 1800, 1900, 2000, 2100, 2300, 2500, 2600	3300, 3500, 3600, 3700, 4500	5200, 5500, 5800
5GNR Bands	n5, n8 ,12, n20, n28, n71, n81, n82, n83,	n1, n2, n3, n7, n25, n34, n38, n39, n40, n41, n50, n51, n66, n70, n74, n75, n76, n80, n84, n86	n77, n78, n79
4GLTE Bands	B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B71, B85	B1, B2, B3, B4, B7, B9, B10, B11, B21, B23, B24, B25, B30, B32, B33, B34, B35, B36, B37, B38, B39, B40, B41, B45, B50, B51, B65, B66, B69, B70, B74, B75, B76	B22, B42, B43, B48, B49, B52	B46, B47, B252, B255
3GCELL Bands	B5, B6, B8, B12, B13, B14, B19, B20, B26	B1, B2, B3, B4, B7, B9, B10, B11, B21, B25, B32, B33, B34, B35, B36, B37, B38, B39, B40	B22
2GCELL Bands	710, 750, 810T, 850, 900P, 900E, 900R	1800DCS, 1900PCS
CDMACELL Bands	BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19	BC1, BC4, BC6, BC8, BC13, BC14, BC15, BC16, BC20, BC21

Antenna Description

The Heavy Duty, Compact 4-in-1 Solution That Delivers Powerful 5GNR and WIFI 6E / WIFI 7

The 2J7085Md is an ultra-wideband external 4-in-1 antenna combining three 5GNR connections and one WIFI 6E / WIFI 7 connection into a compact antenna. The 2J7085Md supports 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-Mx, CAT-NBx, NB-IoT, 3G, 2G, WiFi, WIFI 6E / WIFI 7, BT, ZigBee and ISM standards making it the most reliable and versatile antenna on the market. This next-generation antenna integrates durability, high performance, efficiency, and ultra-reliable low-latency communication (URLLC).

This antenna is ideal for applications that require real-time streaming and high-speed video uplink and downlink speed as well as many other applications.

Suggested applications include:

Mobile Networks
Machine Control
Asset Tracking
Automotive
Telecommunication
Iot
HD Video Streaming
Smart Metering
Digital Signage
Routers, Gateways & Date Terminals
High-Density Environments

Cable 1, 2 and 3: 5GNR MIMO

Cables 1, 2 and 3 are designed for 5GNR devices that operate within 5G/4GLTE/3G/2G frequencies (617 – 5925 MHz) and are fully 4G LTE backwards compatible with existing networks. It has an omni-directional radiation pattern giving it a 360-degree uninterrupted signal quality with a maximum efficiency of up to ~45.9% and 5GNR peak gains of ~5.1 dBi.

Cables 4: WIFI 6E / WIFI 7 2.4/5.0/6 GHzISM

Cables 4 is dedicated to wireless-enabled device solutions operating within WiFi, ZigBee, and ISM standards. Both cables are designed with an omni-directional radiation pattern for maximum radiation efficiencies delivering unmatched performance making it the ideal solution for high-capacity network communications and HD video streaming. It offers a maximum efficiency of up to ~48.4% and 5.0 dBi WiFi Peak Gain.

Installation / Environmental

The 2J7085Md is a low-profile heavy-duty, external antenna. It is protected with a robust and heavy-duty housing made with (ASA) UV stable material, known for its thermal resistant properties, and an aluminum alloy base. This antenna is impact resistant, dust resistant, and waterproof with full IP67, IP69, and IK09 certification making it ideal for external applications in harsh environmental conditions. Ground plane independence and magnetic mount installation offer easy installations on a wide range of surfaces. All cables and connectors can be customized.
