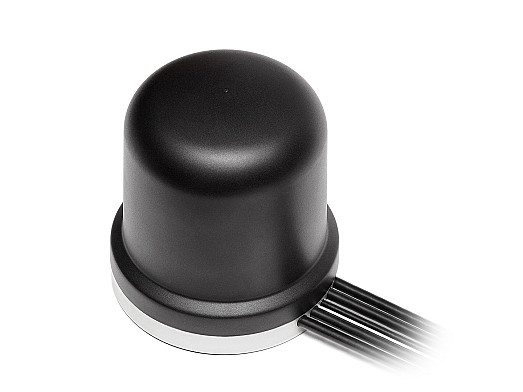

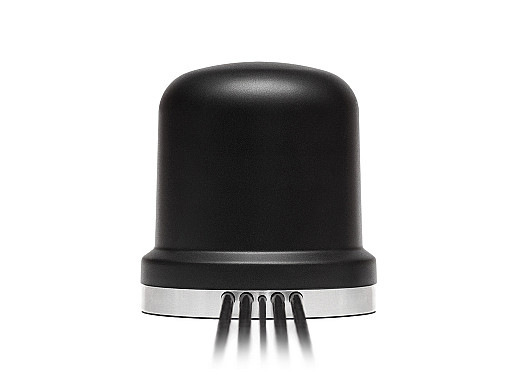

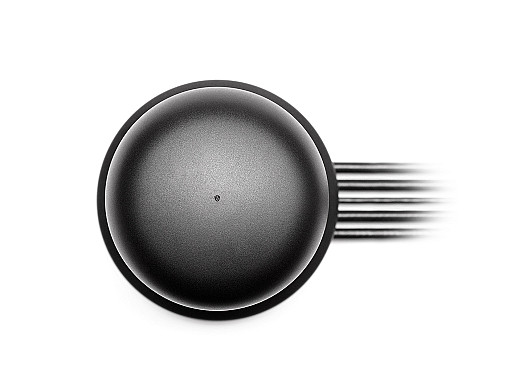

Medusa 4x 5GNR/4G/3G/2G MIMO and GNSS Magnetic Mount Antenna

The Heavy Duty 5-in-1 Solution That Delivers Powerful Technology, High Performance And Efficiency

Introducing Medusa 2J7084MGFc the futureproof 5-in-1 antenna that seamlessly blends toughness, top-notch performance, efficiency, and ultra-reliable low-latency communication (URLLC). The 2J7084MGFc is an ultra-wideband external 5-in-1 antenna combining 4x 5GNR connections and 1 x GNSS connection. This antenna supports multiple standards including 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-Mx, CAT-NBx, NB-IoT, 3G, 2G, GPS, QZSS, Galileo and GLONASS making it one of the most versatile antennas on the market.

This antenna is ideal for applications that require real-time streaming and high-speed video uplink and downlink speed as well as many other applications.

Suggested applications include:

• Automotive, Heavy EquipmentVehicle Tracking
• High Traffic MIMO Device Connectivity
• Automobile / Transportation
• Telematics Remote Asset and Pipeline Monitoring
• HD Video Streaming
• Drone Operation
• Routers, Gateways & Data Terminals
• First Responders and Emergency Services
• M2M and Telematics
• IoT
• Smart Homes

Cable 1-4: 5GNR MIMO

Cables 1, 2, 3 and 4 are designed for 5GNR devices that operate within 5G/4GLTE/3G/2G frequencies (617 – 5925 MHz) and are fully 4G LTE backward compatible with existing networks. The 5GNR technology introduces millimeter-wave (mmWave) frequency for new generation LTE bands and is the ideal solution for MIMO technology. It has an omni-directional radiation pattern giving it a 360-degree uninterrupted signal quality with a maximum efficiency of up to ~45.9% and 5GNR peak gains of ~5.1 dBi.

Cables 1, 2, 3, and 4 have been engineered to suit 5GNR devices operating across 5G/4GLTE/3G/2G frequencies (617 – 5925 MHz) and possess full 4G LTE backward compatibility with current networks. Featuring an omni-directional radiation pattern, it assures 360-degree uninterrupted signal quality, while achieving an efficiency of up to ~45.9% and peak gains of up to ~5.1 dBi.

Cables 5: GPS/GLONASS

Cable 5 is designed for precision navigational applications that operate within GPS, QZSS, Galileo and GLONASS standards. This active GNSS antenna offers an active gain of 28 dB @ 2.7V The SAW pre-filter blocks inadequate frequencies with an out of band rejection of ~43 dB across the 1575 – 1606 MHz bands.

Installation / Environmental

The 2J7084MGFc is a low-profile heavy-duty, external antenna and measures Ø 96 × 102 mm only. It is protected with a robust and heavy-duty housing made with (ASA) UV stable material, known for its thermal resistant properties, and an aluminum alloy base. This antenna is impact resistant, dust resistant, and waterproof with full IP67, IP69, and IK09 certification making it ideal for external applications in harsh environmental conditions. Ground plane independence and magnetic mount installation offer easy installations on a wide range of surfaces. All cables and connectors can be customized.
