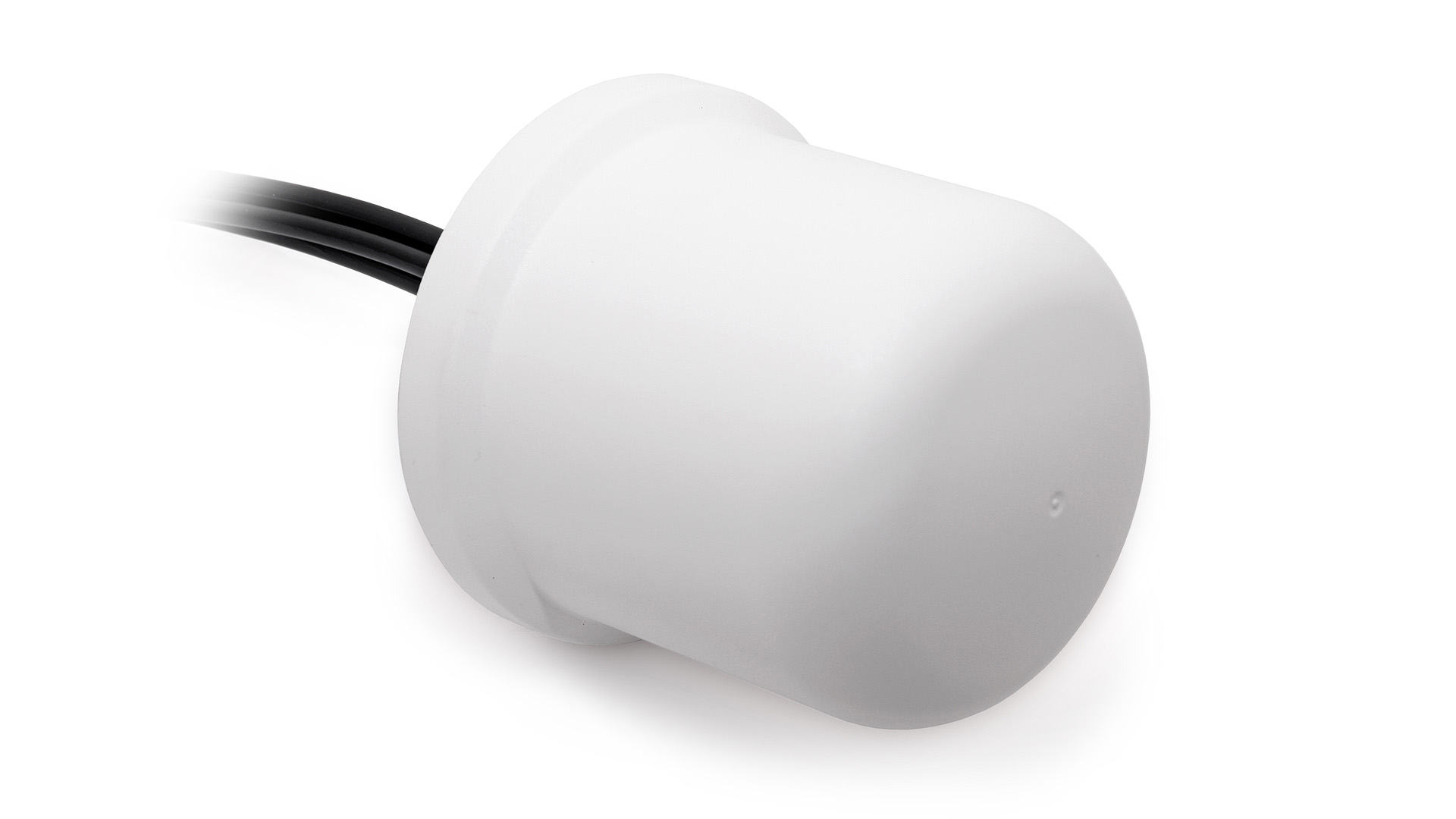

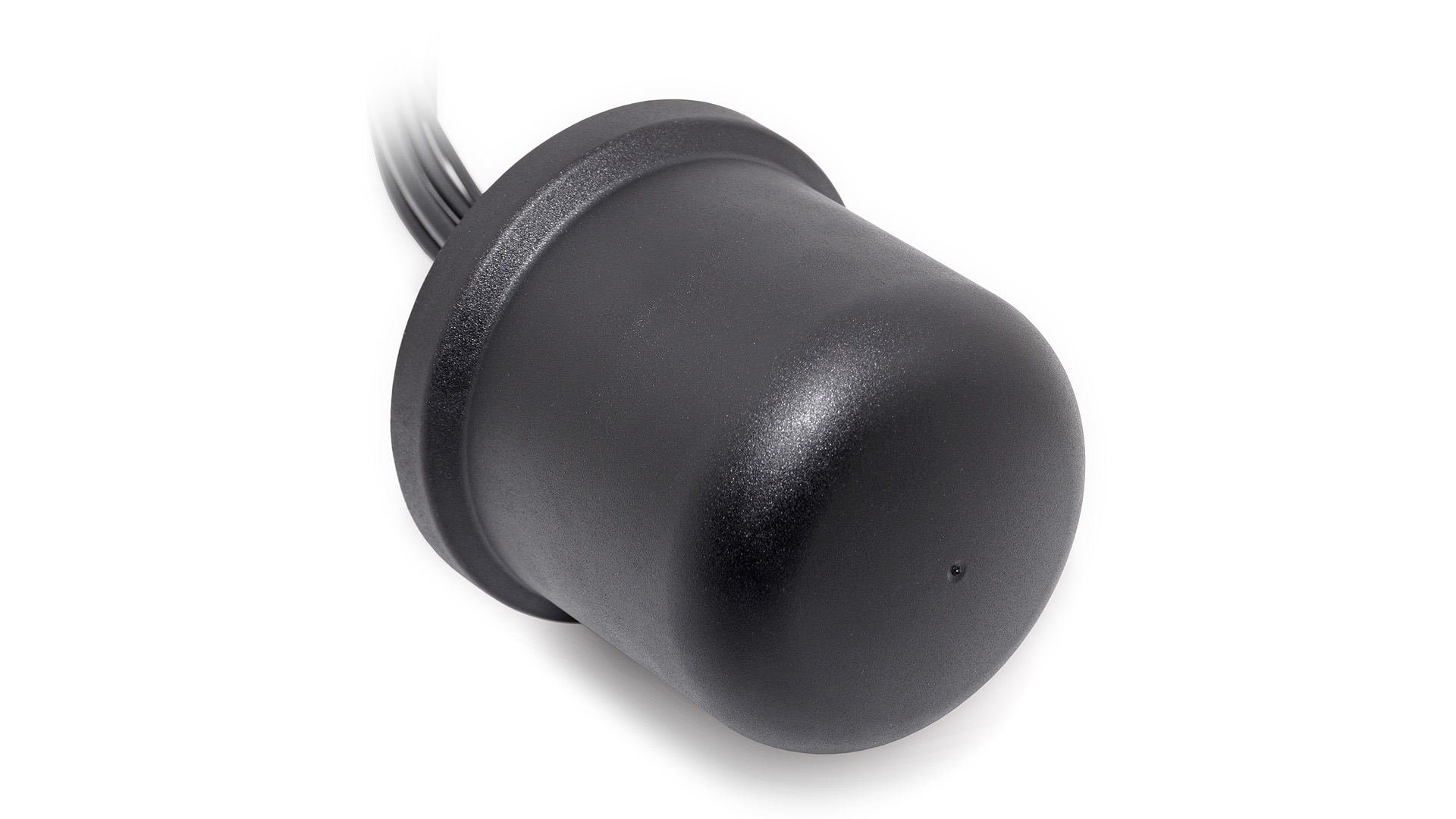

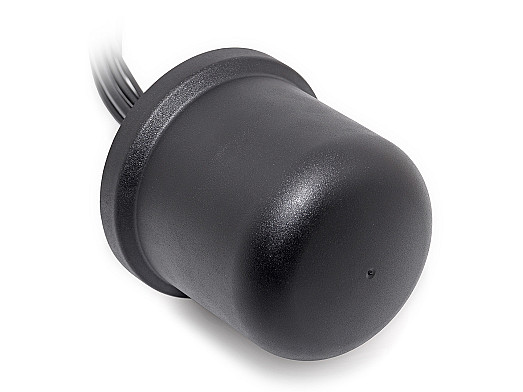

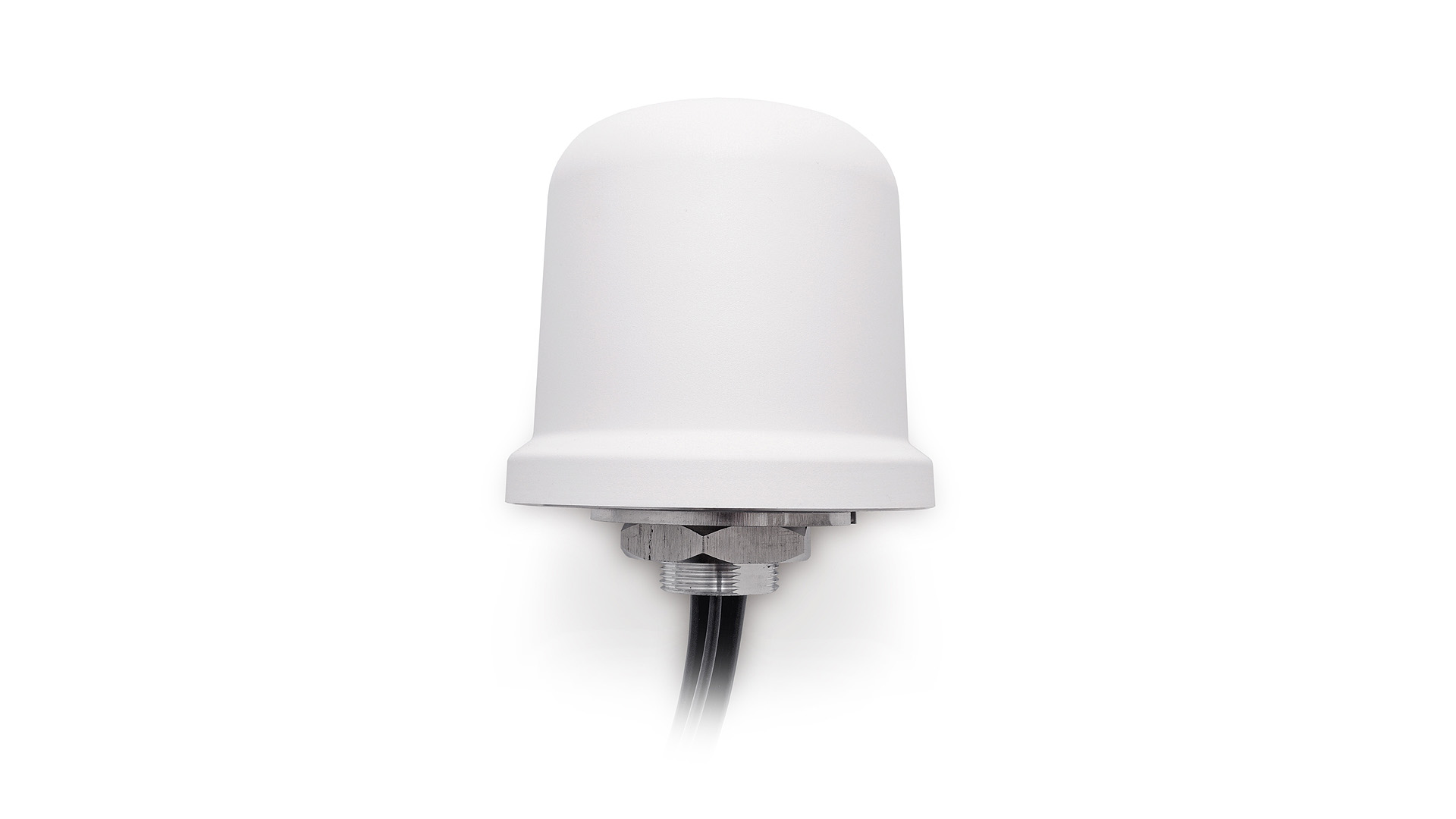

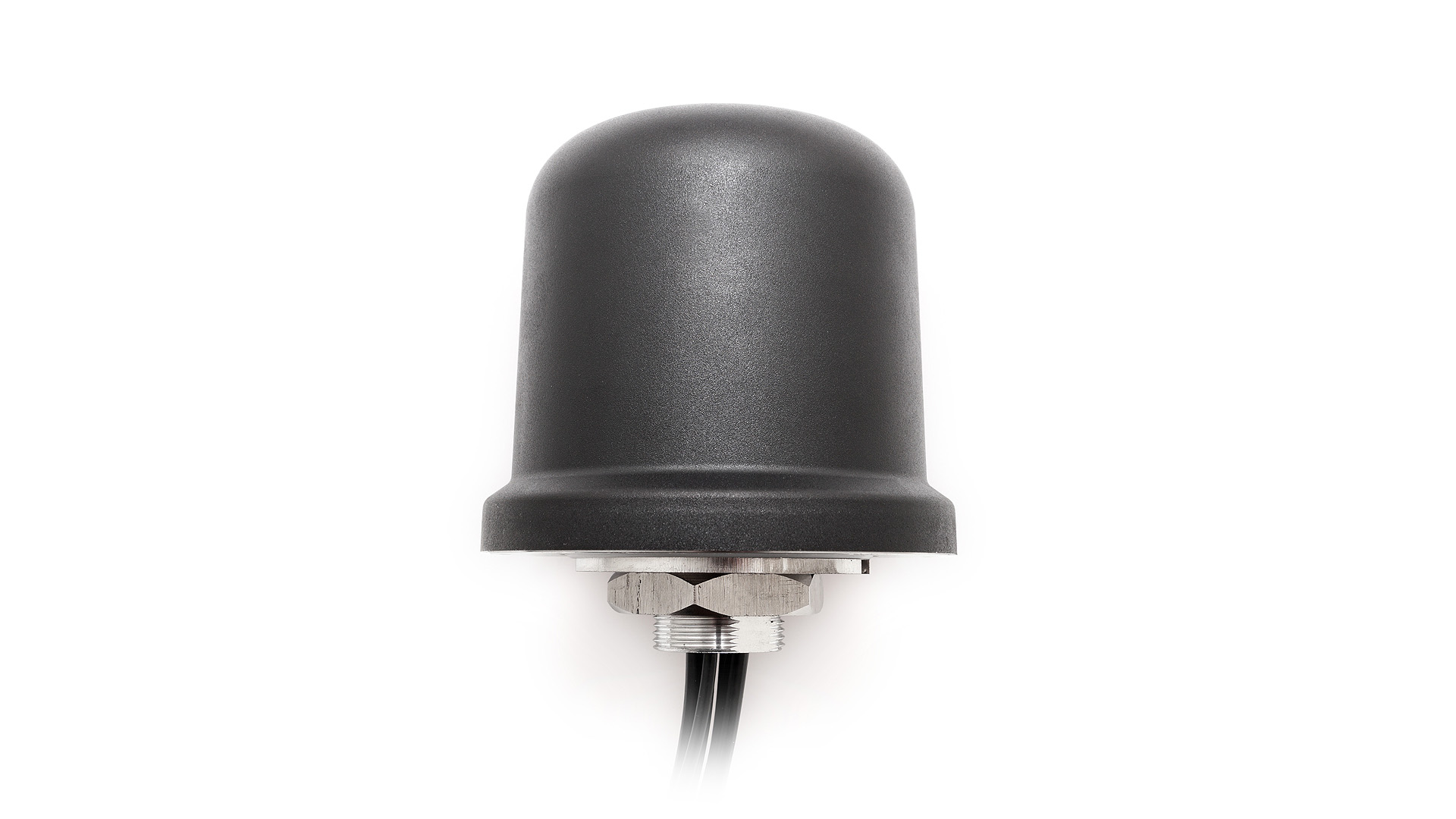

Medusa 2 x Sub-6GHz 5GNR/4G LTE/3G/2G MIMO Screw Mount Antenna

Embrace The Future Of Wireless Communication With Our Most Robust 5GNR MIMO Solution

Introducing Medusa Sub-6 5GNR MIMO Ultra-Wideband Screw Mount Antenna, a cutting-edge solution that combines 2 x 5GNR MIMO for lightning-fast mobile broadband experiences. Fully backward compatible, it excels in next-gen MIMO devices, base station technology, and carrier aggregation. The omni-directional 2J7083Ba enhances mobile broadband with 360-degree clear signal strength and ultra-reliable low-latency communication, maximizing throughput. Experience uninterrupted connectivity and superior signal quality even in challenging environments. Ideal for critical communications, police, ambulance, fire services, and other high safety applications, this antenna guarantees robust and precise connectivity, shaping the future of mobile services.

This high-performance and compact solution offers up to 3.5 dBi 5GNR peak gain while maintaining an efficiency of up to 51.6 %. This antenna delivers powerful worldwide connectivity by allowing devices to remain connected while moving through different coverage areas.

Cables 1 and 2: 5GNR MIMO

Cables 1 and 2 are designed for 5GNR devices that operate within all  5GNR, 4G LTE, FirstNet, CBRS, LPWA, low-power wide-area (LPWA), CAT-X, CAT-Mx, CAT-NBx, Narrow Band-IoT, 3G and 2G standards (617 – 5925 MHz). All cables are designed with an omni-directional radiation pattern and linear polarization for maximum signal strength and throughput.

Suggested applications include:

• Terminals, base stations and routers
• Critical communications (public safety, law enforcement, medical transportation, fire departments)
• High traffic MIMO device connectivity
• Industrial, commercial and residential
• IoT / smart home / smart city
• ATM machines
• IoT smart vending
• Electrical metering

Installation / Environmental

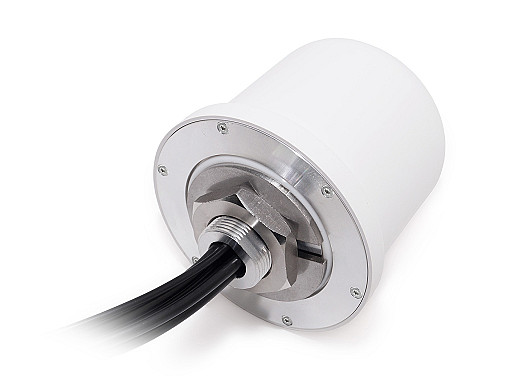

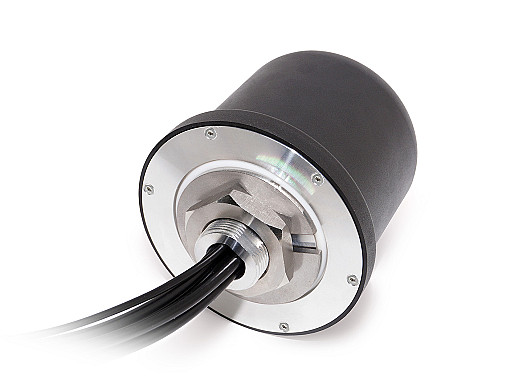

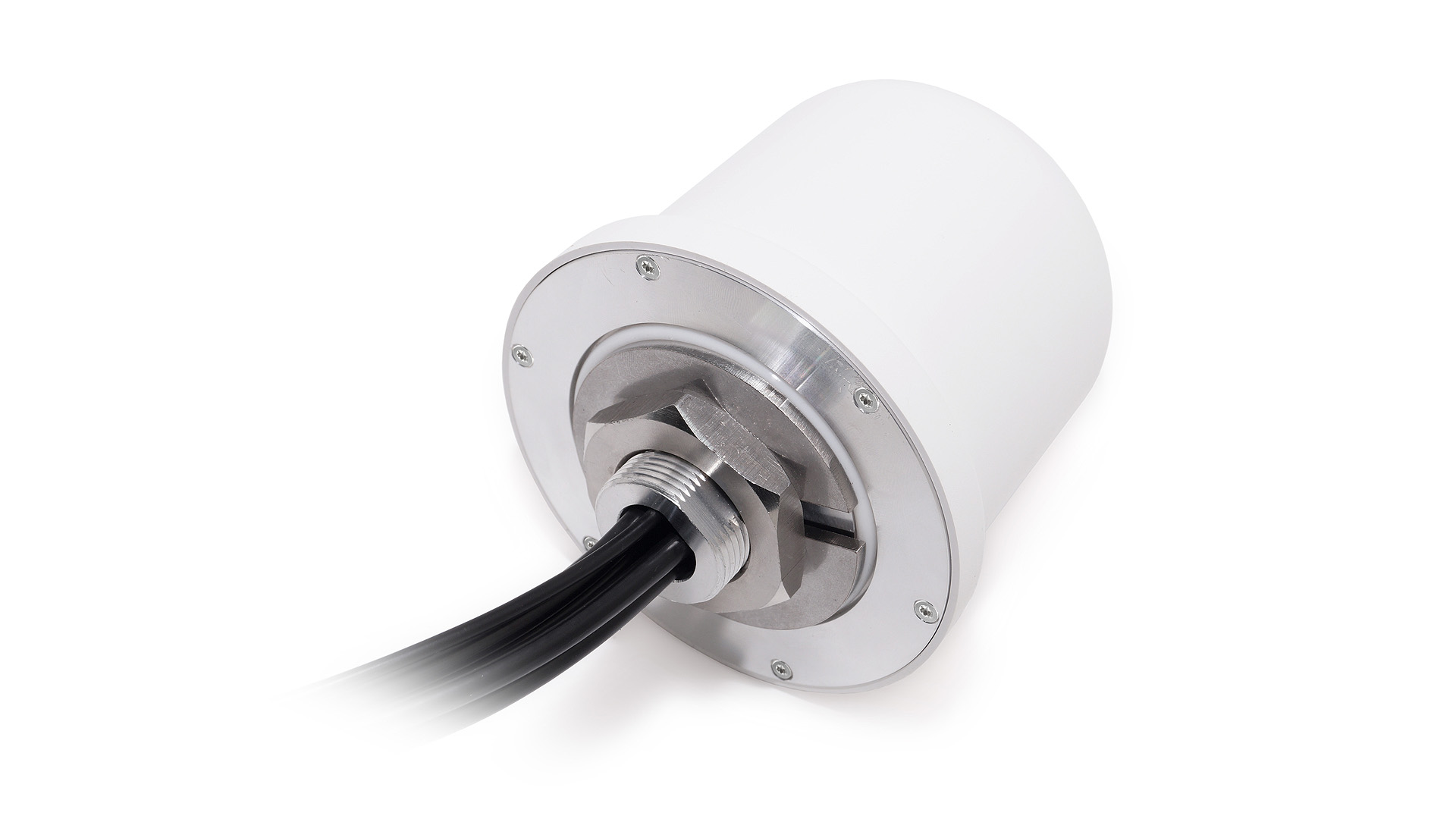

Experience the ultimate combination of durability and efficiency with our easy-to-install heavy-duty antenna Medusa. Ground plane independence and screw mount technology ensure a solid and reliable lock on its mounting location, making installation a breeze. Measuring a mere 96 x 90 mm, this antenna packs powerful performance in a compact form. Equipped with low-loss LL195 cables measuring 300 cm in length and featuring SMA-Male connectors, it guarantees a secure and seamless connection. Preferred for high-frequency applications up to 6 GHz, these cables deliver unmatched performance and reliability.

The fully IP67 and IP69 rated antenna is manufactured with ASA UV stable material that provides protection against water and moisture while maintaining optimal operation in outdoor applications. This antenna is manufactured with both REACH and RoHS compliance along with IK09 ratings for enhanced anti-vandal security.
