2J7024Bc High Performance 4-in-1 combination cellular 4G LTE/3G/2G MIMO Screw Mount Antenna designed and manufactured by 2J Antennas

2J7024Bc Antenna

Medusa 4-in-1 Combination 4GLTE/3G/2G MIMO High Gain Screw Mount Antenna

Connections (4)

4× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Mounting	Screw Mount
Dimensions (mm)	Ø 96 x H 90
Operating temperature	-40 °C to +85 °C
Certificates	IP67, IP69, IK09
Standard colors

Product added to cart

Products documents

Datasheet
3D model

Antenna and electrical specifications

Scroll down

connection 1

CELLULAR/4G LTE

Standards	2G,3G and 4G
Frequency	698-960, 1710-2170, 2500-2700
VSWR	~2.9:1, ~1.9:1, ~1.3:1
Efficiency (%)	~36, ~41, ~53
Peak Gain (dBi)	~0.2, ~3.8, ~6.0
Impedance (Ohm)	50
Polarisation	Linear
Max. Input Power (W)	25

connection 2

CELLULAR/4G LTE

Standards	2G,3G and 4G
Frequency	698-960, 1710-2170, 2500-2700
VSWR	~2.8:1, ~2.1:1, ~1.4:1
Efficiency (%)	~35, ~42, ~53
Peak Gain (dBi)	~-0.1, ~3.2, ~5.6
Impedance (Ohm)	50
Polarisation	Linear
Max. Input Power (W)	25

connection 3

CELLULAR/4G LTE

Standards	2G,3G and 4G
Frequency	698-960, 1710-2170, 2500-2700
VSWR	~2.9:1, ~2.0:1, ~1.4:1
Efficiency (%)	~35, ~40, ~53
Peak Gain (dBi)	~-0.5, ~3.1, ~5.0
Impedance (Ohm)	50
Polarisation	Linear
Max. Input Power (W)	25

connection 4

CELLULAR/4G LTE

Standards	2G,3G and 4G
Frequency	698-960, 1710-2170, 2500-2700
VSWR	~2.8:1, ~2.1:1, ~1.4:1
Efficiency (%)	~36, ~42, ~54
Peak Gain (dBi)	~-0.7, ~3.0, ~4.8
Impedance (Ohm)	50
Polarisation	Linear
Max. Input Power (W)	25

Key Features

4-in-1 Combination Antenna

Ground Plane Independent

Wide band Antenna

698-2700 MHz 4GLTE Bands

6.0 dBi 4G LTE Peak Gain

High Performance

Heavy Duty antenna

Anti-Rotation Mounting

Customizable Cable and Connector

4GLTE Antenna Bands list

Parameters	4G LTE Antenna
Frequency (MHz)	698-960	1710-2170	2500-2700
Band (MHz)	700, 850, 900	1700, 1800, 1900, 2000, 2100	2500, 2600
4GLTE Bands	B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B85	B1, B2, B3, B4, B9, B10, B25, B33, B34, B35, B36, B37, B39, B65, B66, B70	B7, B38, B41, B69
3GCELL Bands	B5, B6, B8, B12, B13, B14, B19, B20, B26	B1, B2, B3, B4, B9, B10, B25, B33, B34, B35, B36, B37, B39	B7, B38
2GCELL Bands	710, 750, 810T, 850, 900P, 900E, 900R	1800DCS, 1900PCS
CDMACELL Bands	BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19	BC1, BC4, BC6, BC8, BC14, BC15	BC13, BC16

Antenna Description

Most Cost-Effective and Powerful Cellular Antenna on the Market

2J Antennas is adding the high-performance 4-in-1 Combination 4G LTE/3G/2G MIMO Screw Mount Antenna (2J7024Bc) as part of their already well-suited “Medusa” product line. Designed with cellular capabilities that are tuned specifically for 698 MHz – 2700 MHz MIMO wireless technology sending and receiving multiple data signals simultaneously for continuous connectivity. This antenna is powerful, cost-effective and the ideal solution for applications that facilitate high-volume device traffic.

Suggested applications include:

HD Voice and Data
Cellular Communications
Infotainment systems
Self-driving cars
Fleet management
Gateways
Public transportation
Logistics

Tuned for high data throughput and voice devices operating within 4G LTE, FirstNet, LPWA, CAT-X/-MX/-NBx, NB-IoT, 3G, and 2G standards. The 2J7024Bc features a peak gain of ~6.0 dBi and maximum efficiency of ~54% (above the industry standard). Designed with an omni-directional radiation pattern, this antenna provides consistent and stable connectivity with high data throughput to access points such as routers, small base stations, repeaters, boosters, fleet management devices, and other telematics devices with cellular needs.

Installation / Environmental

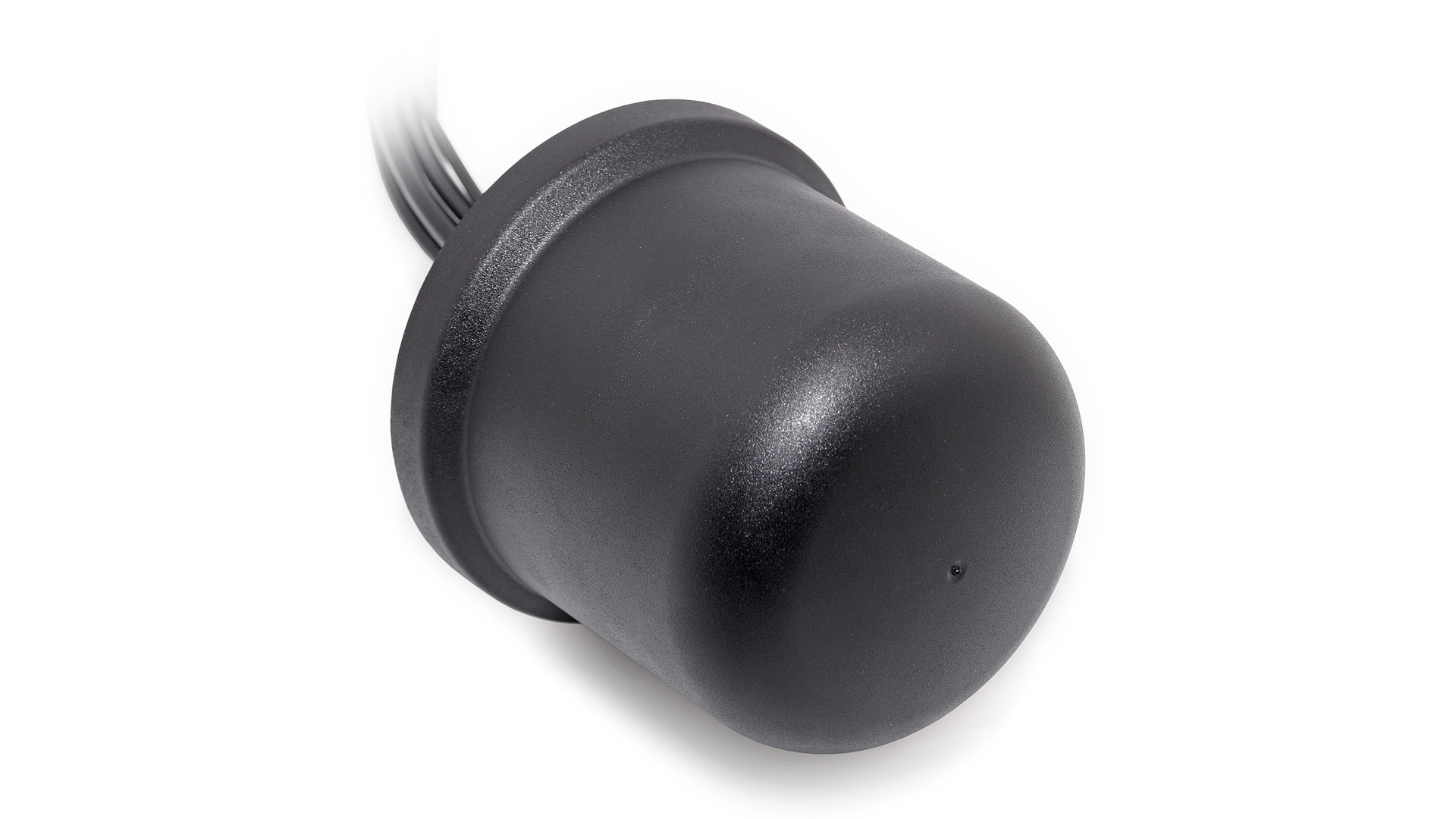

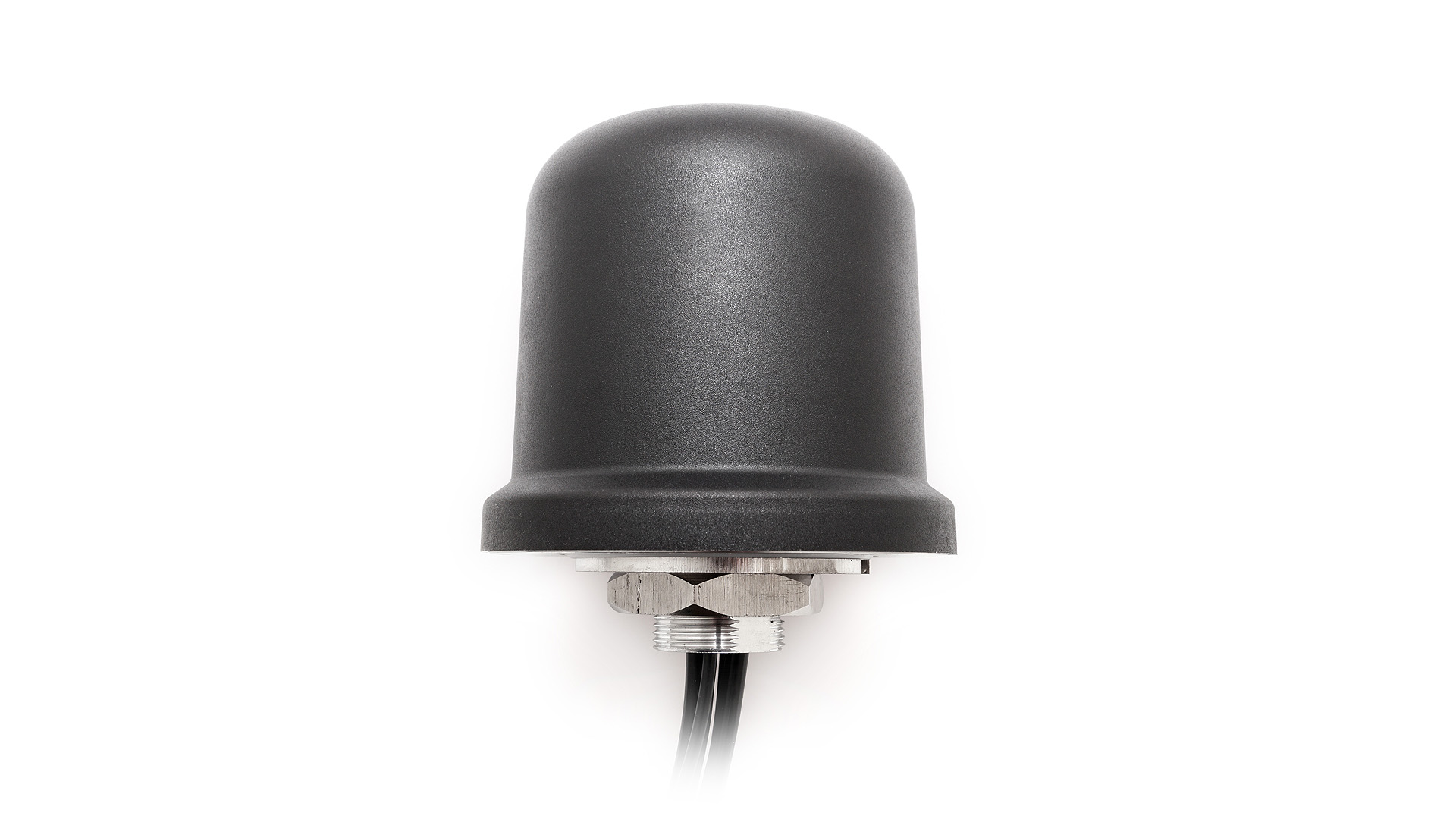

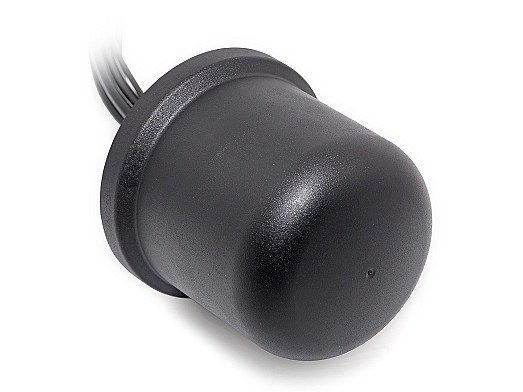

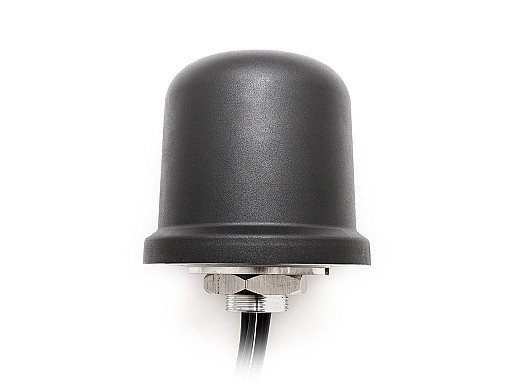

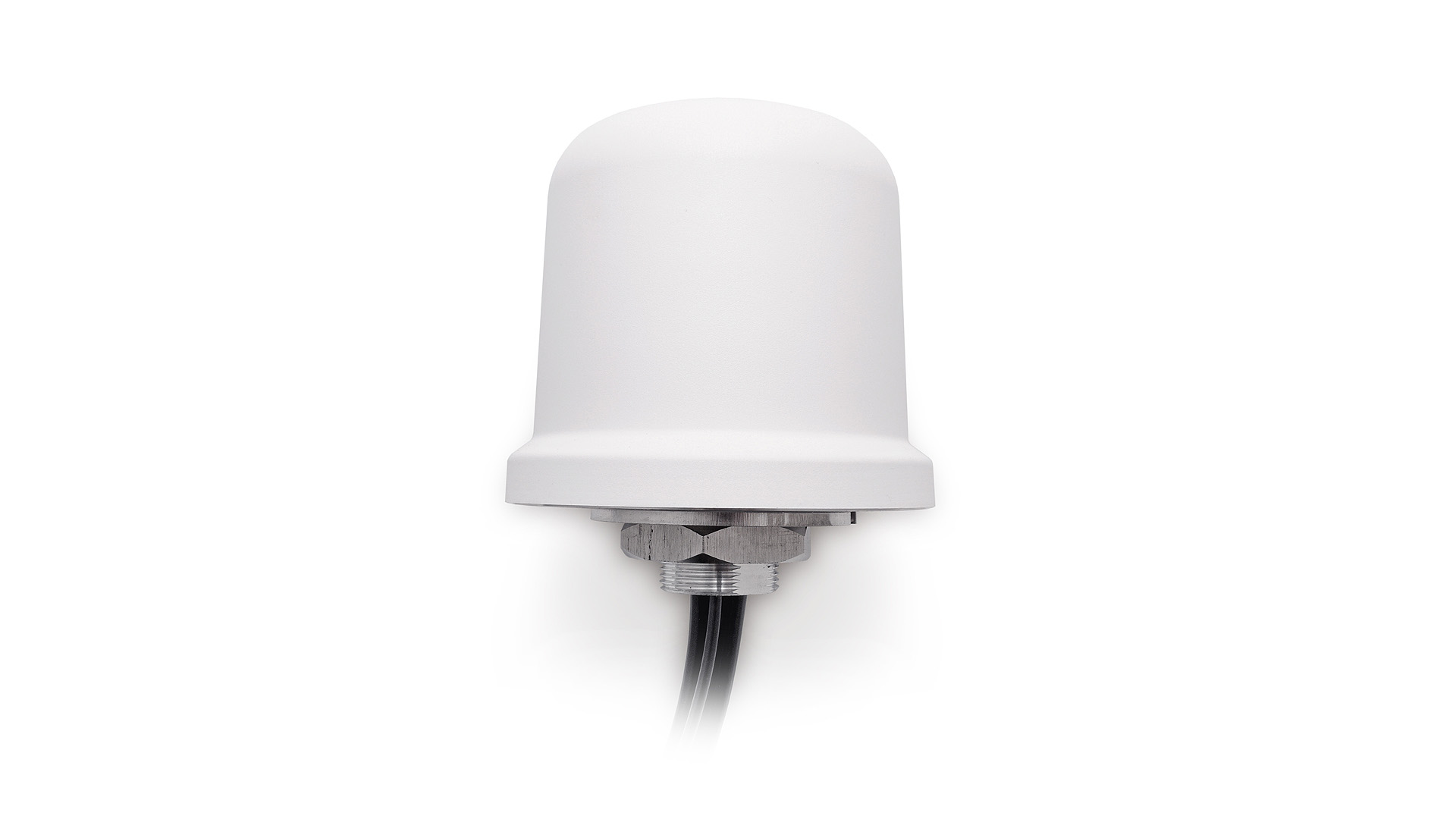

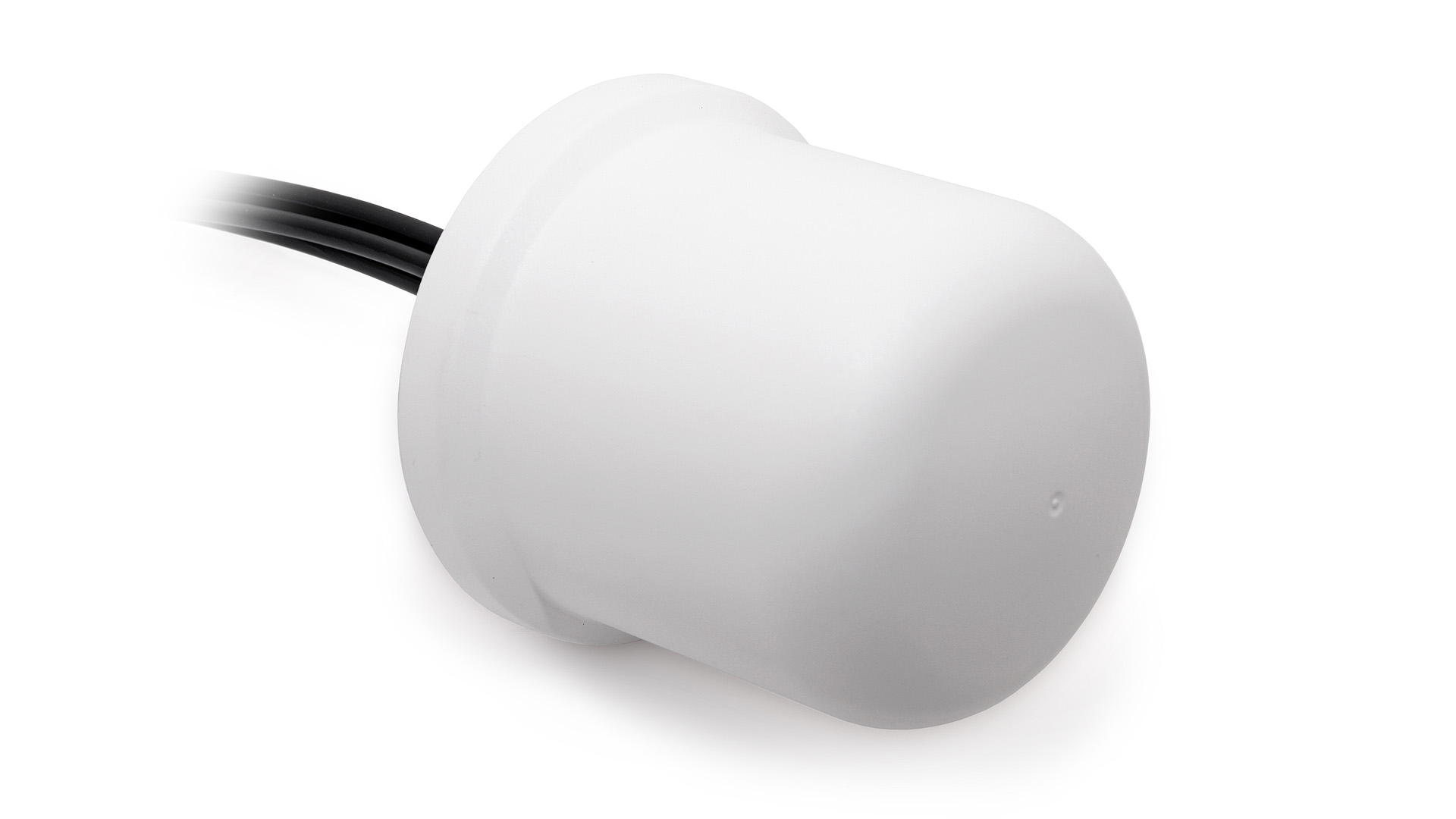

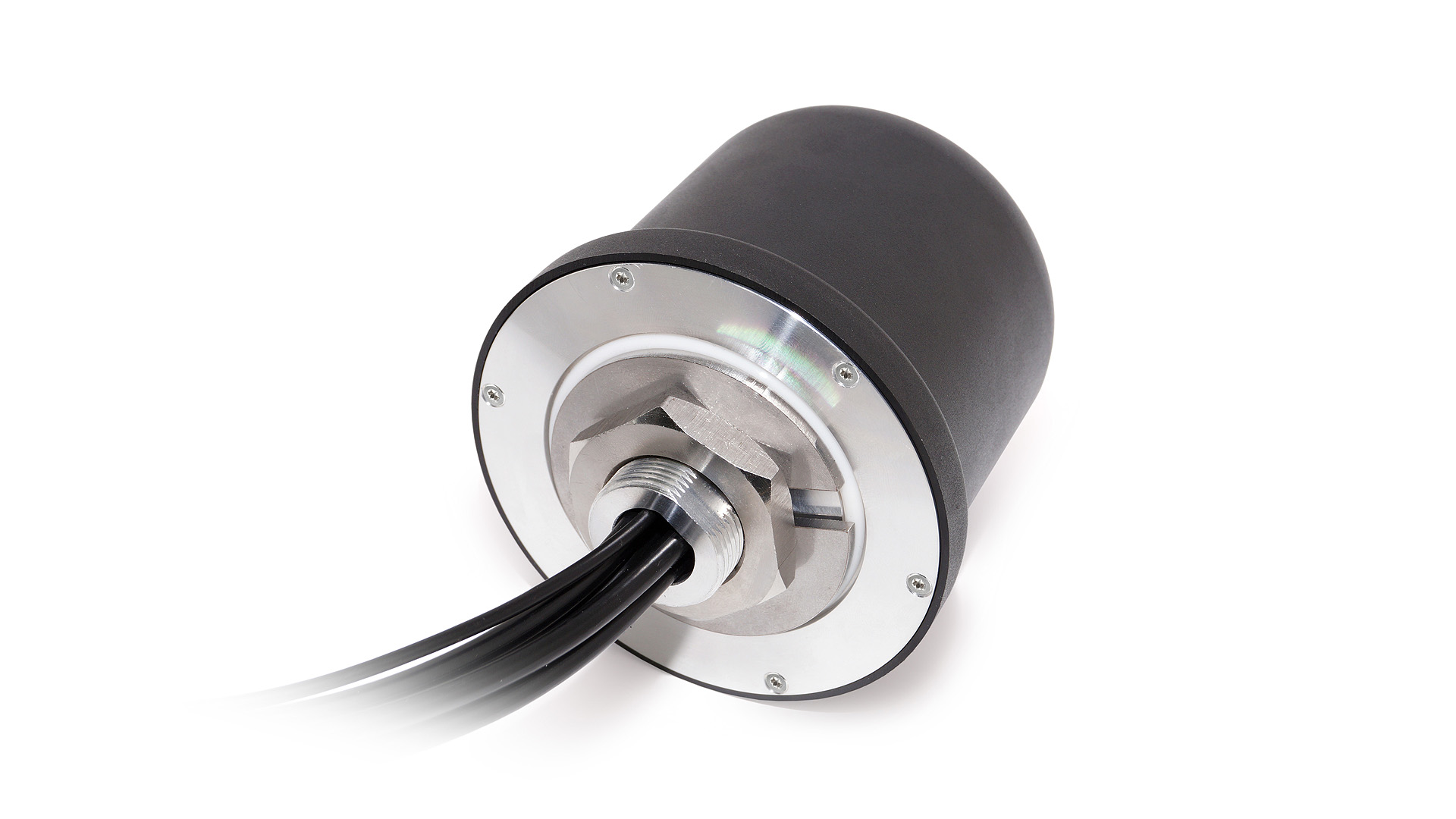

Designed with heavy-duty usage in mind, the 2J7024Bc is fully protected against water, dust, and impact with full IP67, IP69, and IK09 ratings. The antenna measures Ø 96 x H 90 mm and the dome-shaped housing is manufactured with high-quality ASA UV stable material with aluminum allow base, and is available in black or white color. As with all ground plane independent antennas, installation is not restricted by the need for grounding and is ideal for any internal or external surfaces.

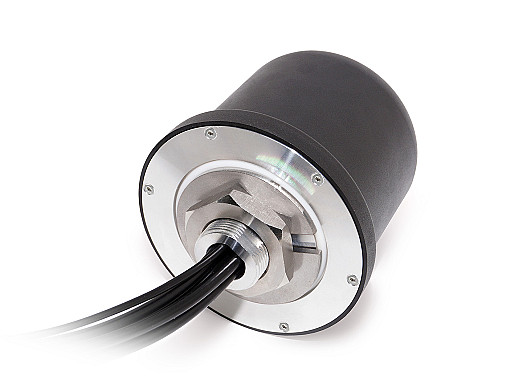

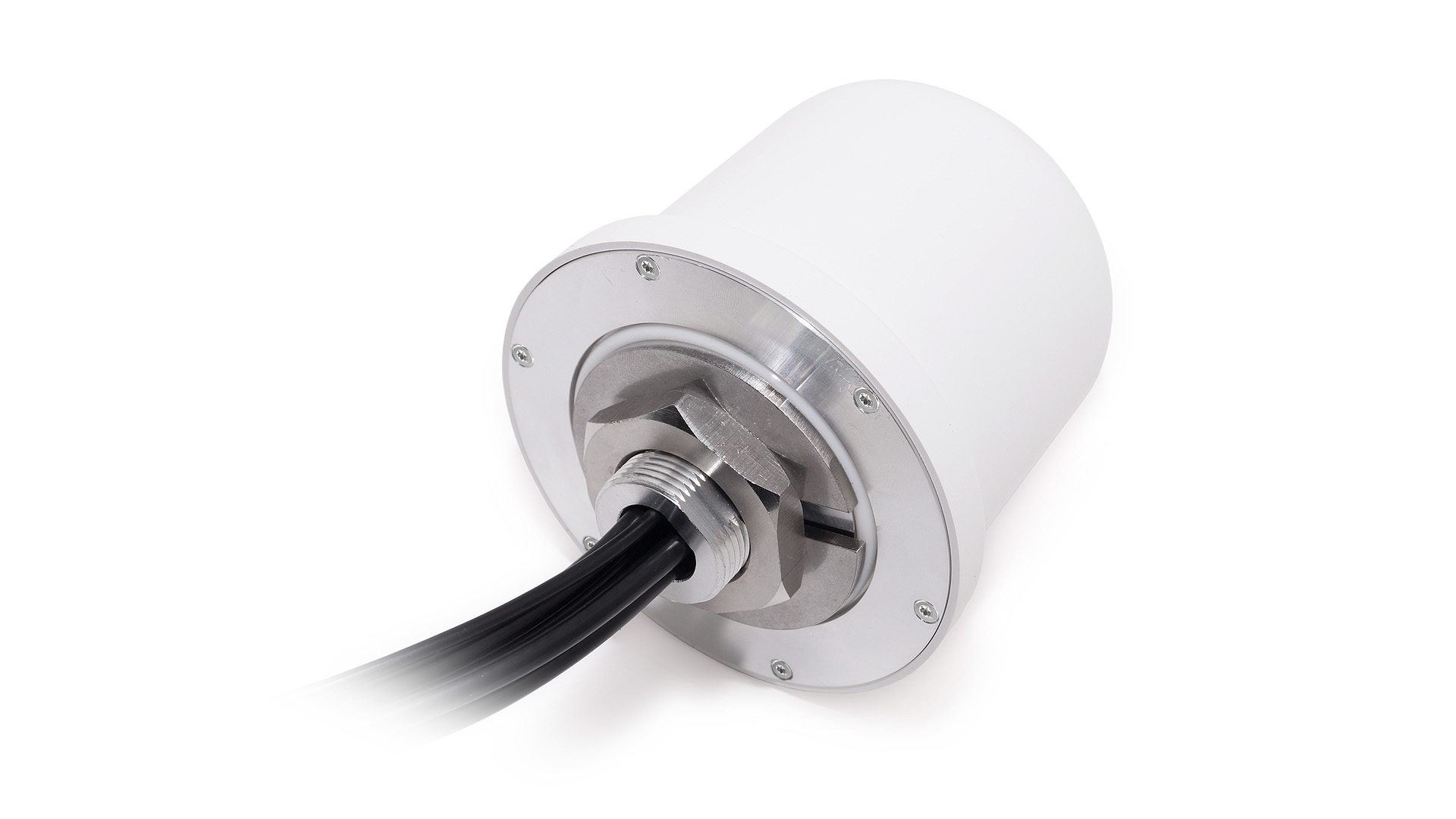

The four 300 cm LMR195 cables with SMA-male connector are fed through the anti-rotation screw mount located on the aluminum alloy antenna base. It is important to match the right antenna with the job and our expert engineers are available for installation support, any customization needs and antenna selection support.

All our products are designed with the environment in mind and manufactured without hazardous materials with full REACH and RoHS compliance.
