Bullion 5-in-1 2x 5GNR MIMO, 2x WIFI 6E / WIFI 7 MIMO and GNSS Screw Mount

The Best Antenna Solution for Automotive Applications and Public Safety

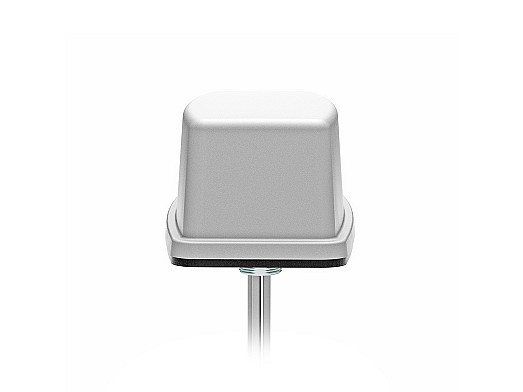

2J Antennas is excited to add the newly designed 5-in-1 5GNR MIMO, 2.4/5.0/6.0 GHz WIFI 6E / WIFI 7 ISM MIMO and GNSS I-Bar Screw Mount Antenna (2J6C86BGFa) to our Bullion Series. This ultra wide-band, high performance, I-Bar form factor solution is only 52.4 mm in height and is backwards compatible.  This low-profile antenna is uniquely designed to fit perfectly between SUV roof ridge which makes it an excellent option for law enforcement, transportation and fleet applications. The Bullion Series also offers single and up to 5-in-1 antenna configurations with magnetic or screw mounting options. This antenna series is a popular choice for automotive OEM manufacturers and aftermarket distributors.

Suggested applications include:

• Wireless broadband communications
• Private Networking
• Cellular and Mobile Data and Voice
• Data Terminals, Base Stations and Routers
• Critical Communications and Public Safety
• Law Enforcement
• Medical Transportation
• Fire Departments
• Precision Navigation
• Tracking/ Mapping
• Industrial Machinery
• Automotive and Transportation
• Telematics
• Utilities

2 x Cellular 5GNR/4G LTE/3G/2G MIMO

Cables 1 and 2 are designed for cellular and mobile devices that operate within 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-MX, CAT-NBX, NB-IoT, 3G and 2G standards. This antenna is tuned with high gain (max ~5.4 dBi) and high efficiency (max ~47.3%). These cables are ideal for devices that operate within 617 – 5925 MHz frequency bands while maintaining full range 360-degree signal strength and quality.

2 X WIFI 6E / WIFI 7 2.4/5.0/6.0 GHz ISM MIMO

Cables 3 & 4 are designed for LPWA devices that operate within Wifi, BT, ZigBee, ISM, SigFox and LoRa standards. The 2.4/5.0/6.0 GHz bands and WIFI 6E / WIFI 7 technology combine long-range, short-range, and very large capacity without competing with traffic from other devices or networks. This results in high bandwidth channels, improved security, less interference, and reduced network congestion making it ideal for applications that demand faster WiFi and consistent network availability.

1x GNSS GPS/GLONASS/Galileo/QZSS

Cable 5 is designed for precision navigational applications that operate within GPS, GLONASS, Galileo and QZSS standards. The signal radiates on all planes and maximizes connectivity by avoiding conflict with propagating signals common with penetrating obstructions and dead spots in urban areas. This connection can maintain an active gain of 28 dB @ 2.7 V with an out of bound rejection of ~43 dBc. Designed with electrostatic discharge (ESD) protection for up to 2KV and a SAW pre-filter blocking inadequate frequencies (within 1575-1602 MHz) from passing from the antenna to the receiver.

Installation / Environmental

The 2J6C86BGFa is fully IP67/IP69 rated and manufactured with a lightweight ASA UV stable material that provides durability against moisture without any compromise to performance. This ground plane independent antenna measures only 193 x 76.3 x 52.4 mm and with reliable screw mounting making it ideal for permanent installations on any surface including SUV vehicle roofs.  Please see 2J6C86MGFa for 5-in-1 magnetic mounting antenna option.

Cables 1-4 are low loss D302 and cable 5 is LL100 that measure 300 cm in length and feed through the screw mount connection located at the antenna base. The standard cables are tuned for optimal performance, but we also offer a wide range of alternative connectors and cables for any customization needs.

All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
