Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925, 5925-7125
Return Loss (dB) ~-5.1, ~-8.6, ~-10.7, ~-12.5, ~-10.6
VSWR ~3.6:1, ~2.7:1, ~1.9:1, ~1.6:1, ~1.9:1
Efficiency (%) ~33.8, ~41.2, ~53.7, ~43.2, ~34.1
Peak Gain (dBi) ~0.5, ~3.6, ~4.4, ~4.7, ~6.2
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 10
connection 2

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925, 5925-7125
Return Loss (dB) ~-5.2, ~-8.6, ~-10.7, ~-12.5, ~-10.6
VSWR ~3.5:1, ~2.7:1, ~1.9:1, ~1.6:1, ~1.9:1
Efficiency (%) ~33.6, ~48.0, ~51.5, ~49.3, ~39.4
Peak Gain (dBi) ~0.0, ~4.9, ~4.4, ~5.0, ~4.9
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 10
connection 3

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~1.3:1, ~1.8:1, ~1.8:1
Efficiency (%) ~49.9, ~32.2, ~46.5
Peak Gain (dBi) ~4.7, ~3.9, ~5.2
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 10
connection 4

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~1.5:1, ~1.3:1, ~1.8:1
Efficiency (%) ~49.2, ~48.2, ~32.1
Peak Gain (dBi) ~4.2, ~6.4, ~5.3
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 10
connection 5

IRIDIUM

Standards IRIDIUM
Frequency 1616-1627
Peak Gain (dBic) ~3.2
Efficiency (%) ~49.6
Radiation Pattern Omni-Directional
Polarisation Linear

Key Features

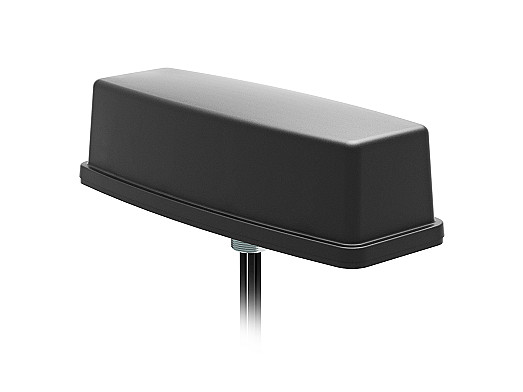

5-in-1 Combination Antenna
Ultra Wide band Antenna
617-7125 MHz Bands
WIFI 6E / WIFI 7 Antenna
Ground Plane Independent
Full 4GLTE backward compatibility
6.2 dBi 5G NR Peak Gain
6.4 dBi WIFI Peak Gain
3.2 dBic IRIDIUM Peak Gain
High Performance
Anti-Rotation Mounting
Customizable Cable and Connector

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925 5925-7125
Band (MHz) 600, 700, 800, 850, 900 1500, 1600, 1700, 1800, 1900, 2000, 2100, 2300, 2500, 2600 3300, 3500, 3600, 3700, 4500 5200, 5500, 5800 6175, 6525, 6775
5GNR Bands n5, n8 ,12, n13, n14, n18, n20, n26, n28, n29, n67, n71, n81, n82, n83, n85, n89, n100, n105, n106 n1, n2, n3, n7, n, 24, n25, n30, n34, n38, n39, n40, n41, n50, n51, n53, n54, n65, n66, n70, n74, n75, n76, n80, n84, n86, n91, n92, n93, n94, n95, n97, n98, n99, n101, n109, n254, n255, n256 n48, n77, n78, n79, n90 n46, n47 n96, n102, n104
4GLTE Bands B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B71, B85 B1, B2, B3, B4, B7, B9, B10, B11, B21, B23, B24, B25, B30, B32, B33, B34, B35, B36, B37, B38, B39, B40, B41, B45, B50, B51, B65, B66, B69, B70, B74, B75, B76 B22, B42, B43, B48, B49, B52 B46, B47, B252, B255
3GCELL Bands B5, B6, B8, B12, B13, B14, B19, B20, B26 B1, B2, B3, B4, B7, B9, B10, B11, B21, B25, B32, B33, B34, B35, B36, B37, B38, B39, B40 B22
2GCELL Bands 710, 750, 810T, 850, 900P, 900E, 900R 1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19 BC1, BC4, BC6, BC8, BC13, BC14, BC15, BC16, BC20, BC21



Applications

Mobile Networks Entertainment and Multimedia IoT - Internet of Things Smart Home Logistics and Shipping Smart Cities Industrial IoT & Monitoring Smart Farming Fleet Management Medical and Healthcare Autonomous Driving Drone Operation Security and Surveillance Gaming and Virtual Reality Cellular Networks Mission Critical Communications Transportation GIS - Geographic Information System Cartographic Hazard Mitigation Machine Control Automation Agriculture Construction Mining Industry Unmanned Vehicles Surveying Defense Aerial Photogrammetry Logistics Wearables Asset Tracking and Security Location Based Services Civil Applications Road Applications Maritime Applications Autonomous Applications Mobile Applications Automotive Telecommunication Data Processing Broadband Communications Remote Monitoring and Control Smart Lighting Government & Public Safety Telemetry / Telematics Video Streaming Private Cellular Networks Digital Signage Routers, Gateways & Data Terminals First Responder Fleets Fire Departments C-V2X - Cellular Vehicle to Everything MIMO Device Connectivity Wireless Security System Energy Monitoring Smart Metering Air Quality and Pollution Monitoring Smart Parking and Vehicle Control Infrastructure Management Fire Detection & Management Waste Management Water Metering & Management Building Control Manufacturing Smart Grid Electricity Metering & Management Resources Management Utilities Retail Services Marine Home Applications Public Wi-Fi Short-Range Personal Area Networks RFID devices V2X - Vehicle to Everything High-Density Environments MU-MIMO Connectivity Satellite Internet Aviation Applications Military Applications Satellite Voice and Data Communications Satellite Phones Emergency & Remote Communications Oil and Gas Industry Forestry
