Roof 6-in-1 2x 5GNR MIMO, 3x WIFI 6E / WIFI 7 MIMO and GNSS Screw Antenna

6-in-1 Combination of Performance, Durability and Reliability Designed for Critical Communications

The patent pending lightweight 6-in-1 screw mount antenna (2J6B86BGFm) is designed for accelerated 5GNR, WIFI 6E / WIFI 7 2.4/5.0/6.0 and GNSS bands that operate within 617 MHz – 7125 MHz frequencies. This high-performance and high efficiency antenna offers superior connectivity, accuracy, and reliability for ultra-wide band MIMO, wireless, and navigation, allowing devices to remain online while moving through different coverage areas. Designed for MU-MIMO (multi-users) and mobile terminal applications with excellent ECC (Envelope Correlation Coefficient) and no performance null, this antenna is the #1 choice for the next generation of mobile services where performance and reliability are critical such as law enforcement, medical and public transportation, automotive, and industrial automation. This antenna is available in various combinations to meet different application needs.

Suggested applications include:

• Wireless broadband communications
• Private Networking
• Cellular and Mobile Data and Voice
• Data Terminals, Base Stations and Routers
• Critical Communications and Public Safety
• Law Enforcement
• Medical Transportation
• First Responder Fleets
• Fire Departments
• Precision Navigation
• Tracking/ Mapping
• Industrial Machinery
• Automotive and Transportation
• Buses / Transit
• Rail
• Telematics
• Utilities
• Mobile Modems

2 X Cellular 5GNR/4G LTE/3G/2G MIMO

Cable 1-2 are designed for cellular and mobile devices that operate within 5GNR, FirstNet, CBRS, 4G LTE, CAT-X, CAT-MX, CAT-NBX, 3G and 2G standards. With accelerated 5GNR technology and edge computing workloads, this antenna outperforms its competition.  Tuned with high gain and with high efficiency within 617 – 5925 MHz frequency bands while maintaining full range 360-degree signal strength and quality with no performance nulls.

3 X WIFI 6E / WIFI 7 2.4/5.0/6.0 GHz ISM MIMO

Cable 3-5 are designed for devices that operate within Wifi, BT, ZigBee, ISM, SigFox and LoRa standards. The 2.4/5.0/6.0 GHz bands and WIFI 6E / WIFI 7 technology combine long-range, short-range, and very large capacity without competing with traffic from other devices or networks. This results in high bandwidth channels, improved security, less interference, and reduces network congestion making it ideal for applications that demand faster WiFi, real-time connectivity and consistent network availability.

GNSS GPS/GLONASS/Galileo/QZSS

Cable 6 is designed for precision navigational applications that operate within GPS, GLONASS, Galileo and QZSS standards. The signal radiates on all planes and maximizes connectivity by avoiding conflict with propagating signals common with penetrating obstructions and dead spots in urban areas. This connection can maintain an active gain of 28 dB @ 2.7 V with an out of bound rejection of ~43 dBc. Designed with electrostatic discharge (ESD) protection for up to 6KV and a SAW pre-filter blocking inadequate frequencies (within 1575-1602 MHz) from passing from the antenna to the receiver.

Installation / Environmental

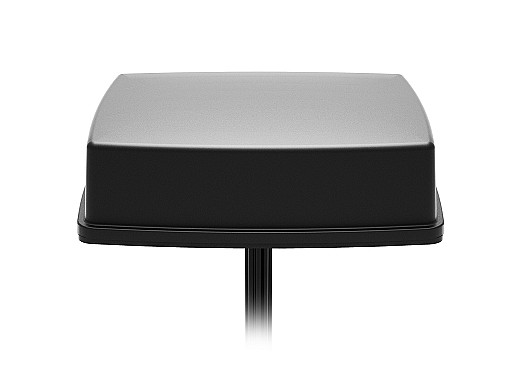

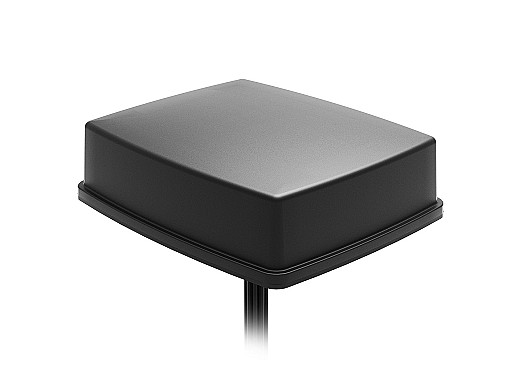

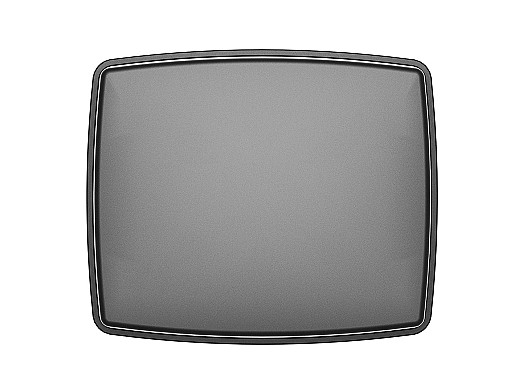

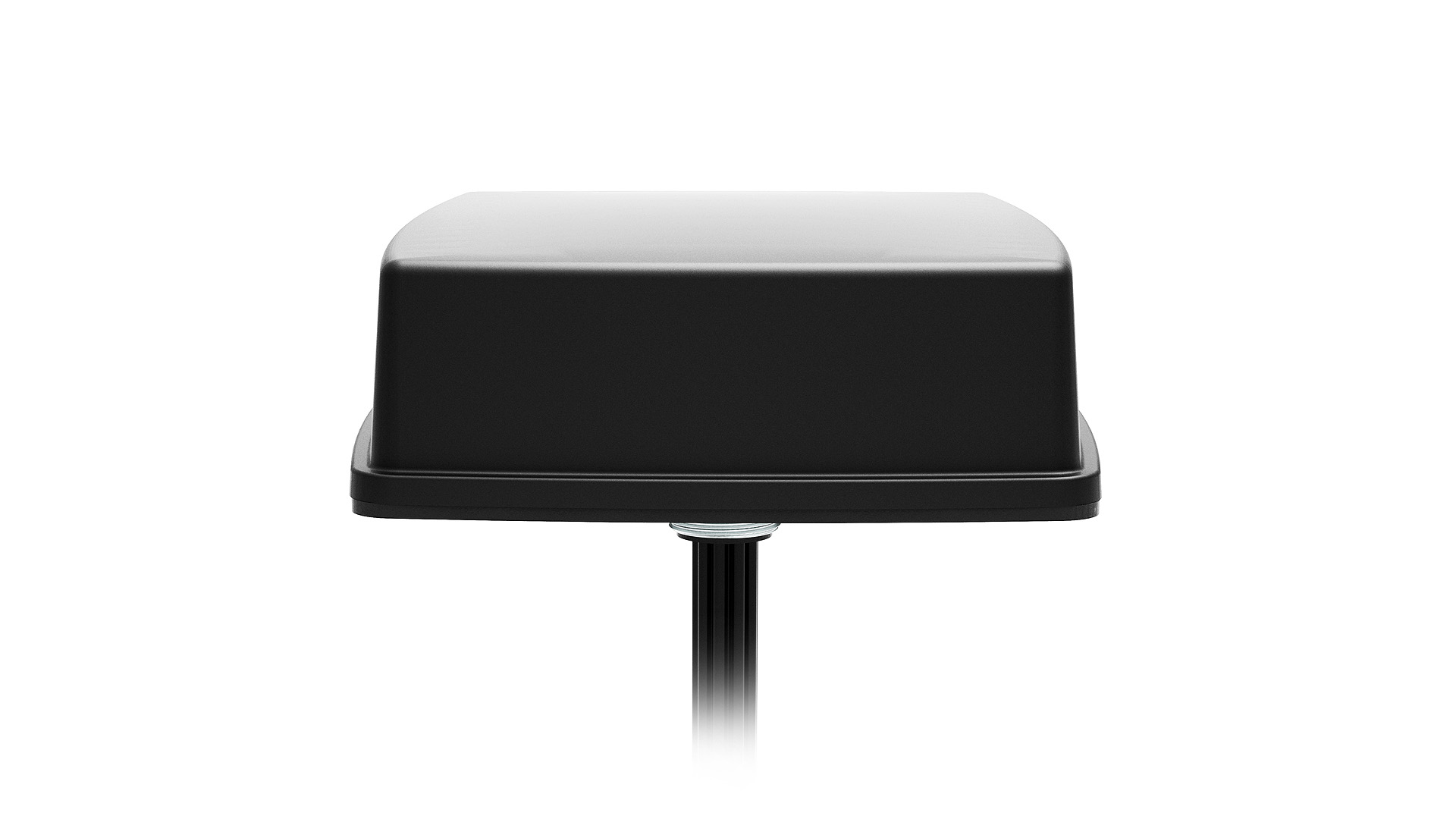

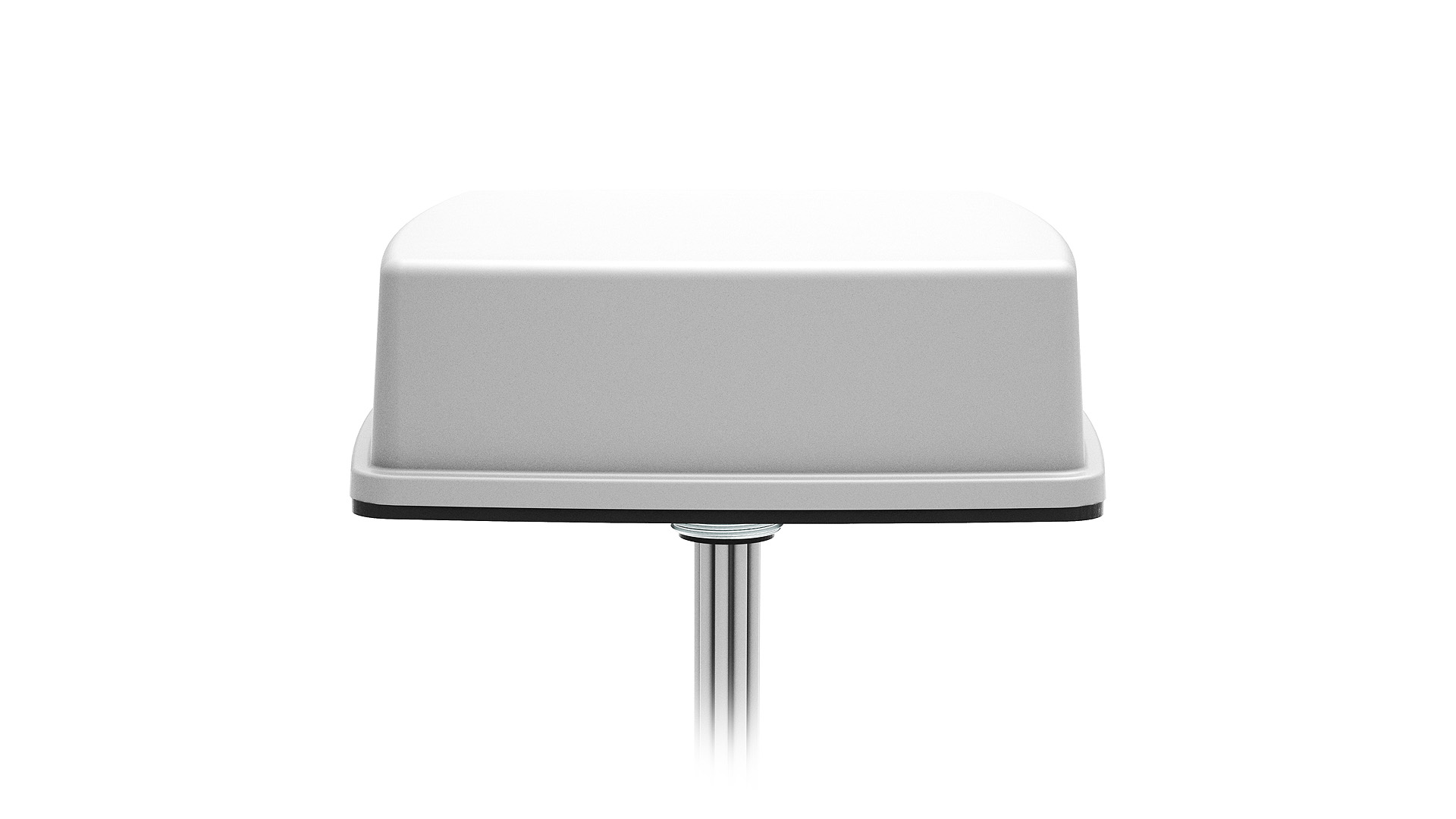

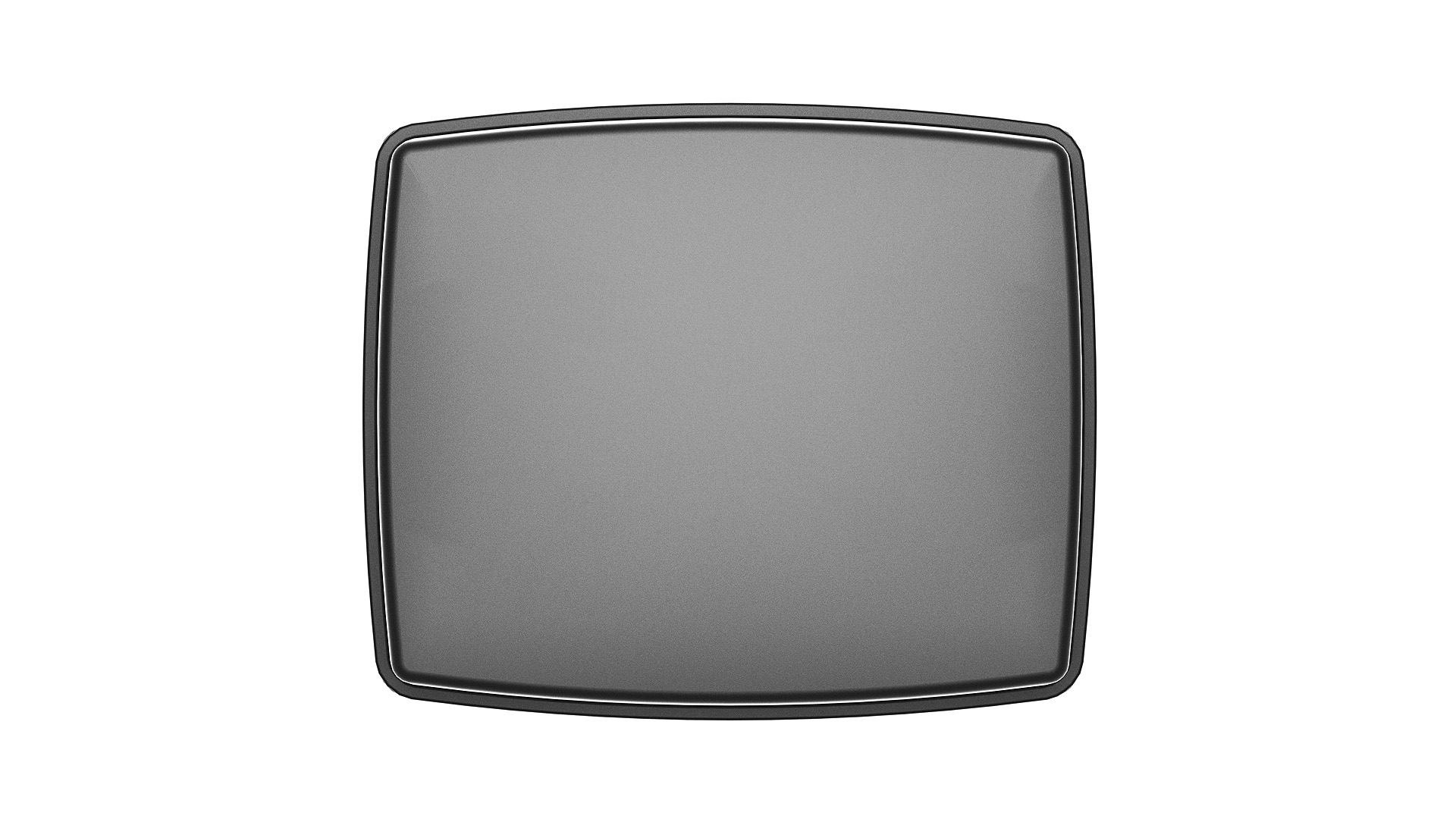

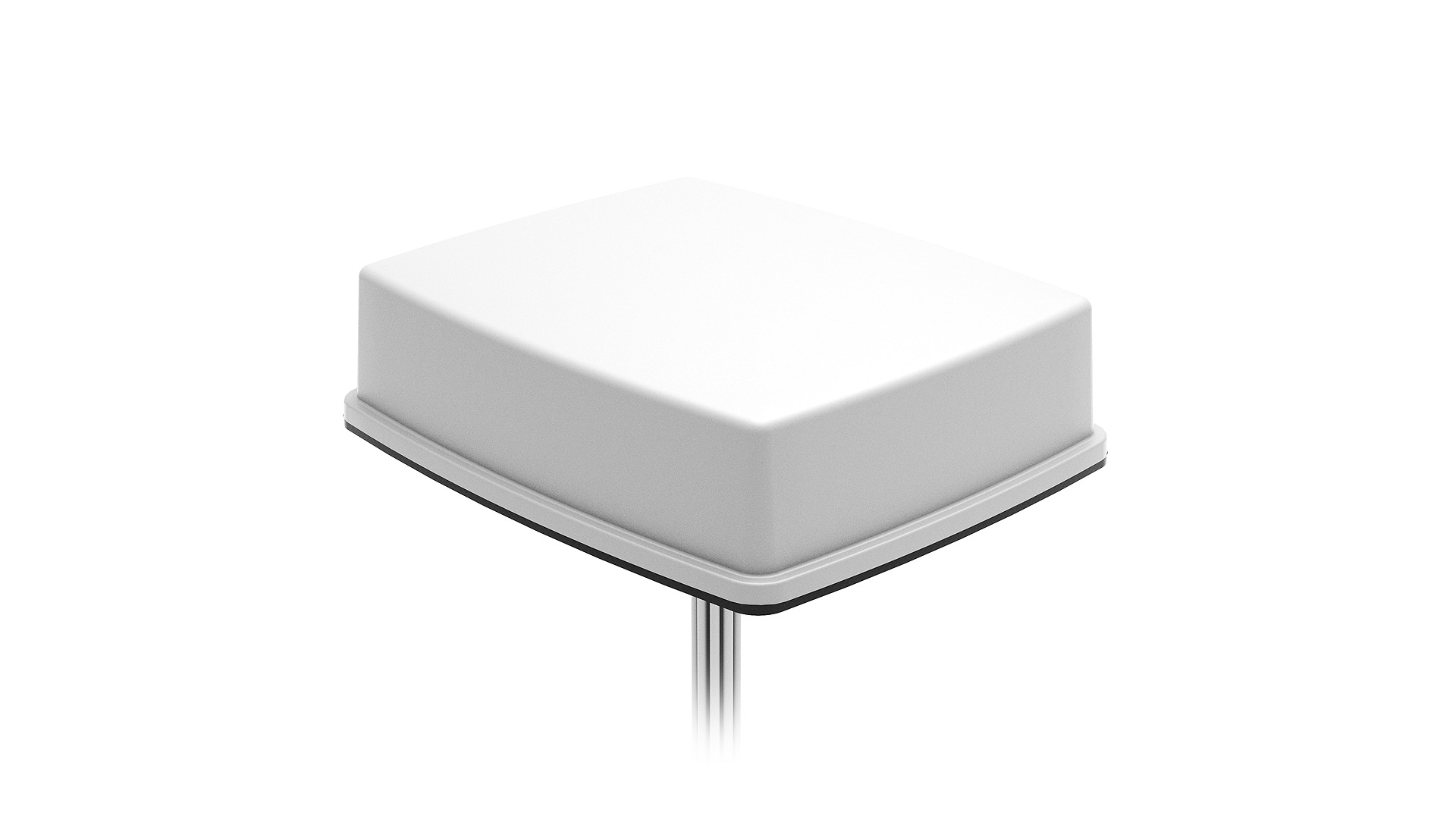

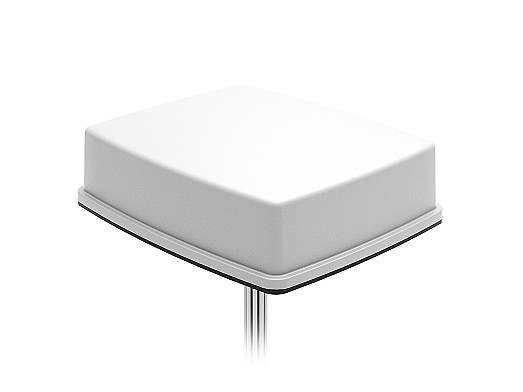

This ground plane independent antenna can be easily installed with the screw mounting that ensures reliable and permanent installations on vehicles or any structures.The low profile housing measures only 53 mm in height and is manufactured with IP67/IP69 rated ASA UV stable material offering durability with the highest level of protection against water and moisture exposure.

2J6B86BGFm connections are standard SMA-Male (5GNR & GNSS)/ SMA-Male-RP (WiFi-6E ISM) and come with 300cm long low loss D302 (5GNR/WiFi-6E ISM)/ LL100 (GNSS) cables, but can be customized as needed. All the cables feed from one side of the antenna housing and are tuned for optimal performance. We offer a wide range of alternative connectors and cables to meet any customization needs. Please contact our highly skilled engineers for assistance in antenna selection or customization requirements.

All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
