8-in-1 4x 5GNR MIMO and 4x WIFI 6E / WIFI 7 MIMO Pole Antenna

8-in-1 Combination of Performance, Durability and Reliability Designed for Critical Communications

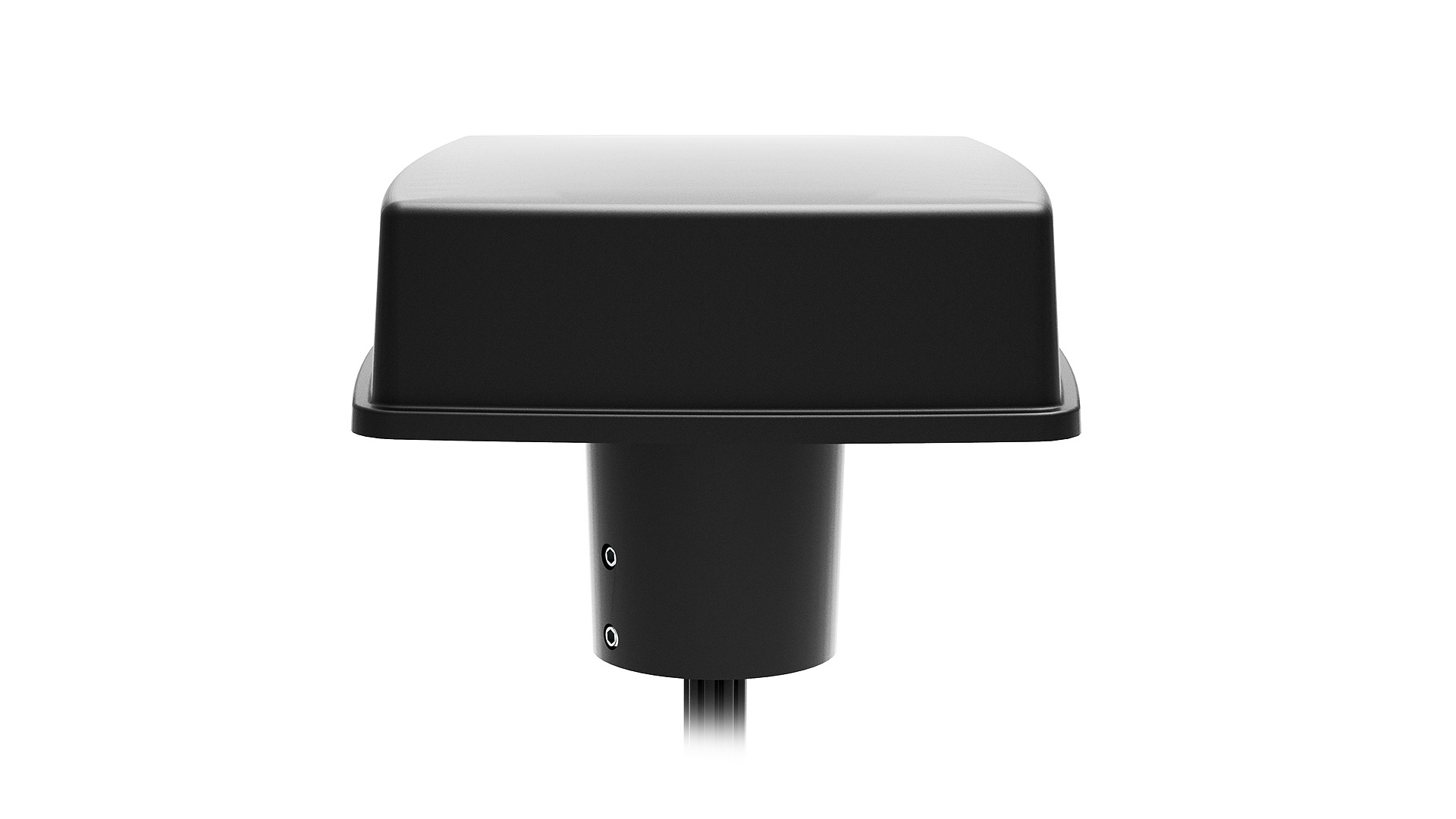

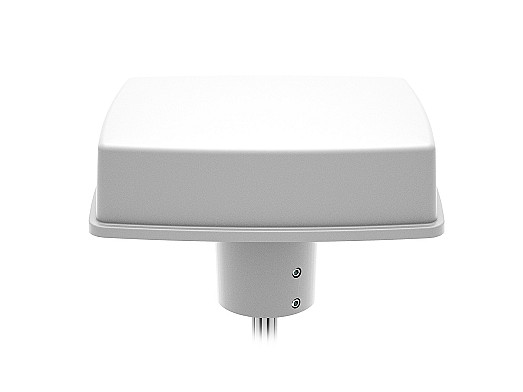

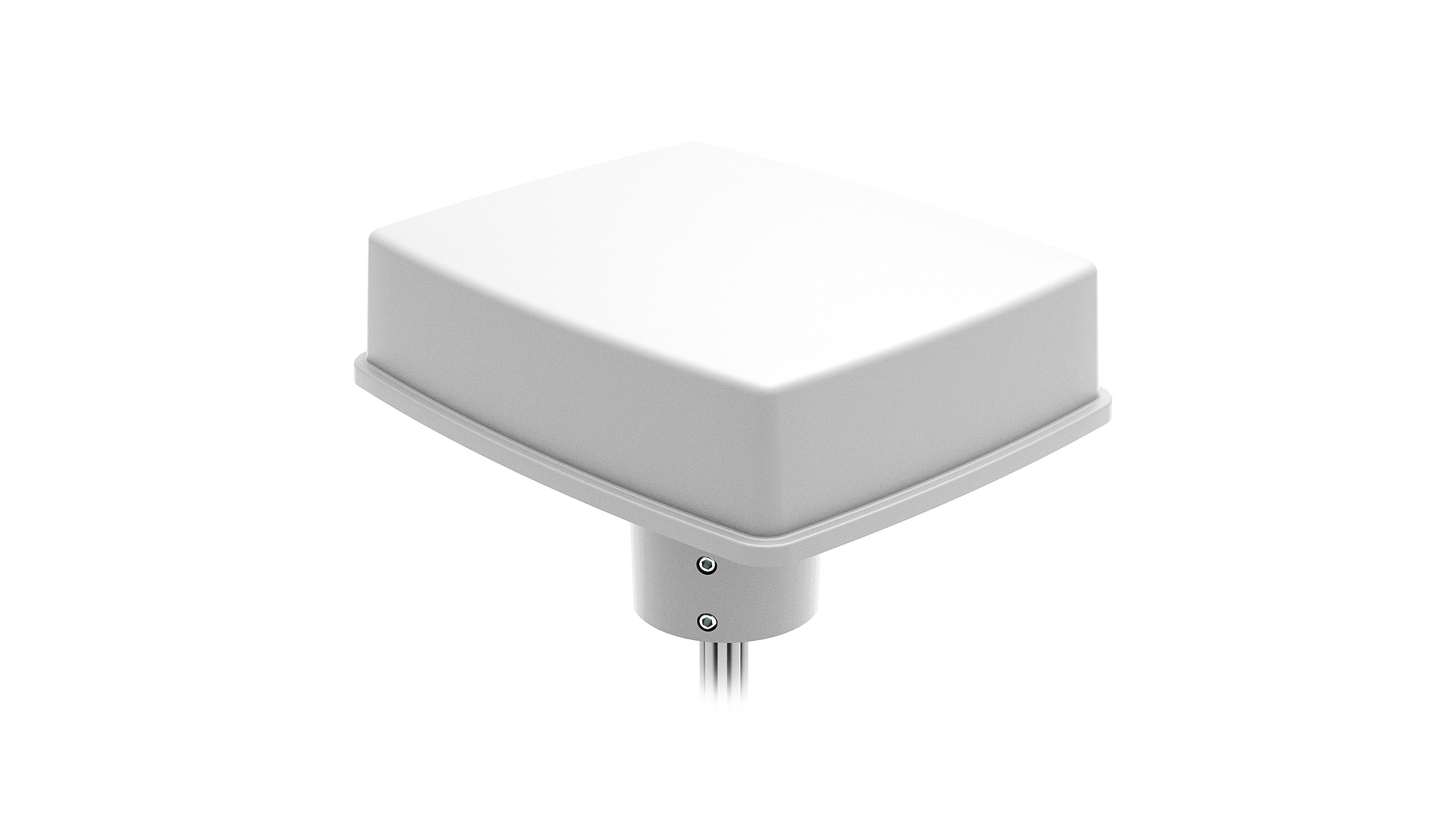

The patent pending lightweight 8-in-1 pole mount antenna (2J6B85JBe-B16J) is designed for accelerated 5GNR and WIFI 6E / WIFI 7 2.4/5.0/6.0 bands that operate within 617 MHz – 7125 MHz frequencies. This high-performance and high efficiency antenna offers superior connectivity, accuracy, and reliability for ultra-wide band MIMO, wireless, and navigation, allowing devices to remain online while moving through different coverage areas. Designed for MU-MIMO (multi-users) and mobile terminal applications with excellent ECC (Envelope Correlation Coefficient) and no performance null, this antenna is the #1 choice for the next generation of mobile services where performance and reliability are critical such as law enforcement, medical and public transportation, automotive, and industrial automation. This antenna is available in various combinations to meet different application needs.

Suggested applications include:

• Wireless broadband communications
• Private Networking
• Cellular and Mobile Data and Voice
• Data Terminals, Base Stations and Routers
• Critical Communications and Public Safety
• Law Enforcement
• Medical Transportation
• First Responder Fleets
• Fire Departments
• Industrial Machinery
• Automotive and Transportation
• Buses / Transit
• Rail
• Telematics
• Utilities
• Mobile Modems

4 X Cellular 5GNR/4G LTE/3G/2G MIMO

Cable 1-4 are designed for cellular and mobile devices that operate within 5GNR, FirstNet, CBRS, 4G LTE, CAT-X, CAT-MX, CAT-NBX, 3G and 2G standards. With accelerated 5GNR technology and edge computing workloads, this antenna outperforms its competition.  Tuned with high gain and with high efficiency within 617 – 5925 MHz frequency bands while maintaining full range 360-degree signal strength and quality with no performance nulls.

4 X WIFI 6E / WIFI 7 2.4/5.0/6.0 GHz ISM MIMO

Cable 5-8 are designed for devices that operate within Wifi, BT, ZigBee, ISM, SigFox and LoRa standards. The 2.4/5.0/6.0 GHz bands and WIFI 6E / WIFI 7 technology combine long-range, short-range, and very large capacity without competing with traffic from other devices or networks. This results in high bandwidth channels, improved security, less interference, and reduces network congestion making it ideal for applications that demand faster WiFi, real-time connectivity and consistent network availability.

Installation / Environmental

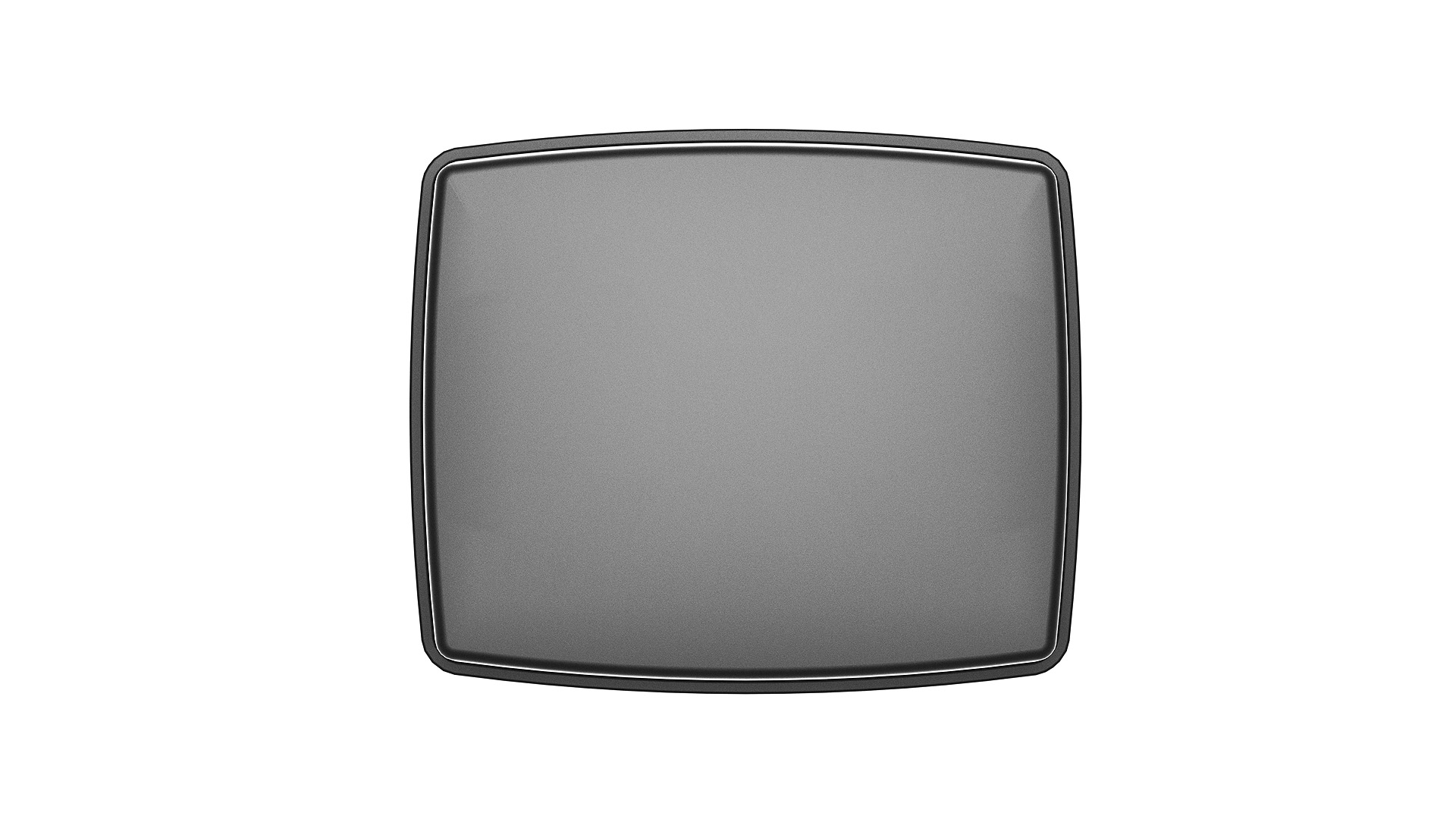

This ground plane independent antenna can be easily installed with the pole mounting adaptor that ensures reliable and permanent installations on vehicles or any structures. . We also offer 9-in-1 antennas with adhesive, magnetic and screw mount options, please see product 2J4H86PCFf and 2J4H86PCFf (Stellar Series) for more details. The low profile housing measures only 53 mm in height and is manufactured with IP67/IP69 rated ASA UV stable material offering durability with the highest level of protection against water and moisture exposure.

2J6B85JBe-B16J connections are standard SMA-Male (5GNR)/ SMA-Male-RP (WIFI 6E / WIFI 7 ISM) and come with 300cm long low loss D302 (5GNR/WIFI 6E / WIFI 7 ISM) cables, but can be customized as needed. All the cables feed from one side of the antenna housing and are tuned for optimal performance. We offer a wide range of alternative connectors and cables to meet any customization needs. Please contact our highly skilled engineers for assistance in antenna selection or customization requirements.

All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
