Helm 5GNR/4G LTE/3G/2G MIMO and GPS/GLONASS Screw Mount Antenna

Revolutionizing Connectivity: 5GNR MIMO and GNSS Screw Mount Antenna for Enhanced Performance

The 2J6A84BGFa-RB-SP is a cutting-edge antenna designed for a wide range of applications, including 5G, 4G, 3G, and 2G networks as well as GPS/GLONASS. This versatile, high-performance antenna is perfect for users who demand high-quality reception and signal transmission in the modern wireless world.

The antenna is composed of three distinct cables, each catering to a specific frequency range.

Cables 1 and 2 support 5 GNR and cover frequency ranges of 617-960 MHz, 1427-2690 MHz, 3300-5000 MHz, and 5150-5925 MHz.

Cable 3 is designed for GPS/GLONASS/QZSS/Galileo systems, focusing on the 1575-1606 MHz frequency band.

Suggested applications include:

• Automotive and Transportation: Vehicle tracking, fleet management, telematics, and in-vehicle communication systems
• Smart Grid and Utilities: Enhanced communication capabilities for smart metering, distribution automation, and remote monitoring of utility assets.
• Industrial IoT (IIoT): Wireless connectivity for manufacturing automation, remote equipment monitoring, and predictive maintenance.
• Remote Monitoring and Control: Reliable communication for monitoring and controlling assets in remote locations, such as oil and gas pipelines, solar farms, and water treatment plants.
• Smart Cities: Enhanced communication infrastructure for public safety, traffic management, waste management, and other urban applications.
• Agriculture: Precision farming, livestock tracking, and remote monitoring of agricultural equipment.
• Emergency Services: Improved communication and location capabilities for police, fire, and ambulance services.
• Drones and Robotics: Accurate navigation and communication for UAVs, autonomous vehicles, and other robotic applications.

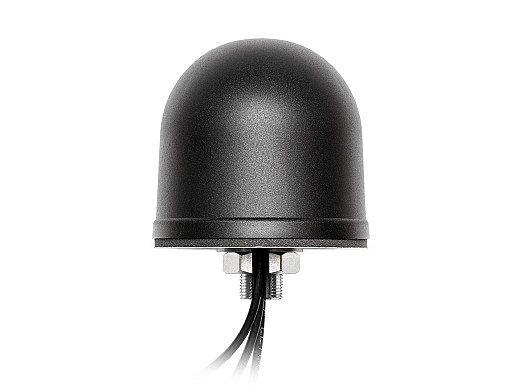

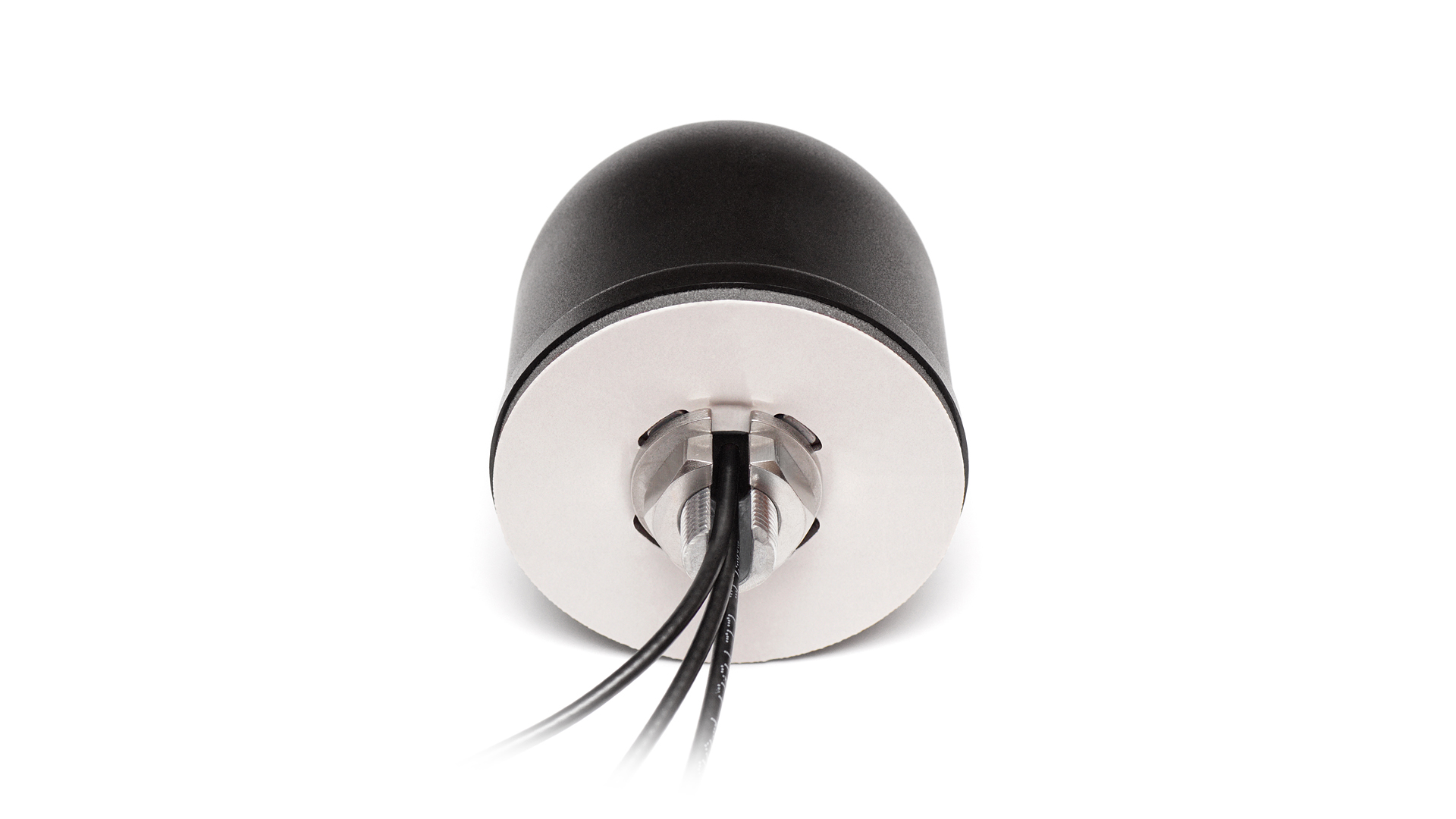

The 2J6A84BGFa-RB-SP antenna is ground plane dependent and features a pre-filtered GNSS design to improve signal reception. This antenna features a durable screw mount and a 3mm foam sticker on its underside, which prevents rotation and ensures a stable installation. The customizable cable and connector options, along with its compact dimensions of Ø 69 × 65.5 mm, make it easy to integrate into various environments.

Performance and Specifications

This high-performance antenna boasts an impressive efficiency rate and peak gain across various frequency bands. The antenna operates with a linear polarization and an omni-directional radiation pattern, ensuring excellent signal reception and transmission in all directions. With a maximum input power of 35W, the 2J6A84BGFa-RB-SP is built to handle demanding wireless applications.

Installation / Environmental

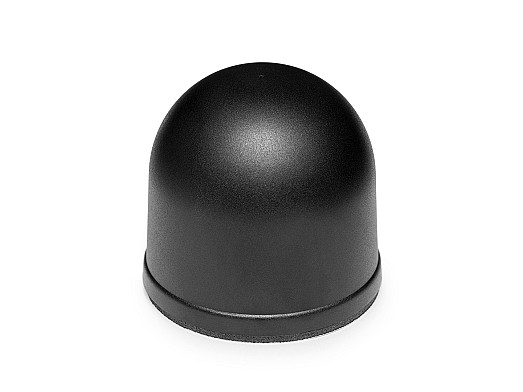

Built to withstand harsh environmental conditions, the 2J6A84BGFa-RB-SP antenna holds IP67, IK09, and IP69K certifications. Its radome is made of ASA material and features a black color, while the antenna base is constructed from Zamak, ensuring durability and resilience. The antenna is RoHS compliant and can operate within a temperature range of -40 to +85 degrees Celsius. All connectors and cables are fully customizable.

The 2J6A84BGFa-RB-SP antenna is an excellent choice for users who demand high-performance and reliable wireless connectivity across various applications. With its customizable design, robust construction, and compatibility with a wide range of frequency bands, this antenna is the perfect solution for today's ever-evolving wireless communication needs.
