2J6983Ba Phoenix 5GNR/4GLTE/3G/2G/CDMA MIMO Screw Mount Antenna

Mounting	Screw Mount
Dimensions (mm)	80 × 74 × 25.6
Operating temperature	-40 °C to +85 °C
Certificates	IP67, IP69
Standard colors

Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies	5G, 4G, 3G and 2G
Standards	5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency	617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB)	~-11.2, ~-8.3, ~-7.1, ~-7.4
VSWR	~2.0:1, ~2.6:1, ~3.2:1, ~2.6:1
Efficiency (%)	~46.2, ~50.5, ~32.5, ~30.5
Peak Gain (dBi)	~2.1, ~5.4, ~3.8, ~3.9
Impedance (Ohm)	50
Polarisation	Linear
Radiation Pattern	Omni-Directional
Max. Input Power (W)	25

connection 2

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies	5G, 4G, 3G and 2G
Standards	5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency	617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB)	~-9.6, ~-8.2, ~-6.9, ~-7.0
VSWR	~2.2:1, ~2.6:1, ~3.3:1, ~2.8:1
Efficiency (%)	~45.1, ~52.0, ~40.1, ~33.5
Peak Gain (dBi)	~3.2, ~5.6, ~5.1, ~4.7
Impedance (Ohm)	50
Polarisation	Linear
Radiation Pattern	Omni-Directional
Max. Input Power (W)	25

Key Features

2-in-1 Combination Antenna

Ultra Wide band Antenna

617-5925 MHz Sub 6GHz Bands

Full 4GLTE backward compatibility

Ground Plane Independent

5.6 dBi 5G NR Peak Gain

Anti-Rotation Mounting

Low Profile

Customizable Cable and Connector

5GNR Antenna Bands list

Parameters	5GNR Antenna
Frequency (MHz)	617-960	1427-2690	3300-5000	5150-5925
Band (MHz)	600, 700, 850, 900	1500, 1600, 1700, 1800, 1900, 2000, 2100, 2300, 2500, 2600	3300, 3500, 3600, 3700, 4500	5200, 5500, 5800
5GNR Bands	n5, n8 ,12, n20, n28, n71, n81, n82, n83,	n1, n2, n3, n7, n25, n34, n38, n39, n40, n41, n50, n51, n66, n70, n74, n75, n76, n80, n84, n86	n77, n78, n79
4GLTE Bands	B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B71, B85	B1, B2, B3, B4, B7, B9, B10, B11, B21, B23, B24, B25, B30, B32, B33, B34, B35, B36, B37, B38, B39, B40, B41, B45, B50, B51, B65, B66, B69, B70, B74, B75, B76	B22, B42, B43, B48, B49, B52	B46, B47, B252, B255
3GCELL Bands	B5, B6, B8, B12, B13, B14, B19, B20, B26	B1, B2, B3, B4, B7, B9, B10, B11, B21, B25, B32, B33, B34, B35, B36, B37, B38, B39, B40	B22
2GCELL Bands	710, 750, 810T, 850, 900P, 900E, 900R	1800DCS, 1900PCS
CDMACELL Bands	BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19	BC1, BC4, BC6, BC8, BC13, BC14, BC15, BC16, BC20, BC21

Antenna Description

2J6983Ba

The # 1 Choice Antenna Solution for High and Reliable Performance

2J Antennas has launched the 2J6983Ba 5GNR MIMO Screw Mount Antenna. Designed to operate between 617-5925 MHz frequencies, the 2J6983Ba antenna will support 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-x, CAT-Mx, CAT-NBx, NB-IoT, 3G, 2G and CDMA standards. This antenna is a great solution to be well prepared for future technology worldwide such as NR (New Radio) and offers a reliable signal quality while taking advantage of the MIMO option.

Full 5GNR coverage (617-960, 1427-2690, 3300-5000 and 5150-5925 MHz)

2J6983Ba designed with 5G New Radio (5GNR) technology that enhances coverage through high gain adaptive beamforming to meet the growing demands of Massive MIMO devices. This results in low latency, high efficiency, higher capacity and higher coverage with low power consumption and low interference while supporting additional bandwidths. The 5GNR is backwards compatible with existing 4G, 3G, 2G and other LTE networks. The benefits of dual MIMO cellular capabilities are that the antenna can search and pair the strongest signal to assure continuous connectivity. The omni-directional radiation pattern allows for 360-degree clear signal strength and maximizes throughput.

Suggested Applications:

- Terminals, Base Stations and Routers
- Massive MIMO Device Connectivity
- Industrial, Commercial and Residential IoT/Smart Home
- Electrical and Environmental Monitoring
- RFID Asset Tracking
- Industrial Automation
-Robotics
-Real-Time Remote Control

All our products have been tested by our expert engineers and measured in our certified CTIA 3D Anechoic Chamber. Please contact our experienced team for assistance with antenna selection and recommendations.

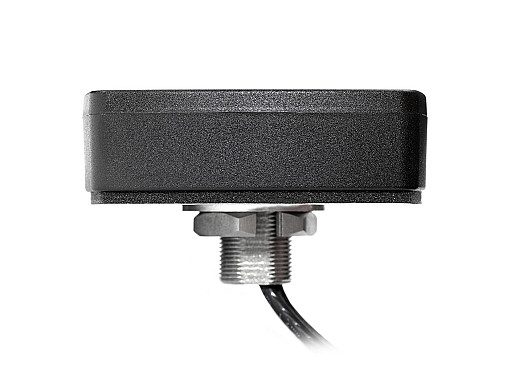

Installation / Environmental
