2J6947Ba
Powered With WIFI 6E / WIFI 7, We Introduce The Most Reliable Cellular/ ISM Antenna On The Market
Our low-profile 3-in-1 wide-band screw mount antenna (2J6947Ba) combines dual Cellular/4G LTE MIMO technology, single 2.4/5.0/6.0 GHz WIFI 6E / WIFI 7 ISM and includes the less congested seventh generation of Wi-Fi (802.11be). Servicing low-power wide-area MIMO, IoT devices for automation, vehicle connectivity, smart home and any other devices that operate within 698 MHz – 7125 MHz, make this highly efficient antenna the first choice for connectivity on the market.
2x Cellular/ LTE MIMO Cables:
The dual cellular/ LTE connection is tuned for high data throughput devices that operate within 4G LTE, FirstNet, LPWA, NB-IoT, CAT-X/-MX/-NBx, 3G and 2G standards. The 4G LTE and the CAT connections are backwards compatible with existing 3G, 2G and other LTE networks. The benefits of dual MIMO cellular capabilities are that the antenna can search and pair the strongest signal to assure continuous connectivity. This well-designed antenna is ideal for high device usage and where transmission traffic must maintain consistent device connectivity.
2.4/5.0/6.0 GHz WIFI 6E / WIFI 7 ISM Cable:
Designed for low-power-wide-area (LPWA) devices that operate within WiFi, BT, RFID, ZigBee, ISM, SigFox and LoRa standards. WIFI 6E / WIFI 7 is specifically designed for devices that operate on 6.0 GHz bands and offers a very large capacity without competing with traffic from other devices or networks. This results in high bandwidth channels, improved security, less interference, and network congestion. This antenna is ideal for home automation and monitoring applications that demand faster WiFi, efficient device battery consumption and consistent network availability.
|
Typical applications
- Automotive/ Transportation Navigation
- Autonomous Vehicles
- Emergency Response and Public Safety
- Multi-Media and Real-Time Video Streaming
- Automotive tracking and telematics
- Internet of Things (IoT)
- RFID / Asset Tracking
- Automation (home/office/industrial)
- Consumer Electronics Terminal
- High Traffic MIMO Device Connectivity |
|
Installation

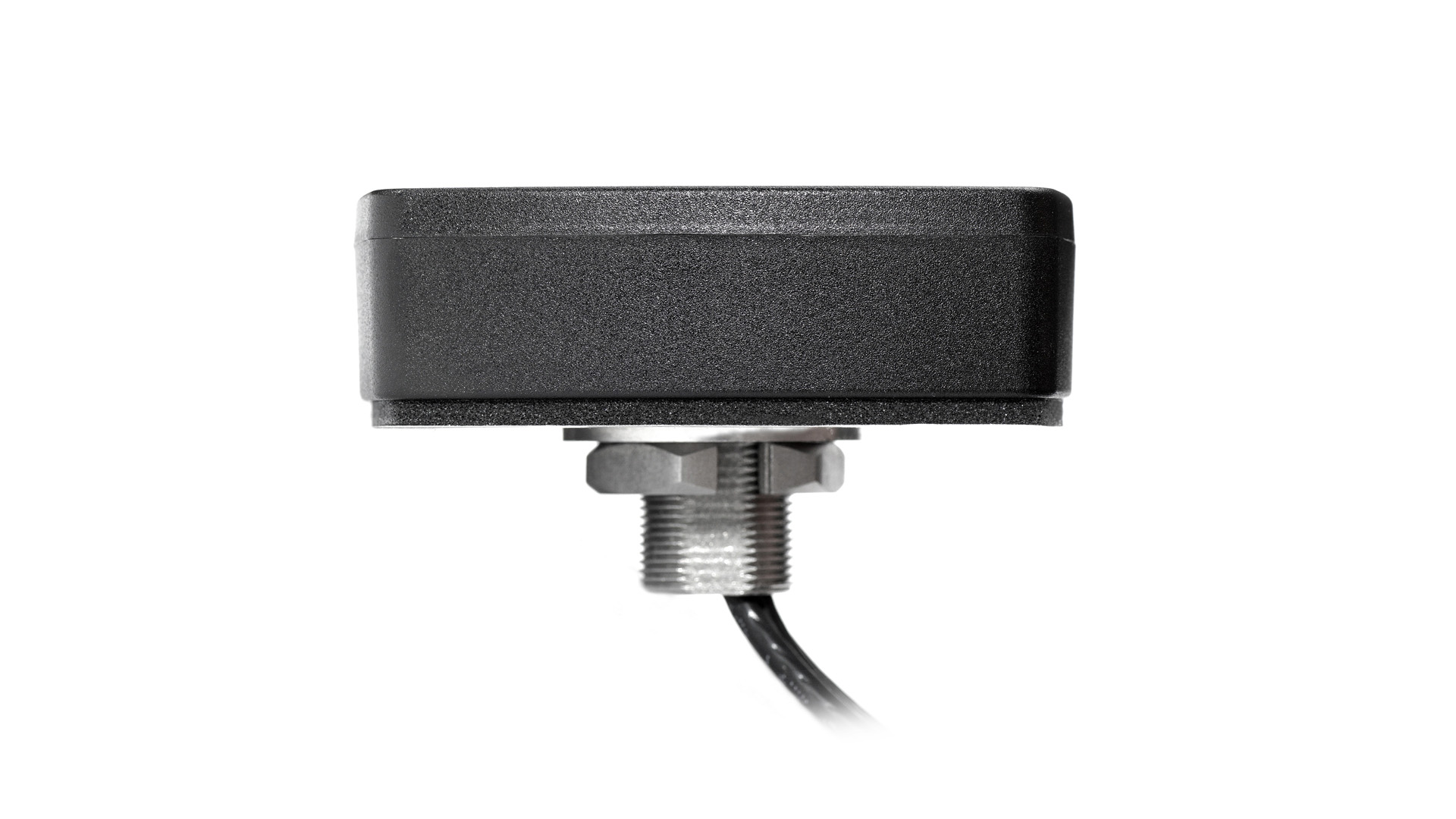

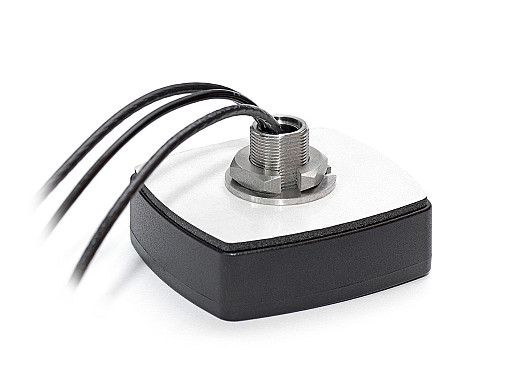

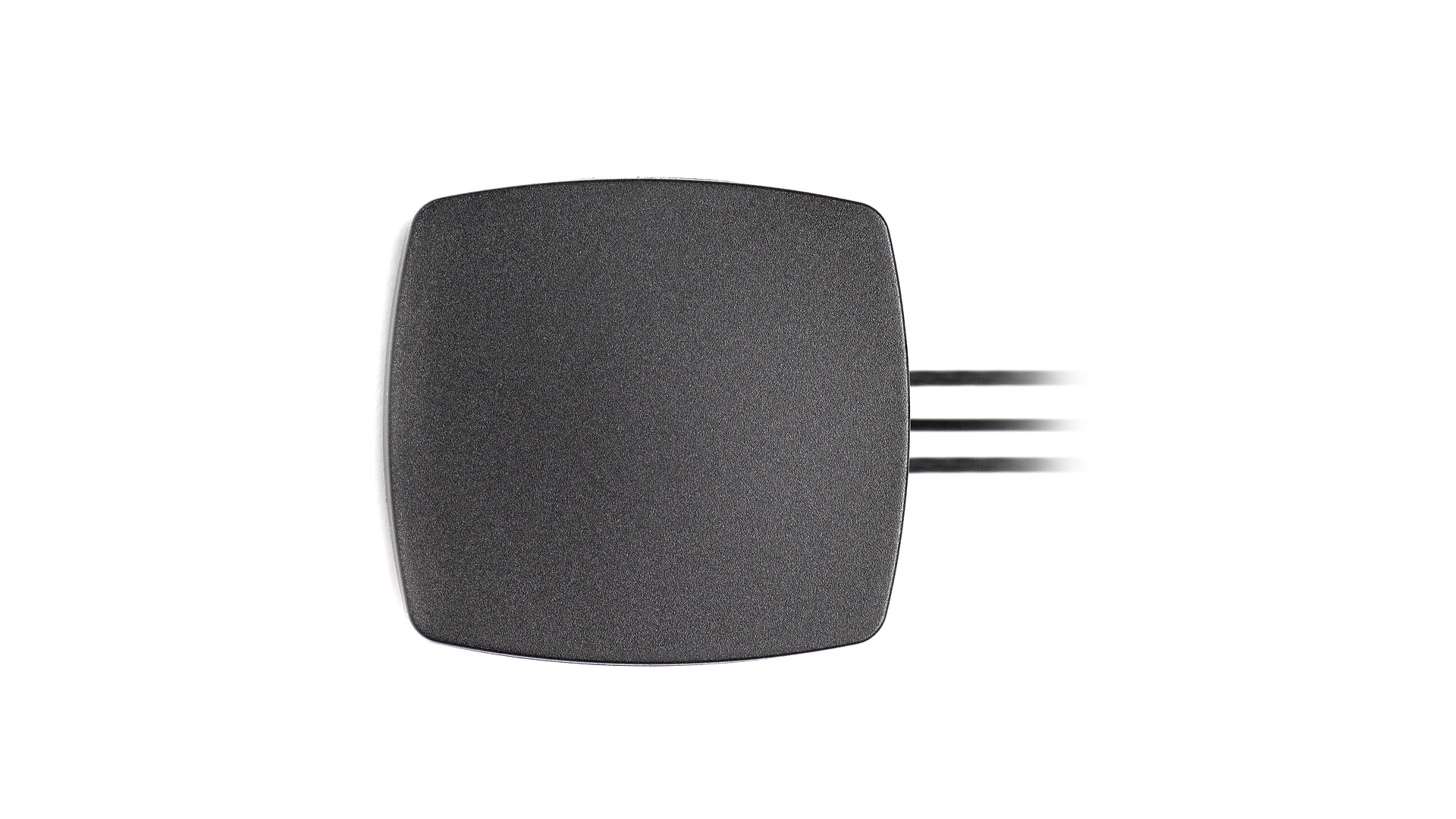

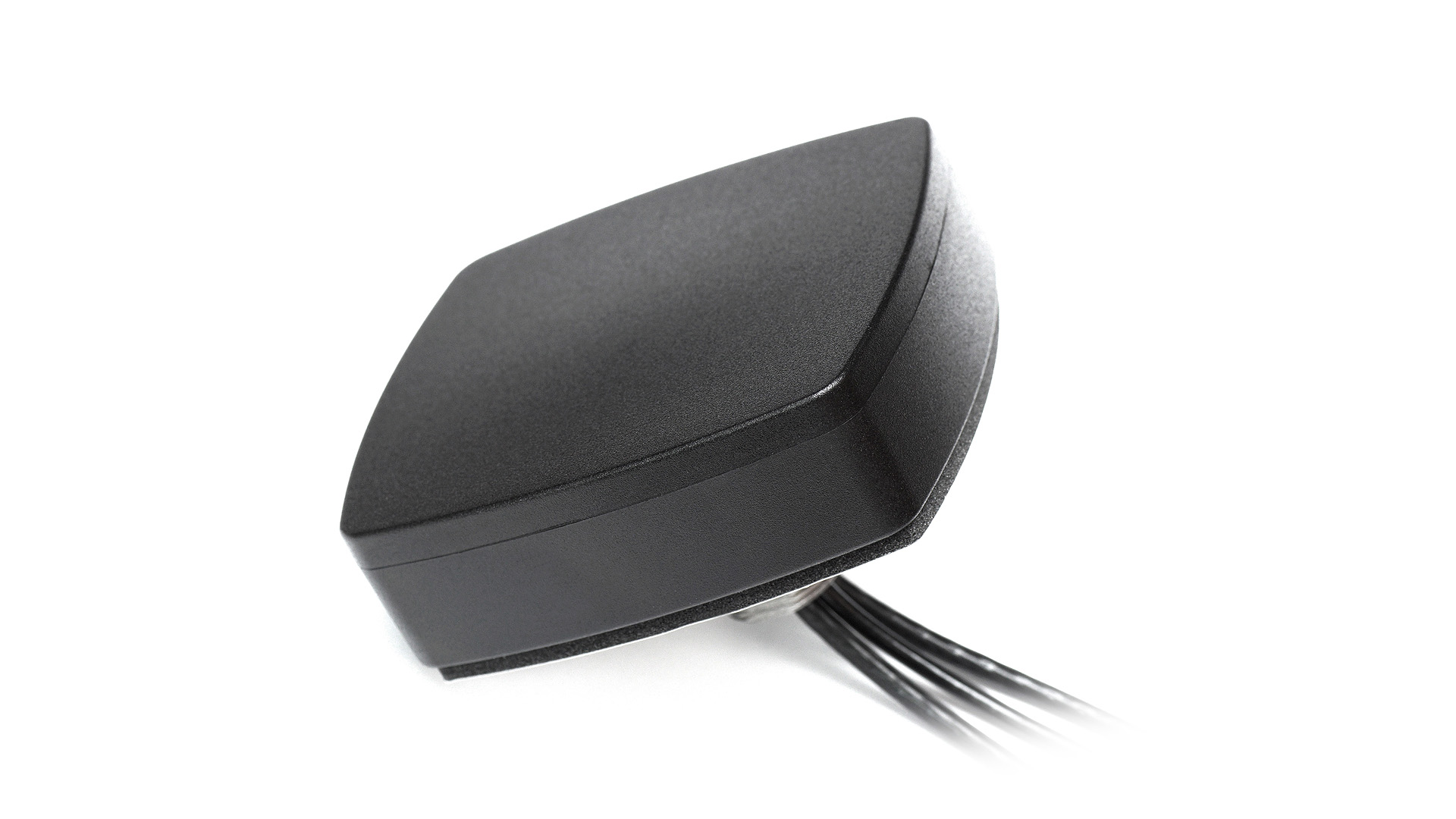

The low-profile, boxed shaped antenna housing (80 x 74 x 25.6 mm) is manufactured with PC/ASA material and available in white and black colors. Fully IP67 and IP69 certified, this antenna is waterproof and resistant to dust and other particles that could compromise antenna function. With an anti-rotation screw mount and ground plane independence, this antenna can be installed permanently on buildings, vehicles, and any other external surfaces without the need for grounding or free space.
The 2J6947Ba is tuned for optimal performance and comes with standard SMA-Male connector and with 300cm long D302 cables. 2J Antennas also offers a wide range of alternative connectors and cables for any customization needs. It is important to match the right antenna with the job and our expert engineers are available for installation support, customization needs and antenna selection support.
All our products are designed with the environment in mind and manufactured without hazardous materials with full REACH and RoHS compliance.
