Antenna and electrical specifications

connection 1

IRIDIUM

Standards IRIDIUM
Frequency 1616-1627
Peak Gain (dBic) ~5.2
Efficiency (%) ~68.1
Radiation Pattern Hemispherical
Polarization RHCP
connection 2

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1606
Impedance (Ohm) 50
Active Gain (dB) 28 @ 2.7 V
Saw Filter Type Pre-Filter
Voltage (V) 1.5 - 3.6
Current (mA) 9 @ 2.7 V
Power Consumption (mW) 24.3 @ 2.7V

Key Features

2-in-1 Combination Antenna
Ground Plane Independent
Iridium Certified Antenna
5.2 dBic IRIDIUM Peak Gain
High Performance
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
Low Profile
Anti-Rotation Mounting
Customizable Cable and Connector

Antenna Description

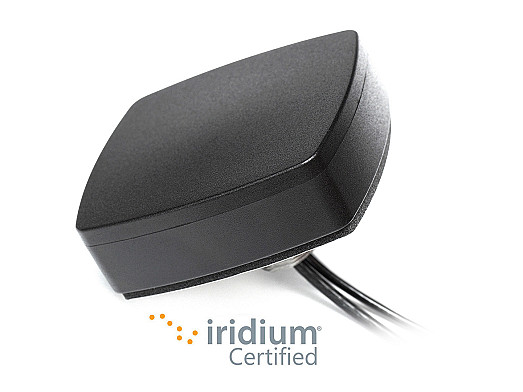

2J6933BGFz

The 2-in-1 Iridium Certified Antenna is Connecting You to The World with Precision

The GPS/Glonass/Galileo and Iridium Screw Mount (2J6933BGFz) is a 2-in-1, high-performance antenna that maximizes versatile usability without compromising efficiency. The compact size 2J6933BGFz outperforms any competitor by offering GPS, QZSS, Galileo, GLONASS and Iridium standards. The 2J6933BGFz offers reliable, constant global connectivity with the highest precision ideal for tracking/mapping devices, industrial machinery, sea vessels and air/automobile navigation.

Cable 1

The GNSS Ceramic Active Antenna (Cable 1) is designed for reliable navigational connectivity within GPS/ QZSS/ Galileo and GLONASS standards. With a hemispherical radiation pattern, the 2J6933BGFz operates within 1575.42MHz and 1598MHz-1606MHz frequencies. The GNSS Ceramic Active Antenna offers access to multiple satellites improving accuracy, redundancy and availability at all times.

Cable 2

The Iridium Antenna (Cable 2) is designed for Iridium standards. With a hemispherical radiation pattern, the 2J6933BGFz operates within 1616MHz-1627MHz frequencies. The Iridium antenna offers the most reliable global connectivity on the market including poles, oceans and airways. This antenna is ideal for worldwide voice and data communication from hand-held satellite phones and other transceiver units.



Installation/ Environment

For internal and external applications, the production material used is black/white ABS UV stable, protecting the antenna from temperatures between -40C and +85C. With anti-rotation mechanism and ground plane independence, this antenna is easy to install with minimal location restrictions. The screw mount technology allows for solidly locking the antenna on top of its mounting location making its installation easy and reliable. All two cables on the 2J6933BGFz antenna have a SMA-Male standard connector and come with 300cm standard cable length. The 2J6933BGFz is fully customizable by offering other connector types, cable lengths and cable types. The 2J6933BGFz is manufactured with RoHS compliance and complete IP67, IP69 and Iridium certification.
