High-Performance Triple MIMO Solution Ideal for an Ultimate WIFI 6E / WIFI 7 Experience
The Phoenix 2J6902Bb is an external antenna that offers 3x WIFI 6E / WIFI 7 connections specifically designed to cater to the demands of the latest WIFI 6E / WIFI 7 standard. This solution is engineered to support Multi-User Multiple Input Multiple Output (MU-MIMO) technology, making it exceptionally well-suited for applications where multiple devices require simultaneous high-speed internet access.
The antenna's compatibility with WIFI 6E / WIFI 7 also means it can operate in the newly opened 6 GHz band, offering a cleaner spectrum with less interference and better channel availability.
Cable 1, 2 & 3: WIFI 6E / WIFI 7 2.4/5.0/6.0 GHz ISM
Cables 1, 2 and 3 support WiFi, BT, ZigBee, and ISM standards. 2J6902Bb offers up to 5.5 dBi WiFi peak gain and up to 49.5% efficiency, ensuring ultra-optimal antenna performance where uninterrupted signal strengths and high bandwidths are desired, even in very crowded networks. Implementing an omnidirectional design is ideal for IoT and automotive wireless systems as it provides 360° of coverage.
This antenna dramatically increases network capacity and efficiency, allowing for faster data transmission rates and reduced latency. This makes it ideal for bandwidth-intensive applications like high-definition video streaming, online gaming, and virtual reality experiences.
Suggested Applications:
- Entertainment and Multimedia
- Smart Home
- Smart Cities
- Medical and Healthcare
- Drone Operation
- Gaming and Virtual Reality
- Retail Services
- Transportation
- Automation
- Marine
- Defense
- Logistics
- Wearables
- Routers
Installation and Durability

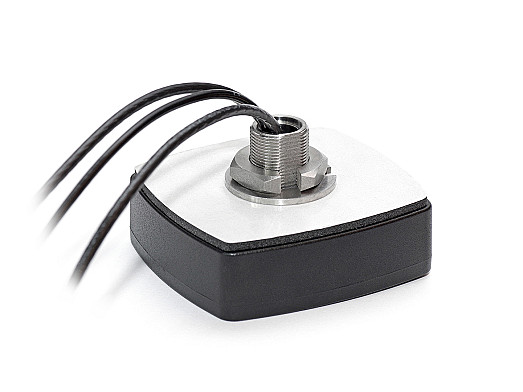

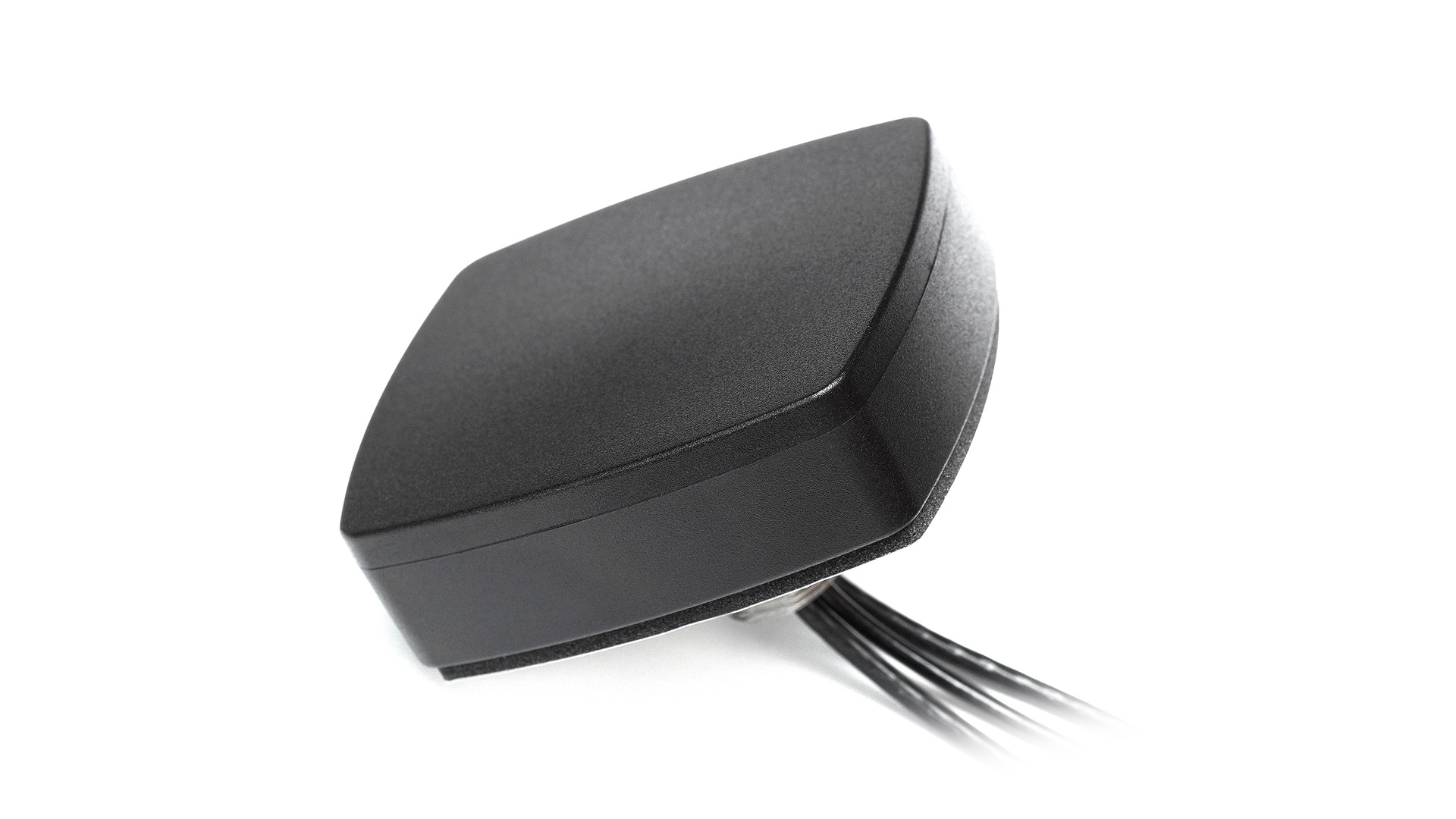

Measuring 80 x 74 x 25.6 mm, the 2J6902Bb antenna is encased in a durable, ASA material housing that is both waterproof and dustproof, with added UV protection, offering reliable protection in extreme weather conditions. Its design includes an anti-rotation screw mount and is ground plane independent. This external antenna comes equipped with a standard SMA-Male connector and a 300 cm long D302 cable, with custom options available upon request.
This antenna is IP67 and IP69 certified. Our highly skilled team members are available to assist with any customization and integration needs.
2J Antennas recognizes the importance of the environment and has implemented steps to further sustainability, making us fully RoHS and Reach compliant.
