Antenna and electrical specifications

connection 1

CELLULAR

Standards 2G and 3G
Frequency 824-960, 1710-2170
VSWR ~2.7:1, ~1.9:1
Efficiency (%) ~19.0, ~16.9
Peak Gain (dBi) ~-3.0, ~-1.4
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 100
connection 2

2.4/5.0 GHz ISM

Standards WiFi, BT, ZigBee, ISM
Frequency 2410-2490, 4920-5925
VSWR ~1.4:1, ~1.4:1
Efficiency (%) ~18.2, ~10.0
Peak Gain (dBi) ~-1.6, ~-2.0
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25

Key Features

2-in-1 Combination Antenna
Ground Plane Dependent
-1.4 dBi 3G 2G Peak Gain
-1.6 dBi WIFI Peak Gain
Low Profile

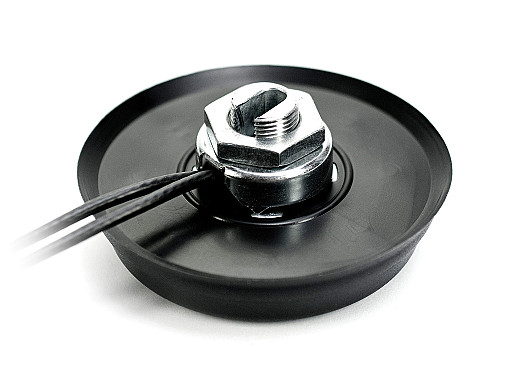

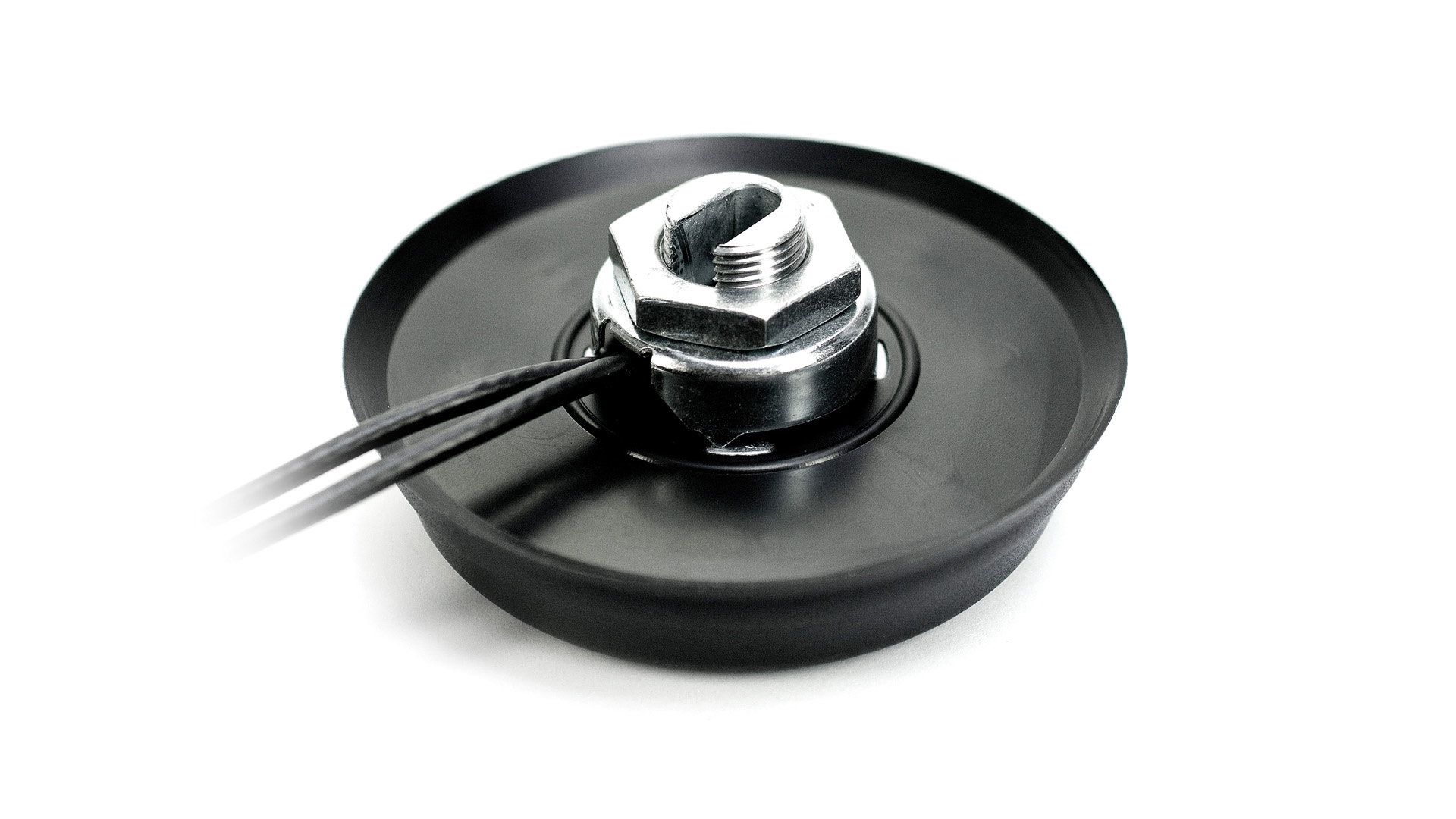

Anti-Rotation Mounting
Customizable Cable and Connector
