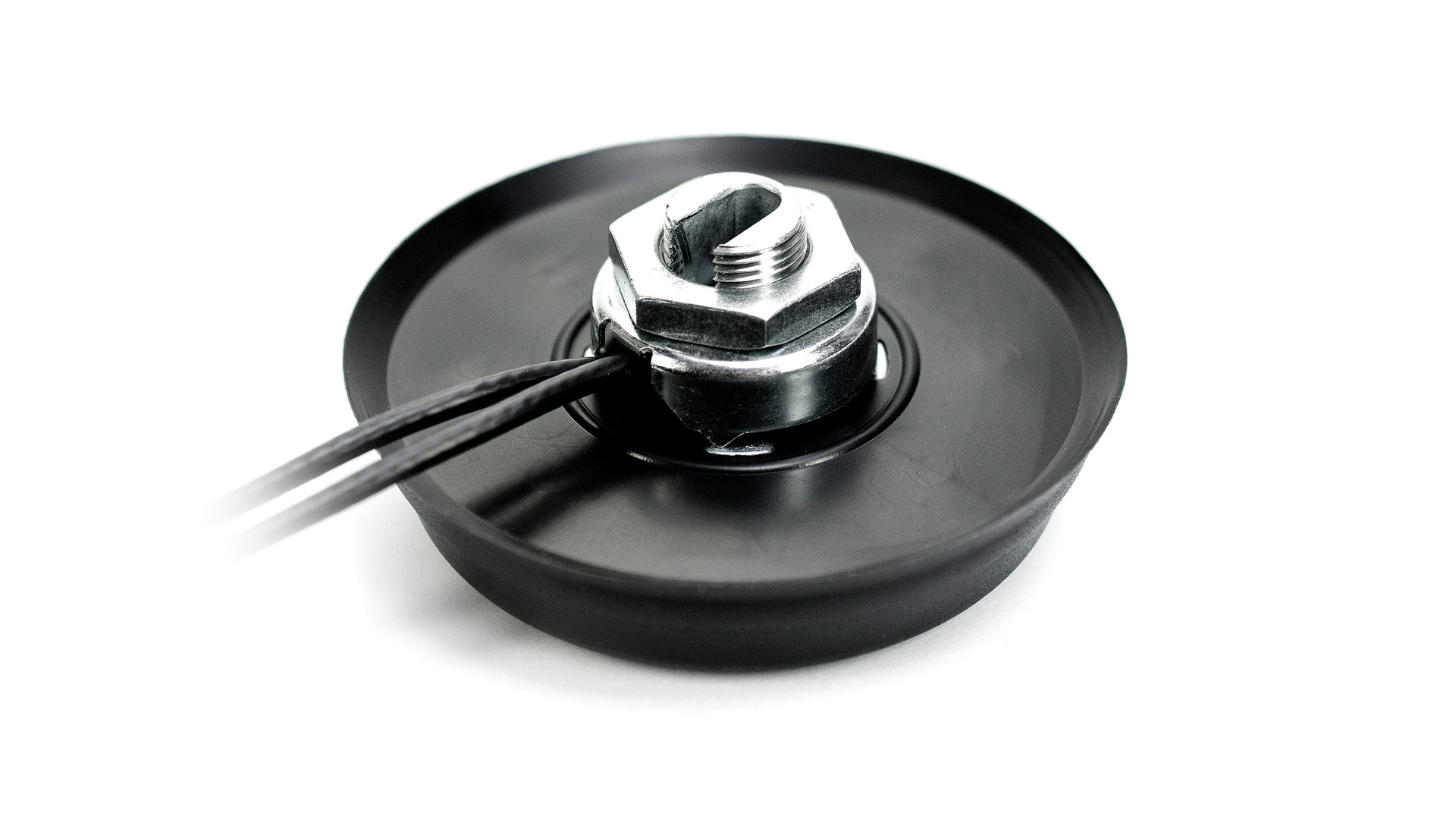

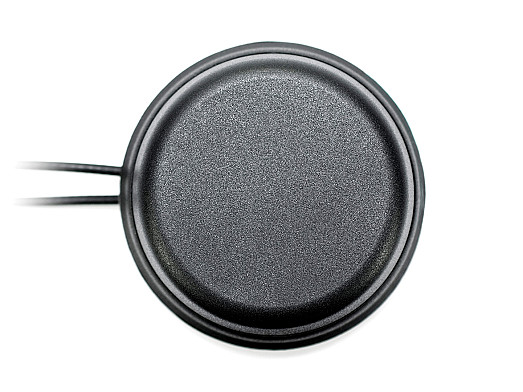

Antenna and electrical specifications
connection 1
CELLULAR
| Standards | 2G and 3G |
|---|---|
| Frequency | 824-960, 1710-2170 |
| VSWR | ~2.7:1, ~2.1:1 |
| Efficiency (%) | ~17.6, ~11.4 |
| Peak Gain (dBi) | ~-3.6, ~-3.3 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 2
GPS/GLONASS
| Standards | GPS/QZSS/Galileo/GLONASS |
|---|---|
| Frequency | 1575.42, 1598-1606 |
| Impedance (Ohm) | 50 |
| Active Gain (dB) | 27 dB @ 5 V |
| Saw Filter Type | Post-Filter |
| Voltage (V) | 2.7 - 5.5 |
| Current (mA) | 15 - 25 |
