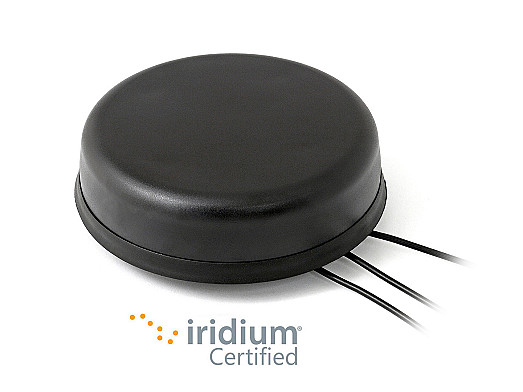

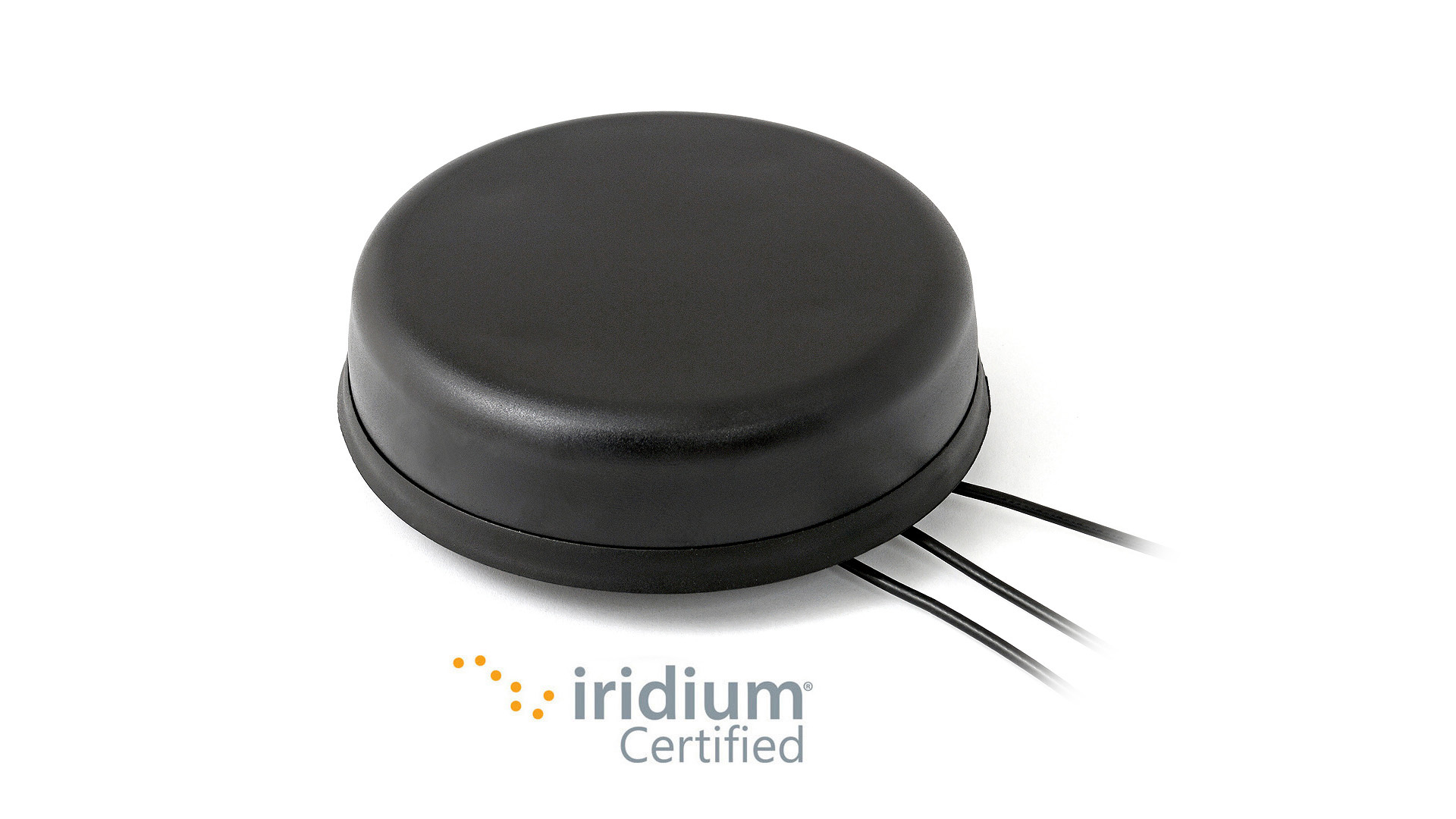

Antenna and electrical specifications
connection 1
5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
| Technologies | 5G, 4G, 3G and 2G |
|---|---|
| Standards | 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G |
| Frequency | 617-960, 1427-2690, 3300-5000, 5150-5925 |
| Return Loss (dB) | ~-7.5, ~-9.7, ~-11.2, ~-14.2 |
| VSWR | ~3.3:1, ~2.3:1, ~2.1:1, ~1.7:1 |
| Efficiency (%) | ~22.4, ~20.0, ~15.5, ~16.4 |
| Peak Gain (dBi) | ~-1.5, ~-1.5, ~-1.3, ~0.6 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
| Radiation Pattern | Omni-Directional |
connection 2
IRIDIUM
| Standards | IRIDIUM |
|---|---|
| Frequency | 1616-1627 |
| Passive Gain (dBi) | ~4.5 |
| Efficiency (%) | ~76 |
| Impedance (Ohm) | 50 |
| Axial Ratio (dB) | 3 max |
| Radiation Pattern | Hemispherical |
| Polarization | RHCP |
connection 3
GPS/GLONASS
| Standards | GPS/QZSS/Galileo/GLONASS |
|---|---|
| Frequency | 1575.42, 1598-1606 |
| Impedance (Ohm) | 50 |
| Active Gain (dB) | 28 @ 2.7 V |
| Saw Filter Type | Pre-Filter |
| Voltage (V) | 1.5 - 3.6 |
| Current (mA) | 9 @ 2.7 V |
| Power Consumption (mW) | 24.3 @ 2.7V |
