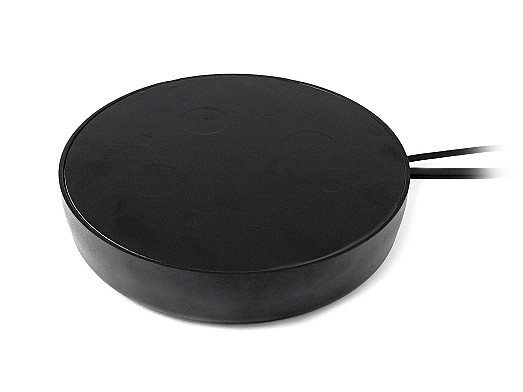

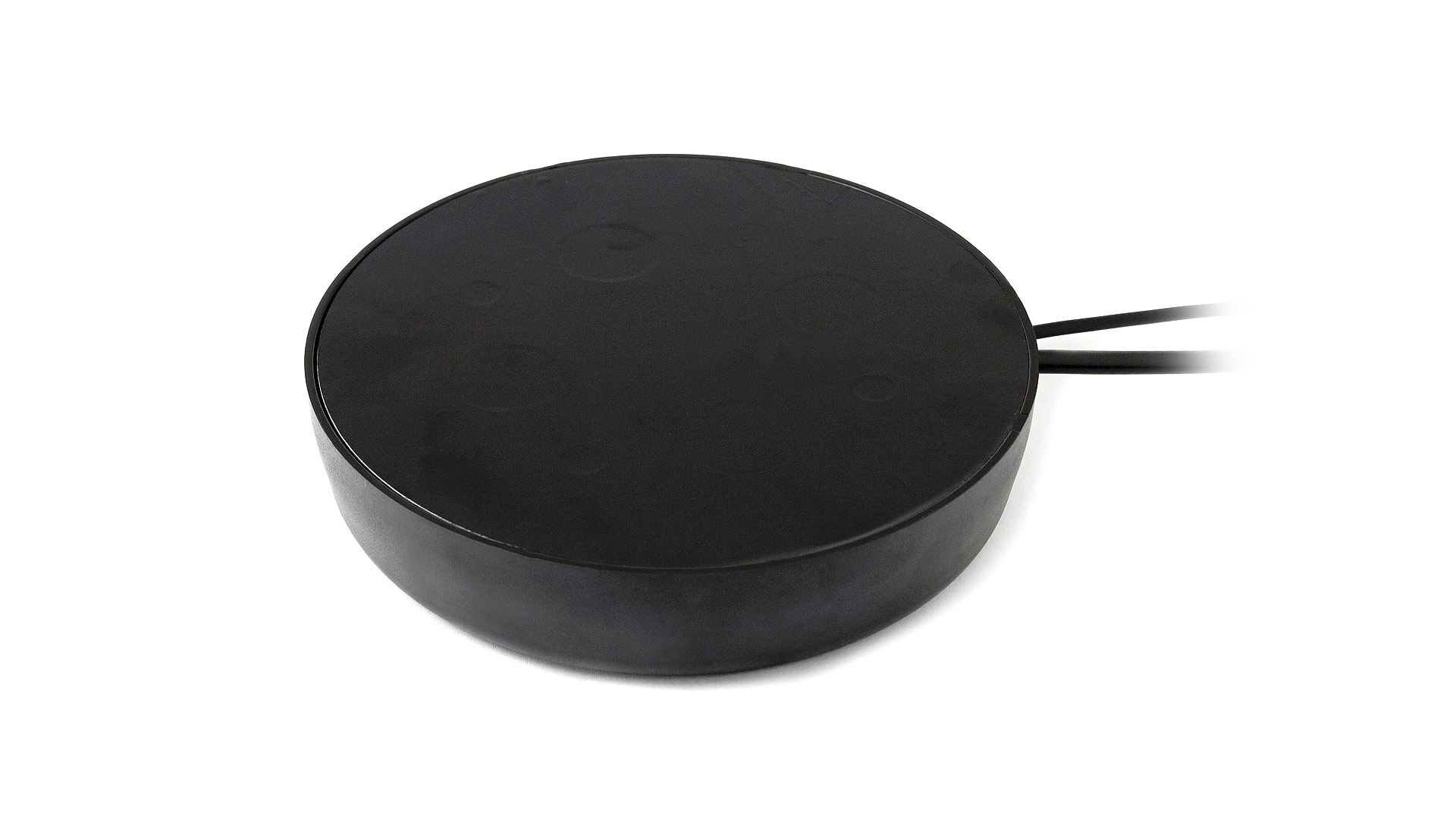

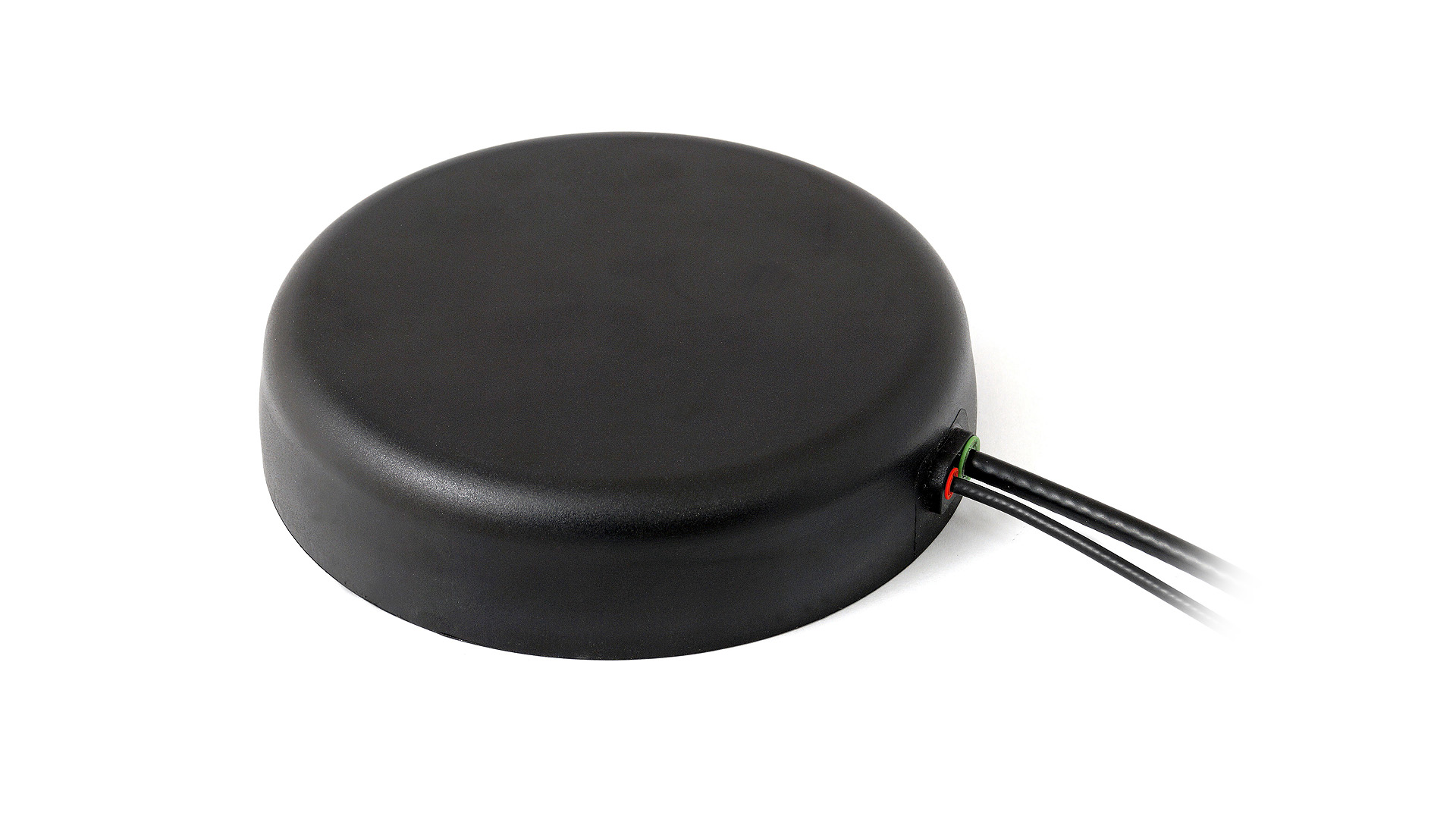

Antenna and electrical specifications
connection 1
TETRA/UHF
| Standards | TETRA/UHF |
|---|---|
| Frequency | 380-470 |
| VSWR | ~4.7:1 |
| Efficiency (%) | ~33.8 |
| Peak Gain (dBi) | ~-0.4 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 50 |
connection 2
GPS/GLONASS
| Standards | GPS/QZSS/Galileo/GLONASS |
|---|---|
| Frequency | 1575.42, 1598-1606 |
| Impedance (Ohm) | 50 |
| Polarisation | RHCP |
| Active Gain (dB) | 23 @ 3 V, 24 @ 5 V |
| Saw Filter Type | Post-Filter |
| Voltage Range (V) | 2.7 - 5.5 |
| Noise Figure (dB) | 1.2 |
| Current Consumption (mA) | 22 @ 5V |
| Power Consumption (mW) | max 138 mW |
