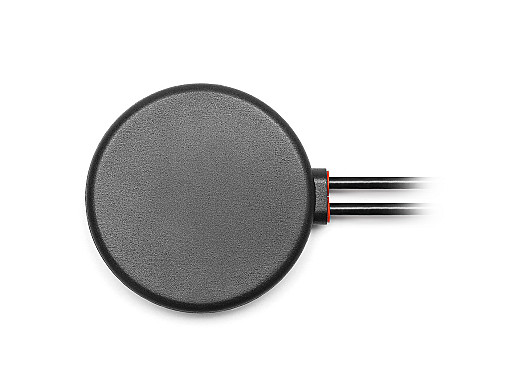

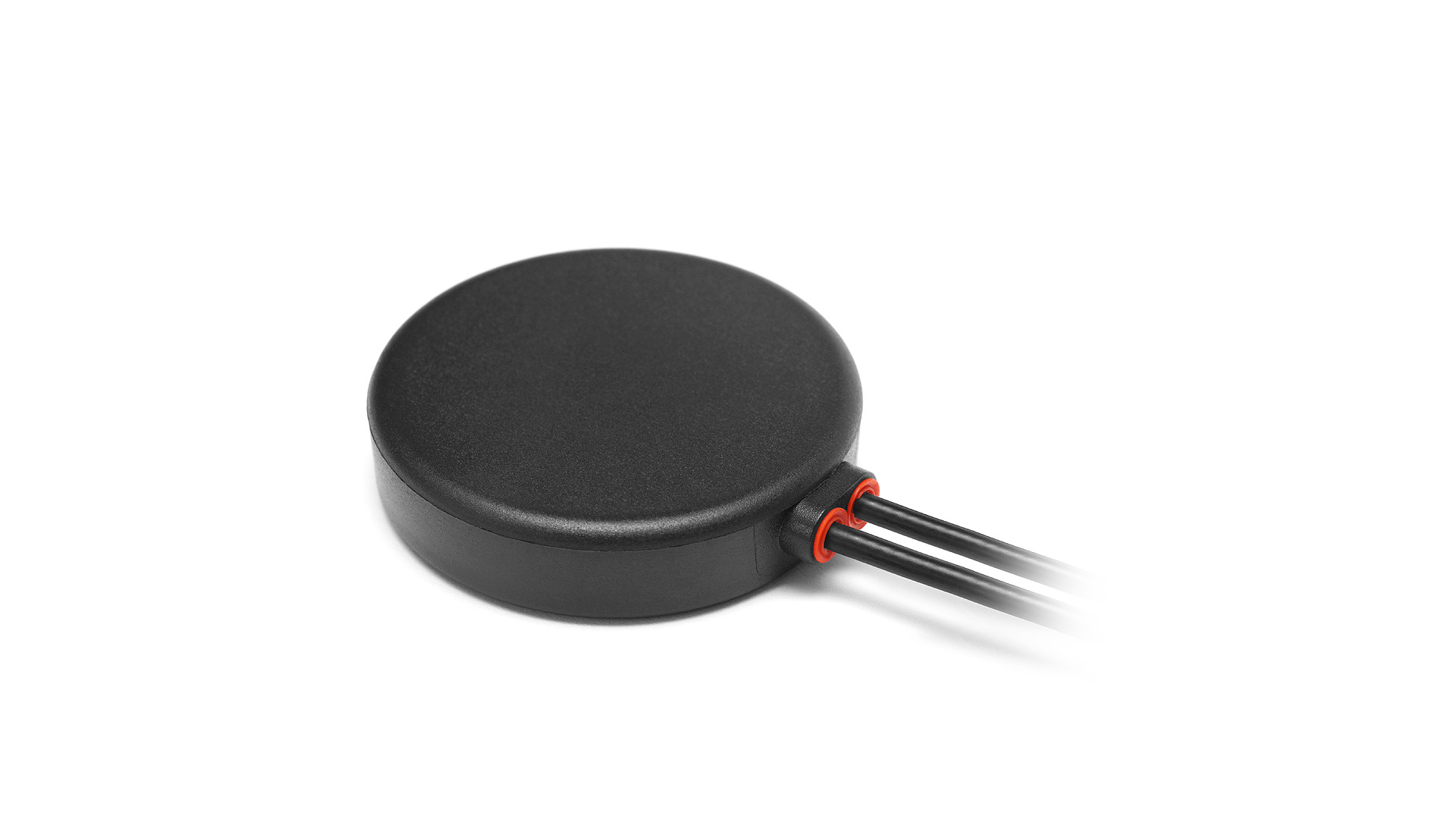

Antenna and electrical specifications
connection 1
CELLULAR
| Standards | 2G and 3G |
|---|---|
| Frequency | 824-960, 1710-2170 |
| VSWR | ~1.9:1, ~2.1:1 |
| Efficiency (%) | ~33.4, ~9.8 |
| Peak Gain (dBi) | ~1.2, ~-3.1 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 2
GPS/GLONASS
| Standards | GPS/QZSS/Galileo/GLONASS |
|---|---|
| Frequency | 1575.42, 1598-1610 |
| Impedance (Ohm) | 50 |
| Active Gain (dB) | 26 @ 3V |
| Saw Filter Type | Pre-Filter |
| Voltage (V) | 2.7 - 5.5 |
| Current (mA) | 15 - 25 |
| Power Consumption (mW) | 40 - 137 |
