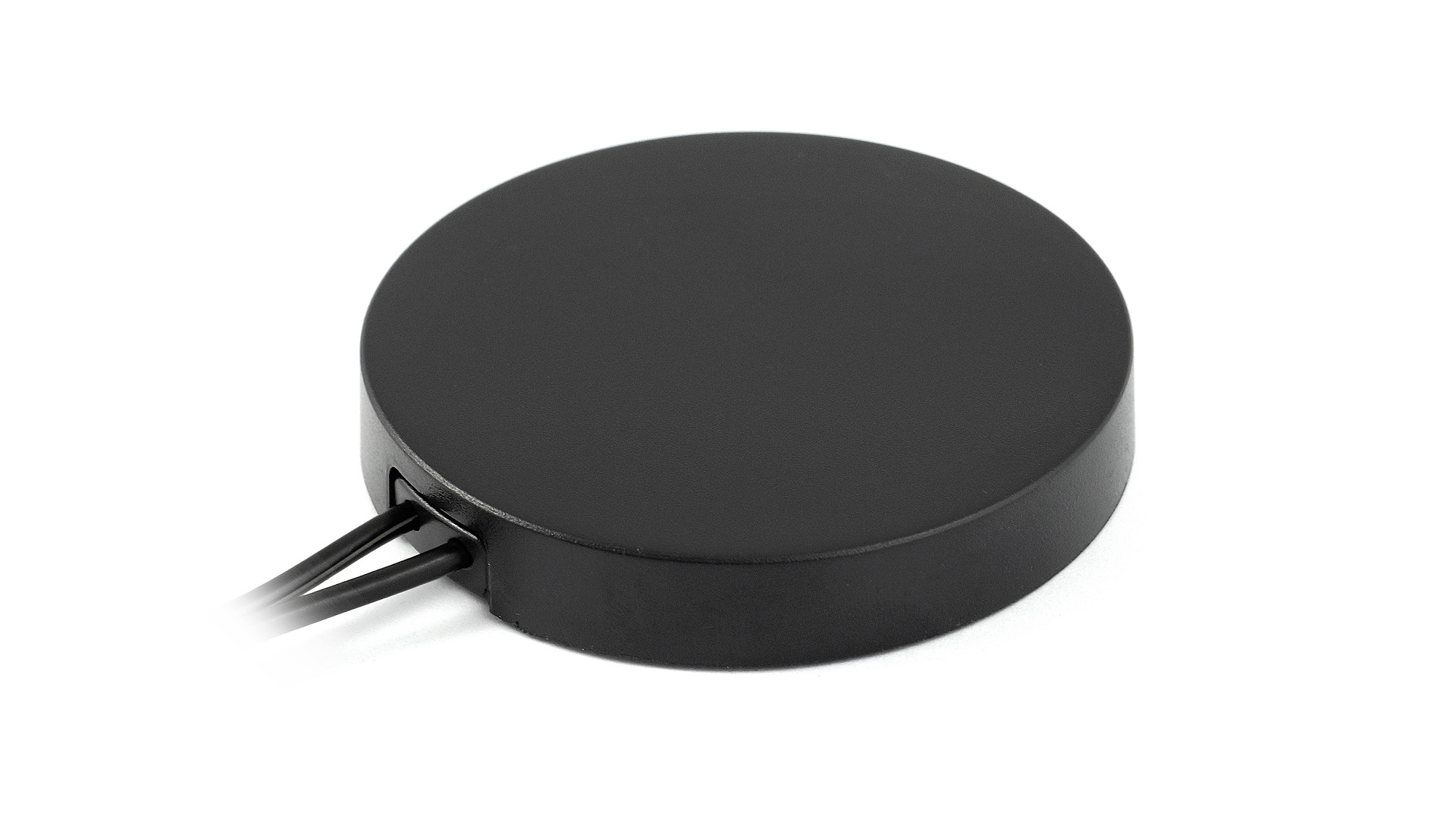

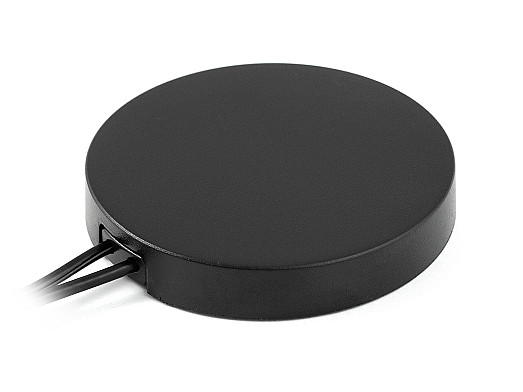

Antenna and electrical specifications
connection 1
CELLULAR
| Standards | 2G and 3G |
|---|---|
| Frequency | 824-960, 1710-2170 |
| VSWR | ~1.6:1, ~2.4:1 |
| Efficiency (%) | ~43, ~32 |
| Peak Gain (dBi) | ~1.5, ~0.5 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 2
GPS
| Standards | GPS/QZSS/Galileo |
|---|---|
| Frequency | 1575.42 |
| VSWR | <=1.5:1 |
| Impedance (Ohm) | 50 |
| Polarisation | RHCP |
| Active Gain (dB) | 26 @ 3 V |
| Saw Filter Type | Pre-Filter |
| Voltage (V) | 2.7 - 5.5 |
| Current (mA) | 15 - 25 |
| Power Consumption (mW) | 40 - 137 |
