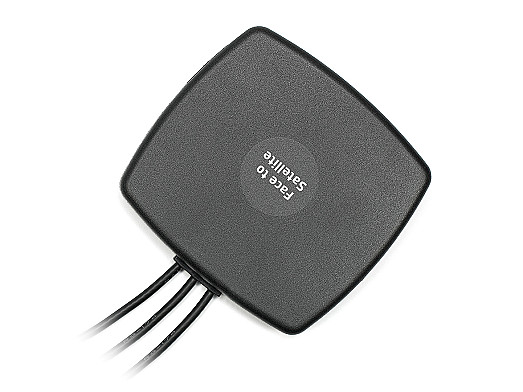

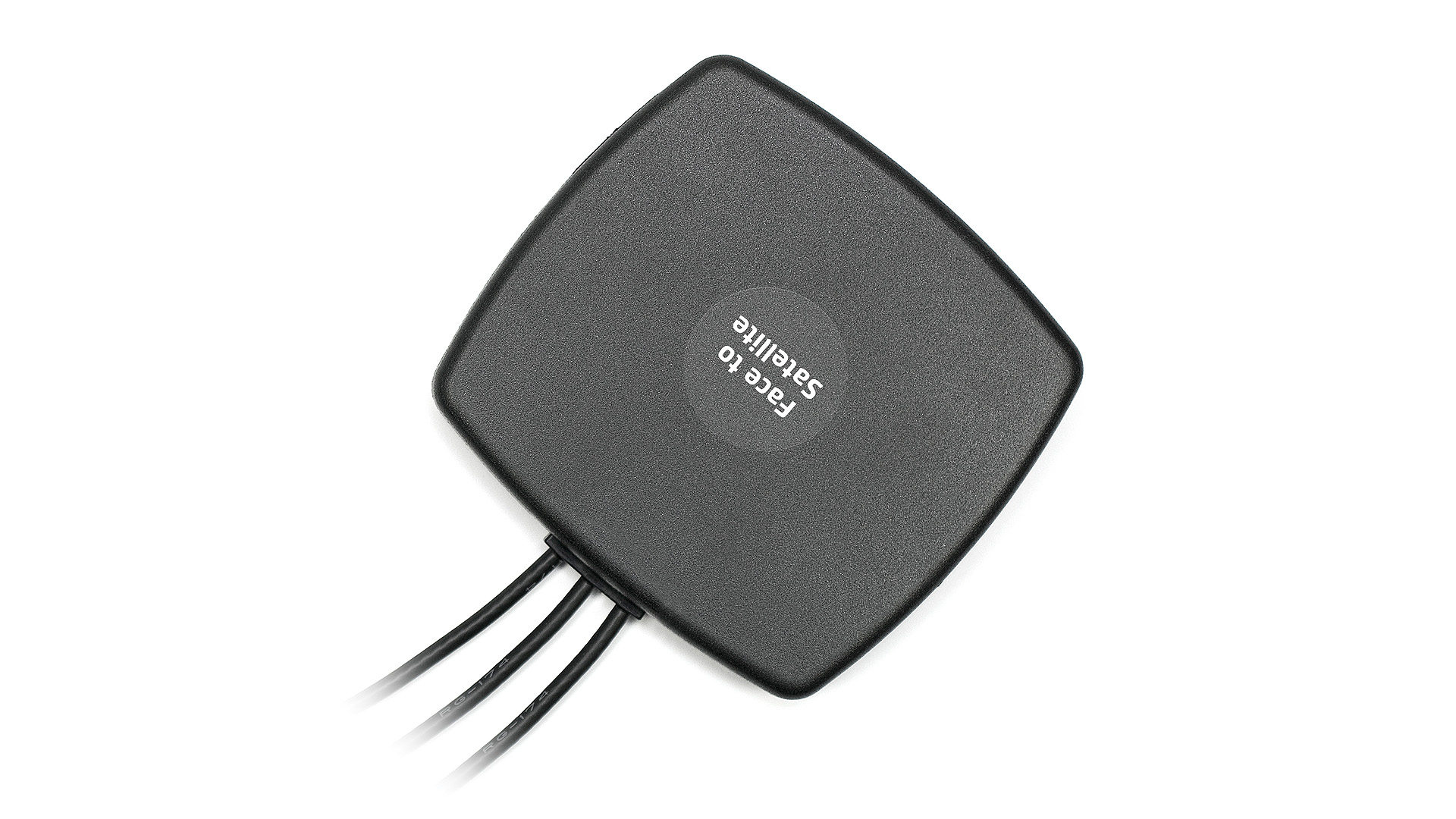

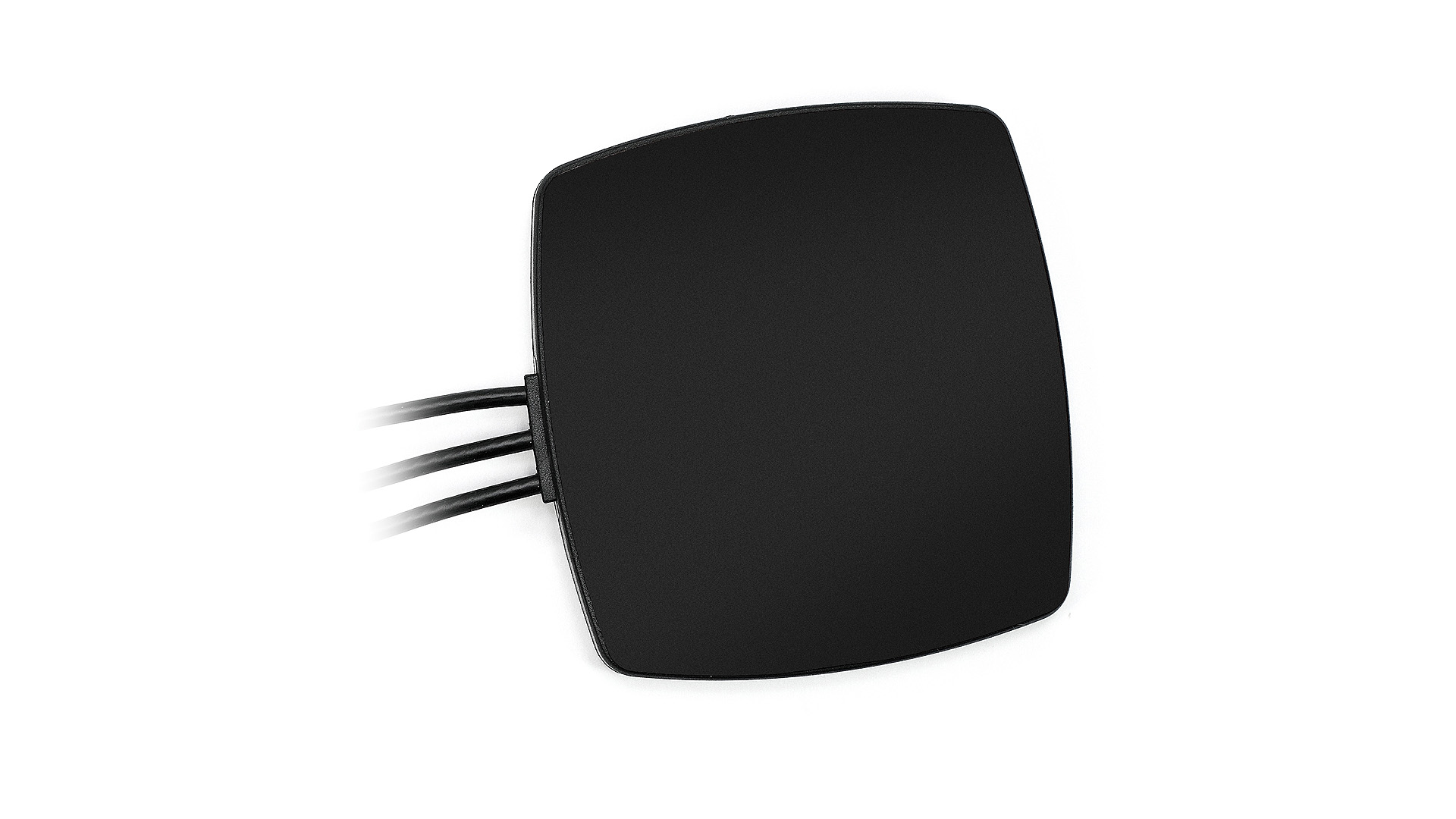

Antenna and electrical specifications
connection 1
CELLULAR/4G LTE
| Standards | 2G,3G and 4G |
|---|---|
| Frequency | 698-960, 1710-2170, 2500-2700 |
| Peak Gain (dBi) | ~2.9, ~3.2, ~2.1 |
| VSWR | ~2.2:1, ~1.2:1, ~2.2:1 |
| Efficiency (%) | ~55.6, ~56.0, ~38.7 |
| 50 | |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 2
2.4/5.0 GHz ISM
| Standards | WiFi, BT, ZigBee, ISM |
|---|---|
| Frequency | 2410-2490, 4920-5925 |
| VSWR | ~1.3:1, ~1.3:1 |
| Efficiency (%) | ~50, ~30 |
| Peak Gain (dBi) | ~3.2, ~4.2 |
| 50 | |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 3
GPS/GLONASS
| Standards | GPS/QZSS/Galileo/GLONASS |
|---|---|
| Frequency | 1575.42, 1598-1606 |
| VSWR | <=1.4:1 |
| 50 | |
| Polarisation | RHCP |
| Active Gain (dB) | 28 @ 2.7 V |
| Saw Filter Type | Pre-Filter |
| Voltage (V) | 1.5 - 3.6 |
| Noise Figure (dB) | 1.5 Typ |
| Current Consumption (mA) | 9 Typ |
| Power Consumption (mW) | 24.3 Typ |
| ESD Protection (kV) | 2 |
