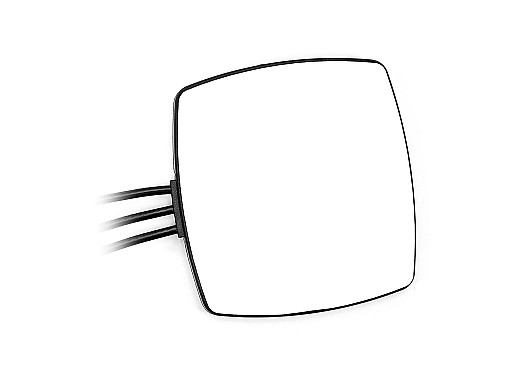

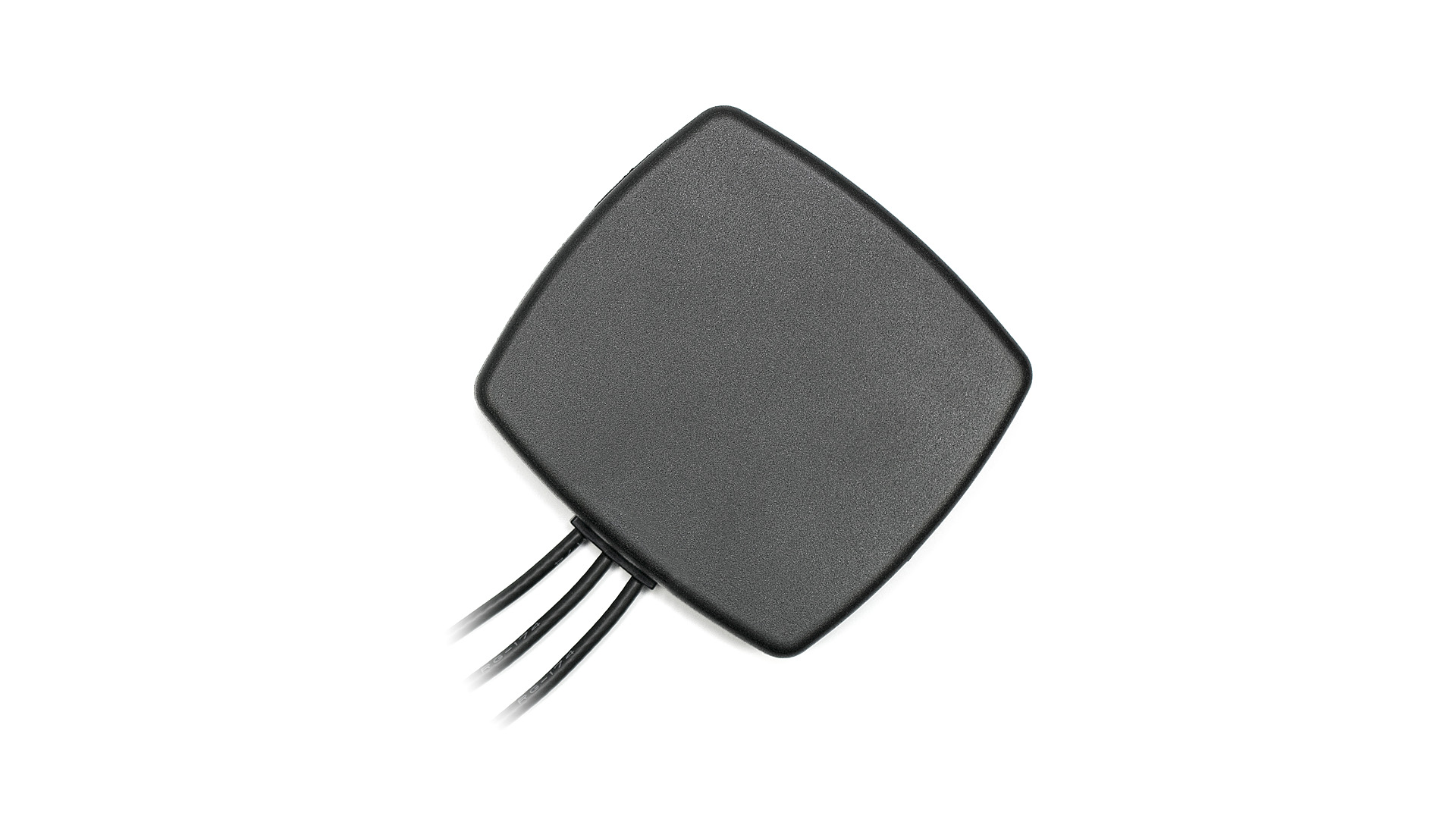

Antenna and electrical specifications
connection 1
CELLULAR/4G LTE
| Standards | 2G,3G and 4G |
|---|---|
| Frequency | 698-960, 1710-2170, 2500-2700 |
| VSWR | ~2.3:1, ~1.2:1, ~1.7:1 |
| Efficiency (%) | ~43.7, ~54.7, ~33.6 |
| Peak Gain (dBi) | ~3.2, ~4.3, ~1.9 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 2
CELLULAR/4G LTE
| Standards | 2G,3G and 4G |
|---|---|
| Frequency | 698-960, 1710-2170, 2500-2700 |
| VSWR | ~2.2:1, ~1.2:1, ~1.7:1 |
| Efficiency (%) | ~45.4, ~56.8, ~43.6 |
| Peak Gain (dBi) | ~4.1, ~3.5, ~3.0 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 3
2.4/5.0 GHz ISM
| Standards | WiFi, BT, ZigBee, ISM |
|---|---|
| Frequency | 2410-2490, 4920-5925 |
| VSWR | ~1.3:1, ~1.4:1 |
| Efficiency (%) | ~30.6, ~27.6 |
| Peak Gain (dBi) | ~7.5, ~3.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
