2J4H86PGFh Stellar 7-in-1 5GNR MIMO, WIFI 6E / WIFI 7 MIMO and GNSS Adhesive Mount Antenna designed and manufactured by 2J Antennas

2J4H86PGFh 7-in-1 Antenna

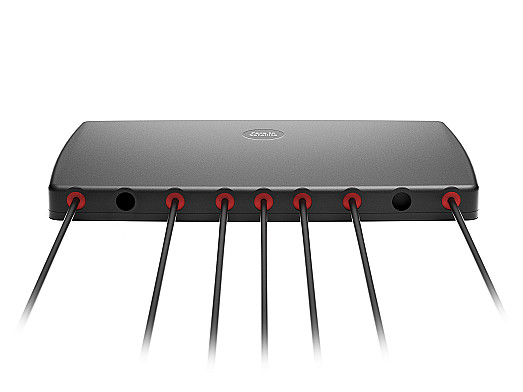

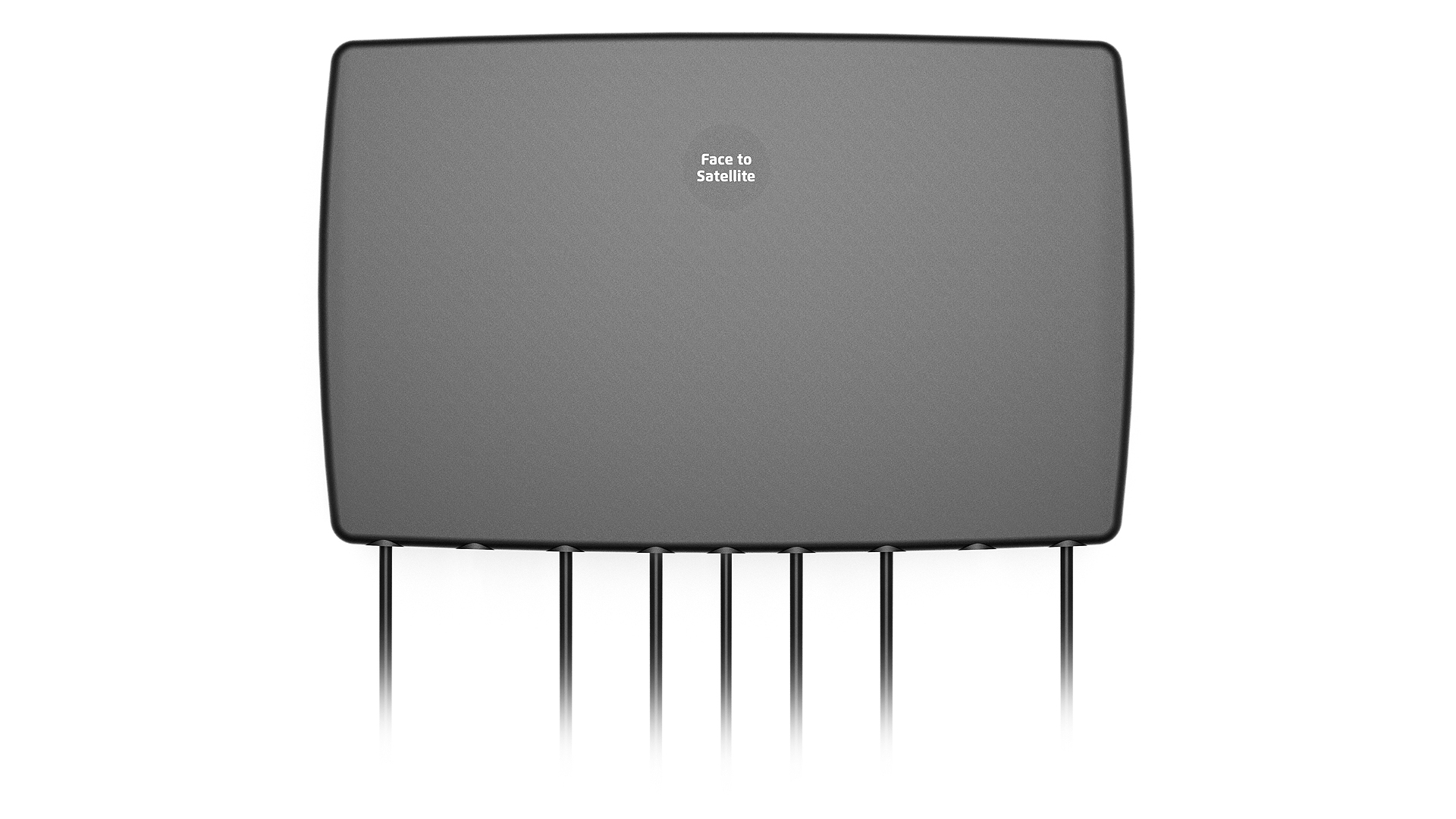

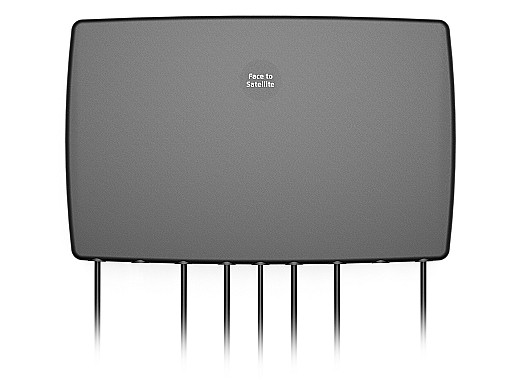

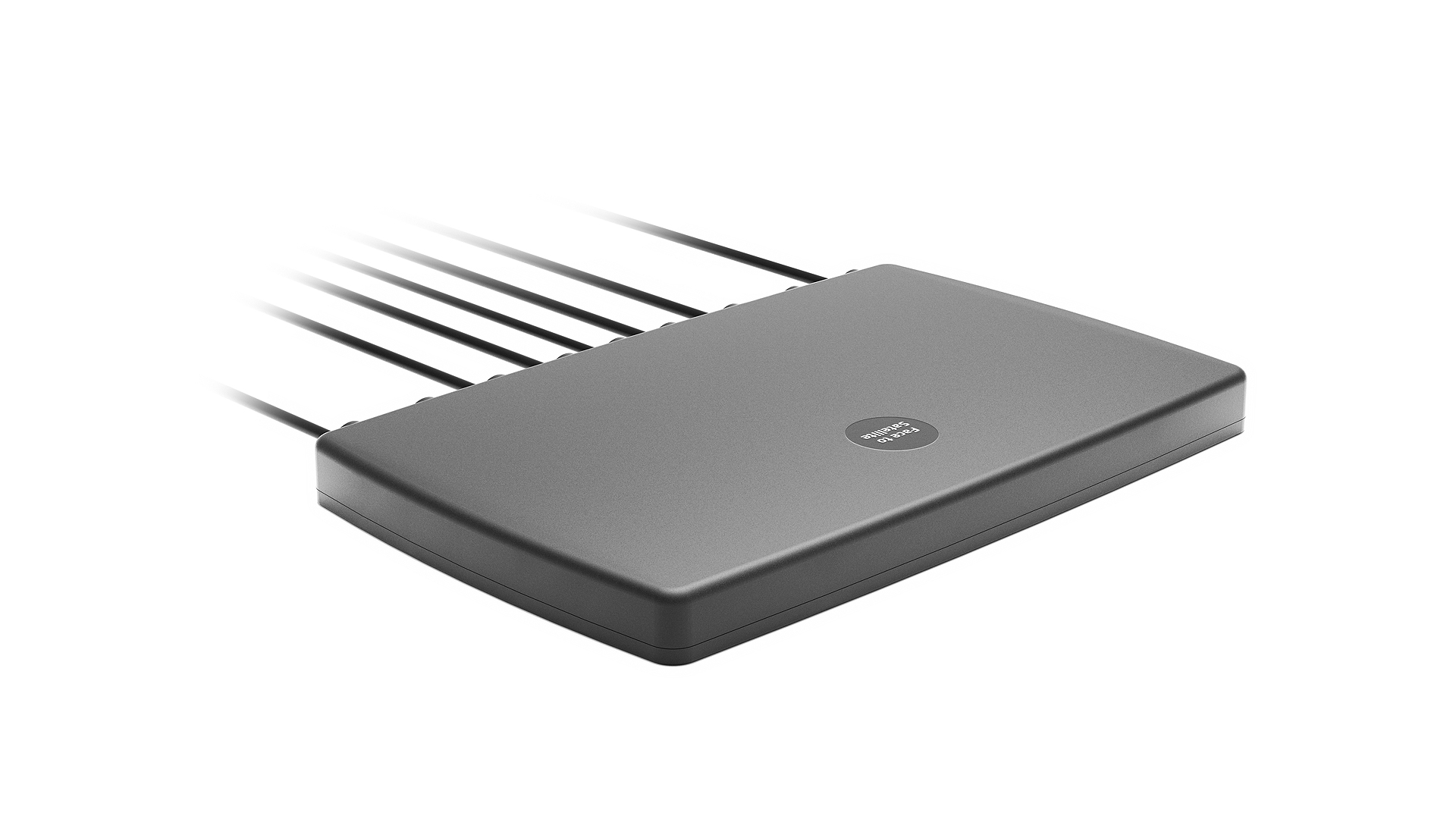

Stellar 7-in-1 4x 5GNR MIMO, 2x WIFI 6E / WIFI 7 MIMO and GNSS Adhesive Antenna

Connections (7)

4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

GPS/GLO/QZSS/Galileo/L1

2× 2.4-5.0-6.0GHz MIMO/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Mounting	Adhesive Mount
Dimensions (mm)	198 × 127 × 15.7
Operating temperature	-40 °C to +85 °C
Certificates	IP67, IP69
Standard colors

Product added to cart

Products documents

Datasheet

Antenna and electrical specifications

Scroll down

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies	5G, 4G, 3G and 2G
Standards	5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency	617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB)	~-13.2, ~-15.7, ~-12.6, ~-11.6
VSWR	~1.6:1, ~1.6:1, ~1.7:1, ~1.8:1
Efficiency (%)	~55.2, ~46.9, ~30.4, ~26.3
Peak Gain (dBi)	~3.1, ~4.5, ~2.1, ~1.0
Impedance (Ohm)	50
Polarisation	Linear
Radiation Pattern	Omni-Directional
Max. Input Power (W)	25

connection 2

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies	5G, 4G, 3G and 2G
Standards	5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency	617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB)	~-14.6, ~-15.4, ~-15.6, ~-15.7
VSWR	~1.5:1, ~1.5:1, ~1.5:1, ~1.4:1
Efficiency (%)	~55.1, ~46.9, ~35.7, ~34.0
Peak Gain (dBi)	~3.3, ~4.1, ~3.1, ~2.9
Impedance (Ohm)	50
Polarisation	Linear
Radiation Pattern	Omni-Directional
Max. Input Power (W)	25

connection 3

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies	5G, 4G, 3G and 2G
Standards	5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency	617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB)	~-15.4, ~-14.3, ~-13.7, ~-13.0
VSWR	~1.5:1, ~1.6:1, ~1.7:1, ~1.7:1
Efficiency (%)	~55.3, ~44.0, ~29.7, ~27.5
Peak Gain (dBi)	~3.5, ~3.4, ~2.6, ~3.1
Impedance (Ohm)	50
Polarisation	Linear
Radiation Pattern	Omni-Directional
Max. Input Power (W)	25

connection 4

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies	5G, 4G, 3G and 2G
Standards	5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency	617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB)	~-15.2, ~-16.8, ~-13.9, ~-12.5
VSWR	~1.5:1, ~1.4:1, ~1.6:1, ~1.7:1
Efficiency (%)	~57.1, ~48.4, ~30.4, ~25.1
Peak Gain (dBi)	~3.4, ~4.5, ~2.5, ~1.2
Impedance (Ohm)	50
Polarisation	Linear
Radiation Pattern	Omni-Directional
Max. Input Power (W)	25

connection 5

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards	WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency	2410-2490, 4920-5925, 5925-7125
VSWR	~1.9:1, ~1.7:1, ~1.9:1
Efficiency (%)	~37.6, ~23.0, ~42.3
Peak Gain (dBi)	~6.0, ~5.0, ~3.0
Impedance (Ohm)	50
Polarisation	Linear
Max. Input Power (W)	25

connection 6

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards	WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency	2410-2490, 4920-5925, 5925-7125
VSWR	~1.3:1, ~1.6:1, ~1.6:1
Efficiency (%)	~38.2, ~34.3, ~44.4
Peak Gain (dBi)	~3.7, ~2.3, ~3.1
Impedance (Ohm)	50
Polarisation	Linear
Max. Input Power (W)	25

connection 7

GPS/GLONASS

Standards	GPS/GLONASS/QZSS/Galileo
Frequency	1575.42, 1598-1606
Passive Gain (dBi)	~4.5, ~5.0
Impedance (Ohm)	50
Radiation Pattern	Hemispherical
Voltage Range (V)	1.5 - 3.6
Active Gain (dB)	28 @ 2.7 V
Noise Figure (dB)	1.8 @ 2.7 V
Current Consumption (mA)	9 @ 2.7 V
Power Consumption (mW)	24.3 @ 2.7 V
Saw Filter Type	Pre-Filter
Out of Band Rejection (dB)	43
ESD Protection (kV)	6

Key Features

7-in-1 Combination Antenna

Ultra Wide band Antenna

617-5925 MHz Sub 6GHz Bands

WIFI 6E / WIFI 7 Antenna

Ground Plane Independent

Full 4GLTE backward compatibility

4.5 dBi 5G NR Peak Gain

6.0 dBi WIFI Peak Gain

High Performance

Active GNSS Antenna

28 dB GNSS Active Gain

Pre-Filter GNSS

GNSS Voltage Range 1.5 - 3.6 V

Low Profile

Small Form Factor

Customizable Cable and Connector

5GNR Antenna Bands list

Parameters	5GNR Antenna
Frequency (MHz)	617-960	1427-2690	3300-5000	5150-5925
Band (MHz)	600, 700, 850, 900	1500, 1600, 1700, 1800, 1900, 2000, 2100, 2300, 2500, 2600	3300, 3500, 3600, 3700, 4500	5200, 5500, 5800
5GNR Bands	n5, n8 ,12, n20, n28, n71, n81, n82, n83,	n1, n2, n3, n7, n25, n34, n38, n39, n40, n41, n50, n51, n66, n70, n74, n75, n76, n80, n84, n86	n77, n78, n79
4GLTE Bands	B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B71, B85	B1, B2, B3, B4, B7, B9, B10, B11, B21, B23, B24, B25, B30, B32, B33, B34, B35, B36, B37, B38, B39, B40, B41, B45, B50, B51, B65, B66, B69, B70, B74, B75, B76	B22, B42, B43, B48, B49, B52	B46, B47, B252, B255
3GCELL Bands	B5, B6, B8, B12, B13, B14, B19, B20, B26	B1, B2, B3, B4, B7, B9, B10, B11, B21, B25, B32, B33, B34, B35, B36, B37, B38, B39, B40	B22
2GCELL Bands	710, 750, 810T, 850, 900P, 900E, 900R	1800DCS, 1900PCS
CDMACELL Bands	BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19	BC1, BC4, BC6, BC8, BC13, BC14, BC15, BC16, BC20, BC21

Antenna Description

Sleekest 7-in-1 Antenna Design on the Market, Accelerating 5GNR and WIFI 6E / WIFI 7 Performance

The super low profile 7-in-1 adhesive mount antenna (2J4H86PGFh) is 55% smaller than what the competition can offer and is designed for 5GNR, 2.4/5.0/6.0 WIFI 6E / WIFI 7 and GNSS bands that operate within 617 MHz – 7125 MHz frequencies. This high-performance antenna offers superior connectivity, accuracy, and reliability for ultra-wide band MIMO, wireless, and navigation, allowing devices to remain online while moving through different coverage areas. These features make it a leading antenna solution for the next generation of mobile services including high-end public safety, transportation, automotive, consumer and commercial industries. This antenna is available in various combinations to meet different application needs.

Suggested applications include:

Wireless broadband communications
Private Networking
Cellular and Mobile Data and Voice
Data Terminals, Base Stations and Routers
Critical Communications and Public Safety

Law Enforcement
Medical Transportation
Fire Departments

Precision Navigation
Tracking/ Mapping
Industrial Machinery
Automotive and Transportation
Telematics
Utilities
Mobile Modems

4 X Cellular 5GNR/4G LTE/3G/2G MIMO

Cable 1-4 are designed for cellular and mobile devices that operate within 5GNR, FirstNet, CBRS, 4G LTE, CAT-X, CAT-MX, CAT-NBX, 3G and 2G standards. With accelerated 5GNR technology and edge computing workloads, this antenna outperforms its competition. Tuned with high gain and with high efficiency within 617 – 5925 MHz frequency bands while maintaining full range 360 degree signal strength and quality.

2 X WIFI 6E / WIFI 7 2.4/5.0/6.0 GHz ISM MIMO

Cable 5-6 are designed for devices that operate within Wifi, BT, ZigBee, ISM, SigFox and LoRa standards. The 2.4/5.0/6.0 GHz bands and WIFI 6E / WIFI 7 technology combine long-range, short-range, and very large capacity without competing with traffic from other devices or networks. This results in high bandwidth channels, improved security, less interference, and reduces network congestion making it ideal for applications that demand faster WiFi and consistent network availability.

GNSS GPS/GLONASS/Galileo/QZSS

Cable 7 is designed for precision navigational applications that operate within GPS, GLONASS, Galileo and QZSS standards. The signal radiates on all planes and maximizes connectivity by avoiding conflict with propagating signals common with penetrating obstructions and dead spots in urban areas. This connection can maintain an active gain of 28 dB @ 2.7 V with an out of bound rejection of ~43 dBc. Designed with electrostatic discharge (ESD) protection for up to 6KV and a SAW pre-filter blocking inadequate frequencies (within 1575-1602 MHz) from passing from the antenna to the receiver.

Installation / Environmental

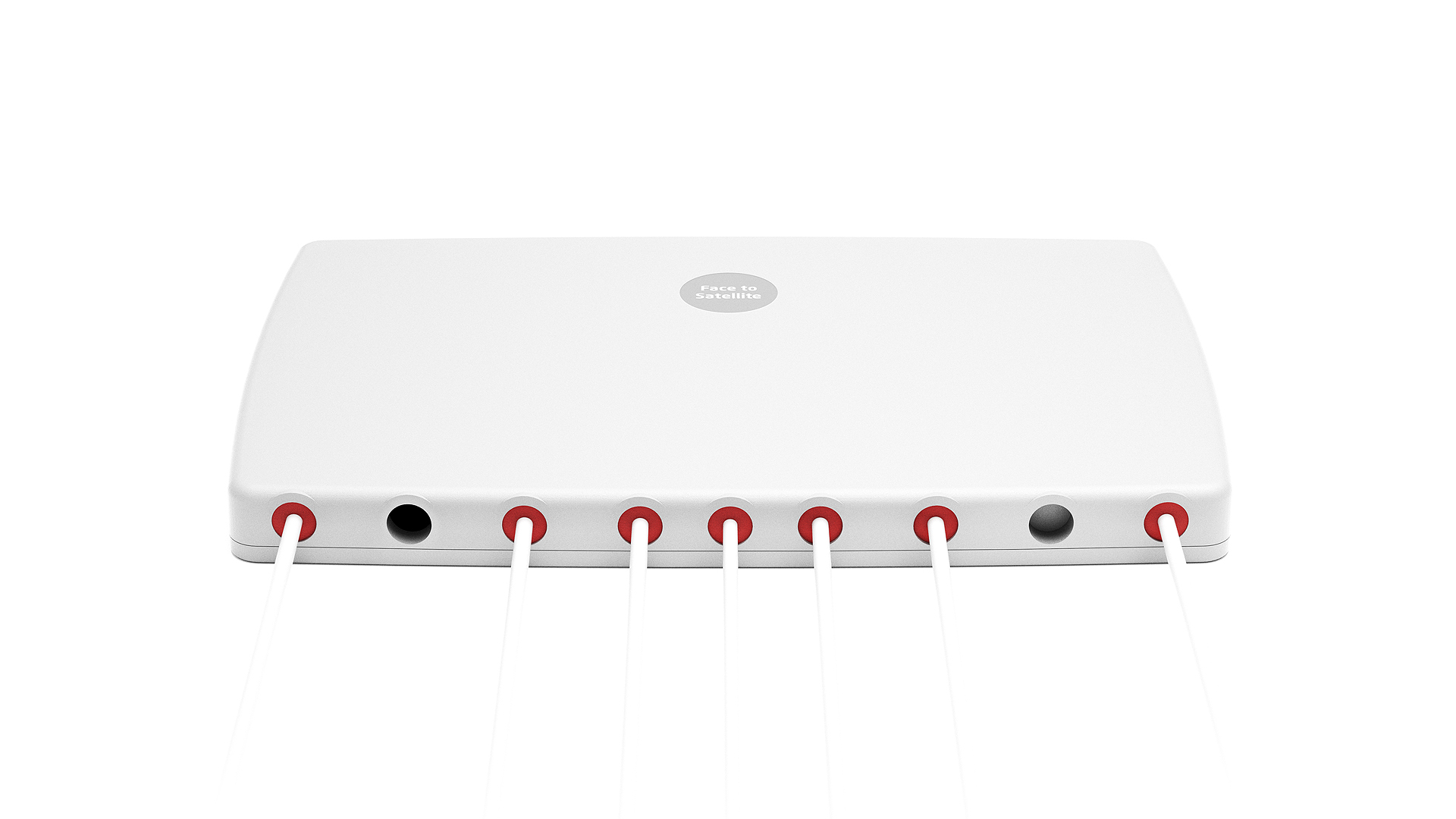

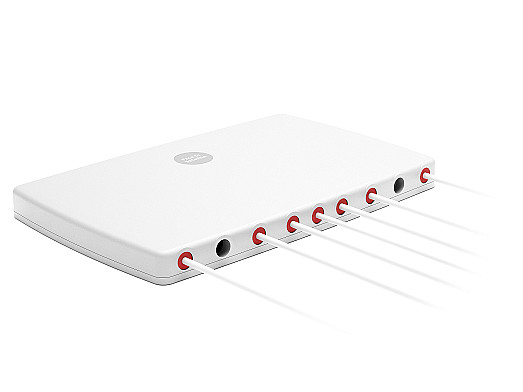

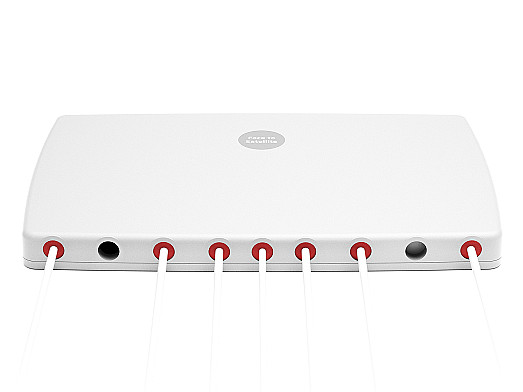

This ground plane independent antenna can be installed with an easy peel-and-stick adhesive to mount on any type of non-metallic surface making it ideal for temporary installations. We also offer up to 9-in-1 antennas with magnetic mount and screw mount, please see product 2J4H86MCFf and 2J6B86BCFf for more details. The low-profile housing measures only 198 x 127 x 15.7 mm making this antenna 55% smaller than any other antenna on the market. Manufactured with ASA UV stable material and full IP67/IP69 rating offer durability and the highest level of protection against water and moisture. This antenna is available in black or white color.

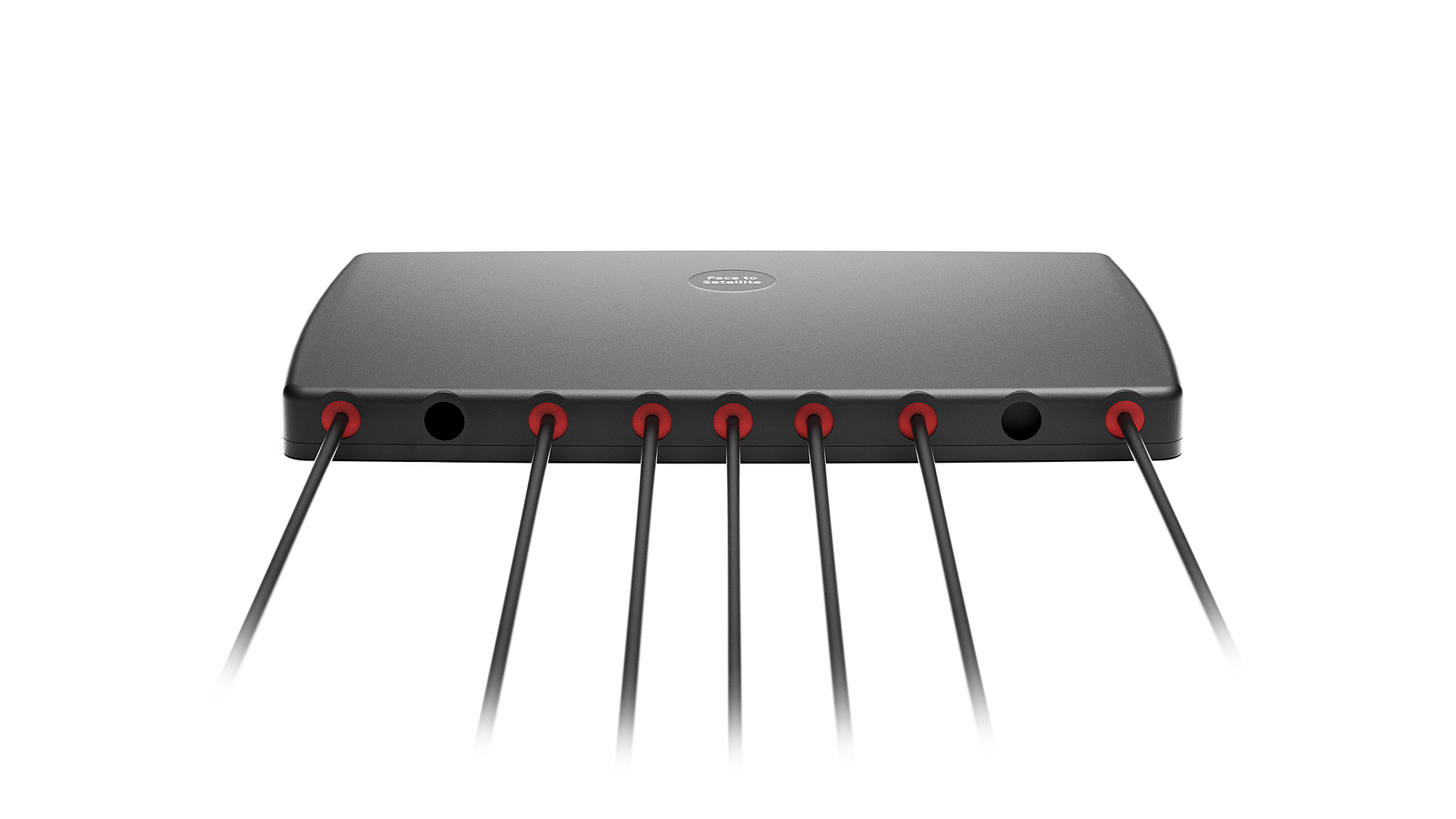

2J4H86PGFh connections are standard SMA-Male (5GNR & GNSS)/ SMA-Male-RP (WIFI 6E / WIFI 7 ISM) and come with 300cm long D302 (5GNR/WIFI 6E / WIFI 7 ISM)/ LL100 (GNSS) cables. All the cables feed from one side of the antenna housing and are tuned for optimal performance. We offer a wide range of alternative connectors and cables to meet any customization needs. Please contact our highly skilled engineers for assistance in antenna selection or customization requirements.

All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
