Stellar 6-in-1 2x 5GNR MIMO, 3x WIFI 6E / WIFI 7 MIMO and GNSS Magnetic Antenna

Sleekest 6-in-1 Antenna Design on the Market, Accelerating 5GNR and WIFI 6E / WIFI 7 Performance

The super low profile 6-in-1 magnetic mount antenna (2J4H86MGFm) is 55% smaller than what the competition can offer and is designed for 5GNR, 2.4/5.0/6.0 and GNSS bands that operate within 617 MHz – 7125 MHz frequencies. This high-performance antenna offers superior connectivity, accuracy, and reliability for ultra-wide band MIMO, wireless, and navigation, allowing devices to remain online while moving through different coverage areas. These features make it a leading antenna solution for the next generation of mobile services including high-end public safety, transportation, automotive, consumer and commercial industries. This antenna is available in various combinations to meet different application needs.

Suggested applications include:

• Wireless broadband communications
• Private Networking
• Cellular and Mobile Data and Voice
• Data Terminals, Base Stations and Routers
• Critical Communications and Public Safety
• Law Enforcement
• Medical Transportation
• Fire Departments
• Precision Navigation
• Tracking/ Mapping
• Industrial Machinery
• Automotive and Transportation
• Telematics
• Utilities
• Mobile Modems

2 X Cellular 5GNR/4G LTE/3G/2G MIMO

Cable 1-2 are designed for cellular and mobile devices that operate within 5GNR, FirstNet, CBRS, 4G LTE, CAT-X, CAT-MX, CAT-NBX, 3G, 2G, Cellular, HSPA+, UMTS, WCDMA, CDMA, GSM, GPRS, EDGE, EV-DO standards. With accelerated 5GNR technology and edge computing workloads, this antenna outperforms its competition.  Tuned with high gain and with high efficiency within 617 – 5925 MHz frequency bands while maintaining full range 360-degree signal strength and quality.

3 X WIFI 6E / WIFI 7 2.4/5.0/6.0 GHz ISM MIMO

Cable 3-5 are designed for devices that operate within Wifi, BT, ZigBee, ISM, SigFox and LoRa standards. The 2.4/5.0/6.0 GHz bands and WIFI 6E / WIFI 7 technology combine long-range, short-range, and very large capacity without competing with traffic from other devices or networks. This results in high bandwidth channels, improved security, less interference, and reduces network congestion making it ideal for applications that demand faster WiFi and consistent network availability.

GNSS GPS/GLONASS/Galileo/QZSS

Cable 6 is designed for precision navigational applications that operate within GPS, GLONASS, Galileo and QZSS standards. The signal radiates on all planes and maximizes connectivity by avoiding conflict with propagating signals common with penetrating obstructions and dead spots in urban areas. This connection can maintain an active gain of 28 dB @ 2.7 V with an out of bound rejection of ~43 dBc. Designed with electrostatic discharge (ESD) protection for up to 6KV and a SAW pre-filter blocking inadequate frequencies (within 1561-1602 MHz) from passing from the antenna to the receiver.

Installation / Environmental

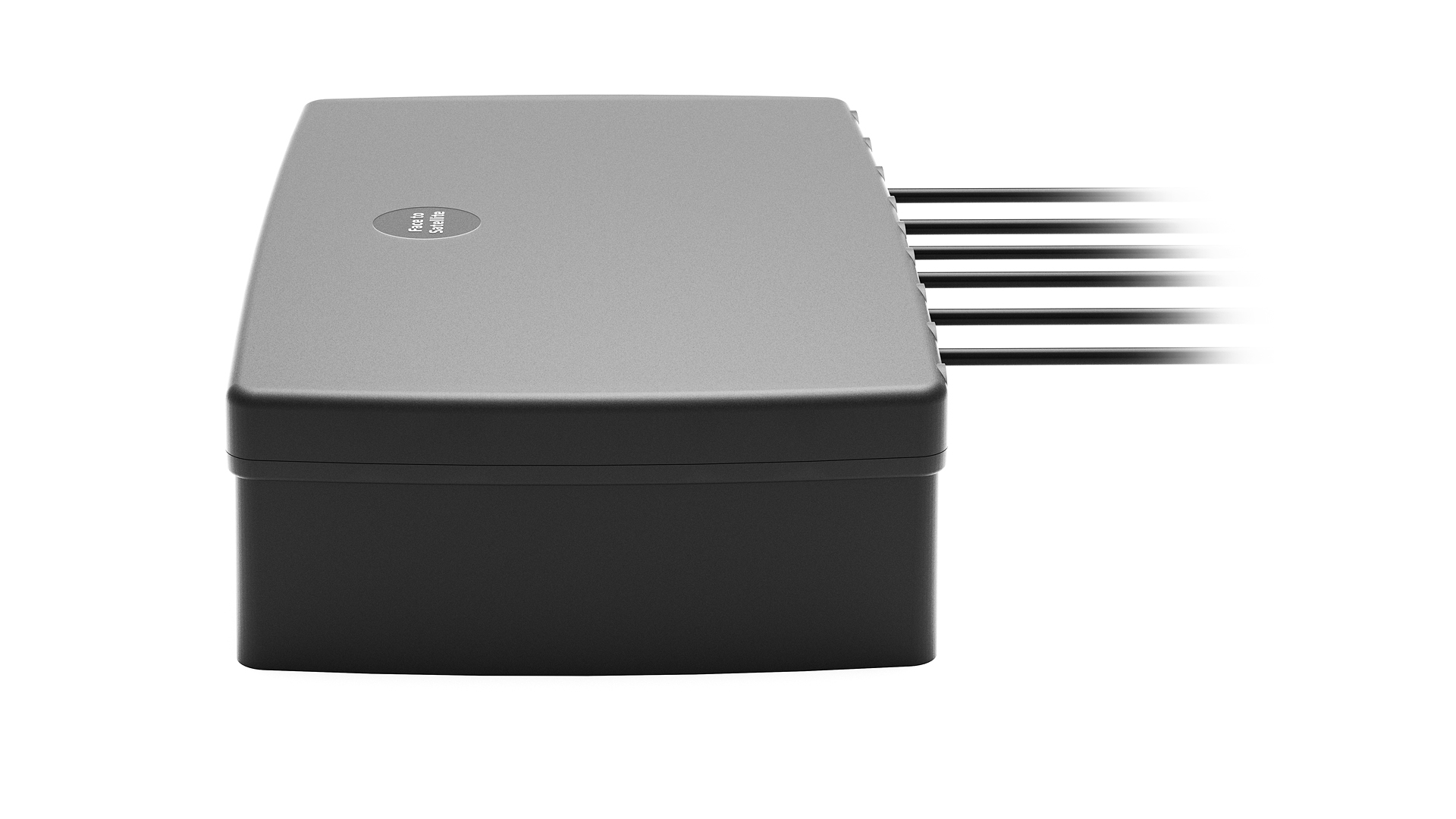

This ground plane independent antenna can be easily installed with the heavy-duty magnetic mount on metal surfaces such as vehicles and metal buildings for permanent or temporary applications. We also offer this antenna with adhesive mount and screw mount, please see product 2J4H86PCFf and 2J6B86BCFf for more details. The low-profile housing measures only 198 x 126 x 50.7mm making this antenna 55% smaller than any other antenna on the market. Manufactured with ASA UV stable material and full IP67/IP69 rating offer durability and the highest level of protection against water and moisture.  This antenna is available in black or white color.

2J4H86MGFm connections are standard SMA-Male (5GNR & GNSS)/ SMA-Male-RP (WIFI 6E / WIFI 7 ISM) and come with 300cm long D302 (5GNR/WIFI 6E / WIFI 7 ISM)/ LL100 (GNSS) cables. All the cables feed from one side of the antenna housing and are tuned for optimal performance. We offer a wide range of alternative connectors and cables to meet any customization needs. Please contact our highly skilled engineers for assistance in antenna selection or customization requirements.

All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
